| Quantity: | |
|---|---|
Xhnotion or no brand
L/C, T/T, Paypal, Money Gram, Western Union
100000 meter per month
plastic bag
ABH
Air Water Oil
0-360 Psi
Air, Water, Oil
XHnotion
ROHS, REACH, CE
China
3917290000
Nylon

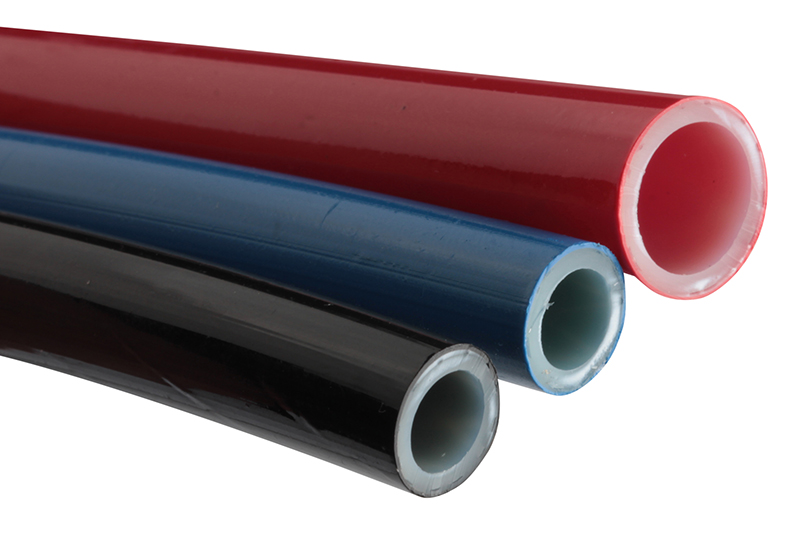

Hoses
Thermoplastic Pipe
Color
Hollow
Round
FEATURES
•100% Pressure Tested
•Excellent UV Stability
•Abrasion Resistant
•Kink Resistant
OPERATING PARAMETERS
Temperature Range: -40℉(-40℃)to + 200℉ (93℃)
Working Pressure: 150 psi (10.3 bar)
STANDARDS
•Meets SAE Specification J844
Tube O.D. | Outside Diameter | Inside Diameter | Nominal Wall Thickness | Burst Pressure at 73℉/23℃ | Minimum Bend Radlus | Weight | Standard Reel | |||||||
inch | inch | mm | inch | mm | inch | mm | psi | bar | inch | mm | lbs./100ft. | kg./31mtr. | feet | meter |
1/8 | 0.125 | 3.2 | 0.079 | 2.0 | 0.023 | 0.6 | 1000 | 69.0 | 0.370 | 9.4 | 0.340 | 0.154 | 1000 | 305 |
5/32 | 0.156 | 4.0 | 0.092 | 2.3 | 0.032 | 0.8 | 1200 | 82.7 | 0.500 | 12.7 | 0.570 | 0.259 | 1000 | 305 |
3/16 | 0.188 | 4.8 | 0.118 | 3.0 | 0.035 | 0.9 | 1200 | 82.7 | 0.750 | 19.1 | 0.770 | 0.349 | 1000 | 305 |
1/4 | 0.250 | 6.4 | 0.170 | 4.3 | 0.040 | 1.0 | 1200 | 82.7 | 1.00 | 25.4 | 1.21 | 0.549 | 1000 | 305 |
5/16 | 0.313 | 7.9 | 0.232 | 5.9 | 0.040 | 1.0 | 1000 | 69.0 | 1.25 | 31.8 | 1.57 | 0.712 | 500 | 152 |
3/8 | 0.375 | 9.5 | 0.251 | 6.4 | 0.062 | 1.6 | 1400 | 96.5 | 1.50 | 38.1 | 2.70 | 1.22 | 500 | 152 |
1/2 | 0.500 | 12.7 | 0.376 | 9.6 | 0.062 | 1.6 | 950 | 65.5 | 2.00 | 50.8 | 3.90 | 1.77 | 500 | 152 |
5/8 | 0.625 | 15.9 | 0.441 | 11.2 | 0.092 | 2.3 | 900 | 62.1 | 2.50 | 63.5 | 7.00 | 3.18 | 250 | 76 |
3/4 | 0.750 | 19.1 | 0.566 | 14.4 | 0.092 | 2.3 | 800 | 55.2 | 3.00 | 76.2 | 8.60 | 3.90 | 250 | 76 |
WHY CHOOSE US?
1) We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe, silicone hose, rubber air hose are all available.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
===========================================================
Meanwhile, we also manufacture below items.
pneumatic fittings, plastic, brass, stainless steel push in fittings
pneumatic quick coupling, air tool kits, air blow gun
pneumatic muffler, silencer, filter
air cylinder, air preparation, pneumatic directional valve
solenoid valve
Ball valve, brass connector
=========================================================
FAQ
Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
Free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
