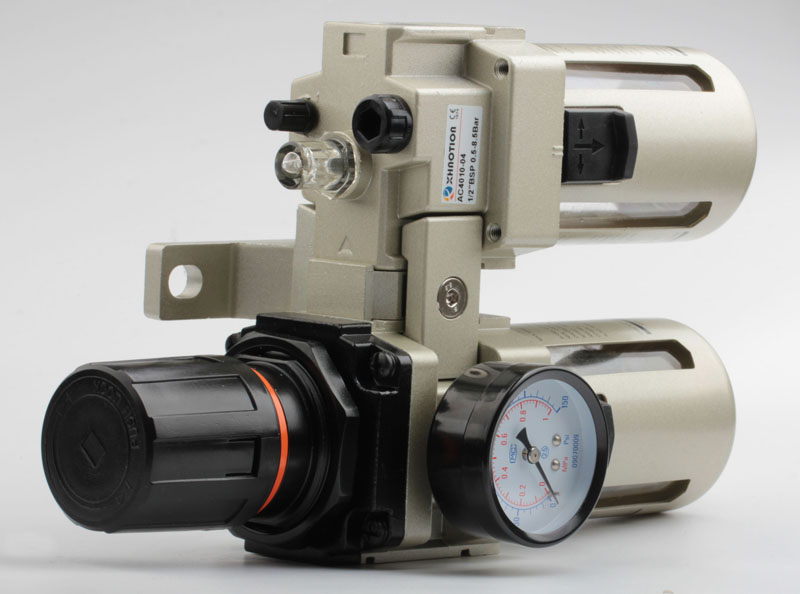

Pneumatic Two Combination Air Treatment Unit AC3010

Min. Order: 5 PiecesPort: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: HNAC2010-02Trademark: XHnotionTransport Package: CartonSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8421999000Customized: Non-CustomizedBrand: XhnotionWork Temperature: Normal TemperatureMaterial: AluminumFilter Precision: 25umPort Size: M5,1/8, 1/4, 3/8, 1/2,3/
Availability:
Quantity:
  • AC3010

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • 5 Pieces

  • HNAC2010-02

  • XHnotion

  • Carton

  • ROHS, REACH, CE

  • China

  • 8421999000

  • Non-Customized

  • Xhnotion

  • Normal Temperature

  • Aluminum

  • 25um

  • M5,1/8, 1/4, 3/8, 1/2,3/4,1

Product Description

8QD4`(2ZY(074%29R7252



FEATURES


1. A series is equivalent of SMC FRL.
2. The series carry FRL, Air filter, Air regulator and Air lubricator.
3. Modular design allows for space saving and easy installation.
4. Compatible with pressure switches, soft start valve and safety  pressure relief valve.

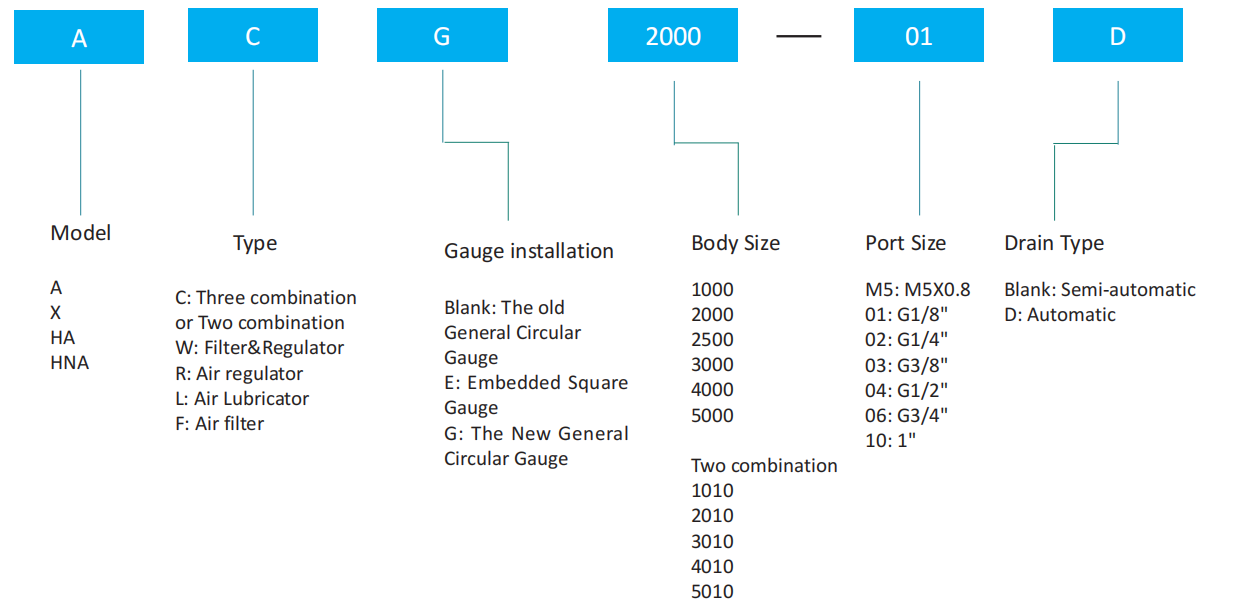

How to order


DGCPW)2RYRR_YIL59V3

    YRGAR_EDZWONT05CNMR

57FA%0A76LW2U85K)4T



SPECIFICATIONS


Ensured Pressure Resistance 1.5MPa(15kgf/cm²)
Highest Working Pressure 1.0MPa(10kgf/cm²)
Ambient and Fluid Temperature 5-60ºC
*Filter Precision 25um
Recommended Oil Use Turbine No.1 Oil  ISOCG32
Container Material Polycarbonate
Protective Cover HNAC1010-2010(Not Available)HNAC3010-5010(Available)
Pressure Regulating Range HNAC1010:0.05-0.7MPa(0.5-7kgf/cm²)
HNAC2010-5010:0.05-0.85MPa(0.5-8.5kgf/cm²)
Valve Type With Overflow

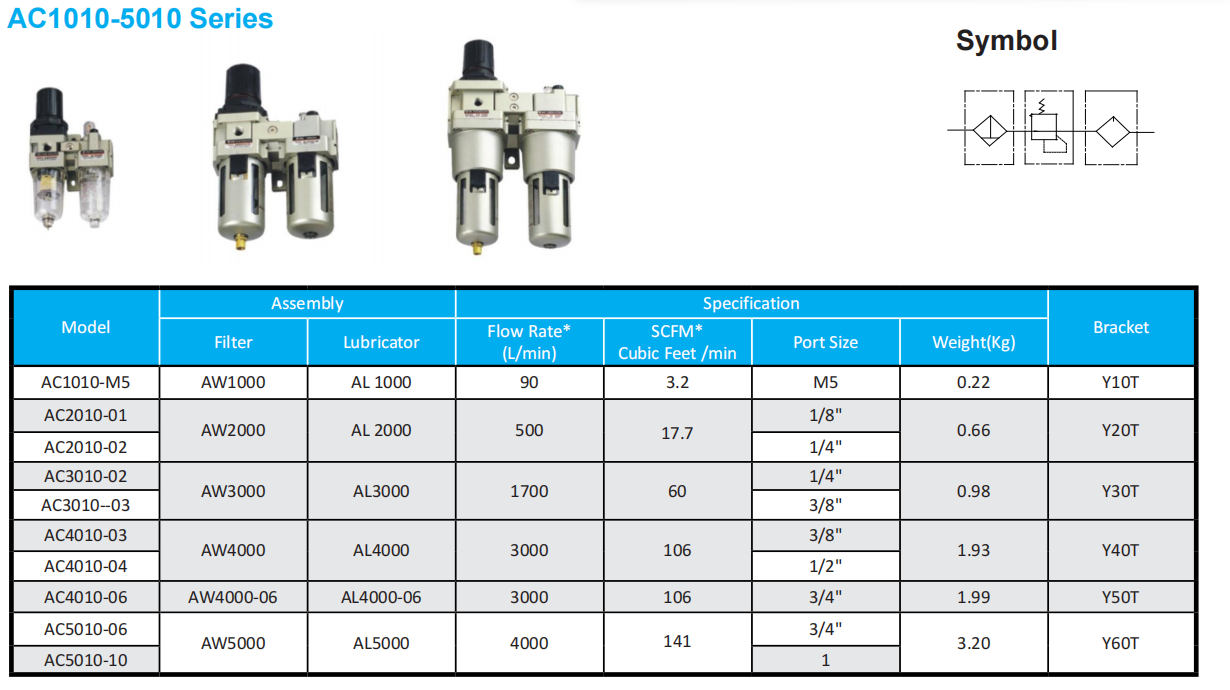

Model Assembly Specification Bracket
Filter Lubricator Flow Rate*
(L/min)
SCFM*              Cubic Feet /min Port Size Weight(Kg)
HNAC1010-M5 HNAW1000 HNAL 1000 90 3.2 M5 0.22 Y10T
HNAC2010-01 HNAW2000 HNAL 2000 500 17.7 1/8" 0.66 Y20T
HNAC2010-02 1/4"
HNAC3010-02 HNAW3000 HNAL3000 1700 60 1/4" 0.98 Y30T
HNAC3010--03 3/8"
HNAC4010-03 HNAW4000 HNAL4000 3000 106 3/8" 1.93 Y40T
HAC4010-04 1/2"
HNAC4010-06 HNAW4000-06 HNAL4000-06 3000 106 3/4" 1.99 Y50T
HNAC5010-06 HNAW5000 HNAL5000 4000 141 3/4" 3.20 Y60T
HNAC5010-10 1





AIR PREPARATION UNIT ADVANTAGE

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support
