| Quantity: | |
|---|---|
SD-8
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
SD-8
Normal Temperature
Brass
1/8, 1/4, 3/8, 1/2, 3/4, 1
Muffler
New
XHnotion
Plastic Bag
ROHS, REACH, CE
China
842199900
Non-Customized
Pressure Filtration
Y Type
Air Filter
Metallurgy
Xhnotion

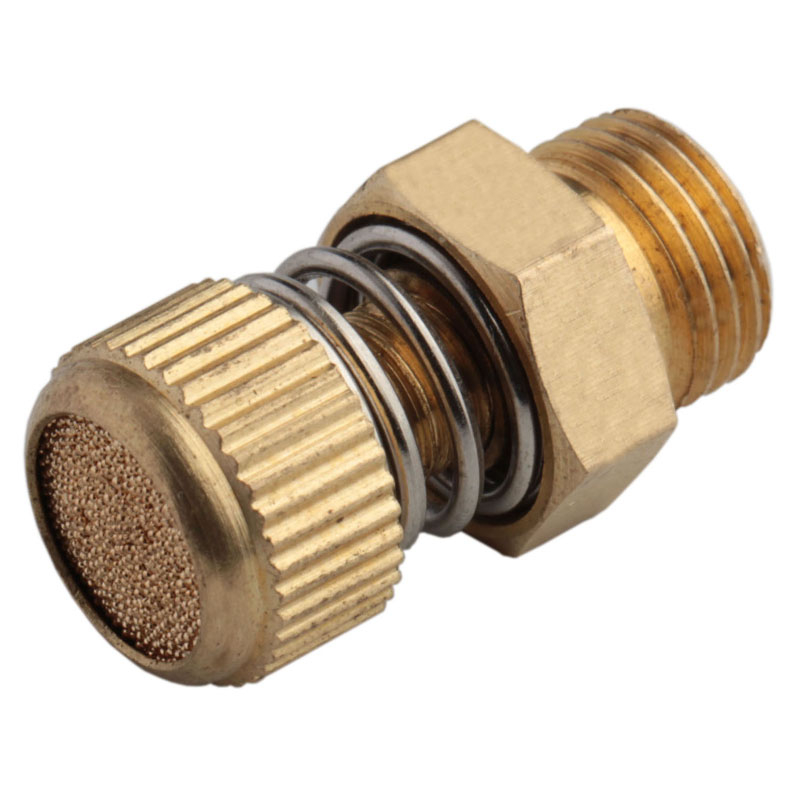

FEATURES
1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, HDPE, NYLON.
MATERIAL CONSTRUCTION
Metal Body: Nickel Plated Brass, brass, stainless steel, nylon, zinc alloy
Filter material: brass powder, stainless steel wire, HDPE
PRODUCT ITEMS
| Model | Thread | H (mm) |
| SD-6 | 1/8'' | 12 |
| SD-8 | 1/4'' | 15 |
| SD-10 | 3/8'' | 19 |
| SD-15 | 1/2'' | 22 |
| SD-20 | 3/4'' | 27 |
| SD-25 | 1'' | 34 |
SPECIFICATIONS
Operating Pressure 0~15 bar.
Operating Temperature -10~60ºC.
Capacity Over 1000000pcs/month
Marketing Area All over the world
ADVANTAGE
1) Various materials and sizes.
2) different filter grade and noise effect as you request
3) 1 year quality assurance after shipment.
4) Custom as your drawing or we make drawing as your sample.
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
