| Quantity: | |
|---|---|
SSPB
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
100000 PCS Per Day
PLASTIC BAG AND CARTON
SSPB
3mm-16mm
Round
Male
M5, M6, 1/8, 1/4, 3/8, 1/2
Nickel-Plated
Ce, RoHS, TUV
Plastic Bag
China
7412209000
Quick Connector
Air Line
Xhnotion
Normal Temperature
Stainless Steel
DIN, GB
All Sizes Can Be Customized
1.Fast connection.
2. High temperatureup to 180 degree.
3. Small, compact design.
4. Good resistance to chemical corrosive environment.
5. Food safety.
6. Allow full flow through the hose/tubing I.D. with no smaller orifice required as in barb fittings.

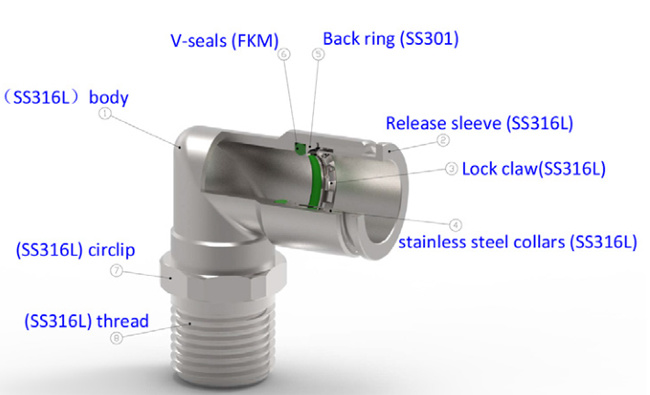

| Metal Body | SS316 |
| Push Button | SS316 |
| Claws | SS301 |
| Seals | FKM |
| Operating Pressure | 0~10 bar |
| Operating Temperature | -40 ~ 200°C |
| Vacuum Rating | To 28" Hg |
| Application | Air, Vaccum, Steam, Beverage, Oil |
| Types | Tee |
| Capacity | Over 10000 pcs/month |
| Marketing Area | All over the world |
1.Easy to push in and pull out tubes.
2. Raw material is SS316L and seal FKM, fit for high temperature and corrosive environment.
3.100% tested no leakage.
4. Regular size is in stock, we support small quantity to be sold.
5.1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
