Pneumatic SS316 Air Inox Push in Fitting G Thread Metal Sleeve SSPC-G Male Straight Push Lock Fitting

Port: Ningbo, ChinaProduction Capacity: 100000 PCS Per DayPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: SSPC-G Standard: DIN, GBSize: 3mm-16mmHead Type: HexagonConnection: MaleThread: M5, M6, 1/8, 1/4, 3/8, 1/2Surface Treatment: Nickel-PlatedCertification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 7412209000Customized: CustomizedType: Quick ConnectorUsage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: Stainless Steel
Availability:
Quantity:
  • SSPC-G
  • XHNOTION
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Ningbo, China
  • 100000 PCS Per Day
  • PLASTIC BAG AND CARTON
  • SSPC-G
  • DIN, GB
  • 3mm-16mm
  • Hexagon
  • Male
  • M5, M6, 1/8, 1/4, 3/8, 1/2
  • Nickel-Plated
  • Ce, RoHS, TUV
  • Plastic Bag
  • China
  • 7412209000
  • Customized
  • Quick Connector
  • Air Line
  • Xhnotion
  • Normal Temperature
  • Stainless Steel
Product Description

All Sizes Can Be Customized



12


FEATURES


1.Fast connection.
2. High temperatureup to 180 degree.
3. Small, compact design.
4. Good resistance to chemical corrosive environment.
5. Food safety.
6. Allow full flow through the hose/tubing I.D. with no smaller orifice required as in barb fittings.



MATERIAL CONSTRUCTION


Metal Body SS316
Push Button SS316
Claws SS301
Seals FKM

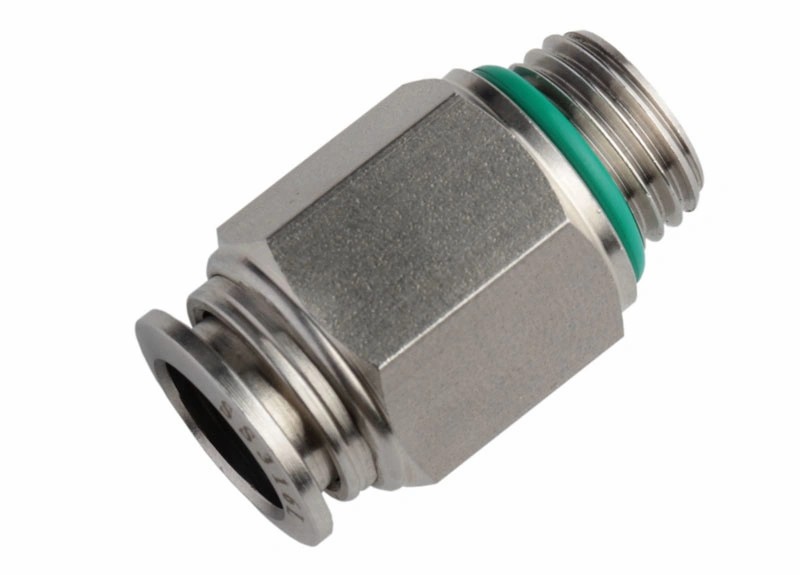

6.

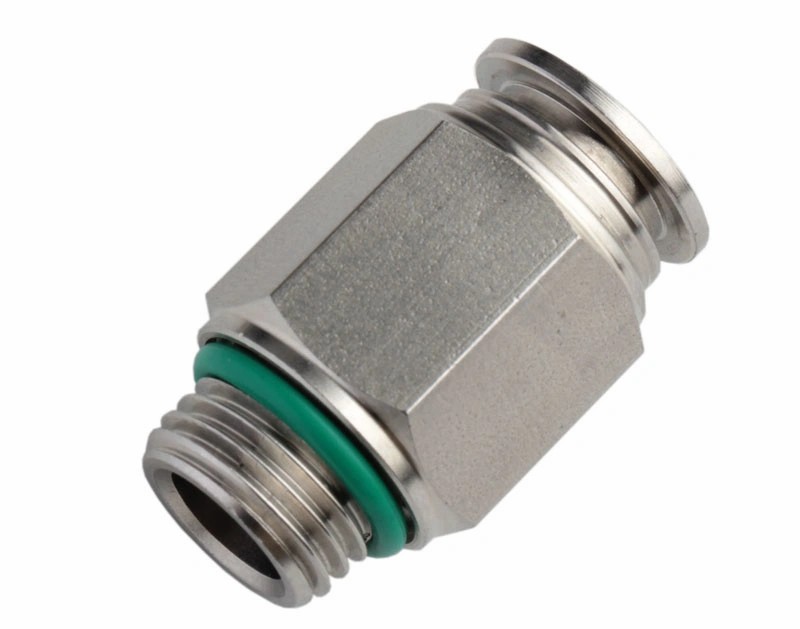

6.1

HVR3_HFDEN8PA7WFWFVX

SPECIFICATIONS


Operating Pressure 0~10 bar
Operating Temperature -40 ~ 200°C
Vacuum Rating To 28" Hg
Application Air, Vaccum, Steam, Beverage, Oil
Types Straight
Capacity Over 10000 pcs/month
Marketing Area All over the world





FITTINGS ADVANTAGE


1.Easy to push in and pull out tubes.
2. Raw material is SS316L and seal FKM, fit for high temperature and corrosive environment.
3.100% tested no leakage.
4. Regular size is in stock, we support small quantity to be sold.
5.1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.





79DRH8YK9PAYR_NEK0U

CN`P7R6F5O7%GUXSE8U

VDE8IPLCLUOT%JCHR
