Pneumatic Oil Lubricator Treatment Supplier

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • FAL
  • M5,1/8, 1/4, 3/8, 1/2,3/4,1
  • XHnotion
  • Box/Carton
  • ROHS, REACH, CE
  • China
  • 8421999000
  • Non-Customized
  • ISO, CE
  • Xhnotion
  • Normal Temperature
  • Polycarbonate
  • 25um
Product Description
FEATURES
1. Various combinations available

2. Port sizes: M5 to 1"

3. Modular design allows for space saving and easy installation

4. Compatible with pressure switches, soft start valve and safety pressure relief valve.

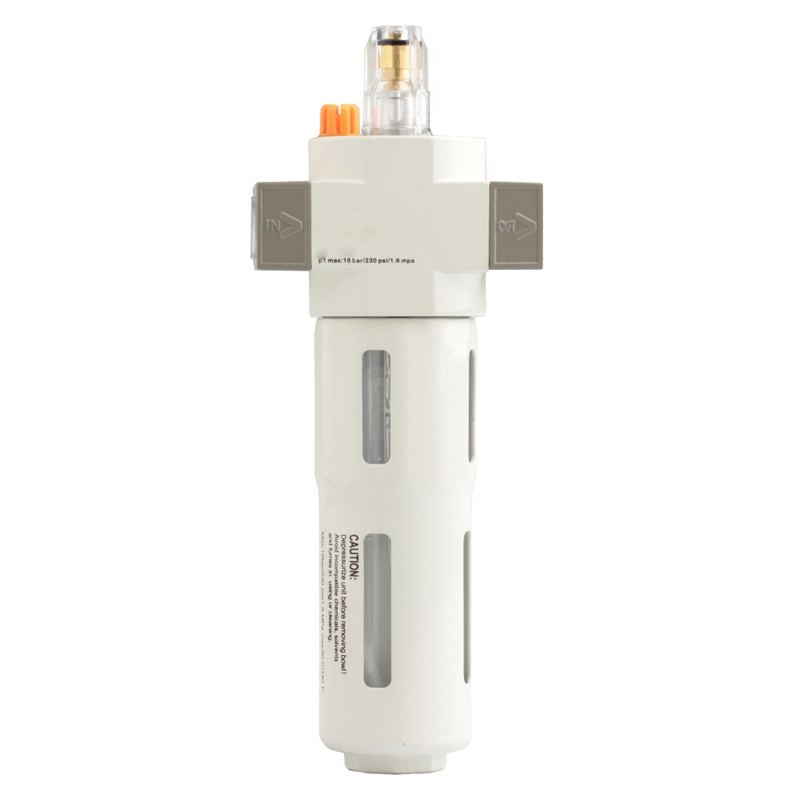

Pneumatic Oil Lubricator Treatment Supplier


SPECIFICATIONS
Ensured Pressure Resistance 1.5MPa(15kgf/cm²)
Highest Working Pressure 1.0MPa(10kgf/cm²)
Ambient and Fluid Temperature 5-60ºC
*Filter Precision 25um
Container Material Polycarbonate
Protective Cover HNAL1000-2000(Not Available) HNAL3000-5000(Available)






Model Specification Bracket
Minimal Flow of Oil Drop
(L/min)
Flow Rate*
(L/min)
SCFM* Cubic Feet /min Port Size Bowl Capacity
(cm³)
Weight(Kg)
FAL1000-M5 4 95 3.4 M5 7 0.07 -
FAL2000-01 15 800 28.3 1/8" 25 0.22 B240
FAL2000-02 1/4"
FAL3000-02 30 1700 60 1/4" 50 0.30 B340
FAL3000--03 40 3/8"
FAL4000-03 40 5000 177 3/8" 130 0.56 B440
FAL4000-04 50 1/2"
FAL4000-06 50 6300 222 3/4" 130 0.58 B540
FAL5000-06 190 7000 247 3/4" 130 1.08 B640
FAL5000-10 1

AIR PREPARATION UNIT ADVANTAGE

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder








==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our air preparation unit include below series.

DC series FRL unit
AC series FRL unit
HAC series FRL unit
HNAC series FRL unit
AC/BC series FRL unit
39 series FRL unit
High pressure FRL unit
Precision regulator

FRL unit Is consist of air filter, air lubricator, air regulator, gauge, auto drain, two-unit modular combinations, three unit modular combinations, filter regulator.


Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, 2 way solenoid valve, directional pneumatic valve

modular hose, water push in fitting

Ball valve, brass connector

=========================================================
FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
