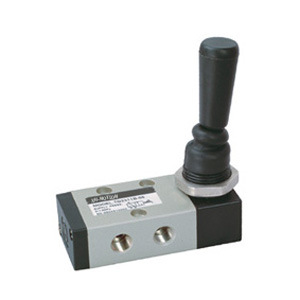

Pneumatic Hand Lever Valve 4h Series

Port: Ningbo, ChinaProduction Capacity: 5000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: 4H210-08HS Code: 8481804090Thread: 1/8,1/4,3/8,1/2Flow(CV): 0.89,0.78,0.67,1.4,1,2.79,1.68Transport Package: Bluk Packing or Blister PackingSpecification: ROHS, REACH, CETrademark: XHNotionOrigin: Ningbo
Availability:
Quantity:
  • 4H210-08

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 5000 PCS Per Month

  • BOX AND CARTONS

  • 4H210-08

  • 8481804090

  • 1/8,1/4,3/8,1/2

  • 0.89,0.78,0.67,1.4,1,2.79,1.68

  • Bluk Packing or Blister Packing

  • ROHS, REACH, CE

  • XHNotion

  • Ningbo

Product Description

FEATURES

Action Type Direct
Mount Inline or Manifold
Pressure 0~0.8 Mpa (0~114Psi)
Temperature -5~60 Celsius degree
Medium Air



SPECIFICATIONS

4H210-06 5 way 2 position 1/8 Detented 1/8 0.89
4H210-06S 5 way 2 position 1/8 Spring Reset 1/8 0.78
4H210-08 5 way 2 position 1/4 Detented (Exh. 1/8) 1/4 0.89

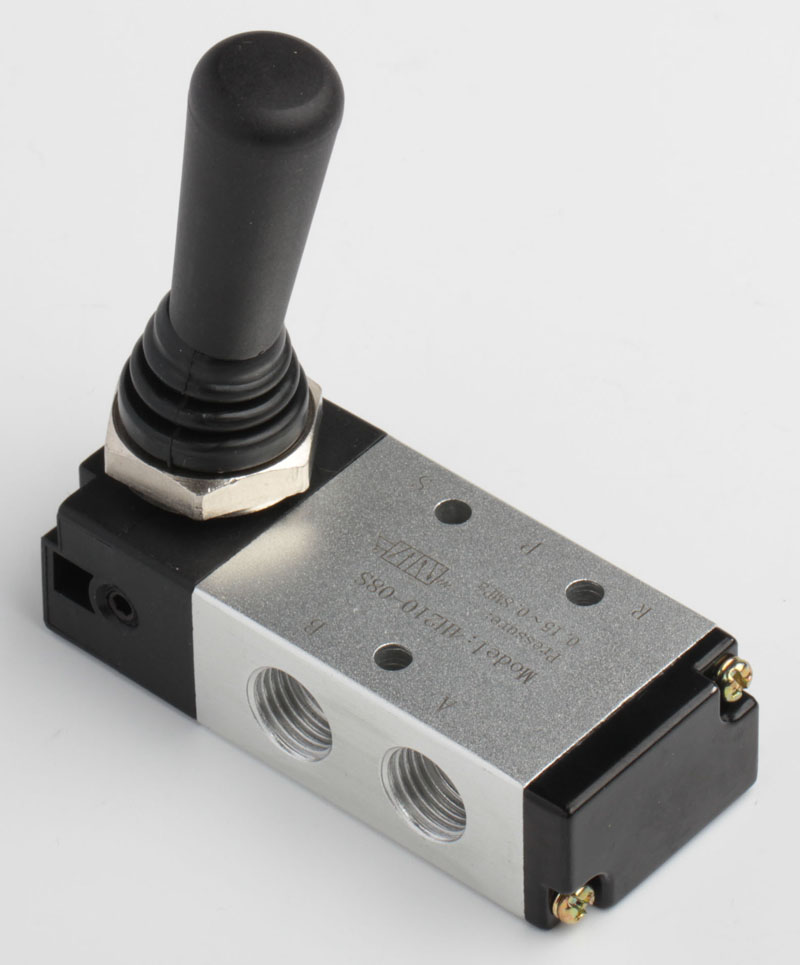

4H210-08S 5 way 2 position 1/4 Spring Reset (Exh. 1/8) 1/4 0.89
4H230C-08 5 way 3 position 1/4 Detented Closed Center (Exh. 1/8) 1/4 0.67
4H230-08S 5 way 3 position 1/4 Spring Reset (Exh. 1/8) 1/4 0.67
4H310-10 5 way 2 position 3/8 Detented (Exh. 1/4) 3/8 1.4
4H310-10S 5 way 2 position 3/8 Spring Reset (Exh. 1/4) 3/8 1.4
4H330C-10 5 way 3 position 3/8 Detented Closed Center (Exh. 1/4) 3/8 1
4H330-10S 5 way 3 position 3/8 Spring Reset (Exh. 1/4) 3/8 1
4H410-15 5 way 2 position 1/2 Detented 1/2 2.79
4H410-15S 5 way 2 position 1/2 Spring Reset 1/2 2.79
4H430C-15 5 way 3 position 1/2 Detented Closed Center 1/2 1.68
4H430-15S 5 way 3 position 1/2 Spring Reset 1/2 1.68



ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our directional control valve include below series.

4V series directional solenoid valve
4A series directional pneumatic valve
3V series directional solenoid valve
3A series directional pneumatic valve
MSV Mechanical directional pneumatic valve
4F, FV series Foot pedal valve
3R Hand pull valve/4H hand lever valve
HV Hand switch valve
SV Slide valve
KA Check valve
RE, ASC Pneumatic throttle valve
QE quick exhaust valve
HSV hand slide valve


Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, air preparation, 2 way solenoid valve

modular hose, water push in fitting

Ball valve, brass connector

=========================================================
