| Quantity: | |
|---|---|
UPC
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
100000 PCS Per Day
PLASTIC BAG AND CARTON
UPC
3mm-16mm
Hexagon
Male
M5, M6, 1/8, 1/4, 3/8, 1/2
Nickel-Plated
Ce, RoHS, TUV
Plastic Bag
China
7412209000

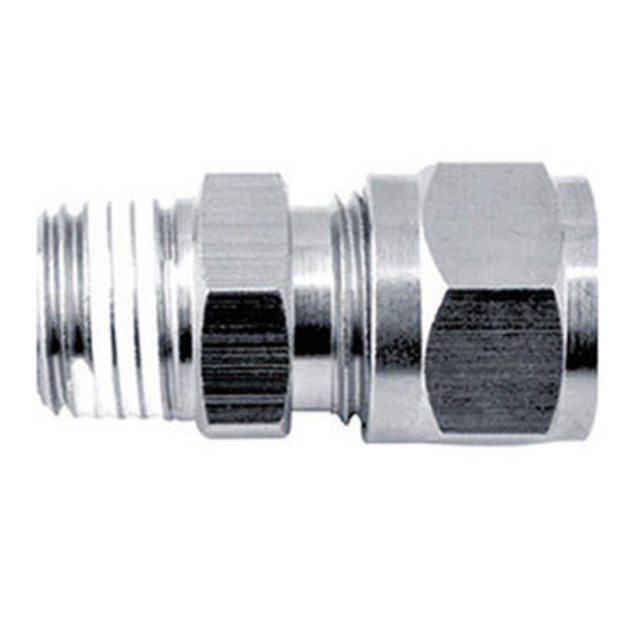

Quick Connector
Air Line
Xhnotion
Normal Temperature
Brass
DIN, GB
1. Used for high pressure environment.
2. Working pressure and temperature depend on tube pressure.
3. Application Tube: metal tubes and Nylon tubes.
4. Fluid Type: water, air, oil, diesel, and other fluids.

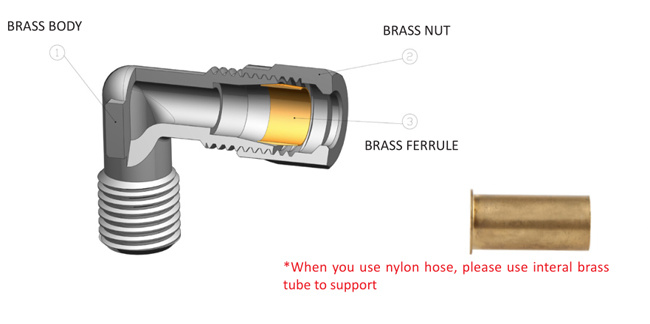

| Brass Nut | Nickel Plated Brass or Brass |
| Brass Bush | Nickel Plated Brass or Brass |
| Brass Ferrule | Nickel Plated Brass or Brass |
| Operating Pressure | 0~20 bar |
| Operating Temperature | -10 ~ 60°C |
| Application | Water, Air, Oil, Diesel, and other fluids. |
| Recommended Tubing Material | Polyurethane, Nylon, Polyenthylee, and Polypropylene |
| Types | Straight |
| Capacity | Over 1000000pcs/month |
| Marketing Area | All over the world |
1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.
Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
