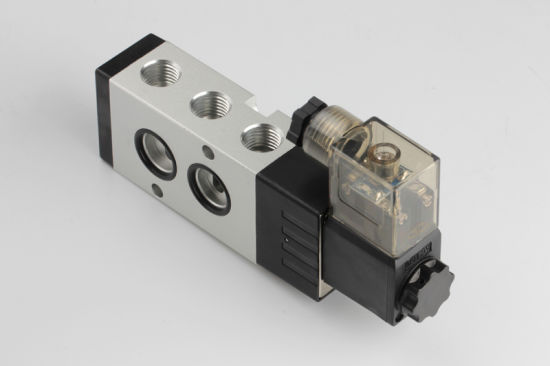

Pneumatic Control Namur Solenoid Valve Manufacturer

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: 4M210-08Pressure: Ordinary PressureValve Structure: Pilot Membrane StructurePower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial UsageThread: 1/8, 1/4, 3/8, 1/2Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACFlow(CV): 0.78,0.89,0.67,1.4,1.681,2.79,Trademark: XHnotionTransport Package: BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: GasTemperature: Ordinary TemperatureActuator: PneumaticConnection Form: ThreadType: Pilot OperatedMaterial: Aluminum
Availability:
Quantity:
  • 4M210

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • 4M210-08

  • Ordinary Pressure

  • Pilot Membrane Structure

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage

  • 1/8, 1/4, 3/8, 1/2

  • 12VDC, 24VDC, 110VAC, 220VAC

  • 0.78,0.89,0.67,1.4,1.681,2.79,

  • XHnotion

  • Box

  • ROHS, REACH, CE

  • China

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Pneumatic

  • Thread

  • Pilot Operated

  • Aluminum

Product Description

FEATURES
Directional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into  different paths from one or more sources.

Valve boies are mirror finished and Hard oxidation.

Low power consumption, fast response, import oils seals with longer service life.

Coils with DIN connection or flying leads.

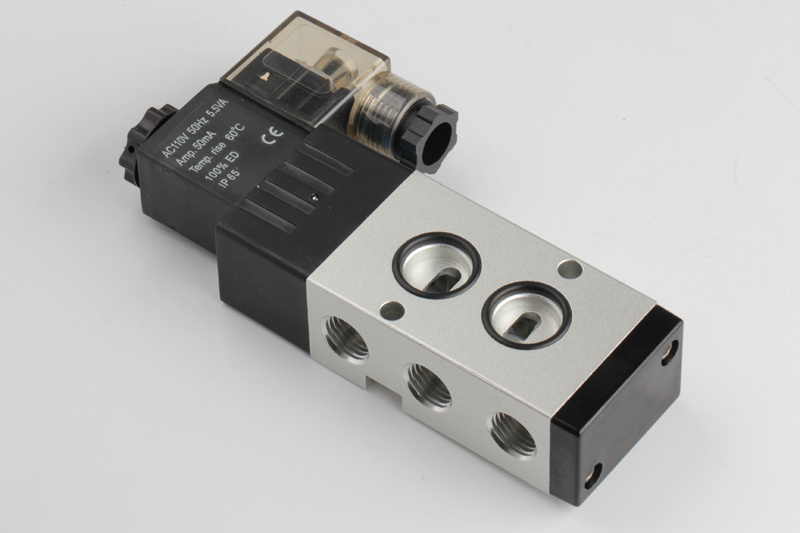

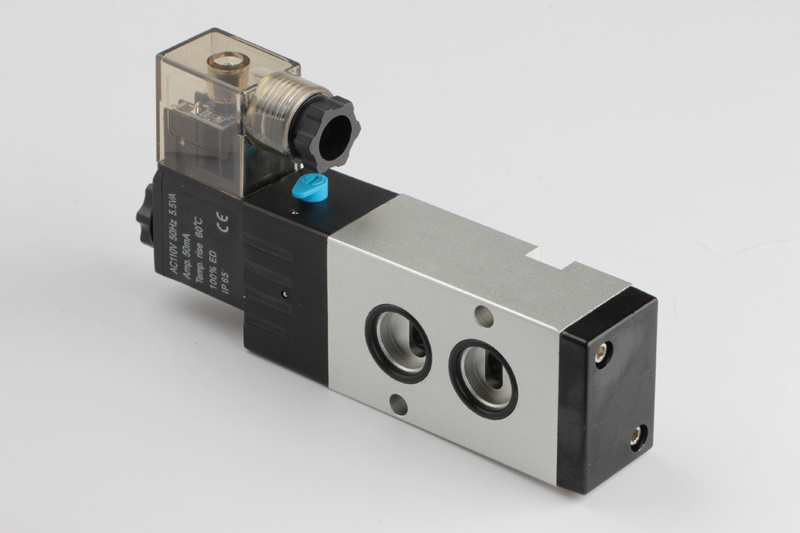

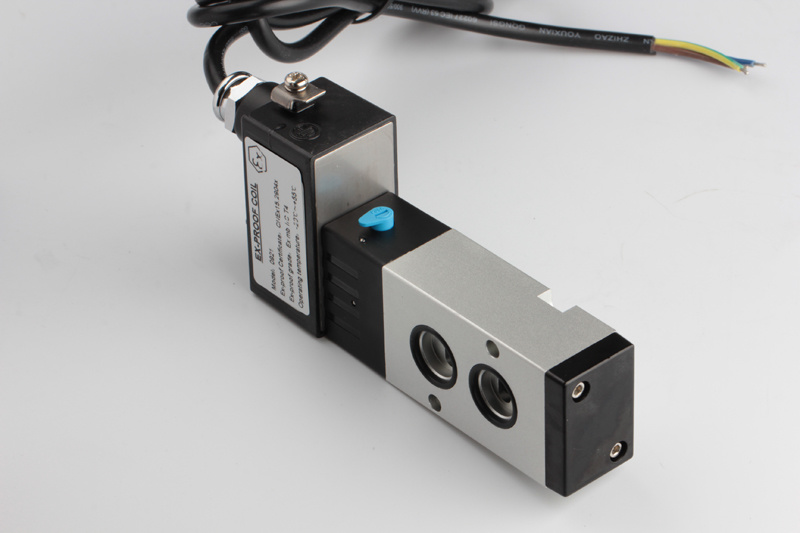

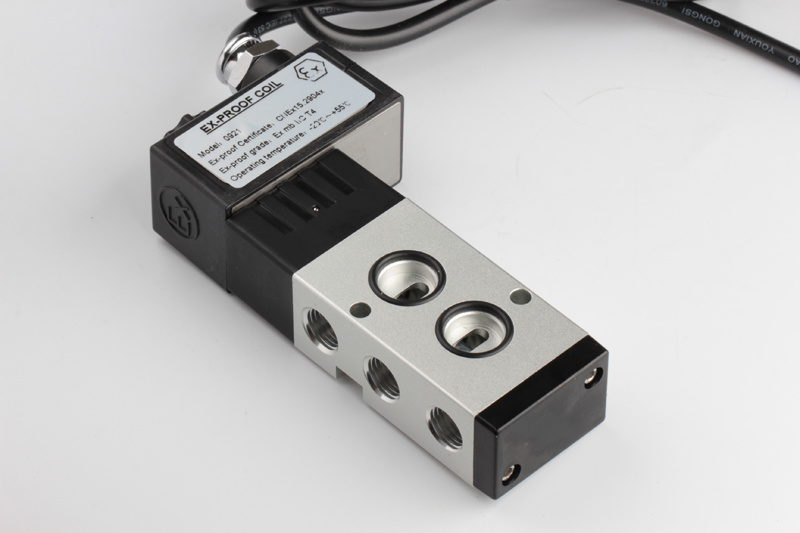

Pneumatic Control Namur Solenoid Valve Manufacturer
Pneumatic Control Namur Solenoid Valve Manufacturer
Pneumatic Control Namur Solenoid Valve Manufacturer
Pneumatic Control Namur Solenoid Valve Manufacturer

SPECIFICATIONS

Drive Type Pilot & Solenoid
Mount Inline or Manifold
Wiring DIN Connector with LED
Insulation F Class
Water/Dust Protection IP65
Override Manual, Locking (3V, 4V Series)
Pressure 22 - 116 PSI (1.5 - 8 Bar)
Temperature -5~50 Celsius degree (41 - 122 Fahrenheit degree)
Voltage Tolerance ¡À10% of Rated Voltage
Highest Action Frequency 6 cycles/sec




Model Description Thread Flow (Cv) Voltage
4M210-06 2 way 5 position Single Head 1/8 0.78 DC 12V
DC 24V
AC 110V
AC 220V
4M210-08 2 way 5 position Single Head 1/4 0.89
4M220-06 2 way 5 position Double Head 1/8 0.78
4M220-08 2 way 5 position Double Head 1/4 0.89
4M230-06 3 way 5 position 1/8 0.67
4M230-08 3 way 5 position 1/4 0.67
4M310-08 2 way 5 position Single Head 1/4 1.40
4M310-10 2 way 5 position Single Head 3/8 1.68
4M320-08 2 way 5 position Double Head 1/4 1.40
4M320-10 2 way 5 position Double Head 3/8 1.68
4M330-08 3 way 5 position 1/4 1.00
4M330-10 3 way 5 position 3/8 1.00
4M410-15 2 way 5 position Single Head 1/2 2.79
4M420-15 2 way 5 position Double Head 1/2 2.79
4M430-15 3 way 5 position 1/2 1.68



ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support

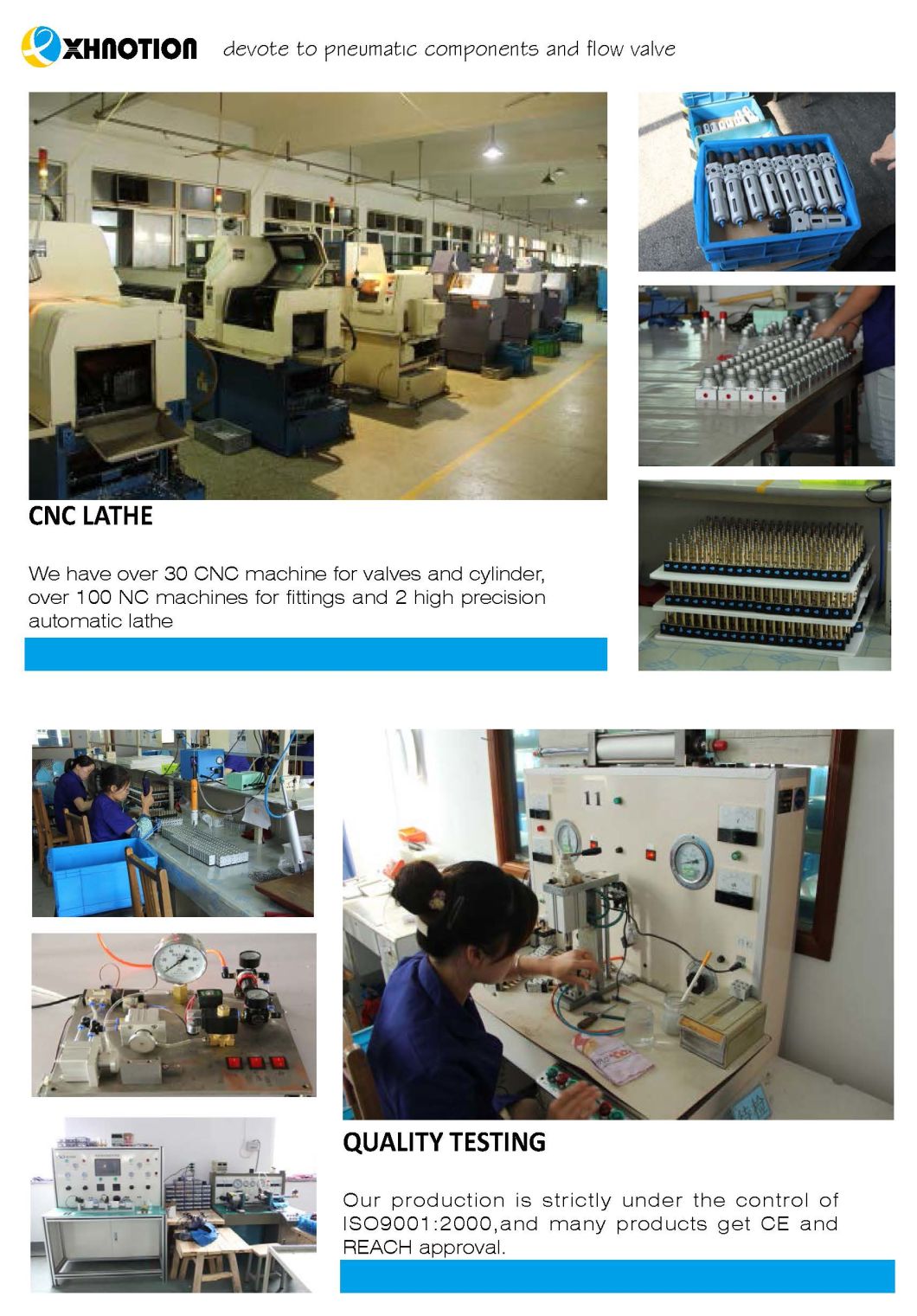

WORKSHOP SHOW

Pneumatic Control Namur Solenoid Valve Manufacturer
Pneumatic Control Namur Solenoid Valve Manufacturer
WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our directional control valve include below series.

4V series directional solenoid valve
4A series directional pneumatic valve
3V series directional solenoid valve
3A series directional pneumatic valve
MSV Mechanical directional pneumatic valve
4F, FV series Foot pedal valve
3R Hand pull valve/4H hand lever valve
HV Hand switch valve
SV Slide valve
KA Check valve
RE, ASC Pneumatic throttle valve
QE quick exhaust valve
HSV hand slide valve
