Pneumatic Cartridge Insert Plastic Hose

Availability:
Quantity:
  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000000 PCS Per Month

  • DN1/2

  • Only Allows Water to Flow in One Direction and Pre

  • Seals

  • Reversing

  • ANSI

  • Household Usage

  • 5/32, 1/4, 5/16, 3/8, 1/2

  • NBR

  • SS304

  • Drinking Water, Air

  • XHnotion or no logo

  • Plastic Bag

  • ROHS, REACH, CE, ACS, FDA

  • China

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Actal

  • Cartridge

  • Tubular

  • Low Pressure

Product Description

Fast-Inserting Cartridge

Application
1. Suitable for Plastic and Metal Shell Material.
2. No need of welding and thread, easy installation.
3. More simple and efficient integration of fast-inserting joint into a variety of devices.

Pneumatic Cartridge Insert Plastic Hose

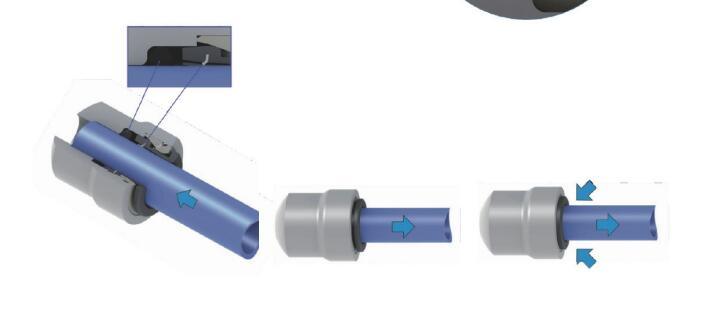

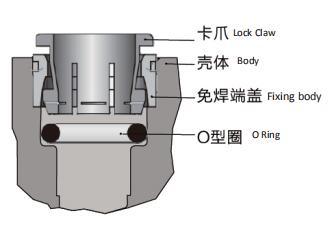

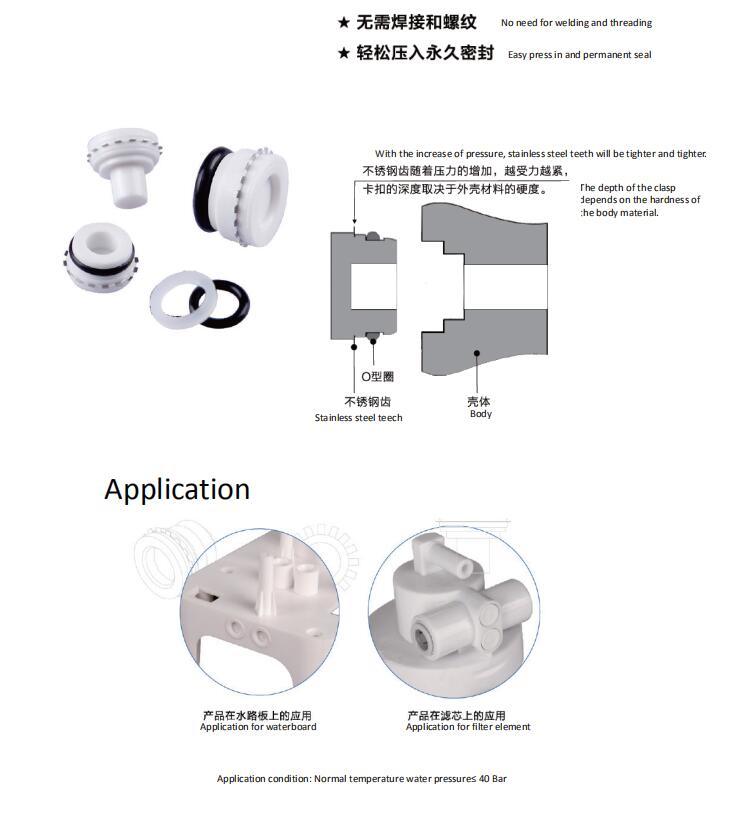

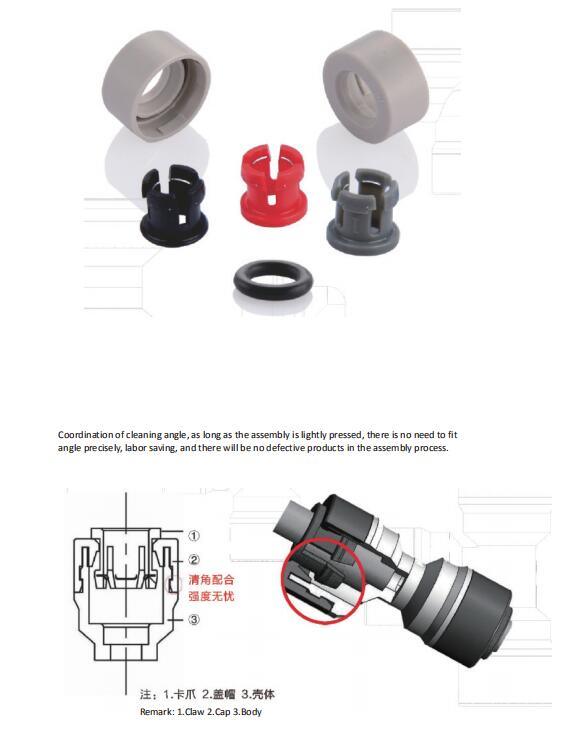

Fast-Inserting Push-In Structure
Fast-inserting push in structure need not be welded, but
only gently pressed. Stainless steel teeth are fastened
into the inner wall of the body. The depth of fastening
depends on the hardness of the body material. When the
structure is under pressure, stainless steel teeth will firmly
fix the end cap in the body, and the deeper the fastening
will be with the increase of pressure.


Detail



Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose

Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose
Pneumatic Cartridge Insert Plastic Hose




FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
