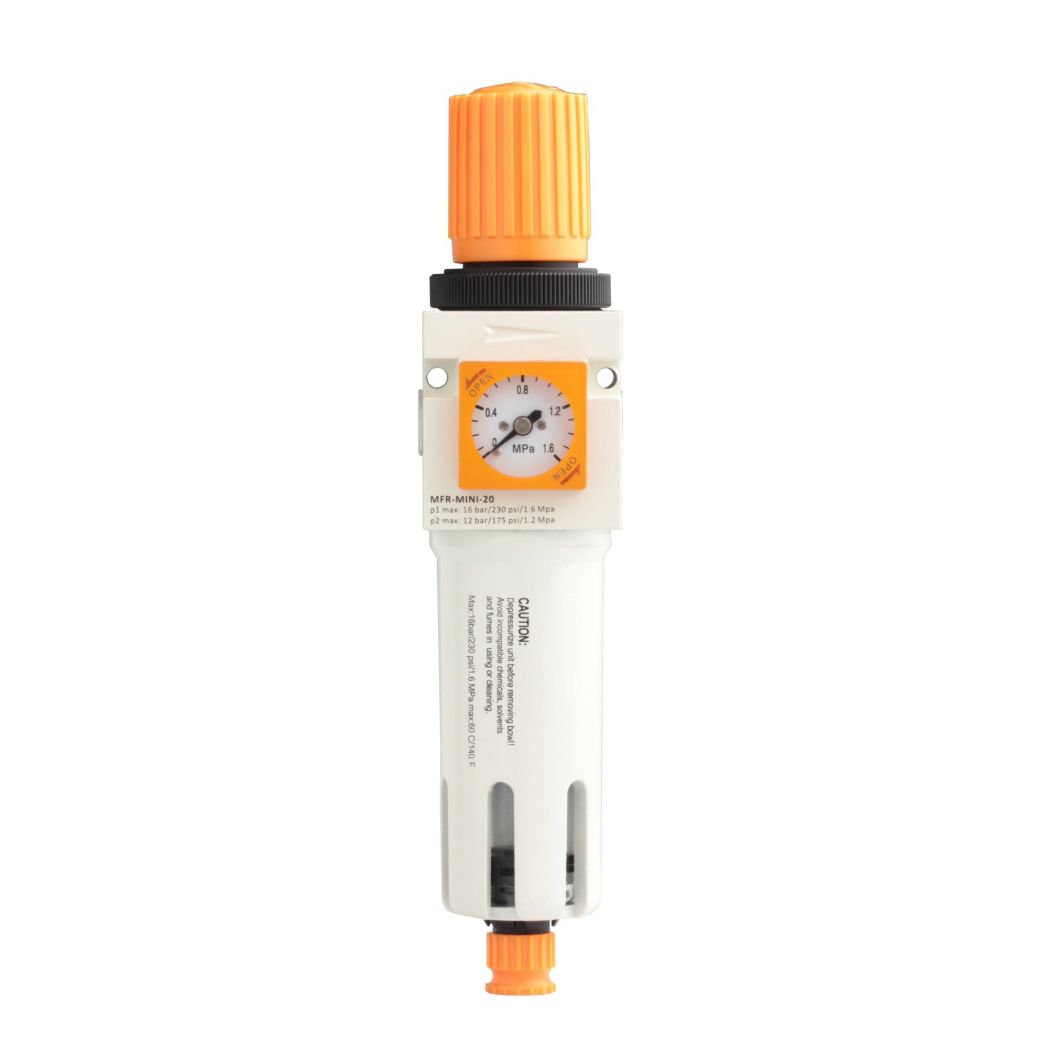

Pneumatic Air Filter and Regulator Two Combination

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: MFR-MINI-20Work Temperature: Normal TemperatureMaterial: AluminumPort Size: 1/8, 1/4, 3/8, 1/2, 3/4, 1Filter Precision: 25μmType: Source Treatment UnitCondition: NewWorking Pressure: 0.05-1MPaTrademark: XHnotionTransport Package: CartonSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8421999000Customized: Non-CustomizedPrinciple: Pressure FiltrationStructure: Piston TypeUsage: Air FilterApplication: Electricity, Mining, Medicine, Chemical, MetallurgyBrand: Xhnotion
Availability:
Quantity:
  • MFR-MINI-20

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • MFR-MINI-20

  • Normal Temperature

  • Aluminum

  • 1/8, 1/4, 3/8, 1/2, 3/4, 1

  • 25μm

  • Source Treatment Unit

  • New

  • 0.05-1MPa

  • XHnotion

  • Carton

  • ROHS, REACH, CE

  • China

  • 8421999000

  • Non-Customized

  • Pressure Filtration

  • Piston Type

  • Air Filter

  • Electricity, Mining, Medicine, Chemical, Metallurgy

  • Xhnotion

Product Description

FEATURES

1. Various combinations available

2. Port sizes: M5 to 1"

3. Modular design allows for space saving and easy installation

4. Compatible with pressure switches, soft start valve and safety pressure relief valve.



Pneumatic Air Filter and Regulator Two Combination





AIR PREPARATION UNIT ADVANTAGE

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

5) 100% leakage testing under low pressure and high pressure.

6) One year quality assurance after shipment.

7) After-sales technique support


WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will answer within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

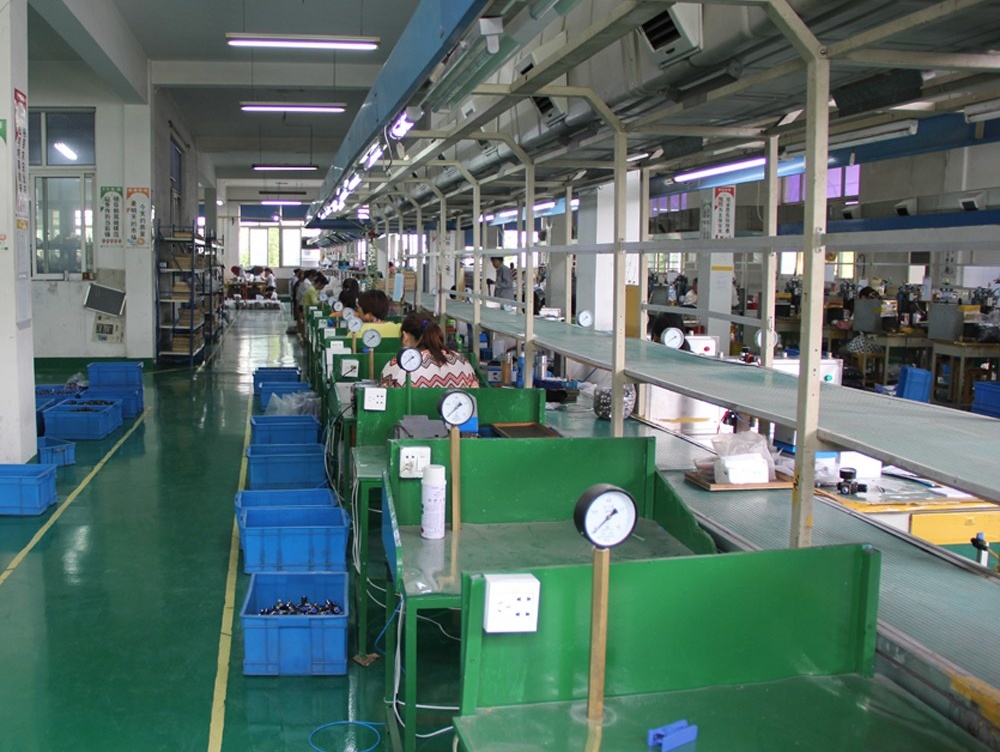

Our Factory                                                    Our Workshop

Pneumatic Air Filter and Regulator Two Combination         Pneumatic Air Filter and Regulator Two Combination

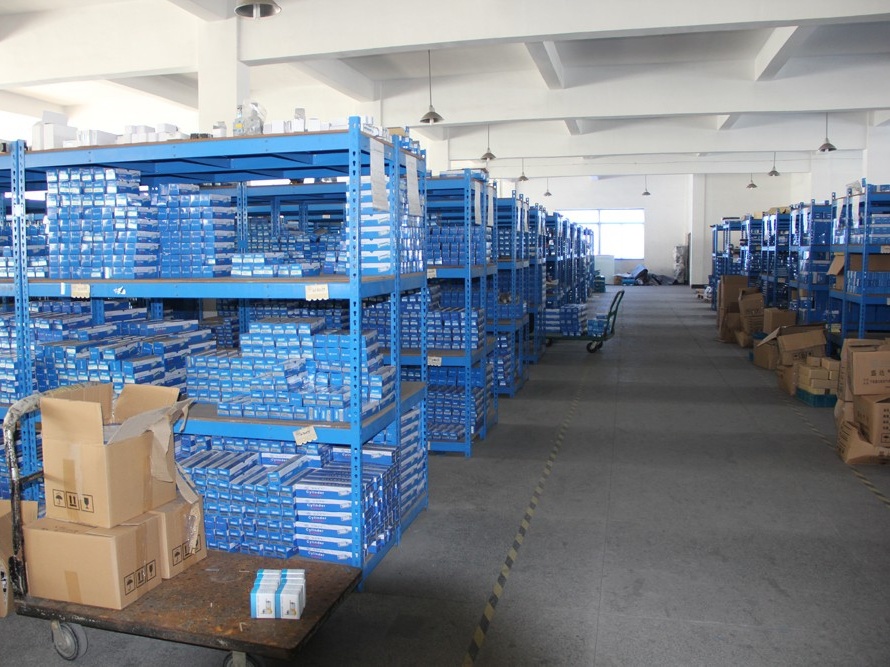

Our Package                                                  Our Warehouse


Pneumatic Air Filter and Regulator Two Combination         Pneumatic Air Filter and Regulator Two Combination

 XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
 Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.     \

SPECIFICATIONS

Type MFR-MINI-M5,01 MFR-MINI-01,02,03 MFR-MIDI-03,04,06 MFR-MIDI-06,08
Port Size M5,1/8 1/8,1/4,3/8 3/8,1/2,3/4 3/4,1
Gauge thread G M5 M1/8 M1/4
Fluid Compressed Air
Operating pressure range  MPa 0.15-0.85 0.15-1.2
Max.Flow rate  L/min 500 1700 3500 11500
Ambient temperture  ºC -10-60
Filter precision 5um or 40um
Structure Overflow type
Guard cup - Yes Yes Yes


FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
