Pneumatic Air Filter, Regulator and Lubricator Three Combination

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: MFRL-MINI-20Gauge Thread G: M5, M1/8, M1/4Type: Source Treatment UnitCondition: NewTrademark: XHnotionTransport Package: BoxSpecification: CEOrigin: ChinaHS Code: 8421999000Customized: Non-CustomizedCertification: CEBrand: XhnotionWork Temperature: Normal TemperatureMaterial: Aluminium AlloyPort Size: M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1
Availability:
Quantity:
  • MFRL-MINI-20

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • MFRL-MINI-20

  • M5, M1/8, M1/4

  • Source Treatment Unit

  • New

  • XHnotion

  • Box

  • CE

  • China

  • 8421999000

  • Non-Customized

  • CE

  • Xhnotion

  • Normal Temperature

  • Aluminium Alloy

  • M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1

Product Description

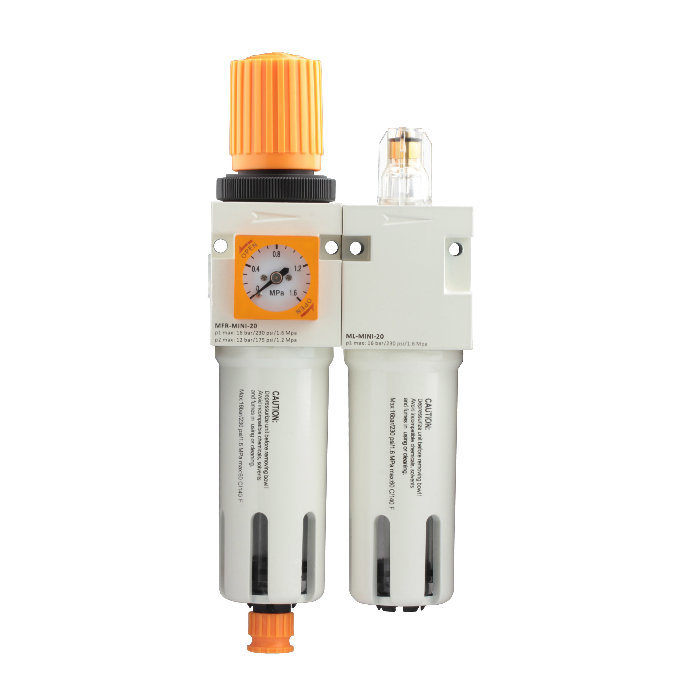

               Yellow Pneumatic FRL with Air Filter




Pneumatic Air Filter, Regulator and Lubricator Three Combination




Features


1. Various combinations available
2. Port sizes: M5 to 1"
3. Modular design allows for space saving and easy installation
4. Compatible with pressure switches, soft start valve and safety pressure relief valve.


Specifications

Type MFRL-MINI-M5,01 MFRL-MINI-01,02,03 MFRL-MIDI-03,04,06 MFRL-MIDI-06,08
Port Size M51/8 1/8,1/4,3/8 3/8,1/2,3/4 3/4,1
Gauge thread G M5 M1/8 M1/4
Fluid Compressed Air
Operating pressure range  MPa 0.15-0.85 0.15-1.2
Max.Flow rate  L/min 500 1700 3500 11500
Ambient temperture  ºC -10-60
Filter precision 5um or 40um
Structure Overflow type
Guard cup - Yes Yes Yes



Advantage

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support








Packing & Shipping

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China.
Shipping way: by sea, by air, by courier.
Express: TNT, DHL, UPS, FedEx, SF Express.
Delivery time: 3 days to 30 days depends on actual orders.


Pneumatic Air Filter, Regulator and Lubricator Three Combination

















Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes

Pneumatic Air Filter, Regulator and Lubricator Three Combination












Why Choose US ?


1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.











FAQ

Payment Terms :
We accept T/T, L/C, Paypal, Western Union, Money Gram, etc.

Samples Policy :
For regular valves, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
