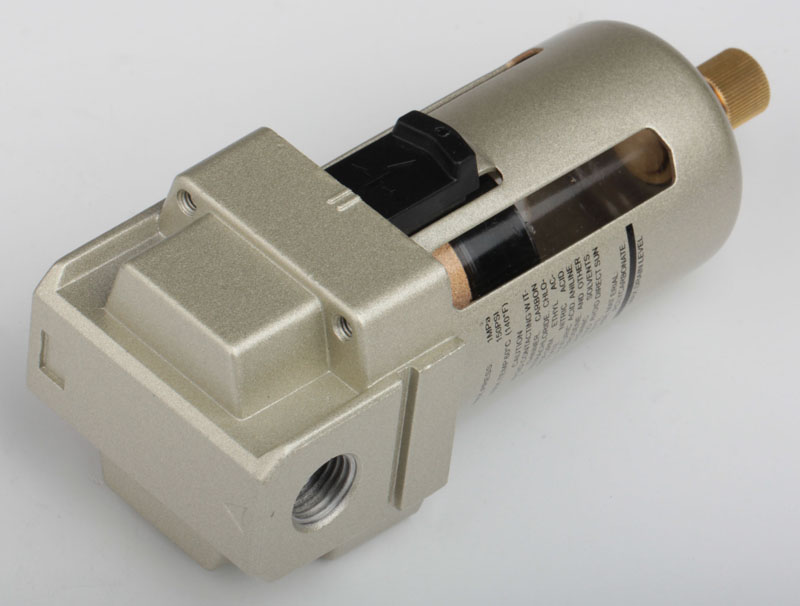

Pneumatic Air Filter Manufacturer

Port: Ningbo, ChinaProduction Capacity: 10000 PCS per monthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: AF2000-01Material: AluminumFilter Precision: 25umType: Pneumatic FilterCondition: NewTrademark: XHnotionTransport Package: cartonSpecification: 1000-5000Origin: CHINAHS Code: 8481804090Customized: Non-CustomizedPrinciple: Pressure FiltrationStructure: Van TypeUsage: Oil-water Separation, Air FilterBrand: CHELICWork Temperature: Normal Temperature
Availability:
Quantity:
  • AF3000-01

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS per month

  • BOX AND CARTONS

  • AF2000-01

  • Aluminum

  • 25um

  • Pneumatic Filter

  • New

  • XHnotion

  • carton

  • 1000-5000

  • CHINA

  • 8481804090

  • Non-Customized

  • Pressure Filtration

  • Van Type

  • Oil-water Separation, Air Filter

  • CHELIC

  • Normal Temperature

Product Description

FEATURES
1. Various combinations available

2. Port sizes: M5 to 1"

3. Modular design allows for space saving and easy installation

4. Compatible with pressure switches, soft start valve and safety pressure relief valve.


SPECIFICATIONS

Ensured Pressure Resistance 1.5MPa(15kgf/cm²)
Highest Working Pressure 1.0MPa(10kgf/cm²)
Ambient and Fluid Temperature 5-60ºC
*Filter Precision 25um
Container Material Polycarbonate
Protective Cover AF1000-2000(Not Available) AF3000-5000(Available)




Model Specification Bracket Drain Function Auto Drain Model
Flow Rate*
(L/min)
SCFM*              Cubic Feet /min Port Size Bowl Capacity
(cm³)
Weight(Kg)
AF1000-M5 110 3.9 M5 4 0.07 - Manual Drain -
AF2000-01 750 26.5 1/8" 15 0.19 B240 AF2000-01D
AF2000-02 1/4" AF2000-02D
AF3000-02 1500 53 1/4" 20 0.29 B340 a.AirShutoff Drain





b.Manual Drain
AF3000-02D
AF3000--03 3/8" AF3000--03D
AF4000-03 4000 141 3/8" 45 0.55 B440 AF4000-03D
AF4000-04 1/2" AF4000-04D
AF4000-06 6000 212 3/4" 45 0.58 B540 AF4000-06D
AF5000-06 7000 247 3/4" 130 1.08 B640 AF5000-06D
AF5000-10 1 AF5000-10D


AIR PREPARATION UNIT ADVANTAGE

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

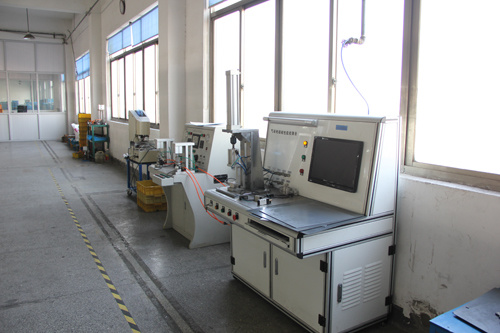

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

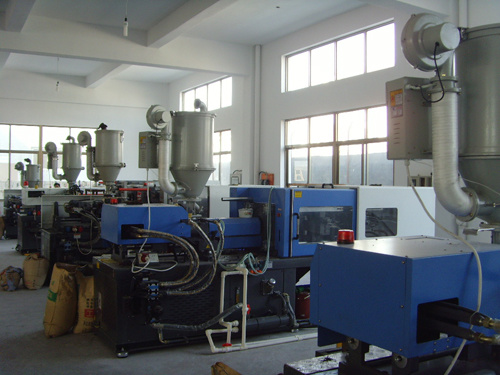

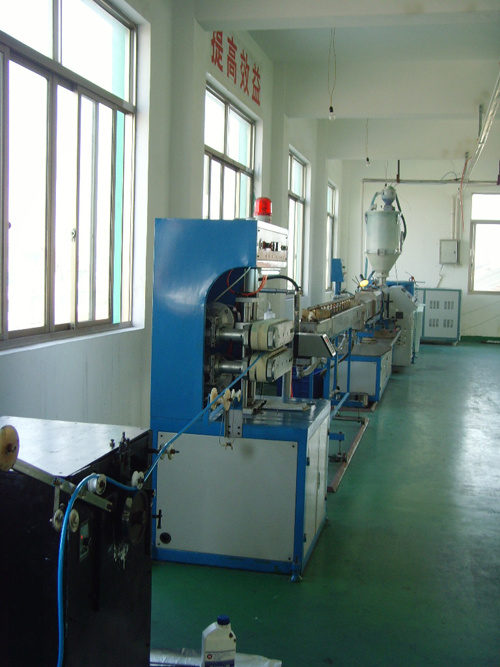

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder








==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our air preparation unit include below series.

DC series FRL unit
AC series FRL unit
HAC series FRL unit
HNAC series FRL unit
AC/BC series FRL unit
39 series FRL unit
High pressure FRL unit
Precision regulator

FRL unit Is consist of air filter, air lubricator, air regulator, gauge, auto drain, two-unit modular combinations, three unit modular combinations, filter regulator.


Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, 2 way solenoid valve, directional pneumatic valve

modular hose, water push in fitting

Ball valve, brass connector

=========================================================
FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
