| Quantity: | |
|---|---|
WPD8-02
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
WPD8-02
M5,M6, 1/8, 1/4, 3/8, 1/2
XHnotion
Plastic Bag
ROHS, REACH, CE
China
39174100
DIN, GB
Plastic
Male
Nickel-Plated
Hexagon
3mm-16mm

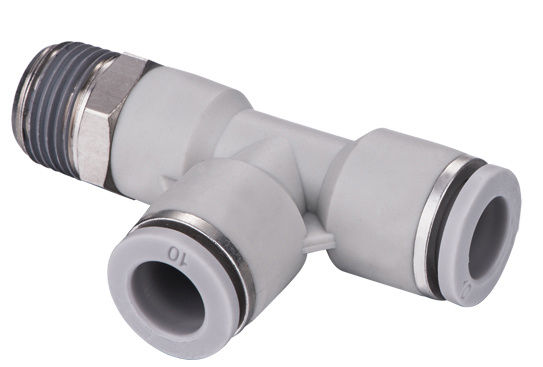

FEATURES:
1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive, non-contaminant Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
MATERIAL CONSTRUCTION
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR
SPECIFICATIONS
Operating Pressure 0 - 150 PSI 0 - 990 kpa
Operating Temperature 0 - 60 °C 32 to 140°F
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world
FITTINGS ADVANTAGE
1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.
3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.
4) 5% tested by water at 10 bar, 100% tested by air and appearance test.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
For other size, please refer to below table.
| Model [ΦD-T] | |||||||
| Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) | |||||
| PD 4-M5 | PD 6-03 | PD 12-01 | PD 5/32-01 | PD 3/8-02 | PD 1/8-U10 | PD 3/16-N03 | PD 3/8-N02 |
| PD 4-M6 | PD 8-01 | PD 12-02 | PD 5/32-02 | PD 3/8-03 | PD 1/8-N01 | PD 1/4-U10 | PD 3/8-N03 |
| PD 4-01 | PD 8-02 | PD 12-03 | PD 1/4-01 | PD 3/8-04 | PD 1/8-N02 | PD 1/4-N01 | PD 3/8-N04 |
| PD 4-02 | PD 8-03 | PD 12-04 | PD 1/4-02 | PD 1/2-02 | PD 5/32-U10 | PD 1/4-N02 | PD 1/2-N02 |
| PD 4-03 | PD 8-04 | PD 14-03 | PD 1/4-03 | PD 1/2-03 | PD 5/32-N01 | PD 1/4-N03 | PD 1/2-N03 |
| PD 6-M5 | PD 10-01 | PD 14-04 | PD 5/16-01 | PD 1/2-04 | PD 5/32-N02 | PD 5/16-N01 | PD 1/2-N04 |
| PD 6-M6 | PD 10-02 | PD 16-03 | PD 5/16-02 | PD 3/16-U10 | PD 5/16-N02 | ||
| PD 6-01 | PD 10-03 | PD 16-04 | PD 5/16-03 | PD 3/16-N01 | PD 5/16-N03 | ||
| PD 6-02 | PD 10-04 | PD 3/8-01 | PD 3/16-N02 | PD 3/8-N01 | |||
