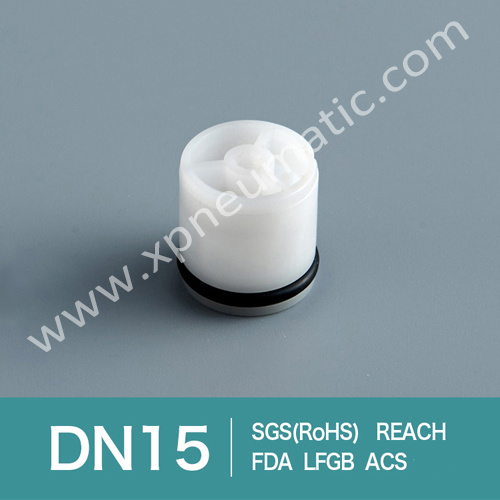

Plastic Non Return Check Valve Cartridge Dn15

Quantity:
  • Ningbo, China

  • 1000000 PCS Per Month

  • L/C, T/T, Western Union, Paypal, Money Gram

  • DN15

  • Reversing

  • ANSI

  • Household Usage

  • 8mm-50mm

  • EPDM

  • Ss304

  • Drinking Water, Air

  • XHnotion or no logo

  • Plastic Bag

  • ROHS, REACH, CE, ACS, FDA

  • China

  • 8481804090

  • Actal

  • Cartridge

  • Tubular

  • Low Pressure

  • Only Allows Water to Flow in One Direction and Pre

  • Seals

Product Description

Cartridge Check Valves

Cartridge check valve s (also called non-return valve s ) are designed for simple installation and offer outstanding performance inside mating housing. They are valve s which only allows water to flow in one direction and prevents backflow .

XHnotion cartridge check valves are not only for water, also for air now. Applications include faucets, showers, valves and heating systems for residential or commercial installations, as well as pumps,


All the models are 100% t ested during production for drip tight operation. Maximum temperature and pressure rating is for most models 200F (90C) /230psi. The average cracking (opening) pressure of most valves is between 0.25 and 0.33 of a psi.


Working Principles
In static conditions (no flow)
The check valve is normally closed. The spring tension forces the plunger into its
seat keeping the check valve closed.
In dynamic conditions (flow)
The water pressure exceeds the spring tension. The plunger is lifted off its seat
allowing water to flow through the valve.
In backflow conditions (reversed flow)
If the pressure downstream of the valve increases (back pressure conditions) or if
the system pressure upstream of the valve decreases (backsiphonage conditions)
causing the flow to reverse direction, the spring-loaded plunger closes and
prevents backflow.


Features and Benefits

Zero leak at low and high pressure and temperature.
Generous flow structure promise the lowest headloss.
Compact, easy installation, 8mm-50mm diameter to meet all the system.
No thread connection to avoid potential leakage

Details

Plastic Non Return Check Valve Cartridge Dn15 Plastic Non Return Check Valve Cartridge Dn15 Plastic Non Return Check Valve Cartridge Dn15 Plastic Non Return Check Valve Cartridge Dn15 Plastic Non Return Check Valve Cartridge Dn15 Plastic Non Return Check Valve Cartridge Dn15

Specifications
Material Acetal housing, core, cover; EPDM O-Ring; SS304 Spring
Medium water, air
Size 8mm to 50mm
Cracking Pressure 0.25Psi
Max Pressure 230 Psi
Max temperature 100 C (212F)
Production Capacity 1,000,000 pcs each month
Packing Details Poly bag, out carton and pallet.
Payment Term T/T, PAYPAL, WESTERN UNION
Delivery Time 3-20 days after confirming the order
Minium Order Quantity 2000 pcs
Certificate ROHS, ACS, FDA, REACH
Plastic Non Return Check Valve Cartridge Dn15
Plastic Non Return Check Valve Cartridge Dn15
Plastic Non Return Check Valve Cartridge Dn15
Plastic Non Return Check Valve Cartridge Dn15

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
