Plastic Insert Cartridge Fitting Manufacturer

Port: Ningbo, China;Model NO.: DN1/4;Production Capacity: 1000000 PCS Per Month;Function: Only Allows Water to Flow in One Direction and Pre;Temperature: Ordinary Temperature;Structure: Tubular;Size: 5/32, 1/4, 5/16, 3/8, 1/2;Media: Gas

Availability:

Quantity:



Inquire Add to Basket

Model:
DN1/4
Brand:
XHNOTION
Code:
8481804090
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
1000000 PCS Per Month
Transport Package:
CARTONS
Model NO.:
DN1/4
Function:
Only Allows Water to Flow in One Direction and Pre
Sealing Form:
Seals
Flow Direction:
Reversing
Standard:
ANSI
Application:
Household Usage
Size:
5/32, 1/4, 5/16, 3/8, 1/2
Seal Material:
NBR
Claw:
SS304
Medium:
Drinking Water, Air
Trademark:
XHnotion or no logo
Transport Package:
Plastic Bag
Specification:
ROHS, REACH, CE, ACS, FDA
Origin:
China
HS Code:
8481804090
Media:
Gas
Temperature:
Ordinary Temperature
Material:
Actal
Connection Form:
Cartridge
Structure:
Tubular
Pressure:
Low Pressure

Product Description

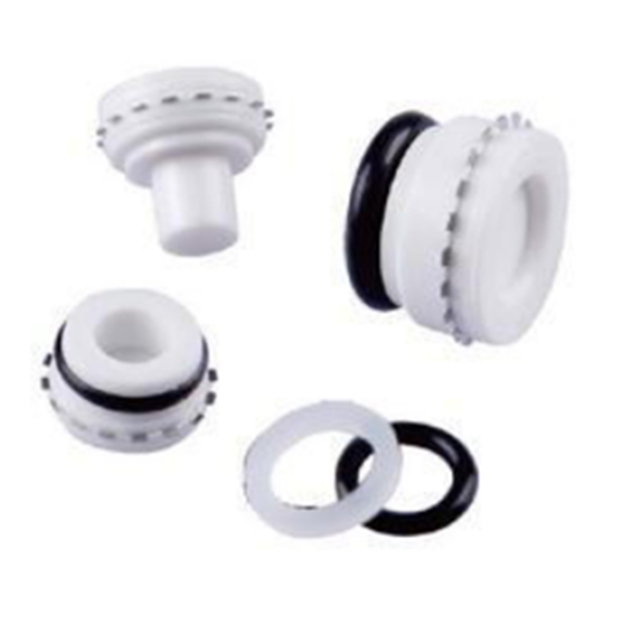

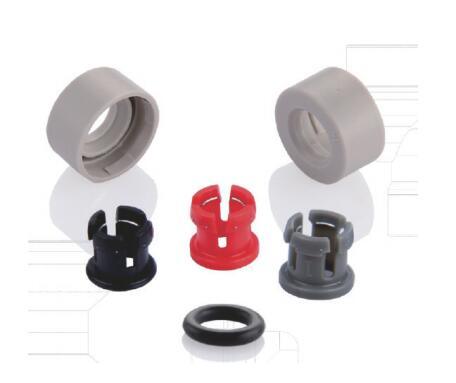

Fast-Inserting Cartridge

Application

1. Suitable for Plastic and Metal Shell Material.

2. No need of welding and thread, easy installation.

3. More simple and efficient integration of fast-inserting joint into a variety of devices.

Plastic Insert Cartridge Fitting Manufacturer

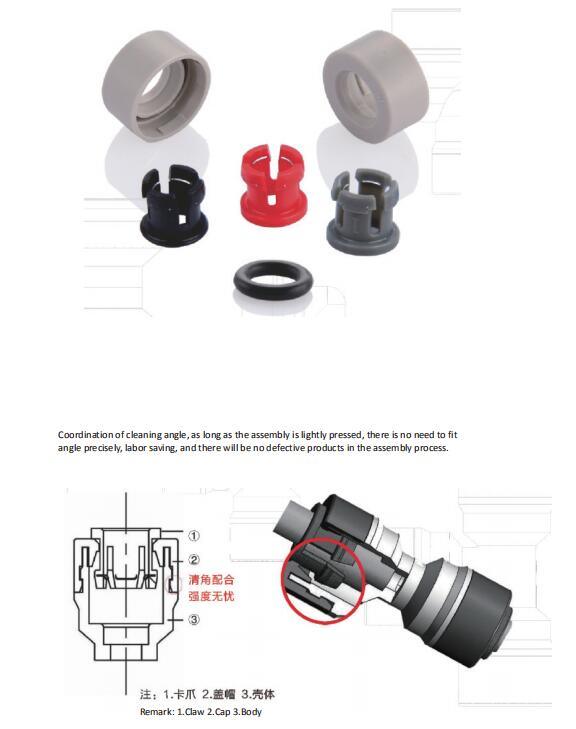

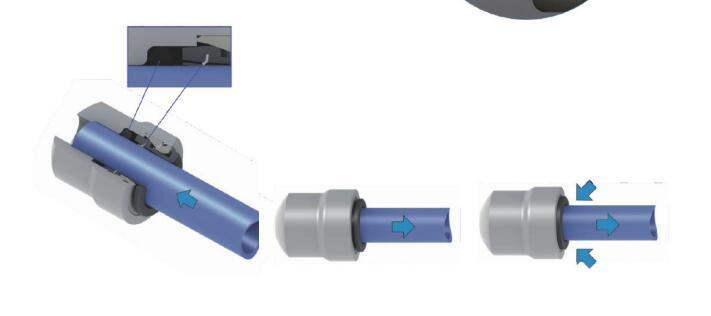

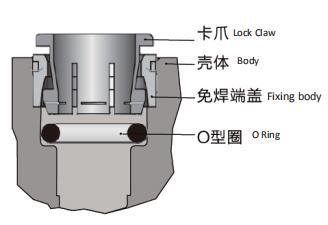

Fast-Inserting Push-In Structure

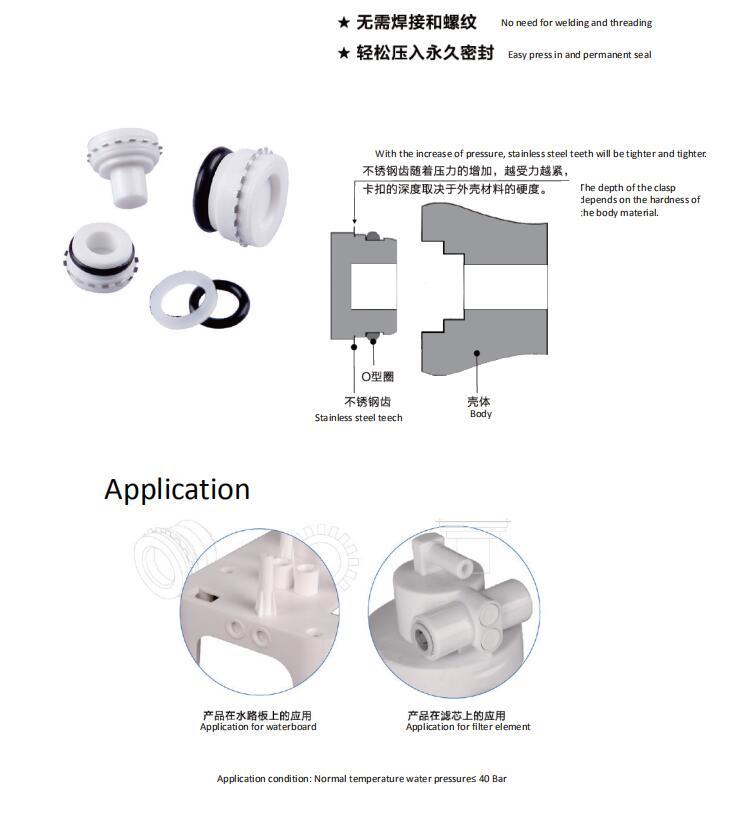

Fast-inserting push in structure need not be welded, but

only gently pressed. Stainless steel teeth are fastened

into the inner wall of the body. The depth of fastening

depends on the hardness of the body material. When the

structure is under pressure, stainless steel teeth will firmly

fix the end cap in the body, and the deeper the fastening

will be with the increase of pressure.

Detail

Plastic Insert Cartridge Fitting Manufacturer

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
