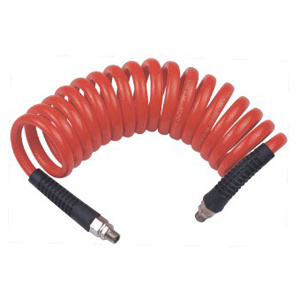

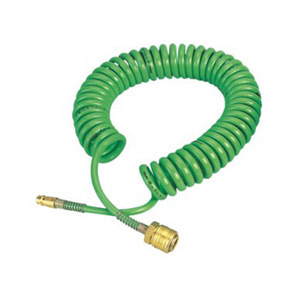

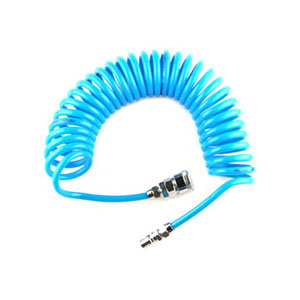

PU Air Hose with Germany Quick Coupler Under Reach Standard

Quantity:
  • Ningbo, China
  • 10000 M Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • AHC-06
  • Round
  • Thread
  • 1~30mm
  • XHnotion
  • Box or Spool
  • ROHS, REACH, CE
  • China
  • 3917290000
  • Medium Temperature Piping
  • Medium Pressure Piping
  • PU
  • GB, DIN
  • 3-40mm
  • Compressor Air
Product Description
FEATURES
Technical Information Polyurethane Tubing
Material Polyester (Polyether option)
Fluid Air, Water
Burst Pressure ( 20oC) 400 Psi
Working Pressure ( 20oC) 0-150 Psi
Operating Temperature -20~60 ºC
Shore 95A, 98A
Size Tolerance 3-8mm, +/-0.10 mm
10-16mm, +/-0.15 mm



SPECIFICATIONS
Metric Size O.D.(mm) I.D.(mm) Total Length per Roll (meter)
AHC0425 4 2.5 1~30
AHC0640 6 4 1~30
AHC0850 8 5 1~30
AHC1065 10 6.5 1~30
AHC1280 12 8 1~30
AHC1410 14 10 1~30
AHC1612 16 12 1~30





TUBE ADVANTAGE

1) 100% fresh material

2) Enough meters per roll and can mark meter on the tube as you request.

3) Print your logo above 3000 meter each size.

4) Conform to REACH, CE, ROHS certificate

5) Rich stock for every size and regular color.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe, silicone hose, rubber air hose are all available.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


===========================================================

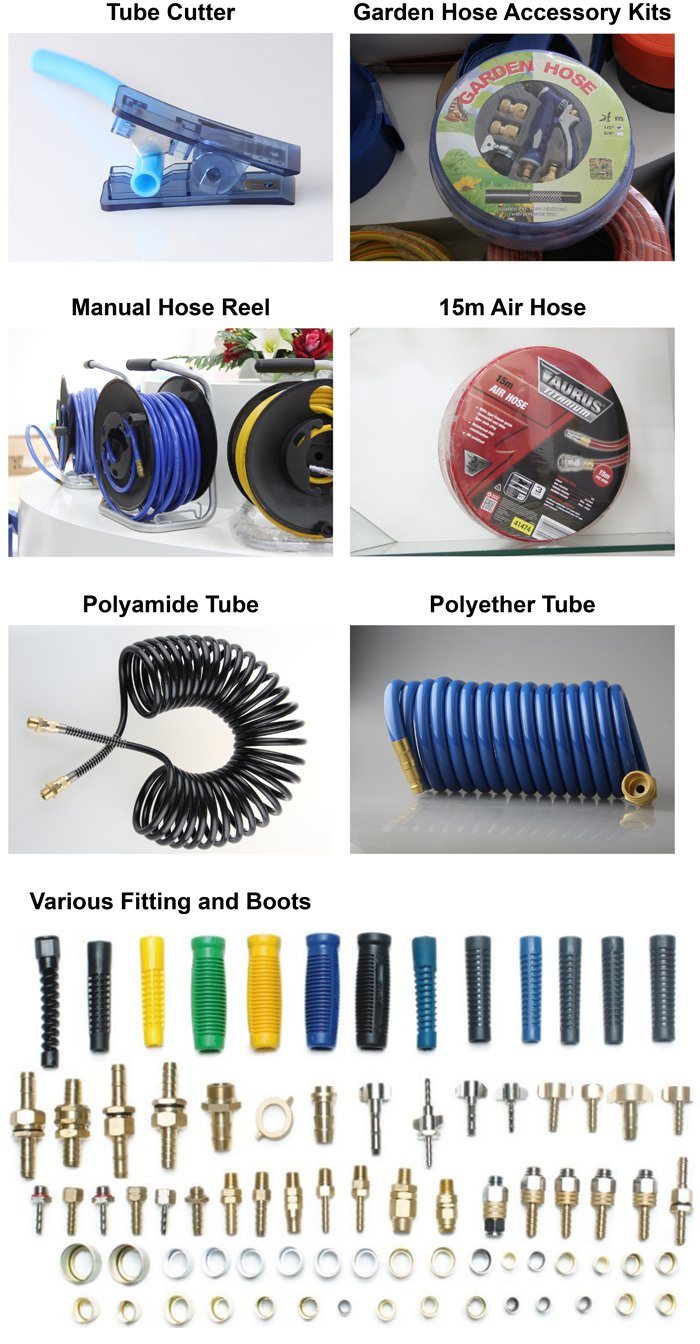

Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air cylinder, air preparation, pneumatic directional valve

solenoid valve

Ball valve, brass connector

=========================================================
FAQ

Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
Free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
