| Quantity: | |
|---|---|
L/C, T/T, Paypal, Money Gram, Western Union
10000m Per Month
plastic bag
TF0201
-100~260 Celsius Degree
0-150 Psi
XHnotion
ROHS, REACH, CE
CHINA
3917290000
PTFE
GB, DIN
2mm-16mm
Air
Round
Thread
FEATURES
| Technical Information | PTFE Tubing |
| Material | Teflon |
| Fluid | Air, Water, Oil, Corrosion Fuild, Steam |
| Burst Pressure (20 oC) | 400 Psi |
| Working Pressure (20 oC) | 0-150 Psi |
| Operating Temperature | -100~260 ºC |
| Density | 2.16 g/cc |
| Size Tolerance | 4-8mm, +/-0.10 mm |
| 10-16mm, +/-0.15 mm |
SPECIFICATIONS
| Metric Size | O.D.(mm) | I.D.(mm) | Imperial Size | O.D.(Inch) | I.D.(Inch) | Length per Roll(m) | |
| TF0201 | 2 | 1 | TF1/16 | 1/16'' | 1/32'' | Upon Request | |
| TF0320 | 3 | 2 | TF1/8 | 1/8" | 0.079" | ||
| TF0420 | 4 | 2 | TF5/32 | 5/32" | 0.093" | ||
| TF0640 | 6 | 4 | TF1/4 | 1/4" | 0.17" | ||
| TF0860 | 8 | 6 | TF5/16 | 5/16" | 0.196" | ||
| TF1080 | 10 | 8 | TF3/8 | 3/8" | 1/4" | ||
| TF1210 | 12 | 10 | TF1/2 | 1/2" | 3/8" | ||
| TF1411 | 14 | 11 | TF3/4 | 3/4" | 1/2" | ||
| TF1612 | 16 | 12 |
TUBE ADVANTAGE
1) 100% fresh material
2) Enough meters per roll and can mark meter on the tube as you request.
3) Print your logo above 3000 meter each size.
4) Conform to REACH, CE, ROHS certificate
5) Rich stock for every size and regular color.
6) 1 year quality assurance after shipment.
7) After sales technique support

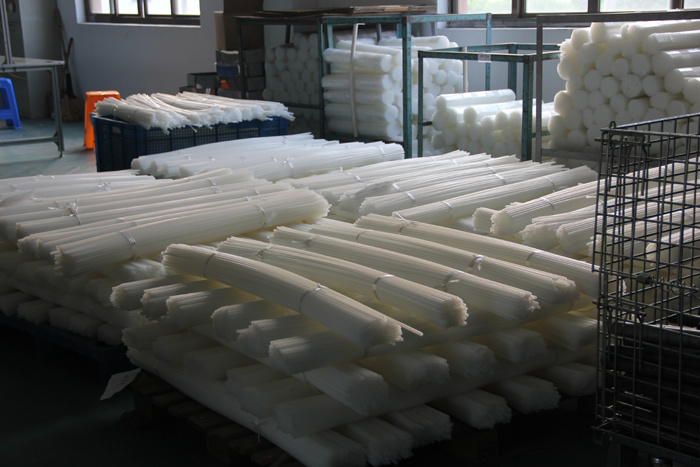

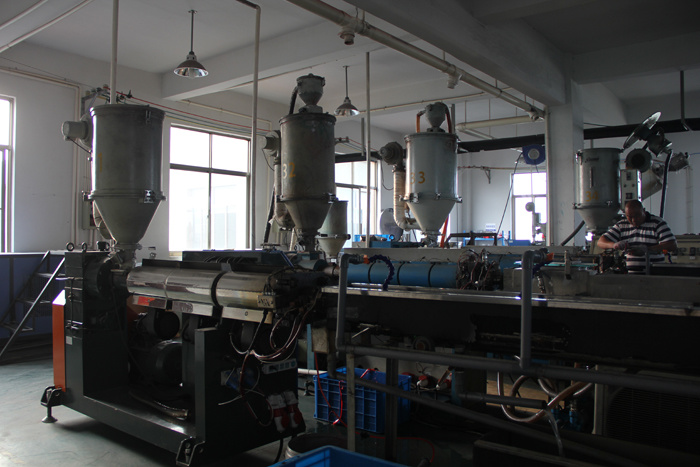

WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe, silicone hose, rubber air hose are all available.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
===========================================================
Meanwhile, we also manufacture below items.
pneumatic fittings, plastic, brass, stainless steel push in fittings
pneumatic quick coupling, air tool kits, air blow gun
pneumatic muffler, silencer, filter
air cylinder, air preparation, pneumatic directional valve
solenoid valve
Ball valve, brass connector
=========================================================
FAQ

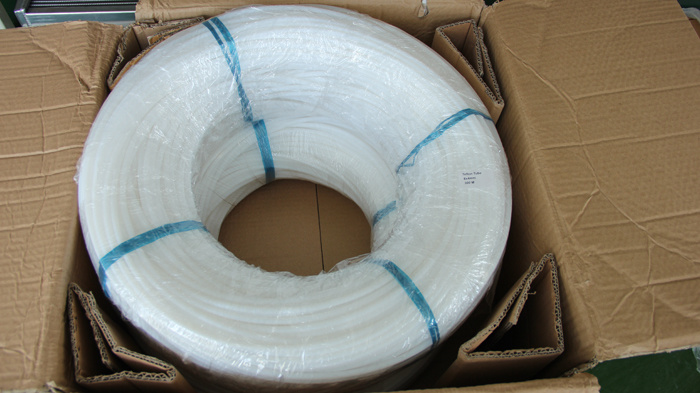

Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
Free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
