| Quantity: | |
|---|---|
PSE
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
PSE
Hexagon
M5, M6, 1/8, 1/4, 3/8, 1/2
Ce, RoHS, TUV
Plastic Bag
China
842199900
Air Line
Xhnotion
Normal Temperature
Plastic
DIN, GB
3mm-16mm

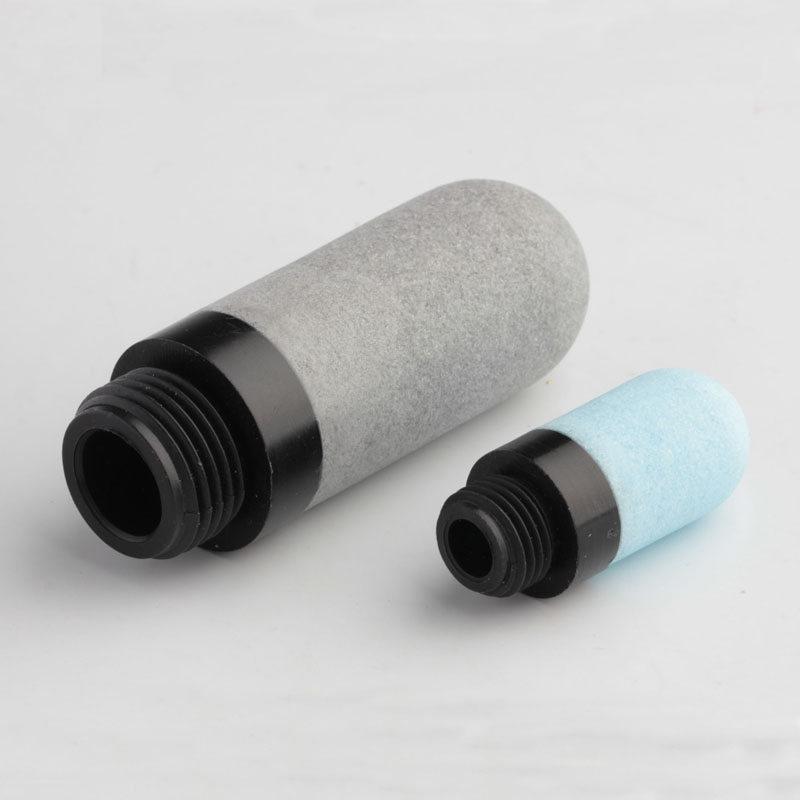

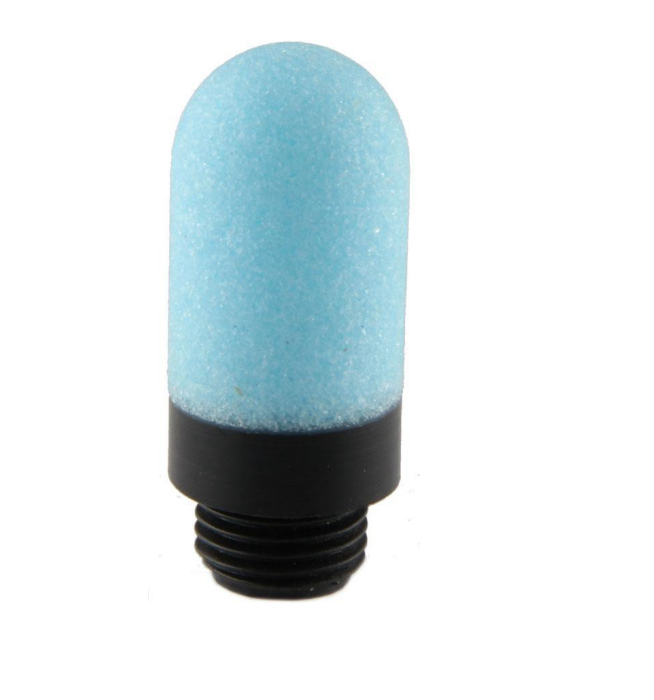

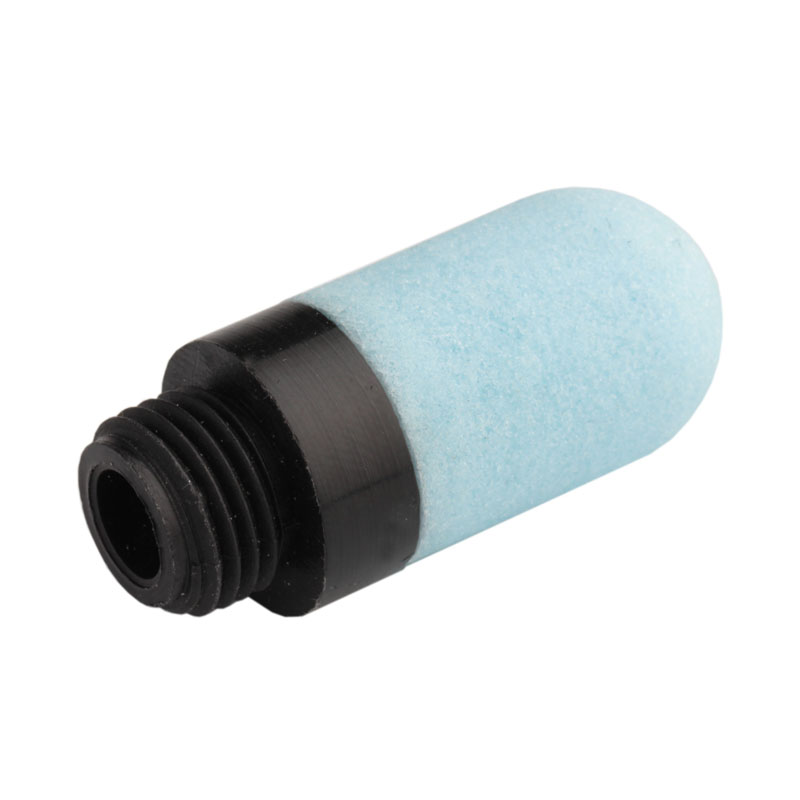

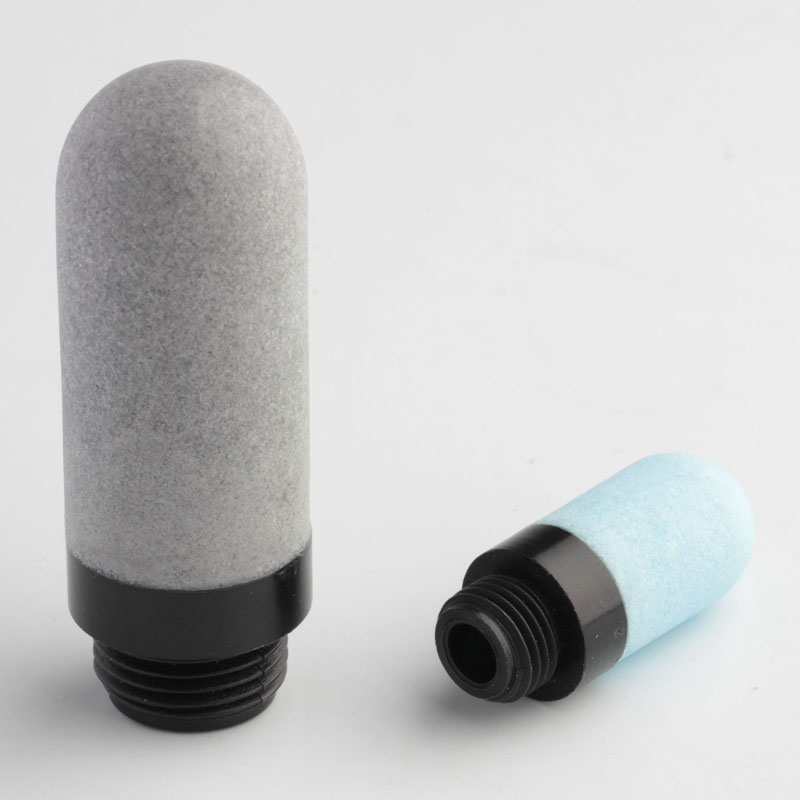

1. Application Field: Pneumatic, Oil pressure and Hydraulic systems.
2. Function: to reduce noise and to remove dust and water.
3. Pressure Range: 0-10 bar; Max. Pressure: 12 bar.
4. Temperature Range: -10~70 °C.
5. Noise Elimination Effect: 20-25 db.
6. Filtration Rating: 5-100μm; regular rating is 40μm.
7. NPT, G & BSPT thread are available; regular thread is G thread.
8. Material: Brass, SS304, SS316, PE.
| Metal Body | Nickel Plated Brass, Stainless Steel, Nylon, Zinc Alloy |
| Filter Materia | Brass Powder, Stainless Steel, HDPE |
| Operating Pressure | 0~12 bar |
| Operating Temperature | -10 ~ 70°C |
| Pressure Range | 0-12 bar |
| Application | Pneumatic, Oil pressure and Hydraulic systems |
| Capacity | Over 100000pcs/month |
| Marketing Area | All over the world |
| Basic Info | |||
| Model NO. | PSE-8 | Work Temperature | Normal Temperature |
| Material | Plastic | Thread | M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1 |
| Type | Muffler | Condition | New |
| Transport Package | Plastic Bag | Specification | ROHS, REACH, CE |
| Trademark | XHnotion | Origin | China |
| HS Code | 842199900 | Production Capacity | 10000 PCS Per Day |
 | PSE-M5 | Plastic muffler Base: Nylon | M5 | $0.22 |
| PSE-6 | G1/8" | $0.35 | ||
| PSE-8 | G1/4" | $0.50 | ||
| PSE-10 | G3/8" | $1.04 | ||
| PSE-15 | G1/2" | $1.10 | ||
| PSE-20 | G3/4" | $3.15 | ||
| PSE-25 | G1" | $5.36 |
1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
FAQ
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.
Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
