Oxygen Concentrator Pilot Solenoid Valve

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XV10Power Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageThread: 1/4,1/8Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: CEOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: AluminumPressure: Low PressureValve Structure: Pilot Piston Structure
  • XV10


  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month


  • XV10

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 1/4,1/8

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Bluk Packing or Blister Packing

  • CE

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • Aluminum

  • Low Pressure

  • Pilot Piston Structure

Product Description


Small size & Convenient installaton

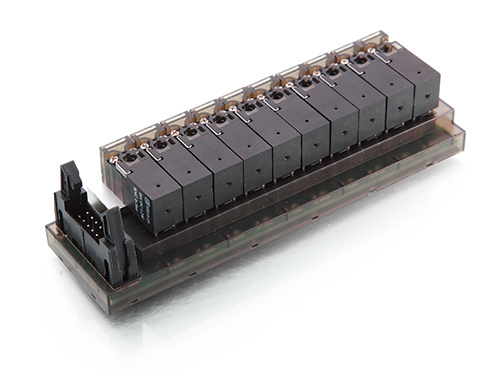

It is ideal for installation in confined space, which can be  either installed on a single base or on the manifolds. It can replace the  majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve.
Energy -saving & Environment friendly
The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w.
Large flow& Wide application
It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of  processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the  standard type.
Quick Response & Multi-functional

It can response within10ms, realizing vacuum function easily.

Multi-specifications & All models
Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by
interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.
It can response within10ms, realizing vacuum function easily.
Long life & More sustainable
Super safe even in the situation of 24-hour continuous work and 100% on-load factor.


Model XV10L
Operation Type 3/2 N.C.; 3/2 N.O.; 2/2 N.C.
Working Medium Filtered Air/Inert gases
Ambient Temperature -10~80 ºC
Working Pressure 0-7bar
Orifice size φ0.75mm(P),/φ1.0mm(R)
Flow rate at 6 bar(Δp1bar) 16NL/min(P1→P2), 23NL/min(P2→P3)


Electrical Connector Vertical type(L)/Horizontal type(M)/Direct line type(G)
Stand Voltage DC24V/12V/6V/3V; AC220V/110V
Power 1W/1.2W  double power
Insulation H Class
Service life > 50 million times
Duty Cycle ED 100%
Max Operating Frequency 30Hz
Operating Voltage Tolerance +/- 10%
Response Time Less than 10ms
Degree of pretection IP65


1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support

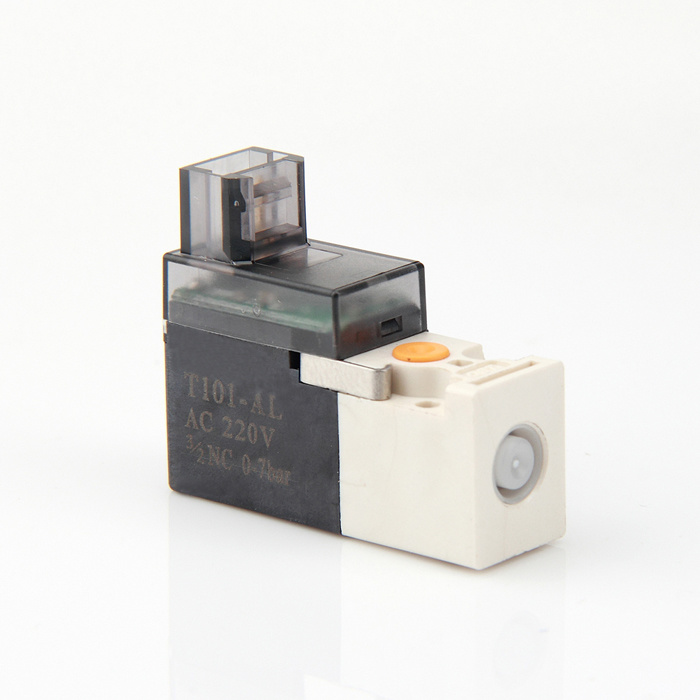

Oxygen Concentrator Pilot Solenoid Valve

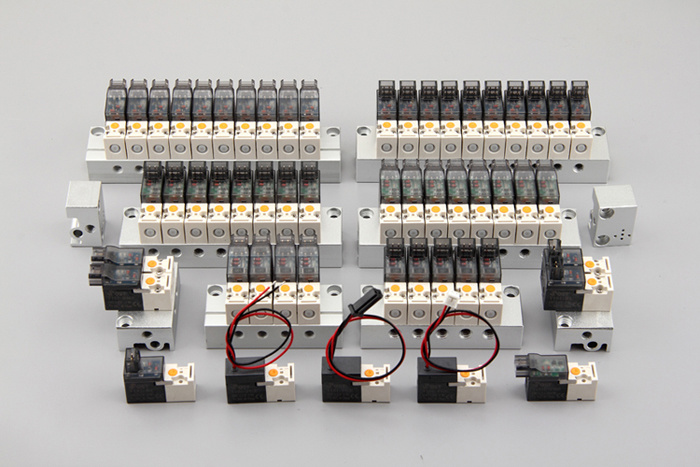

Oxygen Concentrator Pilot Solenoid Valve

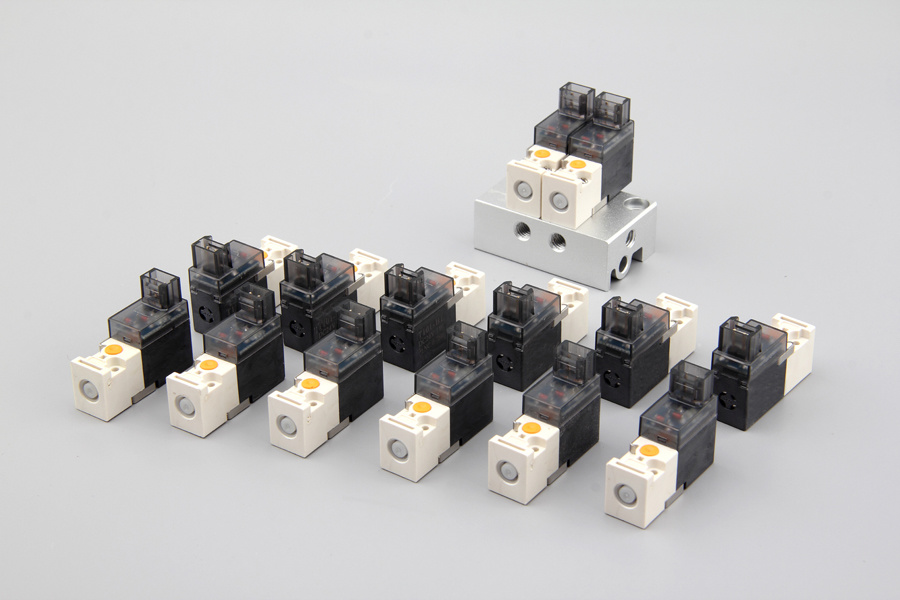

Oxygen Concentrator Pilot Solenoid Valve

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.


Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
