One Touch Triple Branch Union Push in Air Fitting

Model NO.: PKSize: 3mm-16mmHead Type: RoundConnection: TubeSurface Treatment: Without TreatmentCertification: Ce, RoHS, TUVTransport Package: Plastic BagOrigin: ChinaHS Code: 39174000Type: Quick ConnectorUsage: Air LineBrand: XhnotionWork Temperature: Normal TemperatureMaterial: PlasticStandard: DIN, GB
Availability:
Quantity:
  • PK

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 100000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • PK

  • 3mm-16mm

  • Round

  • Tube

  • Without Treatment

  • Ce, RoHS, TUV

  • Plastic Bag

  • China

  • 39174000

  • Quick Connector

  • Air Line

  • Xhnotion

  • Normal Temperature

  • Plastic

  • DIN, GB

Product Description

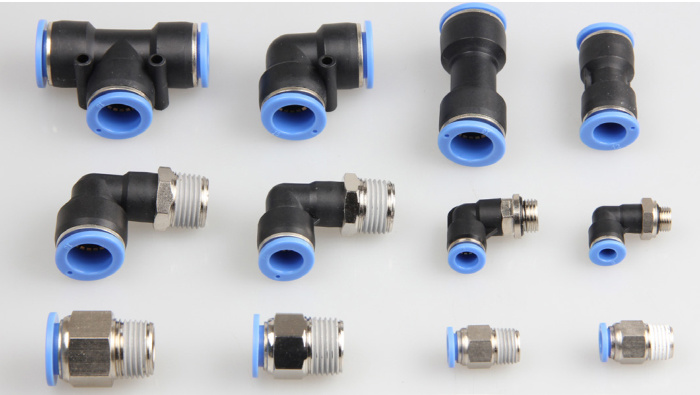

One Touch Triple Branch Union Grey Push in Air Fitting




One Touch Triple Branch Union Push in Air Fitting







Features

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard.











Specifications

Operating Pressure 0 - 150 PSI
Operating Temperature 0 - 60°C            32 - 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Union Tee
Capacity Over 1000000pcs/month
Marketing Area All over the world




Material Construction
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR









Fittings Advantage

1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body Blue and oval button with black body as regular,
   black or gray round button is available, too.
4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.








Packing & Shipping

Packing:
Plastic Bag + White Box + Carton
Custom packaging are available, XHnotion brand packaging are available


Shipping:
Method:Air, Sea, Courier
Export port:Ningbo or Shanghai, China
Delivery time:3 days to 30 days depends on actual orders.
Express:TNT, UPS, DHL, FedEx, SF Express.


One Touch Triple Branch Union Push in Air Fitting












Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008.And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: Air cylinder, FRL

Solenoid Valve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water                                       push in fittings

Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits

Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes



One Touch Triple Branch Union Push in Air Fitting

One Touch Triple Branch Union Push in Air Fitting












Why Choose US?

1.We offer one stop solution.Over 5000 items for you to save efforts and costs.
2.We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
  make sure each part exactly as the drawing and good function.
3.We will reply you within 24 hours.
4.Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.









FAQ

Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular items, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
