| Quantity: | |
|---|---|
LPC4-02
XHNOTION
L/C, T/T, Western Union, Paypal
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
LPC4-02
M5,M6, 1/8, 1/4, 3/8, 1/2
XHnotion
Plastic Bag

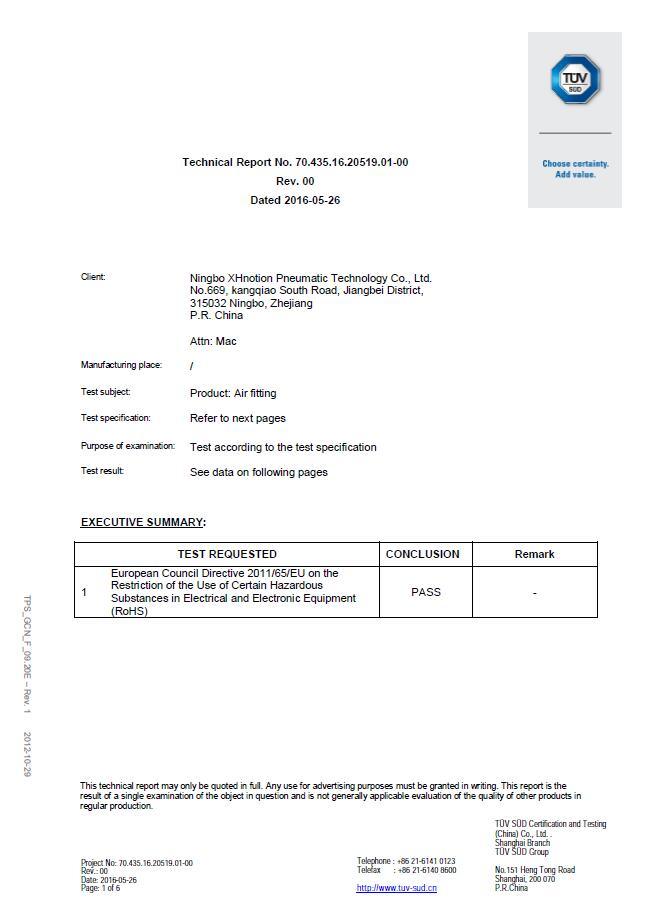

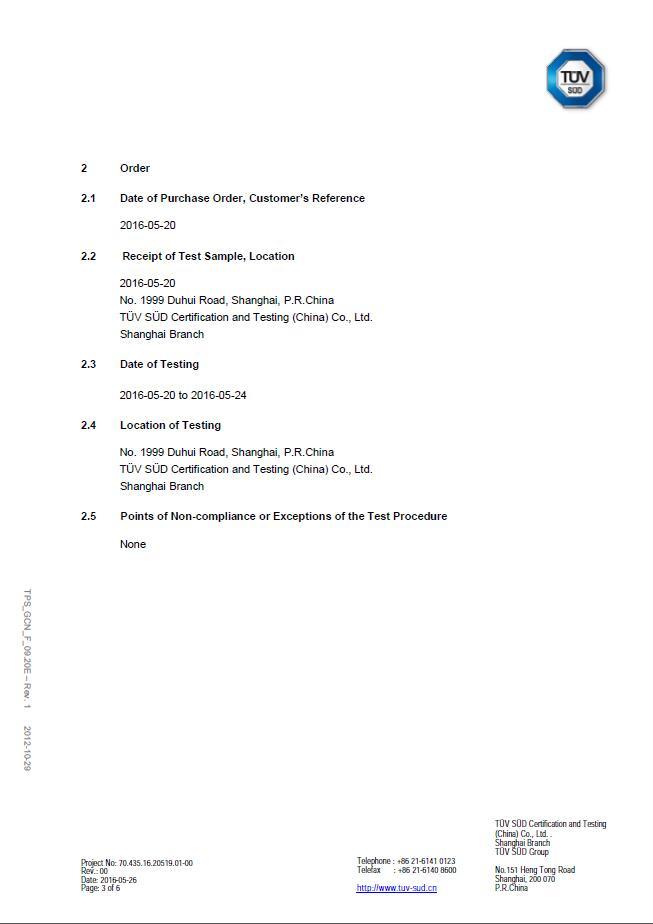

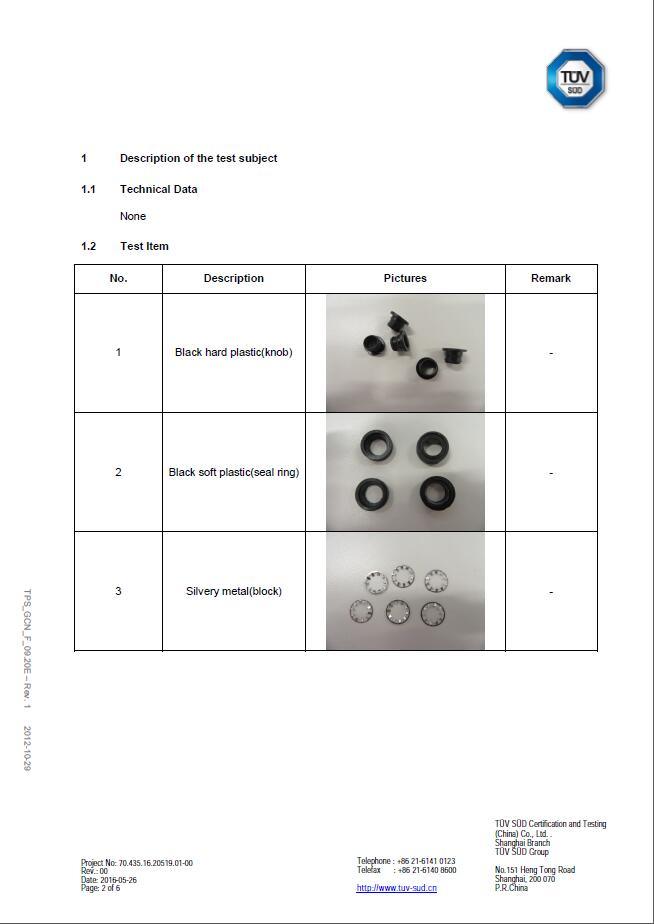

ROHS, REACH, CE
China
39174000
DIN, GB
Nylon
Male
Nickel-Plated
Hexagon
4mm-12mm
FEATURES
1. Body and collar material is NYLON, it's lighter.
2. The tube can be safely rotated 360°without scratch, because the internal lock claw is rotatable.
3. Fluid type: air, gas, water.

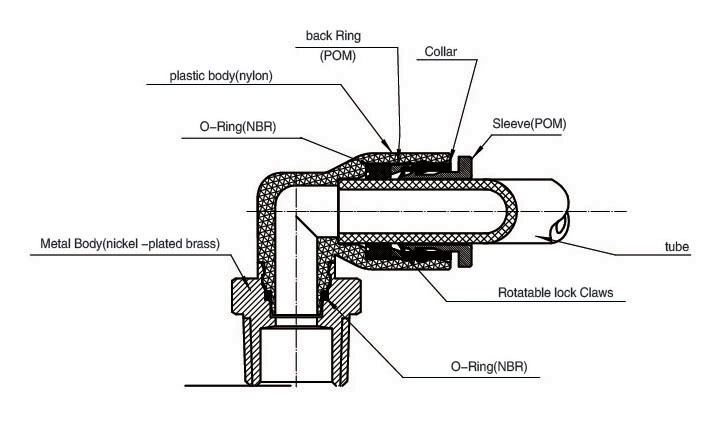

| Metal Body | Nickel Plated Brass or Brass |
| Release Button | Nylon |
| Plastic Body | Nylon |
| Thread Sealant | Teflon |
| O-Ring | NBR |
SPECIFICATIONS
| Operating Pressure | 0 - 150 PSI 0 - 990 kpa |
| Operating Temperature | 0 - 60 °C 32 to 140°F |
| Application | Air, water |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, and Polypropylene |

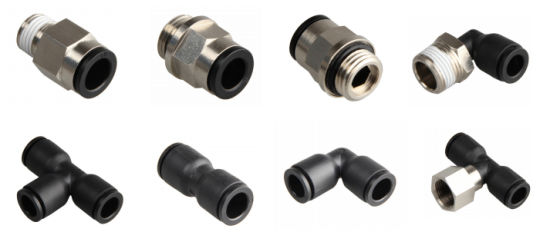

| Types | Straight, Elbow, Tee, X, Y, etc. |
| Capacity | Over 1000000pcs/month |
| Marketing Area | All over the world |
FITTINGS ADVANTAGE
1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.
3) Multiple color and shape for button and body
4) 5% tested by water at 10 bar, 100% tested by air and appearance test.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.
WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
For other size, please refer to below table.
| Model [ΦD-T] | ||
| Tube(Metric)-Thread(R) | ||
| LPC 4-M5 | LPC 6-03 | LPC 12-01 |
| LPC 4-M6 | LPC 8-01 | LPC 12-02 |
| LPC 4-01 | LPC 8-02 | LPC 12-03 |
| LPC 4-02 | LPC 8-03 | LPC 12-04 |
| LPC 4-03 | LPC 8-04 | |
| LPC 6-M5 | LPC 10-01 | |
| LPC 6-M6 | LPC 10-02 | |
| LPC 6-01 | LPC 10-03 | |
| LPC 6-02 | LPC 10-04 | |
