| Quantity: | |
|---|---|
HVSS
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Day
PLASTIC BAG AND CARTON
HVSS
3mm-16mm
Round
Tube
Without Treatment
Ce, RoHS, TUV
Plastic Bag
China
39174000
Quick Connector
Air Line
Xhnotion
Normal Temperature
Plastic
DIN, GB

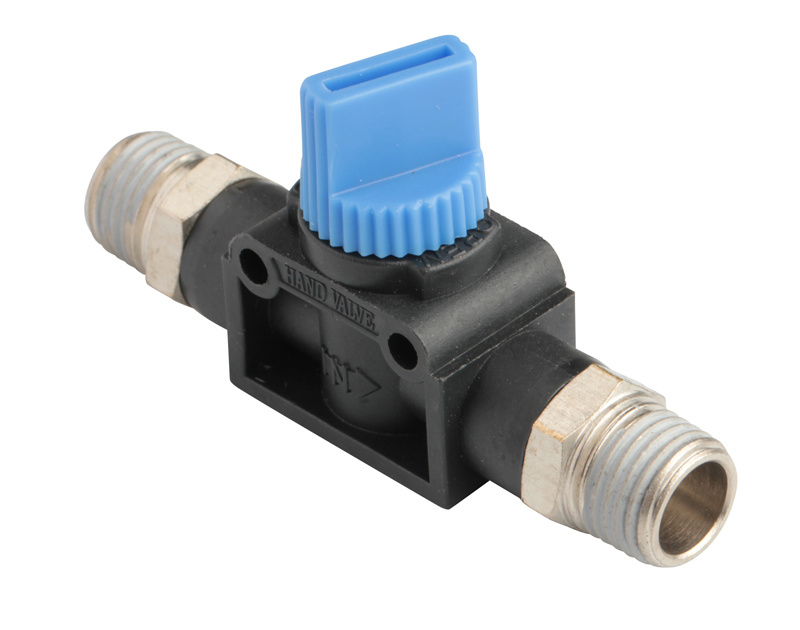

1. Hand valve are designed to turn on and off the airflow.
2. Two way and three way valve are available for all models.
3. The three way valve releases the residual internal pressure on the output side when manually closed.
4. Two way valve can be used for Vaccum. If you order two way valve, please add B after model name.
5. G-thread type is also available.
6. Working Pressure: 0-150 Psi.
7. Working temperature: 32-140ºF/ 0-60ºC.

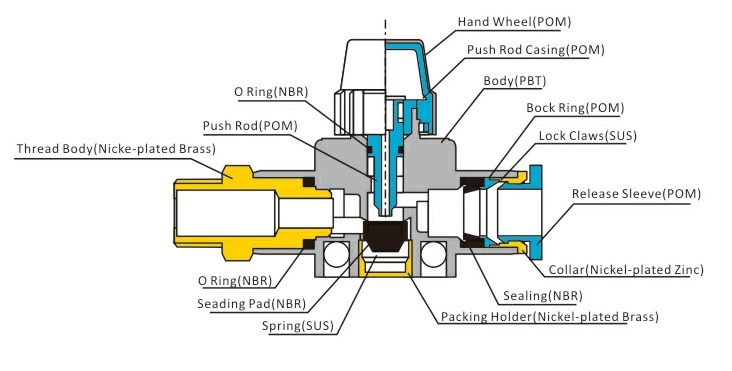

| Plastic Body | PBT |
| Metal Body | Nickel Plated Brass or Brass |
| Release Button | POM |
| Grip Ring | Stainless Steel |
| Thread Sealant | Teflon |
| O-Ring | NBR |
| Operating Pressure | 0 - 150 PSI 0 - 990 KPA |
| Operating Temperature | 0 - 60°C 32 - 140°F |
| Application | Air |
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, and Polypropylene |
| Types | Valve |
| Capacity | Over 100000pcs/month |
| Marketing Area | All over the world |
1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body Blue and oval button with black body as regular,
black or gray round button is available, too.
4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.

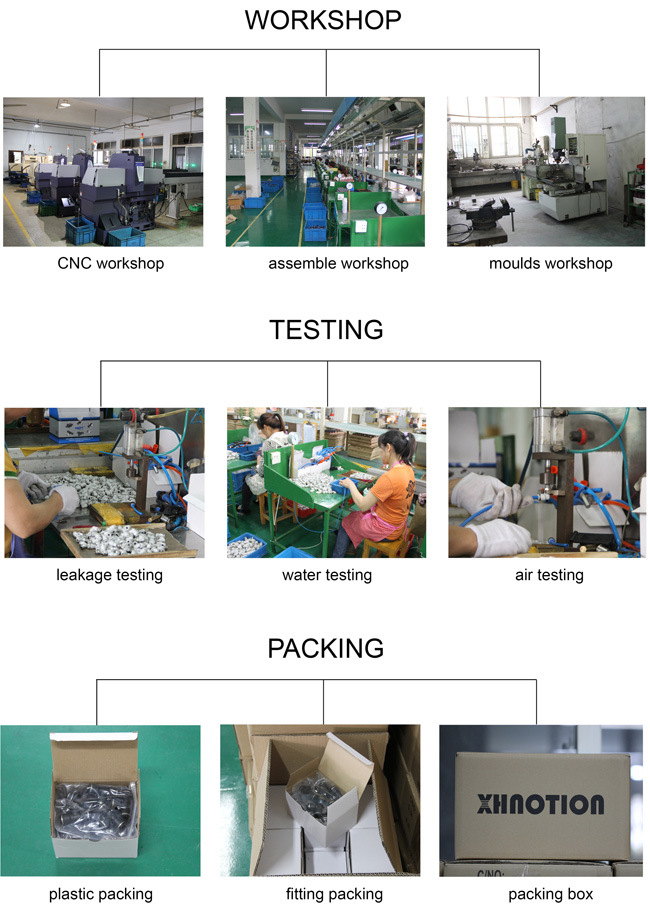

2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.
Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
