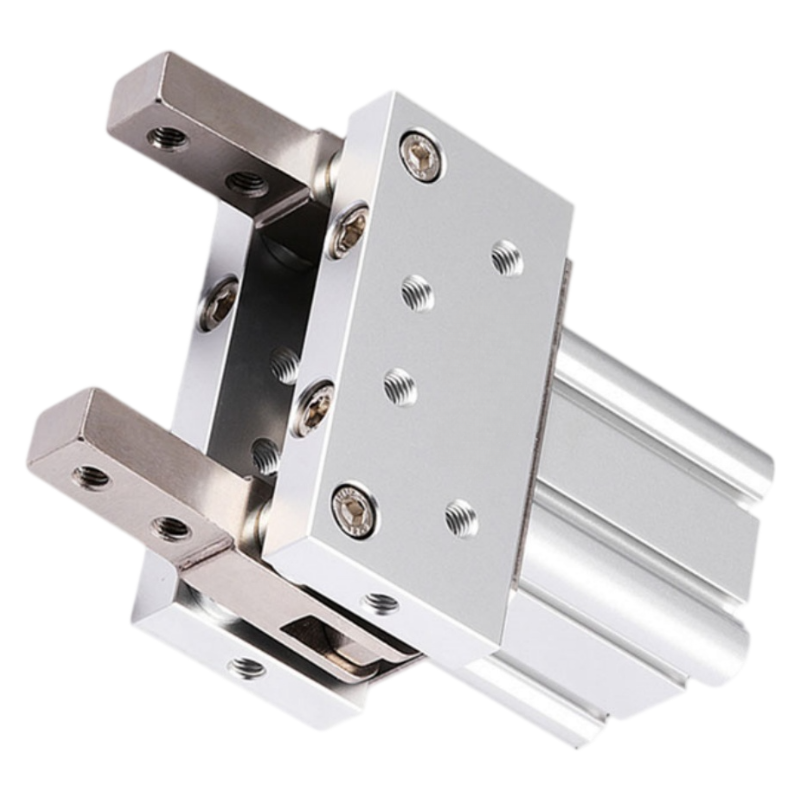

Double acting
Air
0.1 to 0.6 MPa
5 to 60°C
Not required

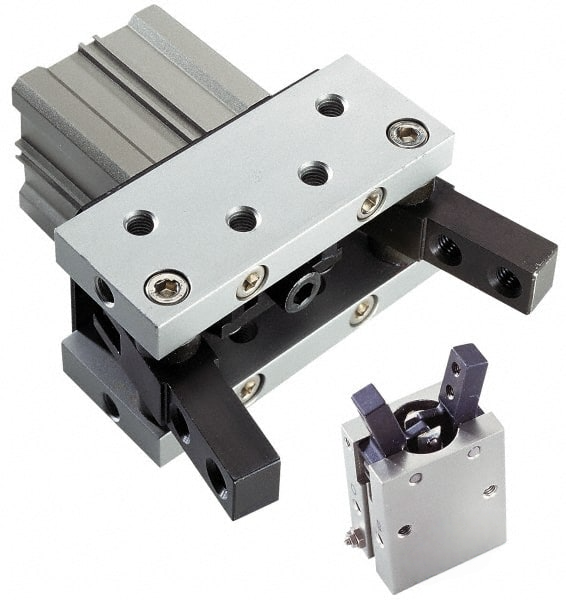

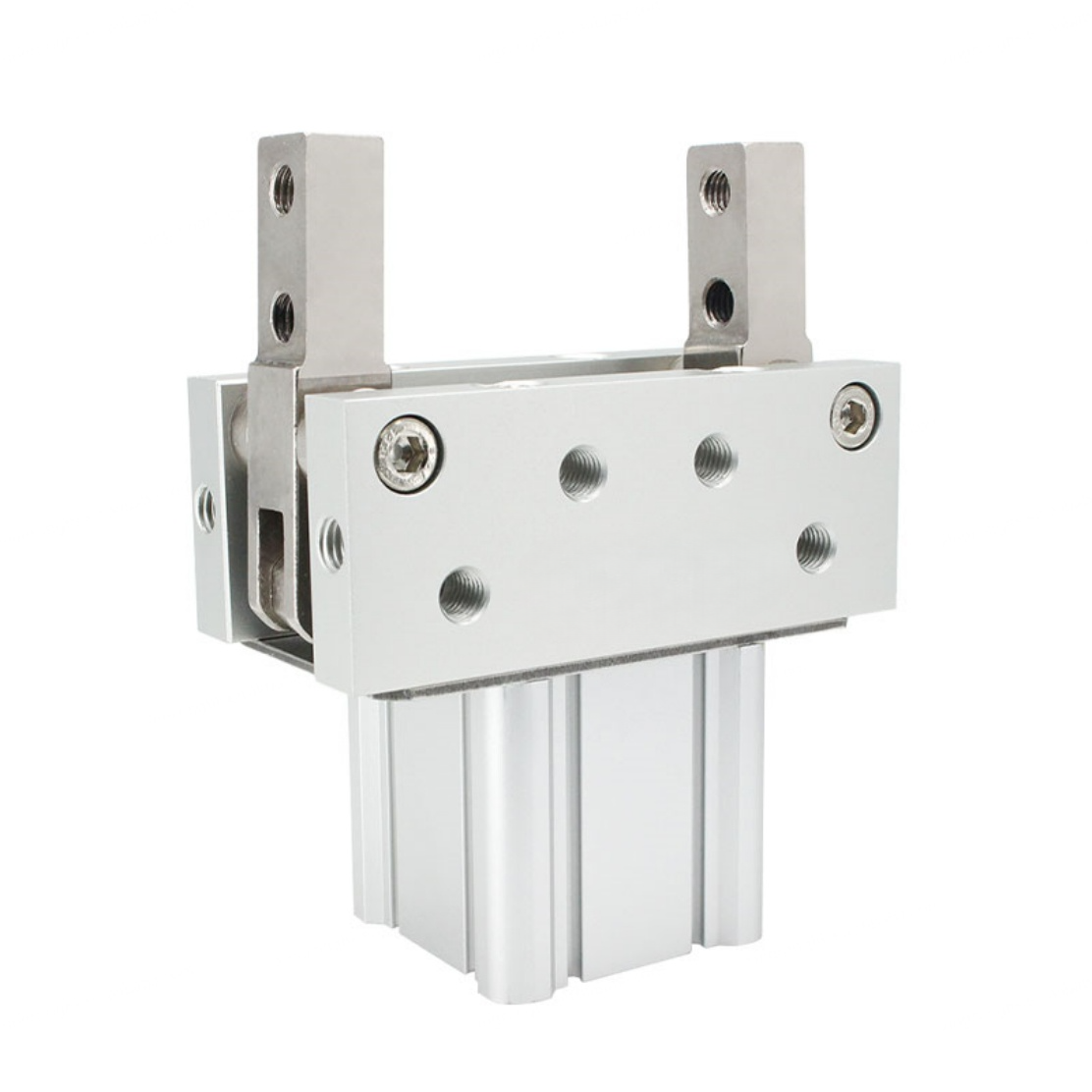

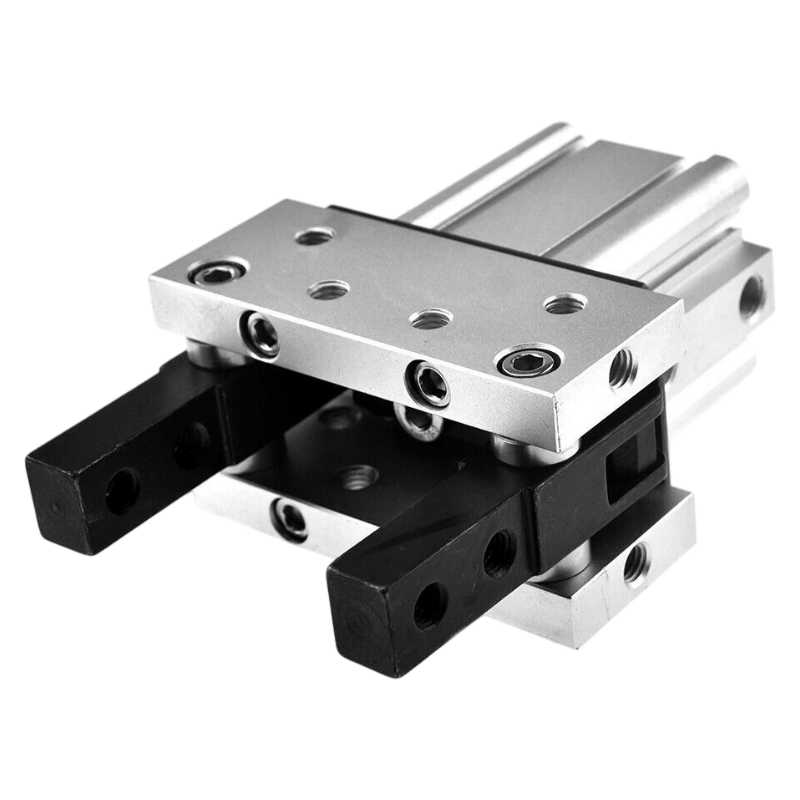

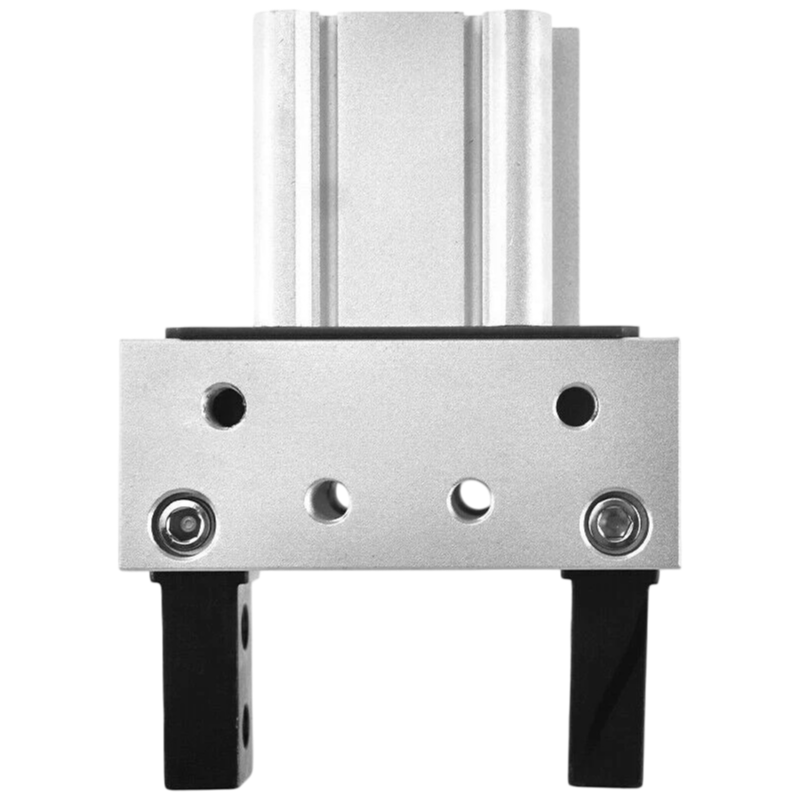

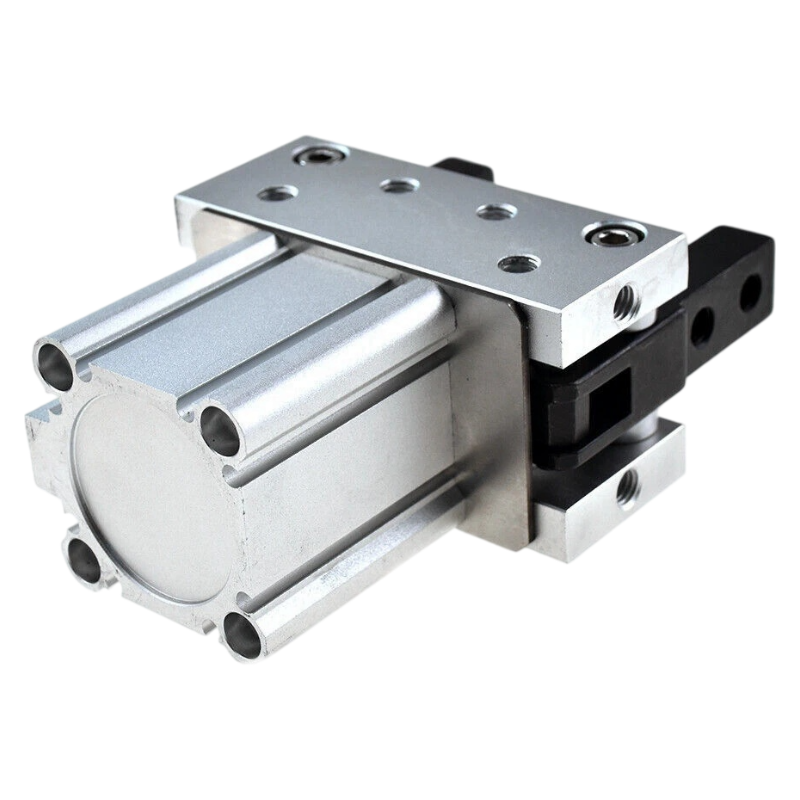

Feature
1. High torque toggle mechanism, maximum clamping moment for heavy weight workpieces
2. Safety self-lock function: continuously hold workpiece when air supply fails
3. Integral permanent magnet, compatible with various standard magnetic auto switches
4. Two-finger angular swing range: -3°~28°, large effective gripping stroke
5. 4-direction magnetic switch installation grooves, flexible assembly layout
6. Reinforced hinge and finger structure, strong anti-impact performance
7. High precision aluminum alloy body with hard anodized surface
8. Non-lube design, suitable for long-time continuous operation
9. Multiple thread options: Rc, G, NPT for worldwide compressed air pipeline

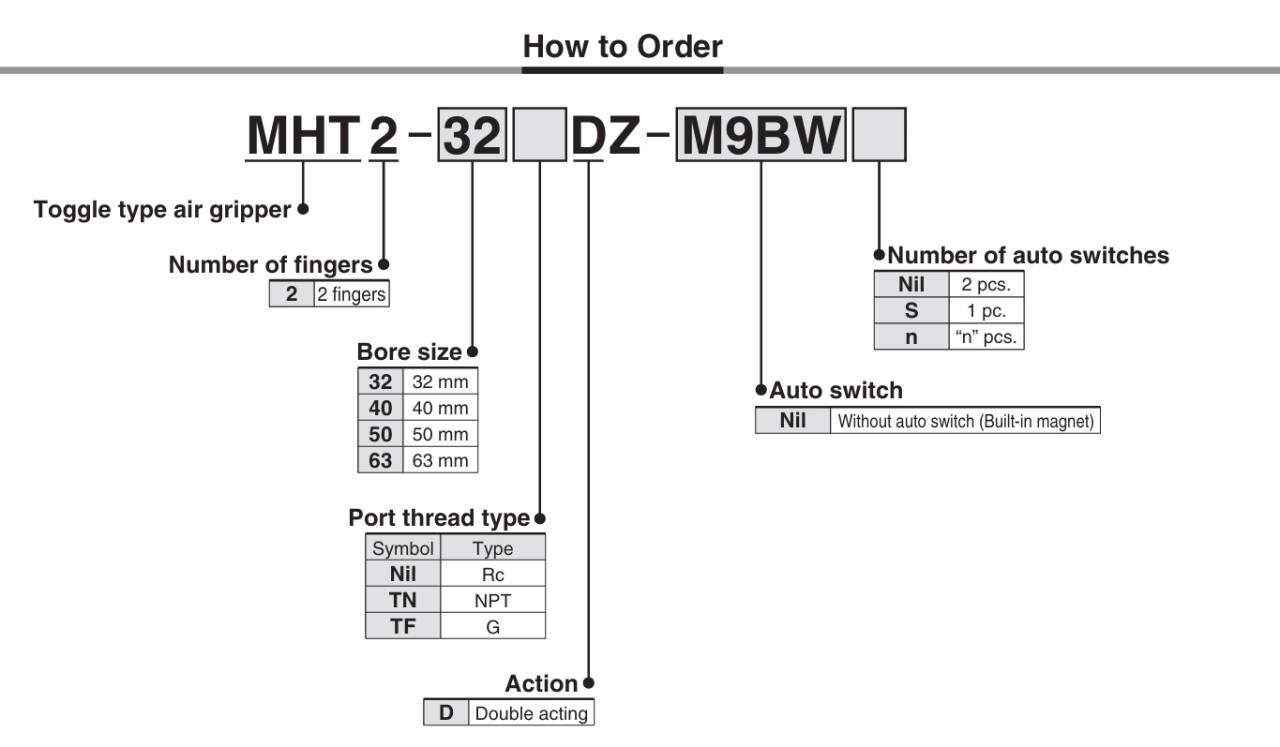

How to order
Specification
Item | MHT2-32DZ | MHT2-40DZ | MHT2-50DZ | MHT2-63DZ |
Bore size (mm) | 32 | 40 | 50 | 63 |
Action | Double acting | |||
Fluid | Air | |||
Operating pressure | 0.1 to 0.6 MPa | |||
Ambient and fluid temperature | 5 to 60°C | |||
Lubrication | Not required | |||
Finger opening angle (Total) | −3° to 28° | −3° to 27° | −2° to 23° | |
Weight (g) | 790 | 1070 | 1890 | 2720 |
Gripping moment* | 12.4 | 36 | 63 | 106 |
(Effective value) (N·m) | ||||
*At the pressure of 0.5 MPa | ||||
Dimensions

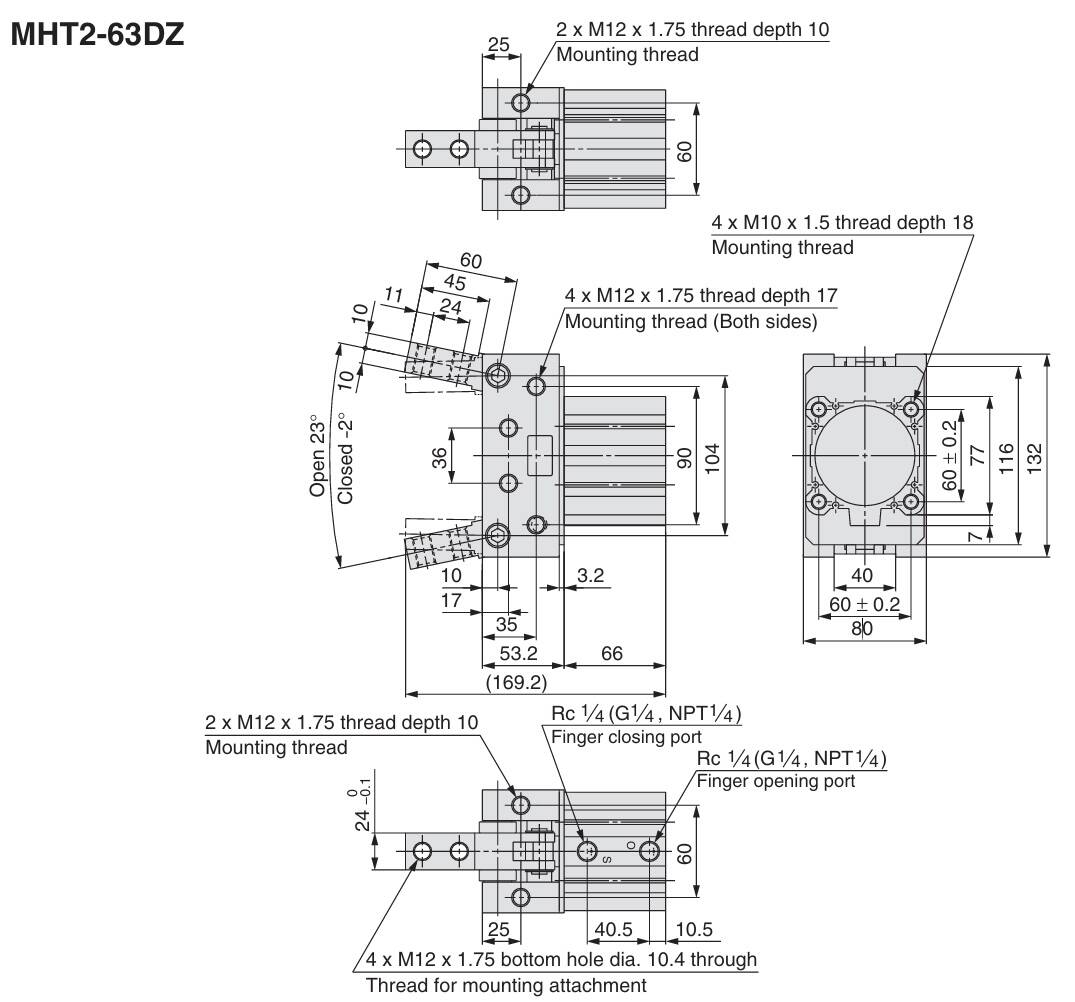

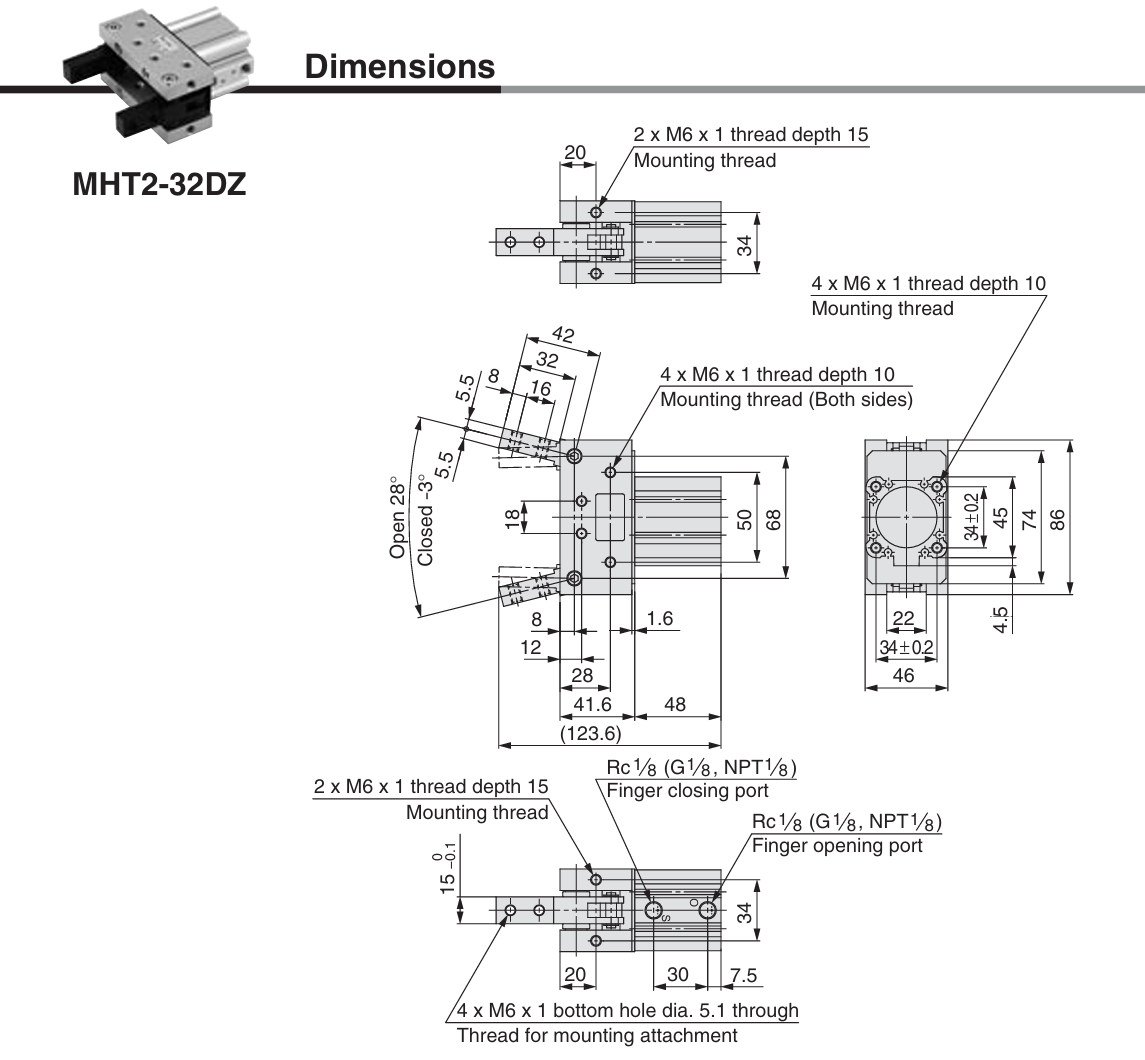

1. MHT2-32DZ

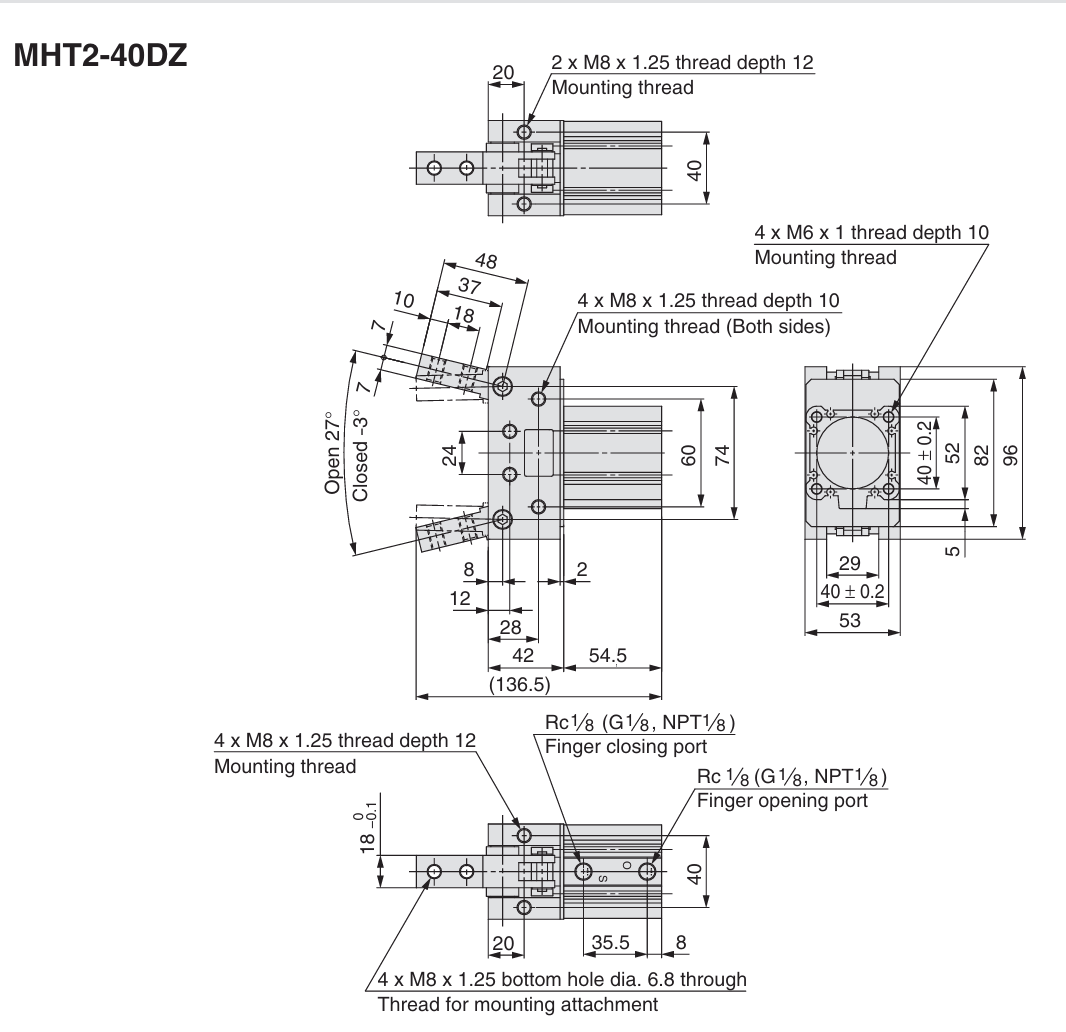

2.MHT2-40DZ

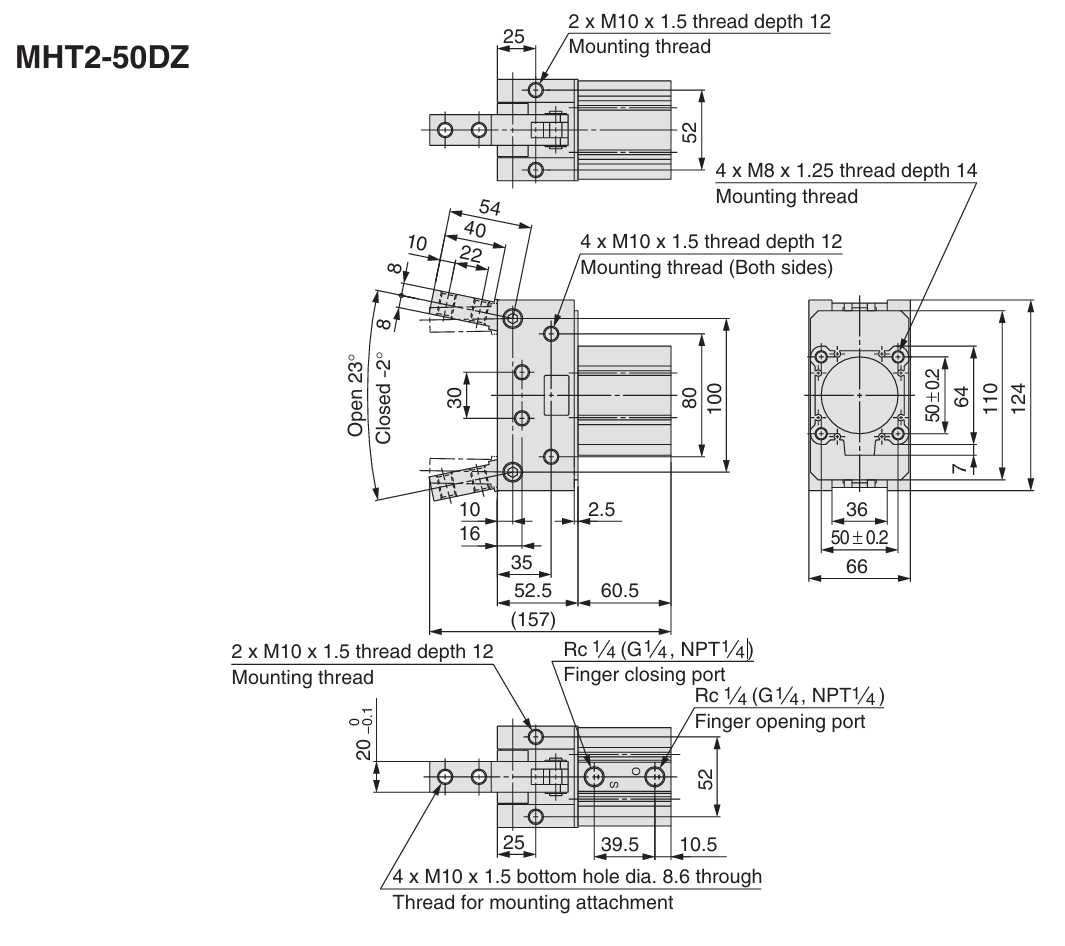

3.MHT2-50DZ
4.MHT2-63DZ

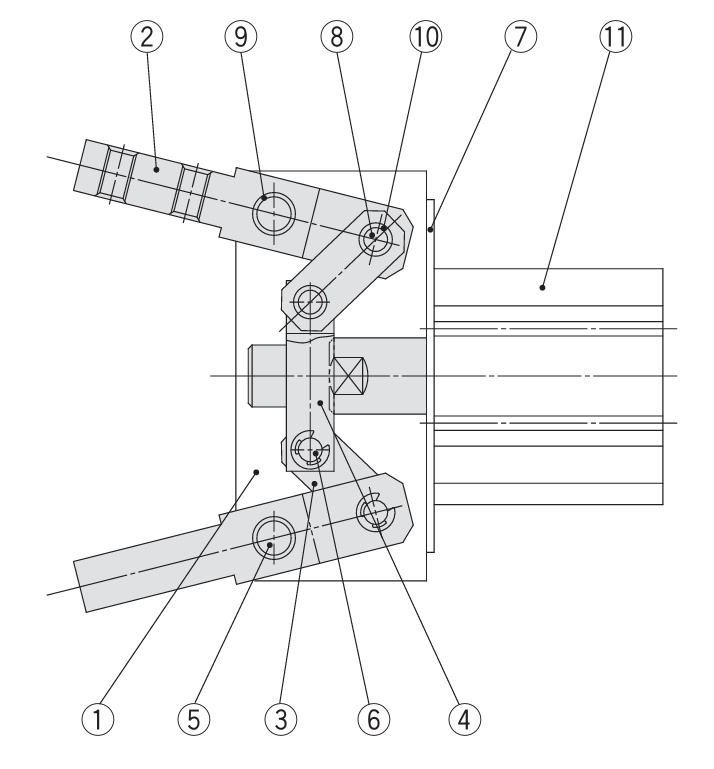

Structure
No. | Description | Material | Note |
1 | Side plate | Aluminum alloy | Hard anodized |
2 | Finger | Carbon steel | Black zinc chromated |
3 | Lever | Carbon steel | Black zinc chromated |
4 | Joint | Carbon steel | Black zinc chromated |
5 | Shaft | Stainless steel | |
6 | Joint pin | Stainless steel | |
7 | Cylinder plate | Soft steel | Black zinc chromated |
8 | Lever pin | Stainless steel | |
9 | Bearing | Steel lined oil infilled acetal resin bearing | |
10 | Bearing | Steel lined oil infilled acetal resin bearing | |
11 | Cylinder | Compact cylinder |
