| Quantity: | |
|---|---|
MHM
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
16,25,32,50
Double-acting
0.9 MPa
Compressed air
-10°C to+60 °C(no freezing)
0.3 N or less
Feature
1.Magnetic holding design: It can keep holding the workpiece even after air supply is cut off, safe and reliable.
2.Adjustable suction force: Equipped with adjustment bolt to change holding force, avoid attracting multiple workpieces at one time.
3.Compact & rigid structure: Aluminum alloy body with compact size, easy to install in narrow spaces.
4.Multi-side mounting: 3 mounting surfaces for flexible installation according to working conditions.
5.Wide application: Ideal for automatic loading/unloading, conveying and handling of steel plates, iron parts and other magnetic materials.
8. Complete bore range:12/16/20/25/32/40/50/63/80/100mm, customizable stroke 5mm~100mm.

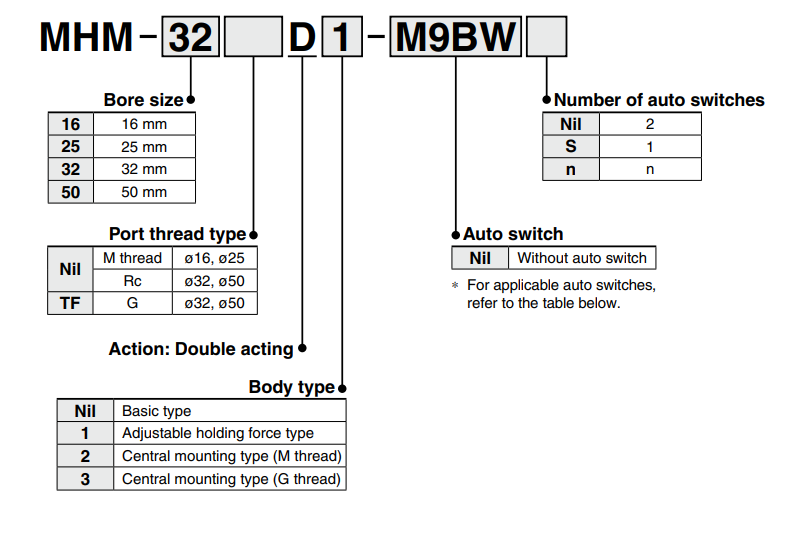

How to order
Specification
Parameter | Value | |||
Bore Size | 16mm | 25mm | 32mm | 50mm |
Pilot Port | M5x0.8 | RC 1/8 | ||
Action Type | Double - acting | |||
Operating Pressure (for workpiece thickness ≤ 2mm) | 0.2 - 0.6 MPa | |||
Operating Pressure (for workpiece thickness > 2mm) | 0.35 - 0.6 MPa | |||
Guaranteed Pressure Resistance | 0.9 MPa | |||
Working Fluid | Compressed air | |||
Ambient and Operating Fluid Temperatures | -10°C to + 60 °C (no freezing) | |||
Holding Power (workpiece thickness: 2mm) | 50 N | 160 N | 250 N | 400 N |
Holding Power (workpiece thickness: 6mm) | 50 N | 200 N | 500 N | 1000 N |
Residual Holding Power | 0.3 N or less | |||
Dimensions - 16mm,25mm,32mm,50mm

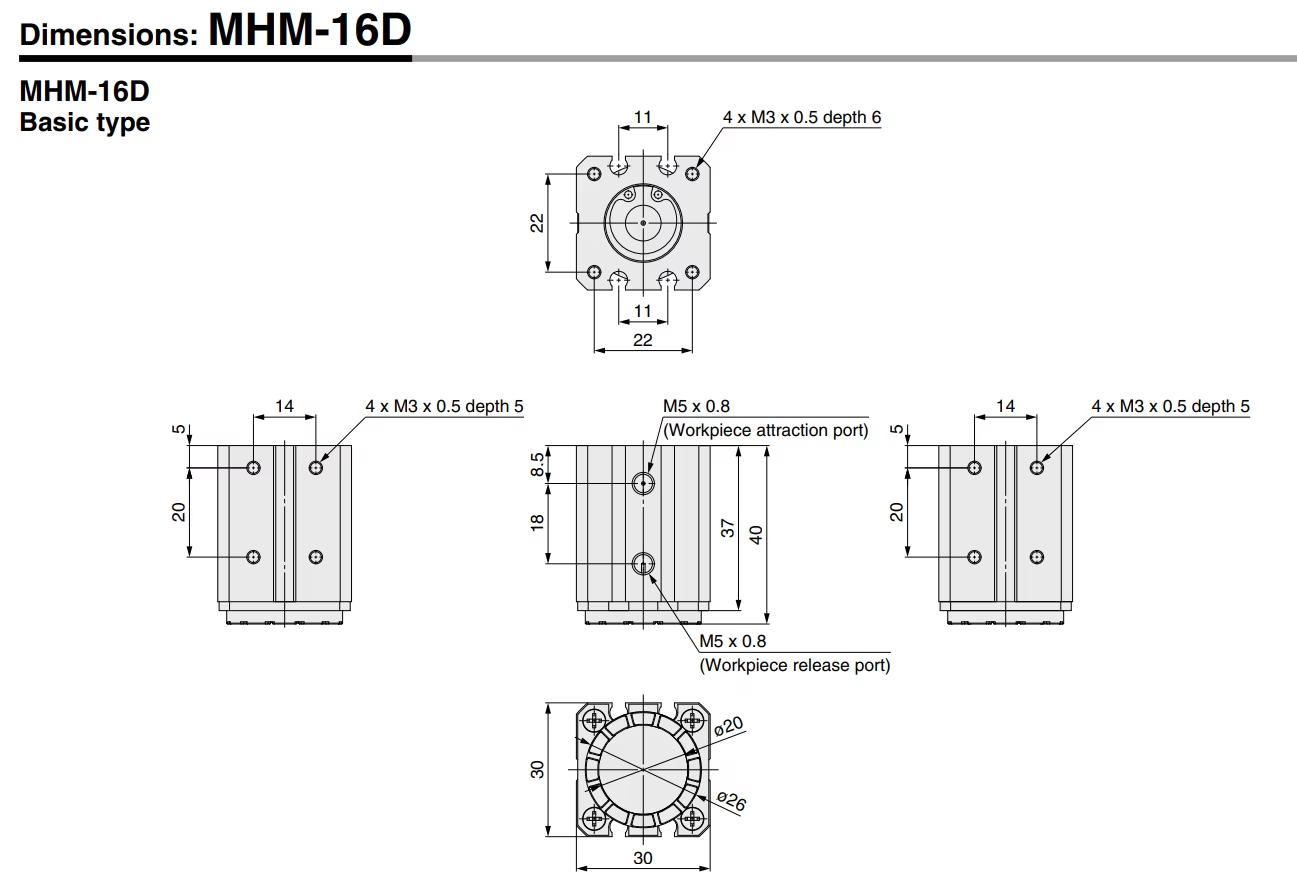

16 mm

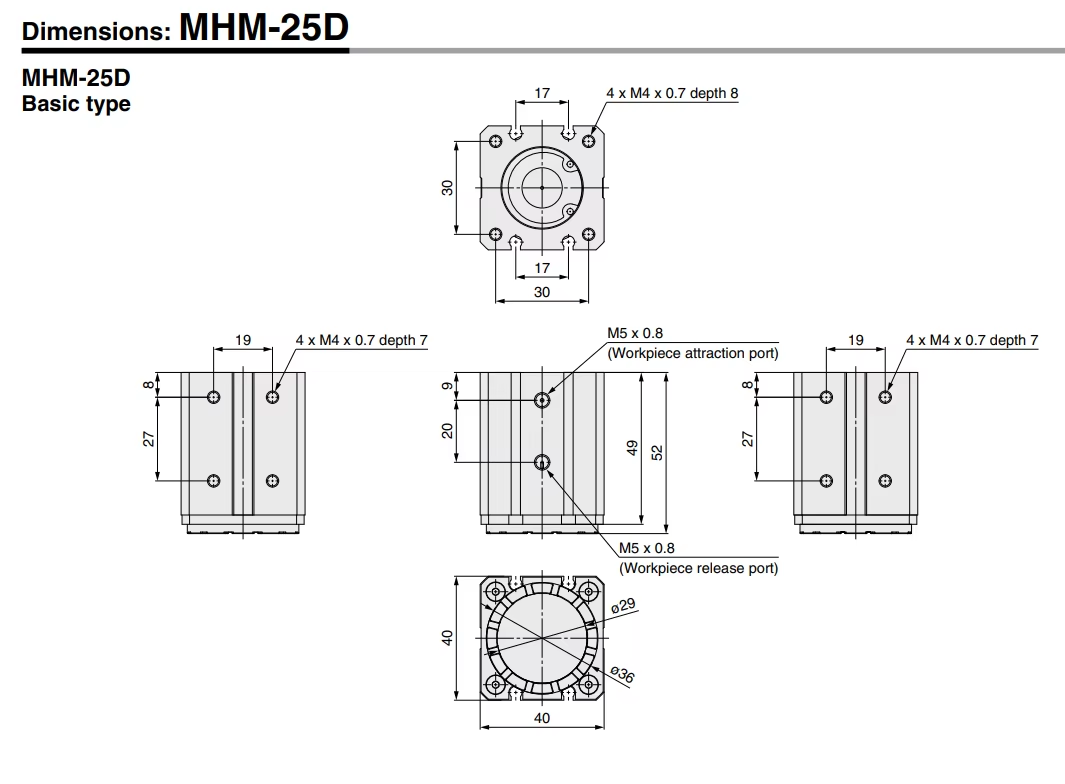

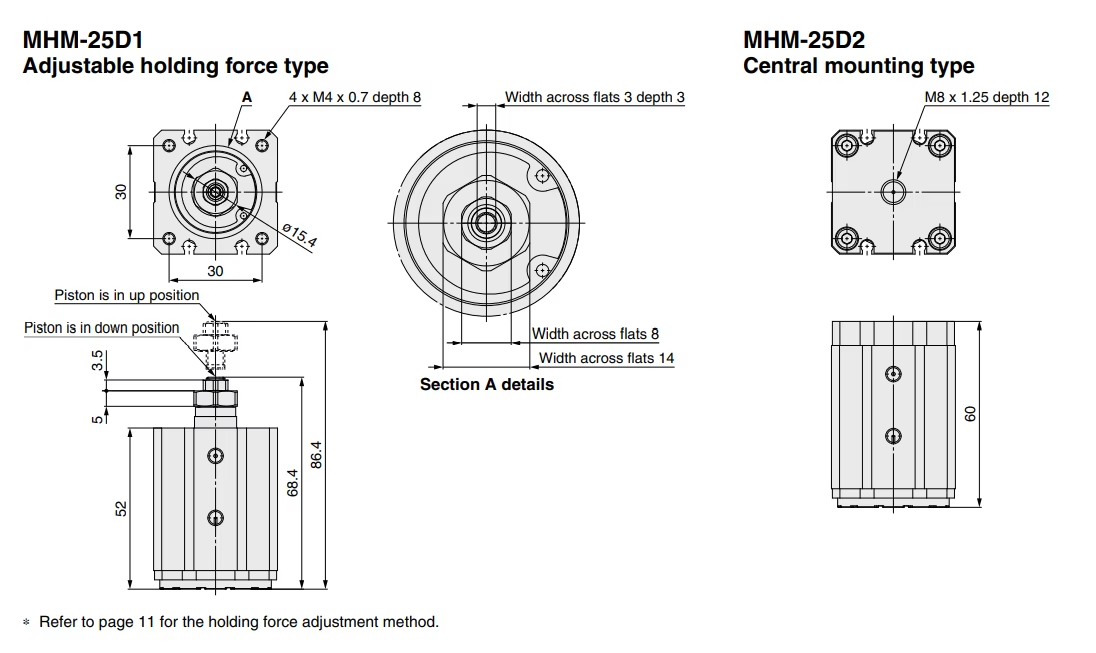

25 mm (1)
25 mm (2)

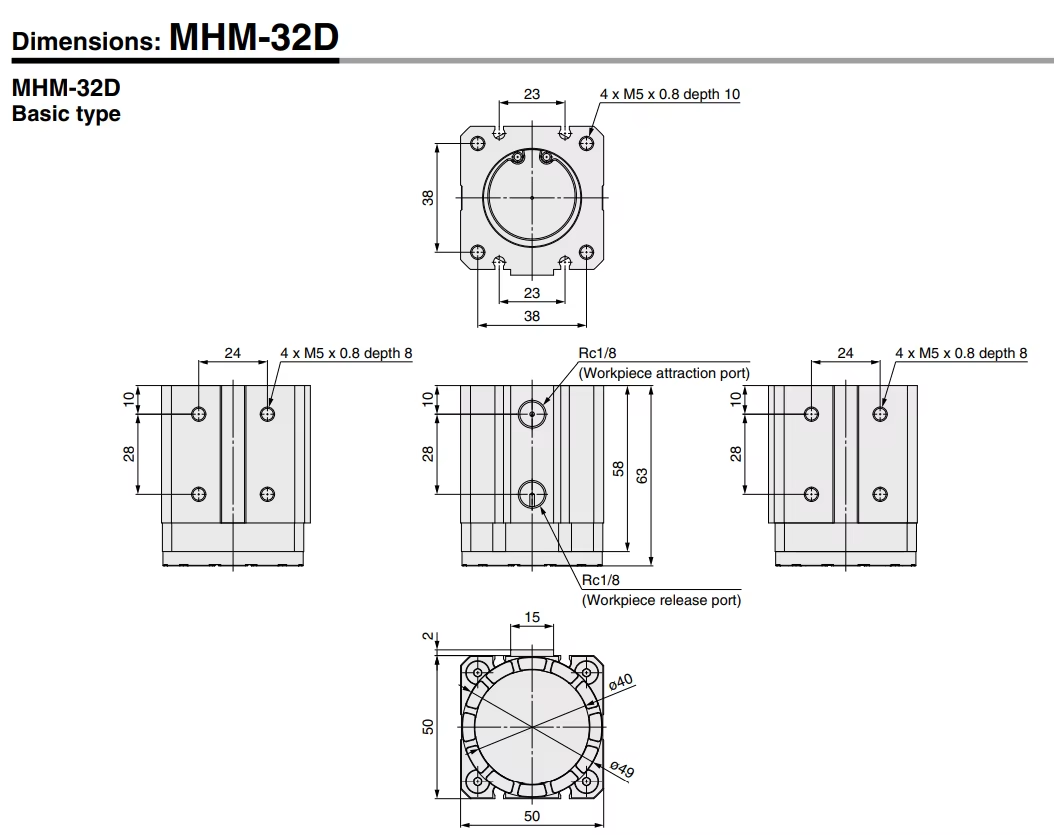

32 mm

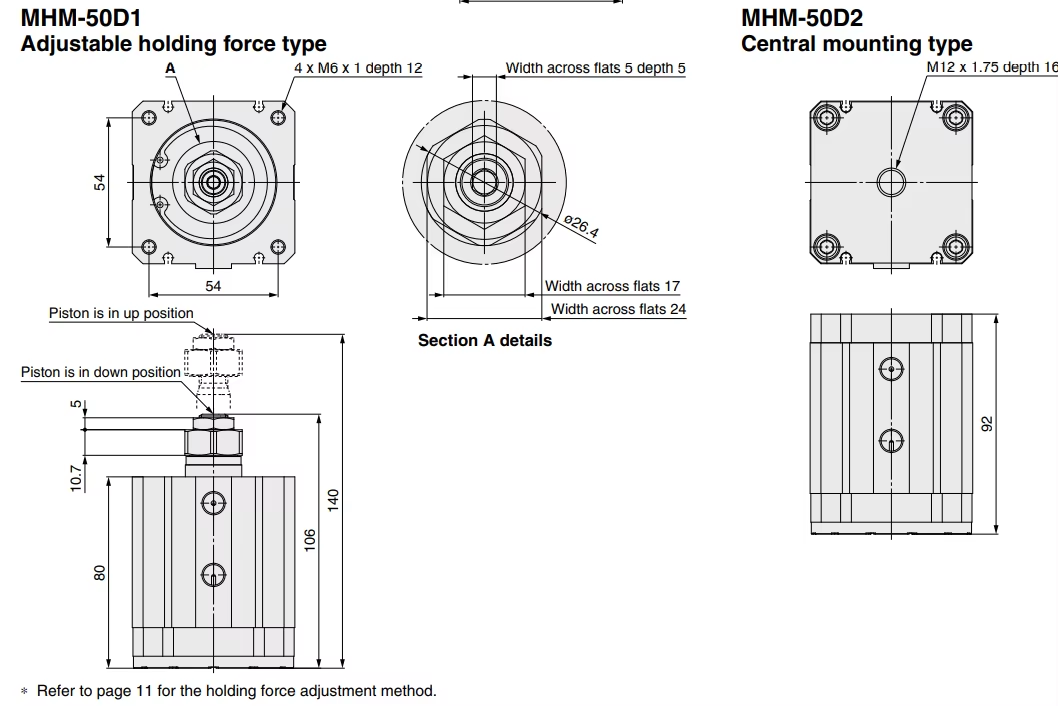

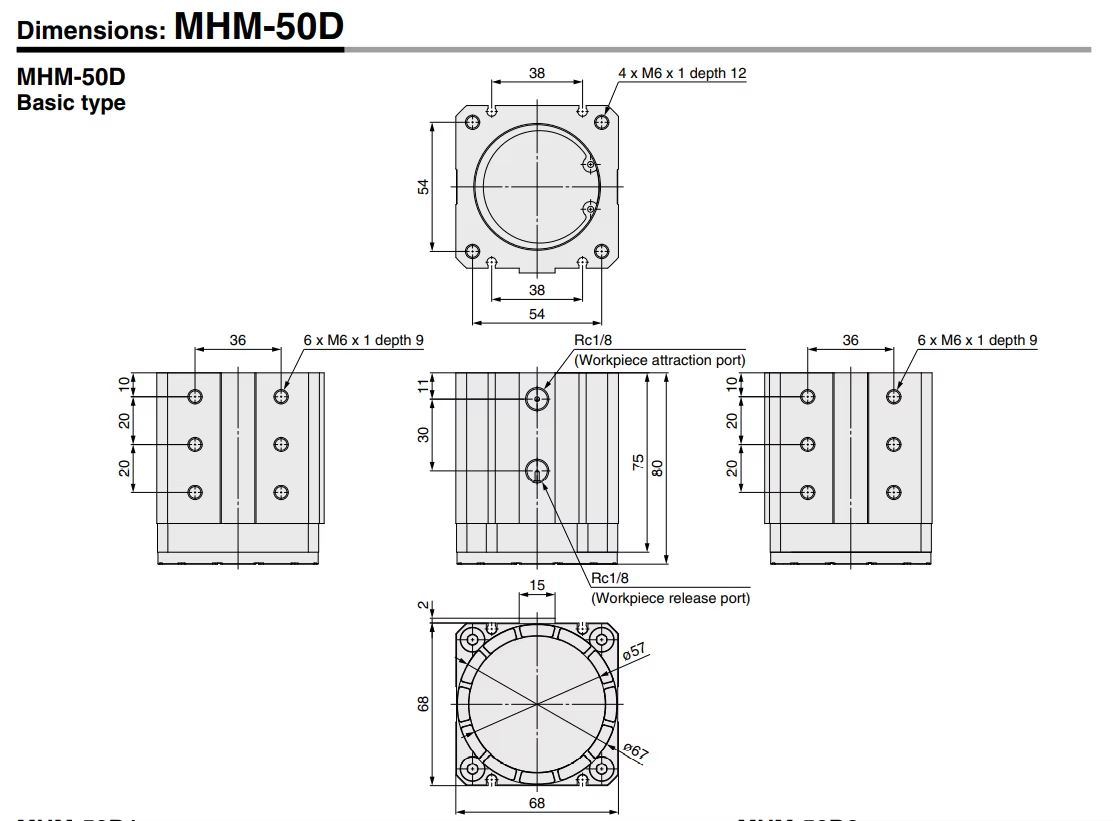

50 mm(1)
50 mm(2)

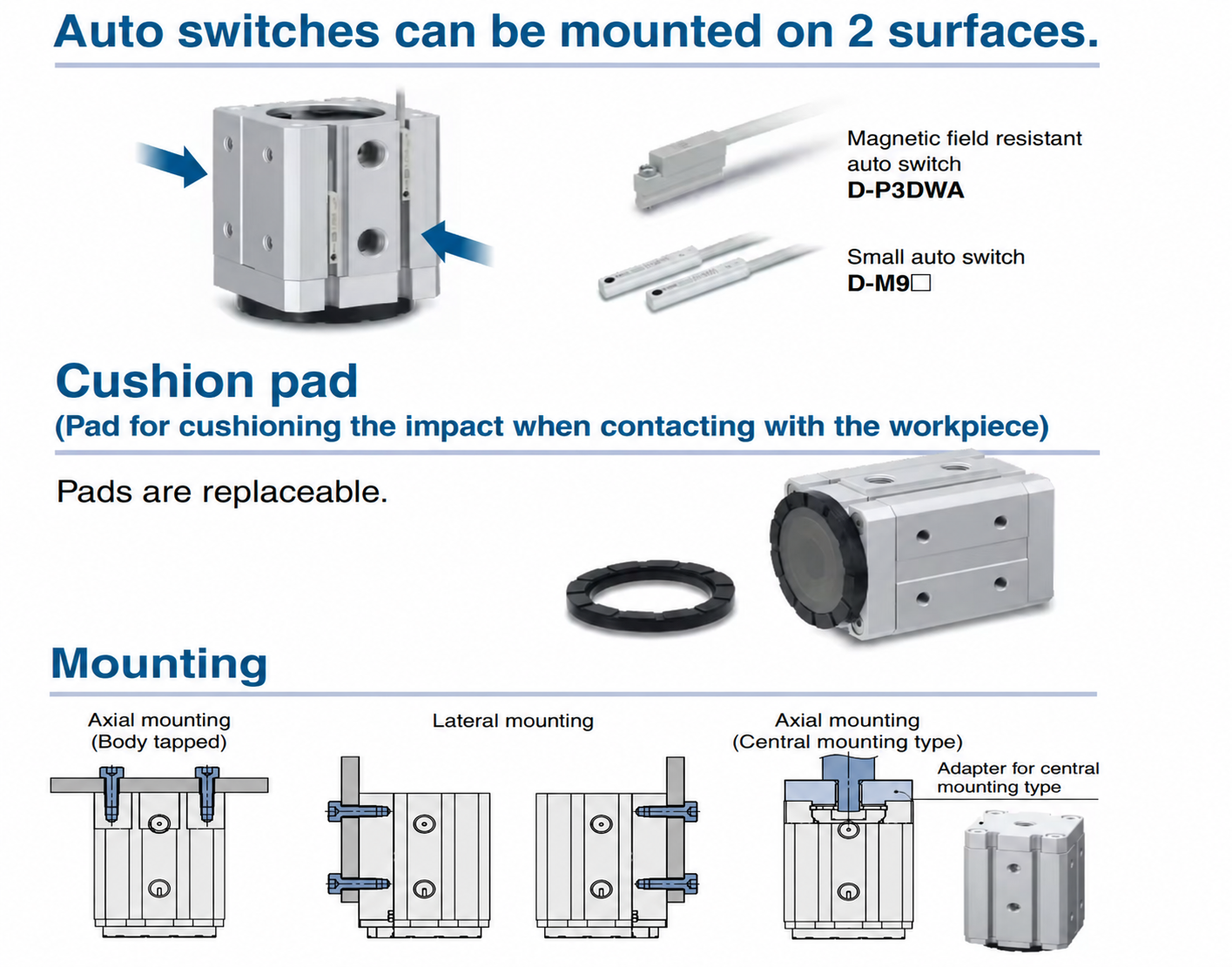

Operation
