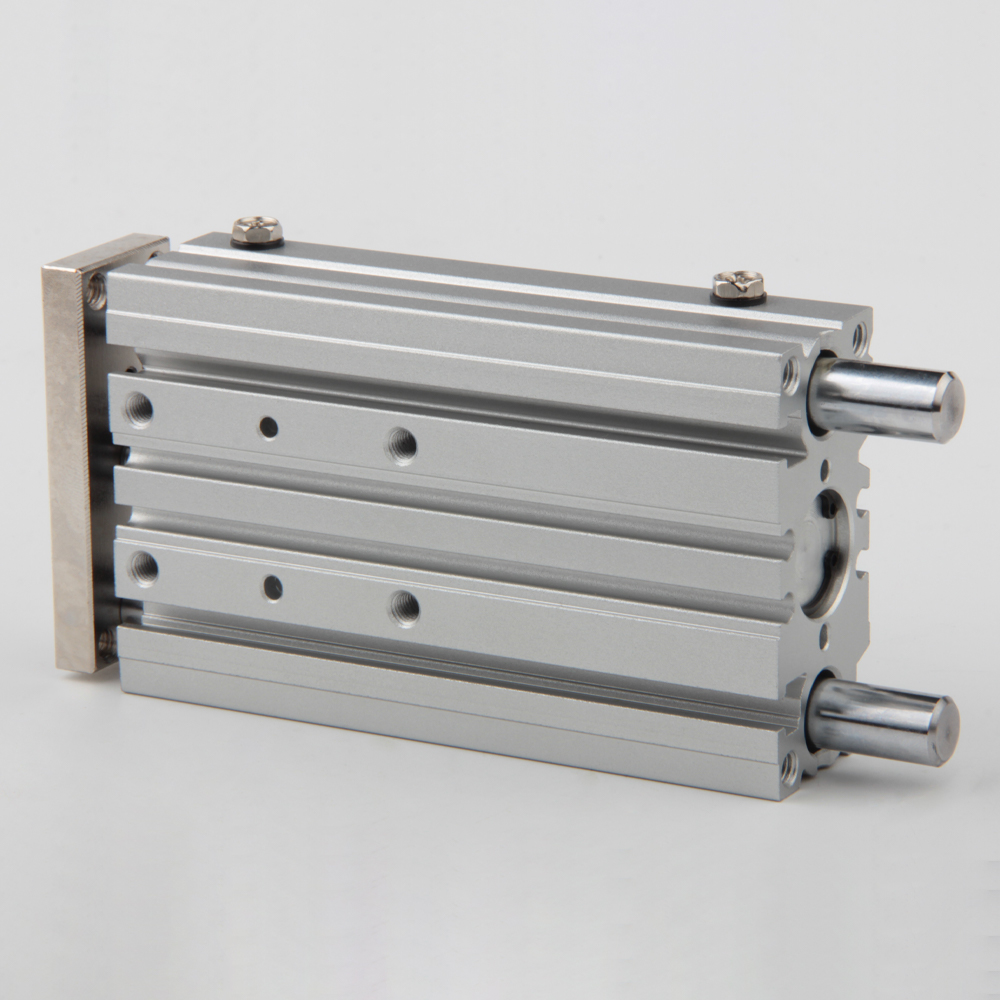

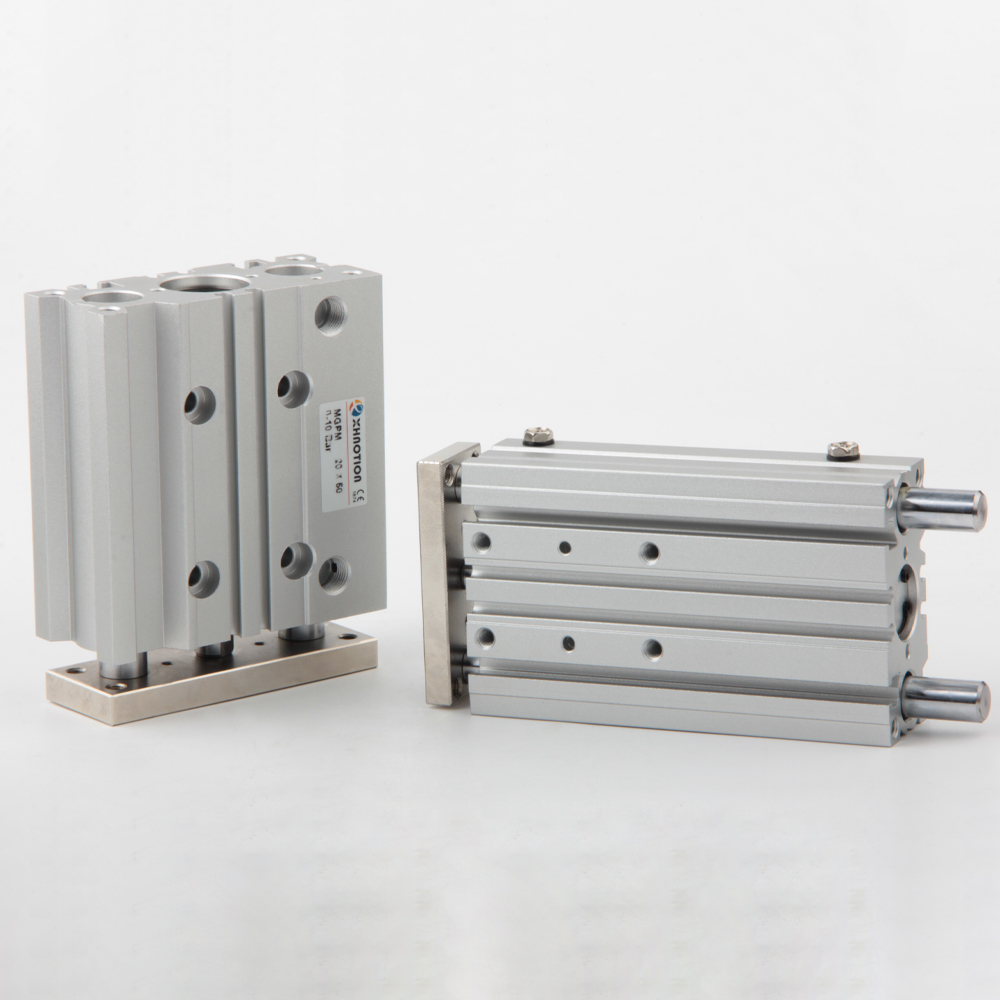

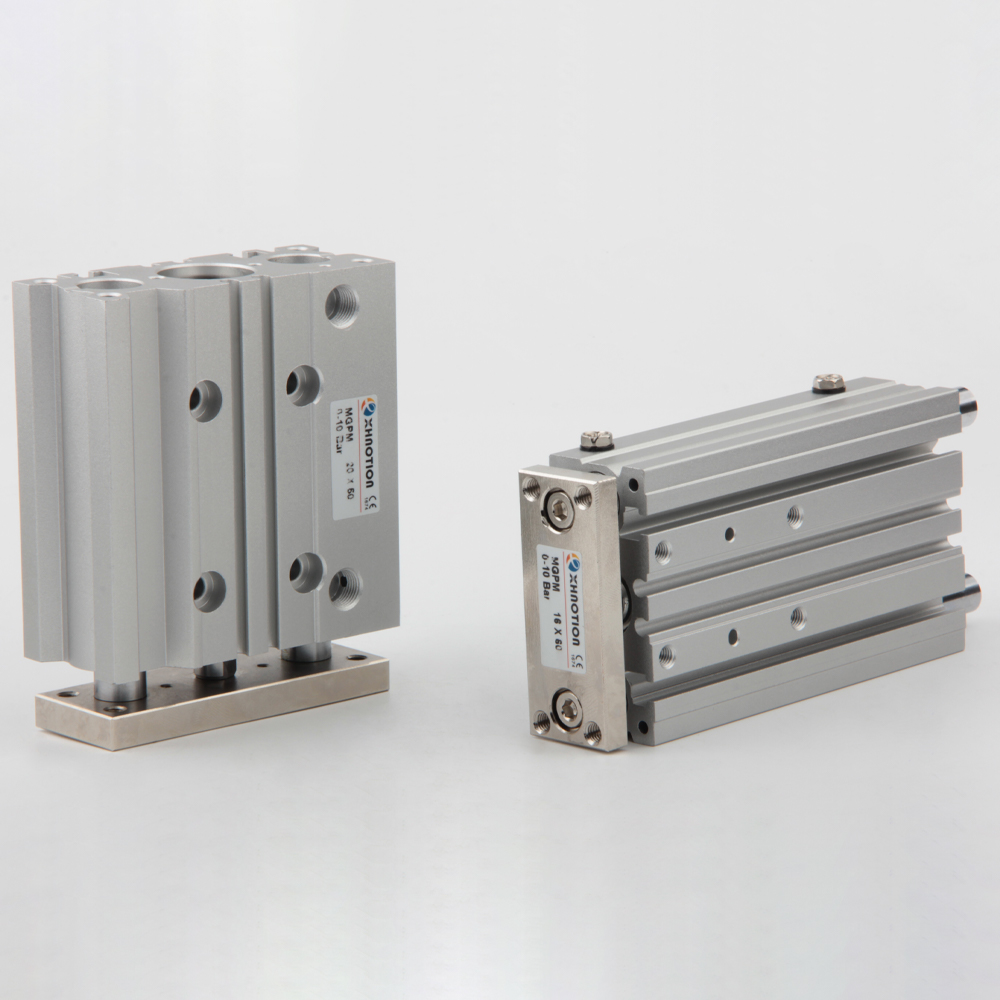

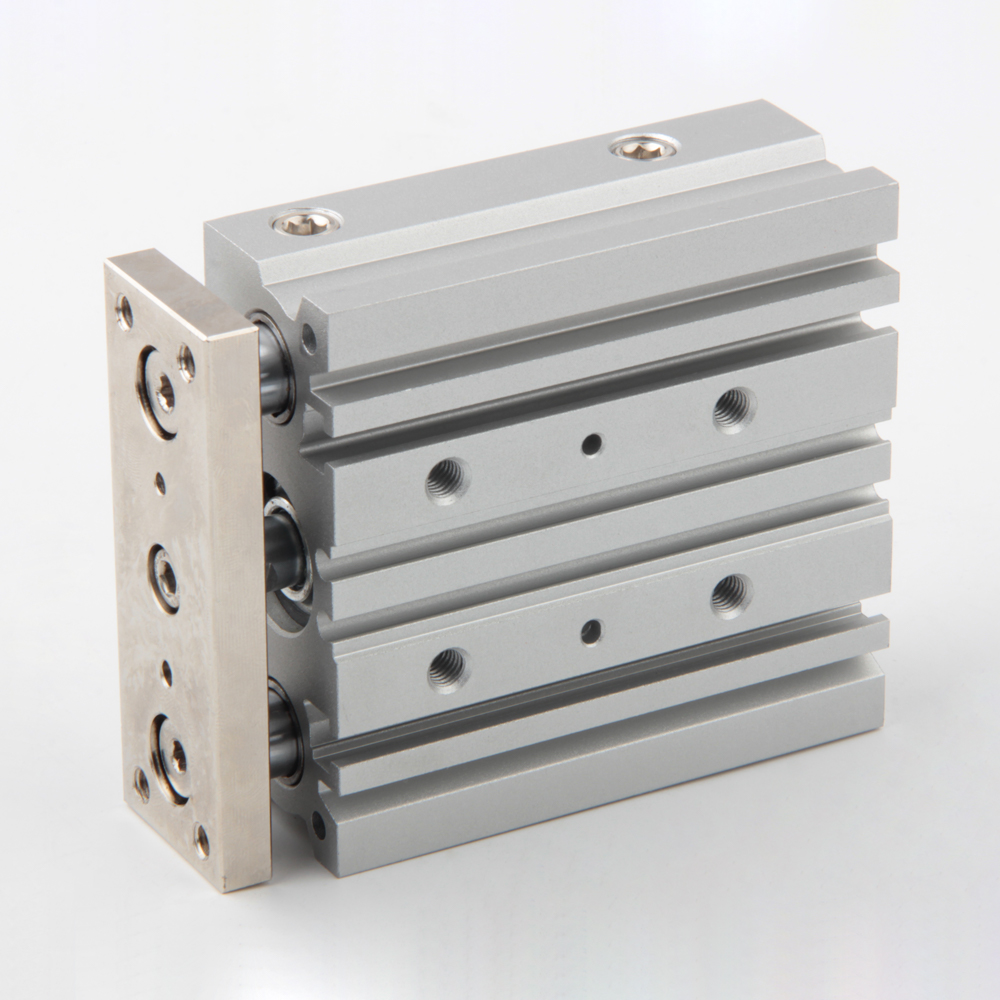

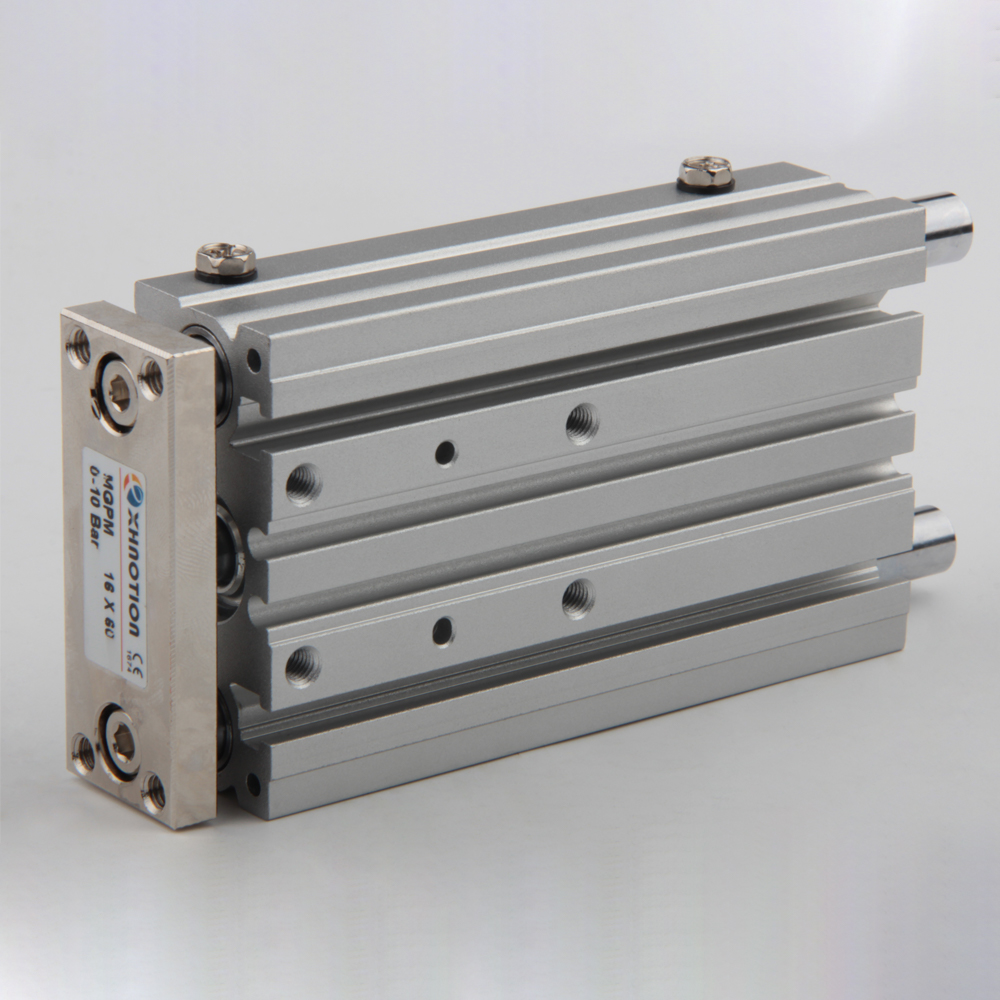

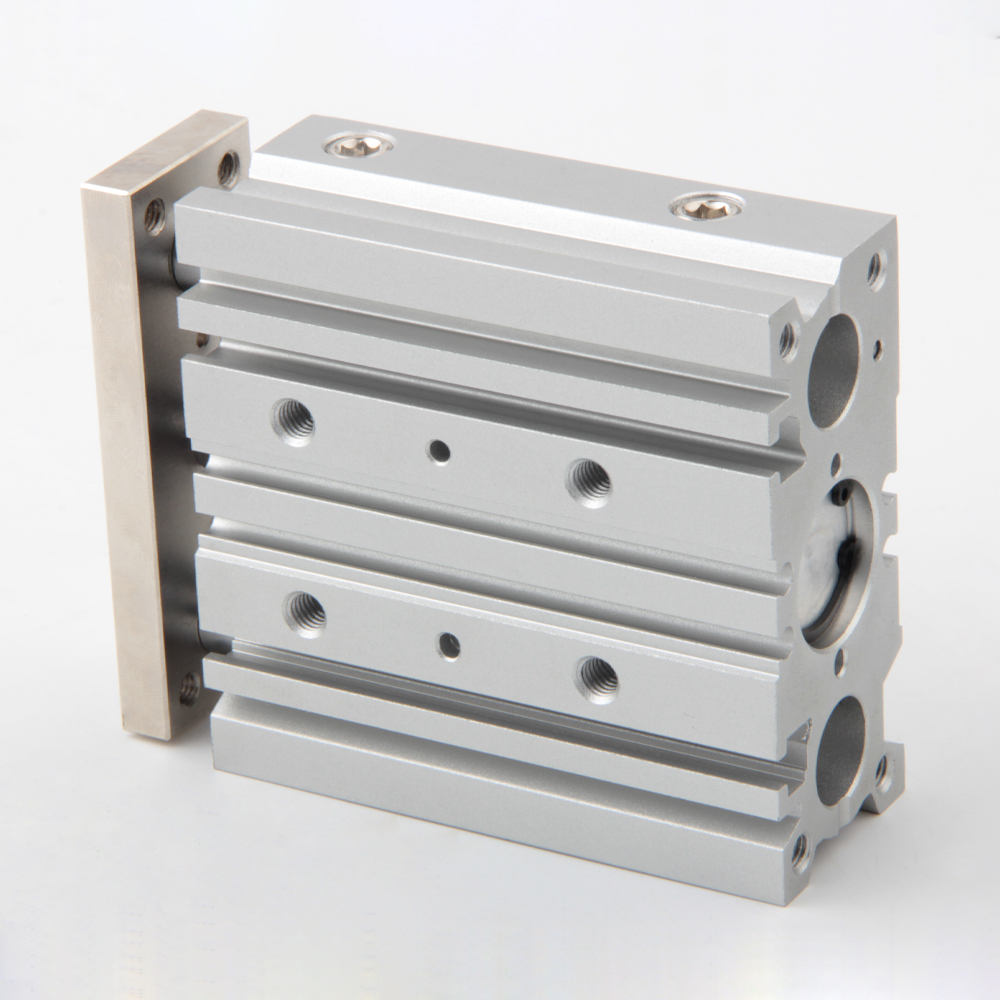

MGPM Three Shaft Air Double Acting Linear Guide Cylinder

PRODUCT FEATURES

1. MGP series compact guide cylinder with small design &light weight, and is easy for mounting;

2. High lateral load resistance, strong torque resistance;

3. High rod non-rotating accuracy;

4. Three types of bearing could be selected;

5. Piping is possible from two directions.

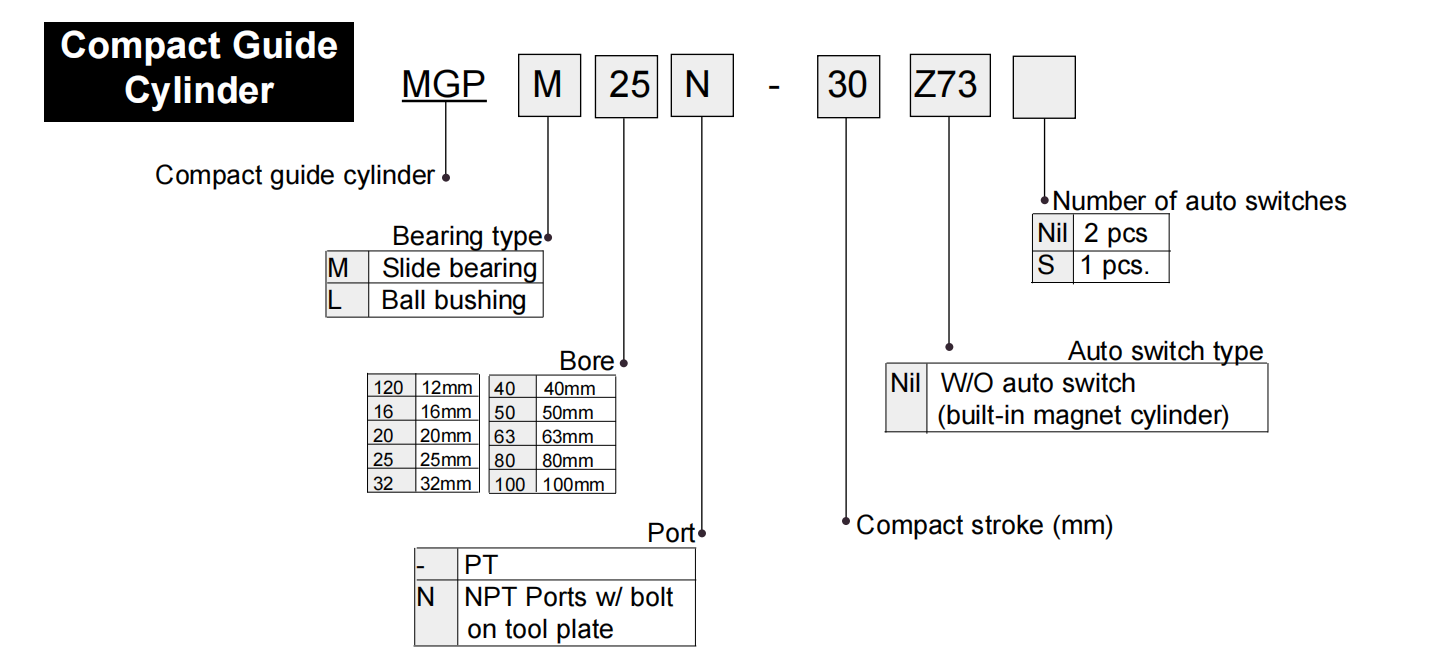

HOW TO ORDER

1703062438588

PRODUCT SPECIFICATIONS

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working medium		Clean air (40μm Filteration)
Acting type		Double acting
Proof pressure		1.5MPa
Max. Working pressure		1.0MPa
Min. Working pressure		0.12MPa		0.1MPa
Working temperature		-10 to 60℃(No freezing)
Speed range		50 to 500mm/s								50 to 400mm/s
Cushion type		Rubber bumper on both ends
Lubrication		Not required(Non-lube)
Tolerance of stroke		+1.5mm 0 mm
Non-rotating accuacy	Slide bearing	±0.08°		±0.07°		±0.06°		±0.05°		±0.08°
	Ball bushing bearing	±0.01°		±0.09°		±0.08°		±0.06°		±0.05°
Port size		M5X0.8		G1/8				G1/4		G3/8
