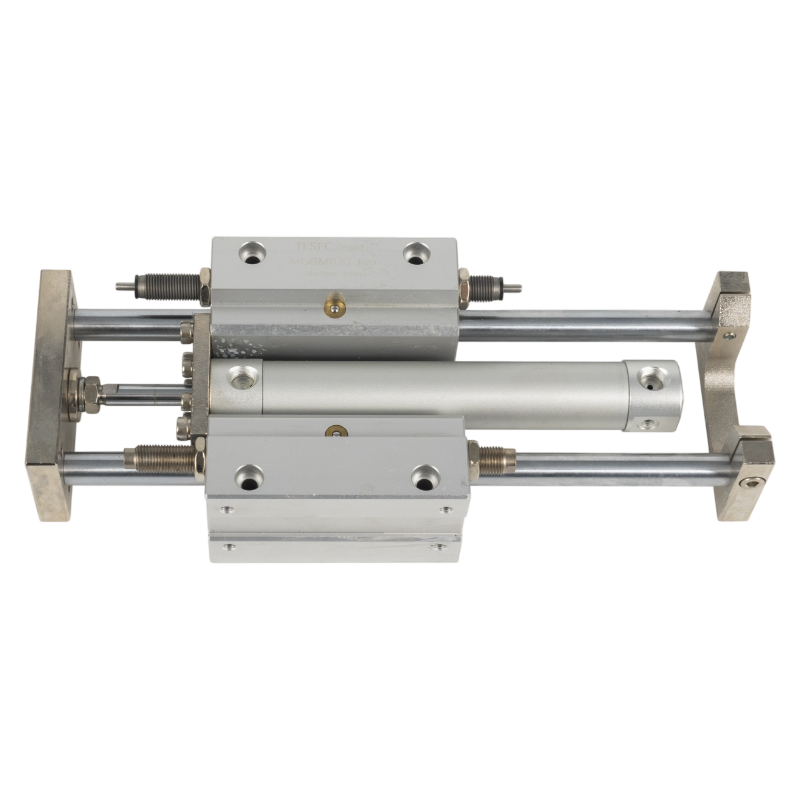

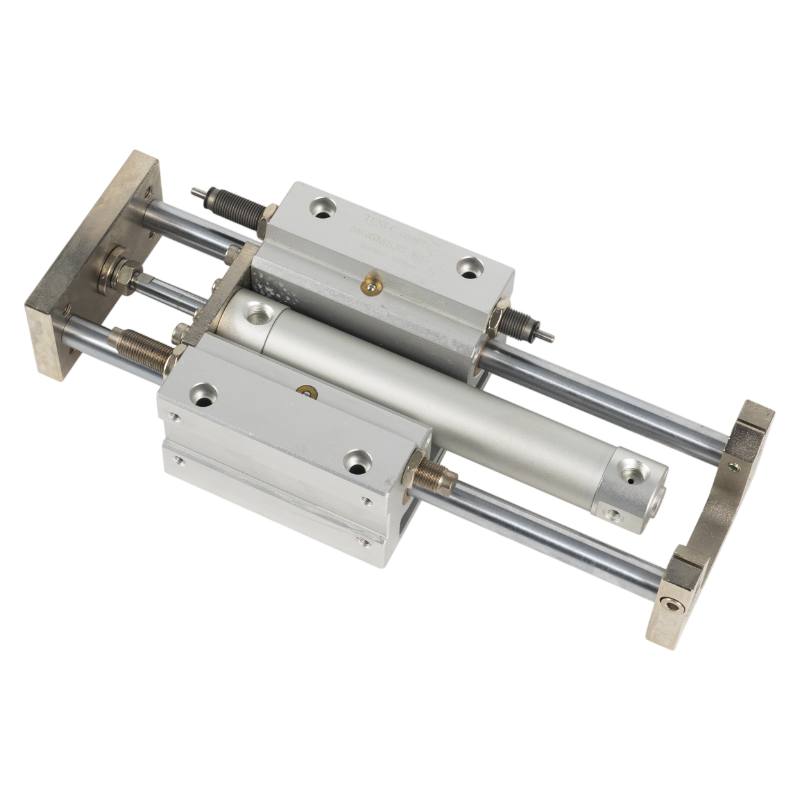

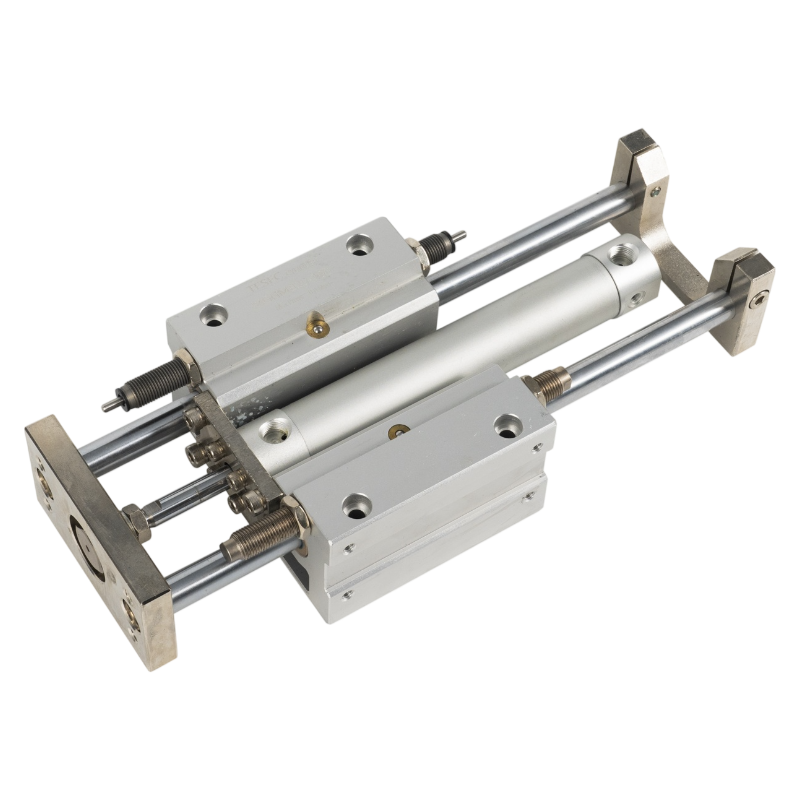

Double-acting (rodless)
0.15~0.7 MPa (1.5~7 bar)
1.05 MPa (10.5 bar)
Filtered compressed air (ISO 8573-1:2010 Class 7:4
Anodized aluminum alloy
Integrated linear guide (standard or high-rigidity
Magnetic band seal (dustproof and airtight)
Aluminum alloy (anodized)
Aluminum alloy (anodized) with steel reinforcement

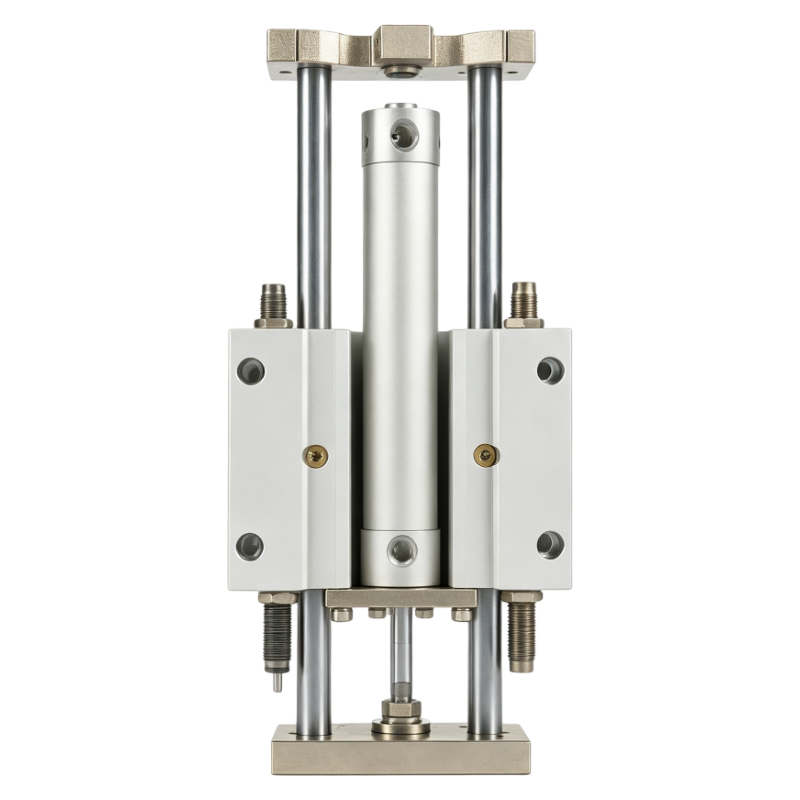

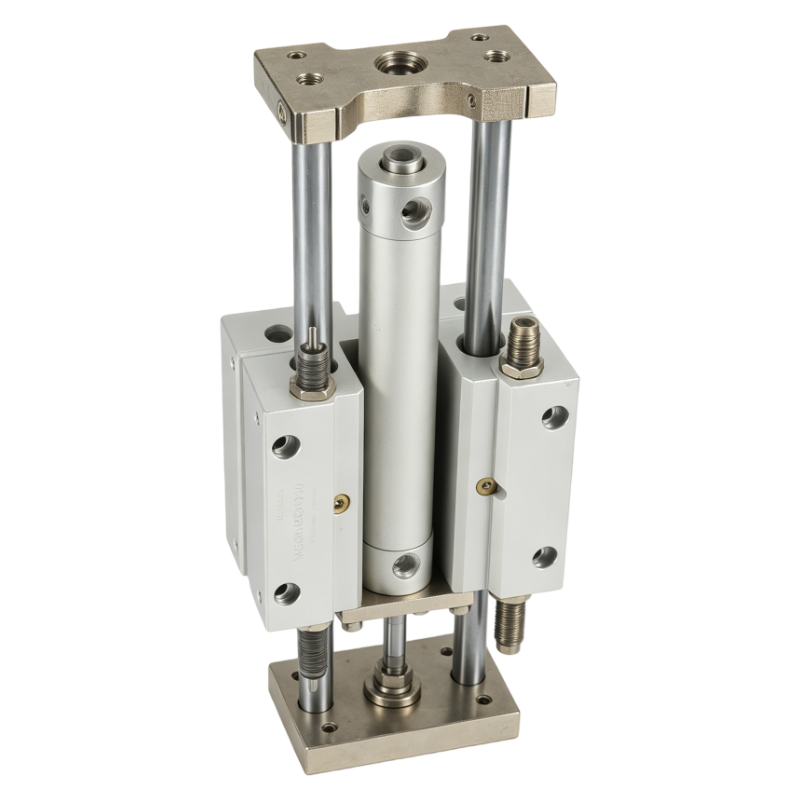

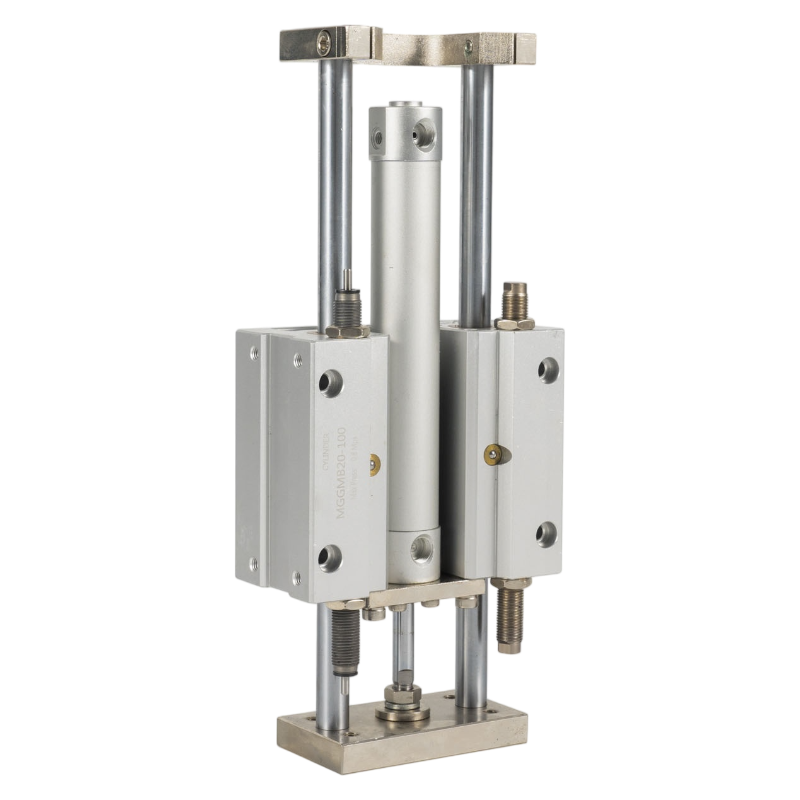

Feature
1. Integrated structure of main cylinder body and dual high rigidity guide rods, effectively bear heavy side load and moment force, protect internal piston and sealing components from damage
2. Adopt slide bearing design, outstanding wear resistance and heavy‑load capacity, suitable for stopping, blocking and impact‑prone working conditions
3. Excellent non‑rotating precision, ensure stable linear movement without deflection
4. Double‑acting operation, built‑in magnetic piston for magnetic auto‑switch installation to realize position signal feedback
5. Standard equipped with built‑in shock absorbers and stroke adjustment bolts for end‑of‑stroke buffering and fine stroke tuning
6. Grease filling port is reserved for regular bearing lubrication to extend service life
7. High‑strength hard‑anodized aluminum alloy cylinder barrel, hard chrome‑plated guide rods for wear and corrosion resistance
8. Rich bore & stroke range; optional end‑lock version to hold position when air supply cuts off
9. Widely used for pushing, lifting, stopping and workpiece transfer in packaging, automotive and general industrial automation lines

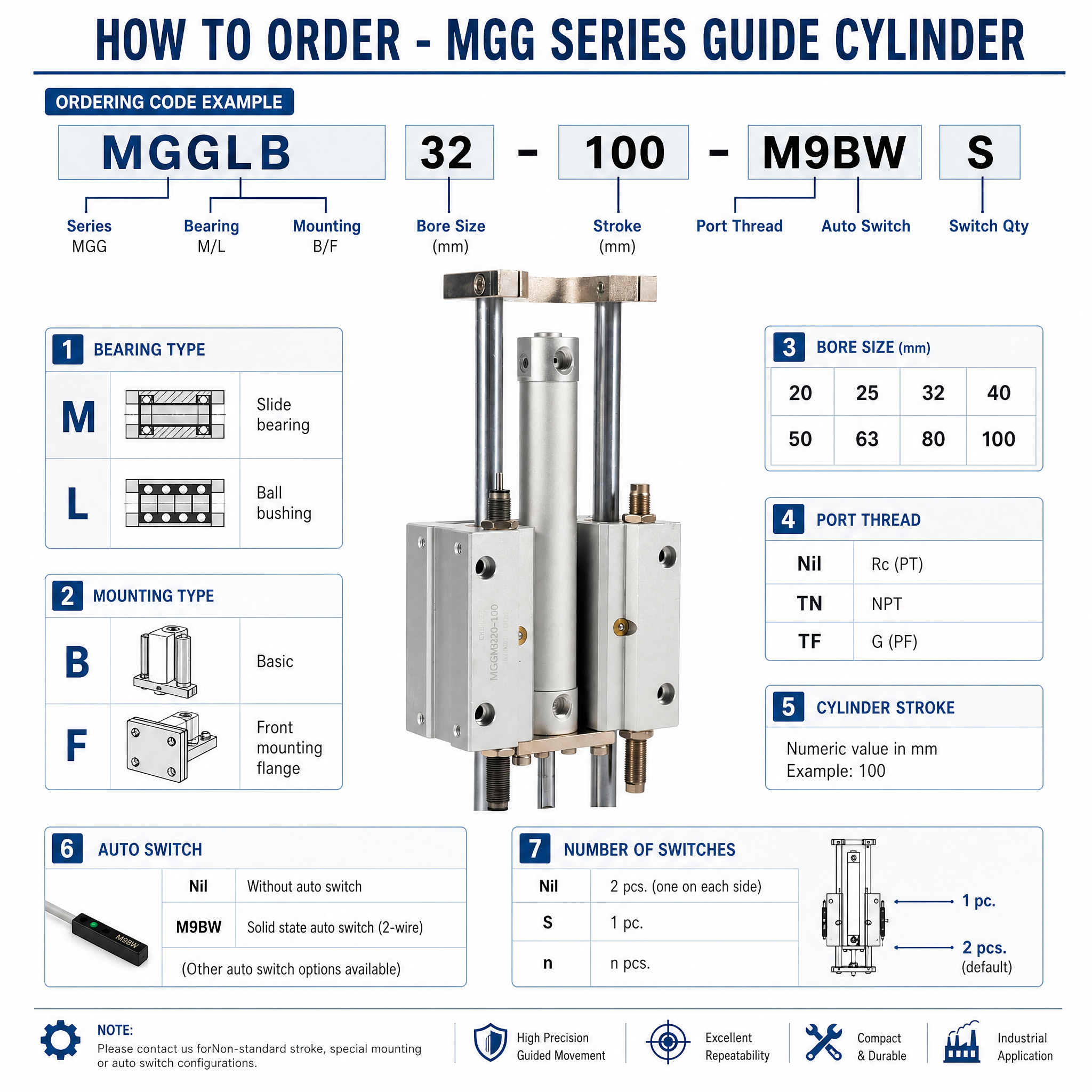

How to order
Specifications
Parameter | 16-20 mm Bore | 25-32 mm Bore | 40 mm Bore |
Action Type | Double-acting (rodless) | ||
Operating Pressure Range | 0.15~0.7 MPa (1.5~7 bar) | ||
Proof Pressure | 1.05 MPa (10.5 bar) | ||
Fluid | Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | ||
Temperature Range (NBR) | -10~80°C (non-freezing) | ||
Temperature Range (FKM) | -5~150°C (non-freezing) | ||
Maximum Stroke Length | 1500 mm | 2000 mm | 2000 mm |
Maximum Speed | 500 mm/s | 400 mm/s | 300 mm/s |
Guide Rail Type | Integrated linear guide (standard or high-rigidity) | ||
Seal Structure | Magnetic band seal (dustproof and airtight) | ||
Material (Cylinder Body) | Aluminum alloy (anodized) | ||
Material (Slide Table) | Aluminum alloy (anodized) with steel reinforcement | ||
Weight (500mm stroke) | 3.5~5.2 kg | 7.8~12 kg | 18 kg |
Pneumatic Connection | M5 (16mm) / G1/8 (20mm) | G1/8 (25mm) / G1/4 (32mm) | G1/4 |
