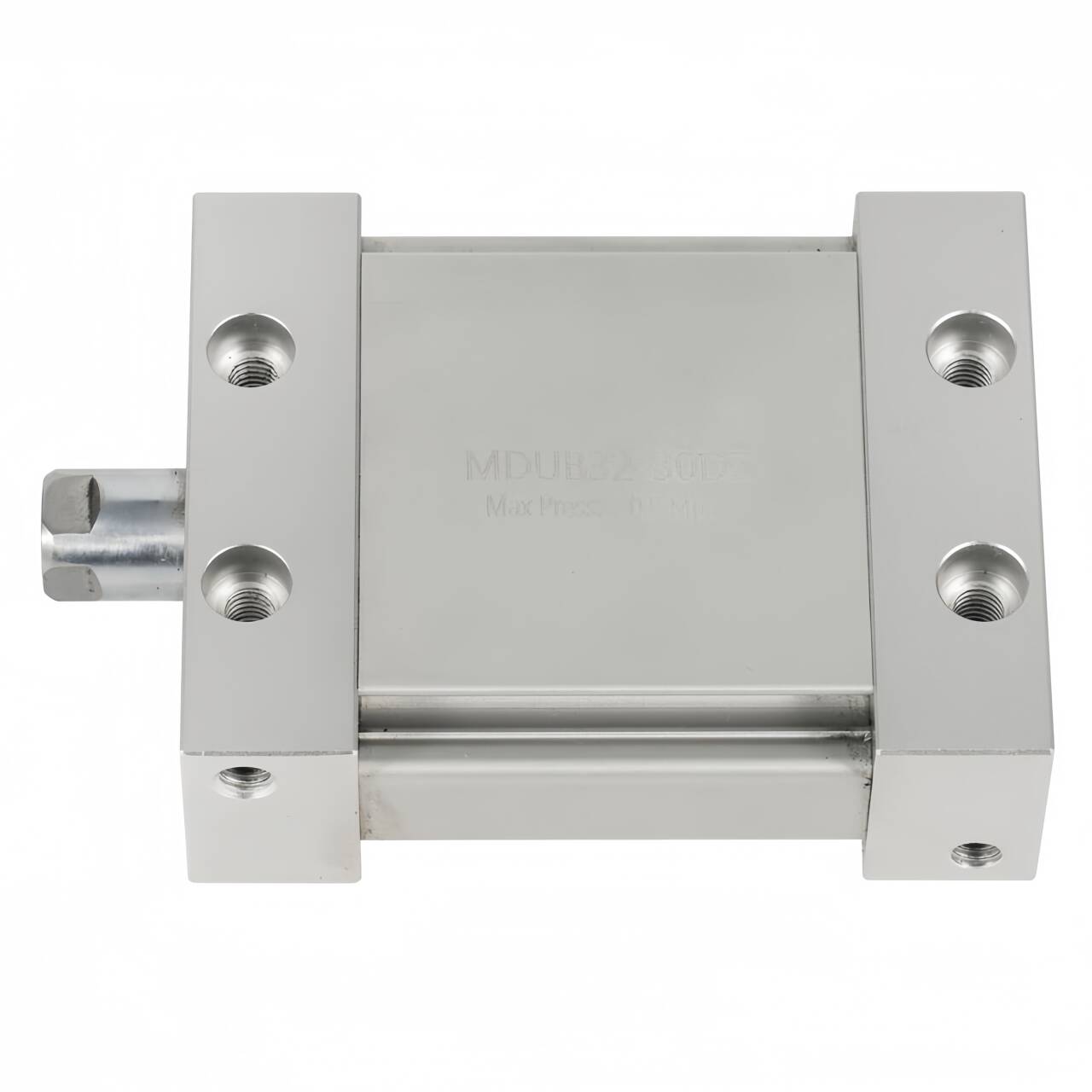

MDUB
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
Double-acting
0.15-0.7 MPa (1.5-7 bar)
1.05 MPa (10.5 bar)
Filtered compressed air
-10~80°C (non-freezing)
-5~150°C (non-freezing)
Aluminum alloy (anodized)
Chrome-plated high-strength steel
Feature
1. Unique oval piston design, inherent piston rod non-rotating function(accuracy ±1°)
2. Two versions optional: MUB (without magnet), MDUB (built-in permanent magnet for magnetic switch)
3. Magnetic switch grooves available on four sides, flexible installation orientation
4. Ultra-flat compact plate structure, saves vertical installation space
5. Non-lube seal structure, no lubricator required, simplify pneumatic circuit
6. Rubber bumper cushion reduces impact and operating noise
7. High strength aluminum alloy body, hard anodized surface, anti-corrosion and wear-resistant

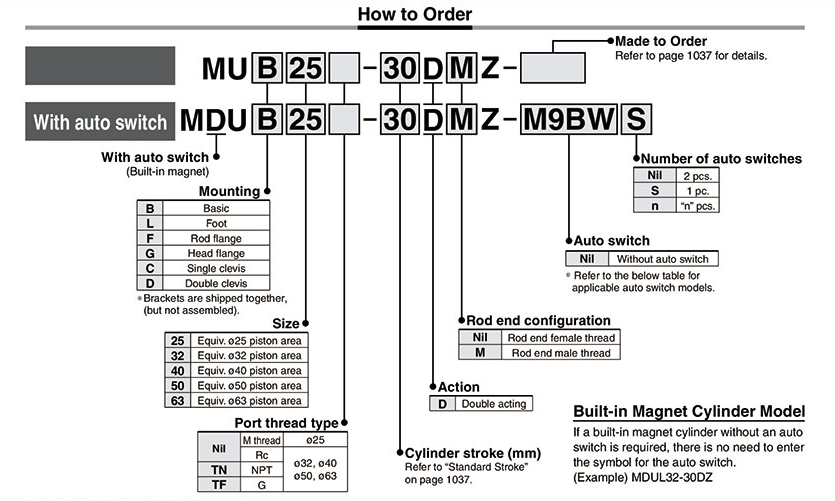

How to order
Specification
Parameter | 16 - 25 mm Bore | 32 - 40 mm Bore | 50 - 63 mm Bore |
Action Type | Double-acting (with optional magnetic piston for sensor compatibility) | ||
Operating Pressure Range | 0.15 - 0.7 MPa (1.5 - 7 bar) | ||
Proof Pressure | 1.05 MPa (10.5 bar) | ||
Recommended Fluid | Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | ||
Temperature Range (NBR Seals) | -10~80°C (non-freezing) | ||
Temperature Range (FKM Seals) | -5~150°C (non-freezing) | ||
Maximum Stroke Length | 100 mm | 200 mm | 300 mm |
Maximum Operating Speed | 500 mm/s | 400 mm/s | 300 mm/s |
Piston Rod Diameter | 6 - 8 mm | 10 - 12 mm | 16 - 20 mm |
Cylinder Body Material | Aluminum alloy (anodized) | ||
Piston Rod Material | Chrome-plated high-strength steel | ||

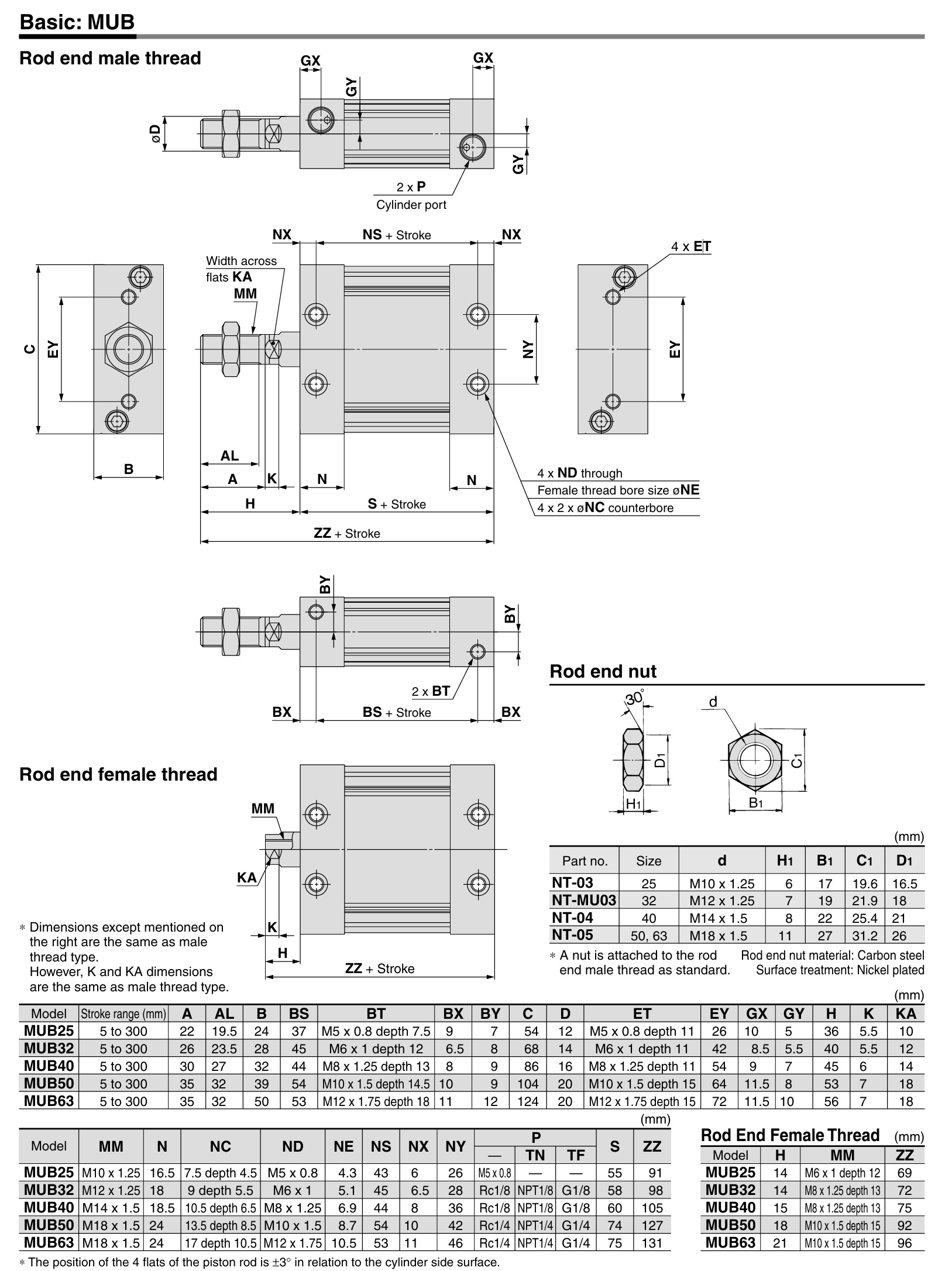

Dimensions

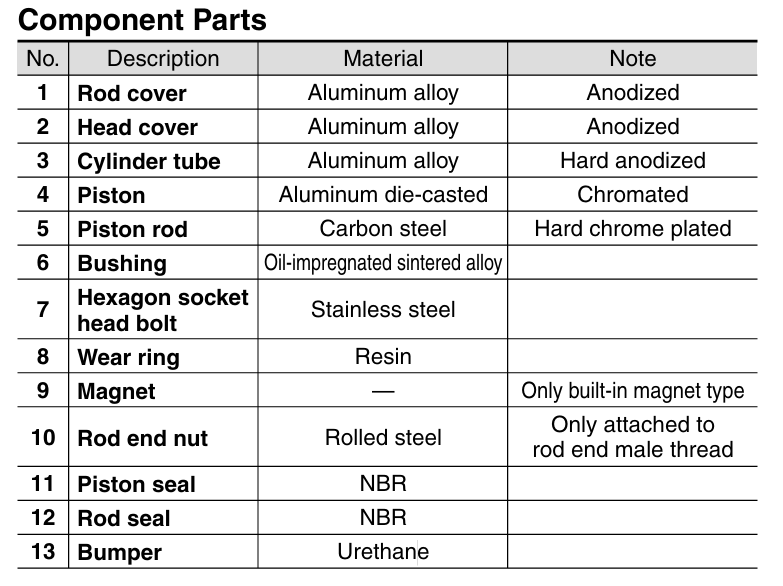

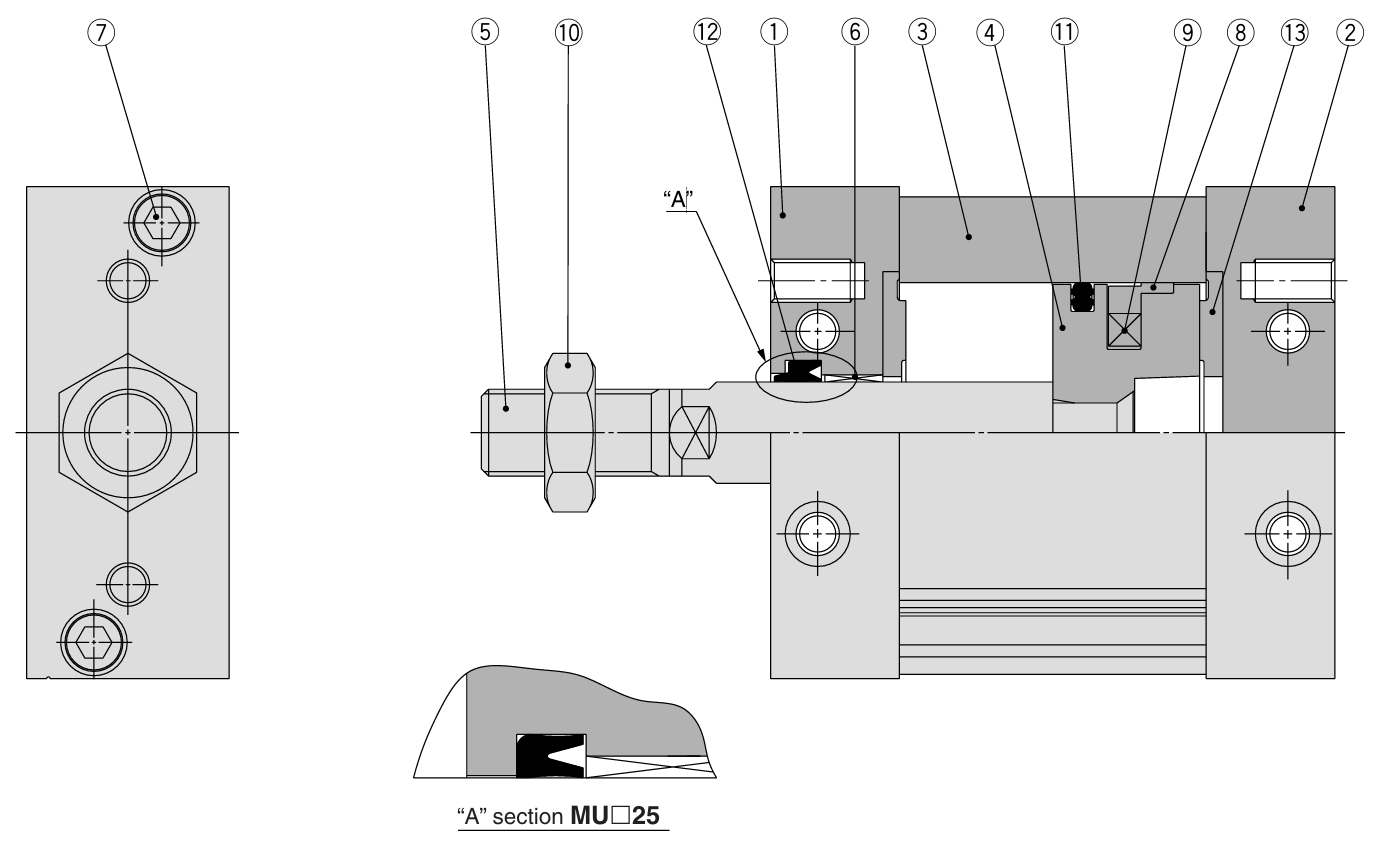

Structure
