MAL 32X180S Aluminum Alloy Mini Air Cylinder

Model NO.: DNCDouble-Acting Cylinder Type: Adjustable Cushioning CylinderCombination Cylinder Type: Pressurized CylinderMotion Pattern: Double ActingWorking Medium: AirTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumUsage: Automation and ControlStructure: Flexible CylinderPower: PneumaticStandard: StandardPressure Direction: Single-acting Cylinder

Availability:

Quantity:



Inquire Add to Basket

Model:
MAL
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
1000 pcs per month
Transport Package:
CARTONS
Model NO.:
MAL
Double-Acting Cylinder Type:
Adjustable Cushioning Cylinder
Combination Cylinder Type:
Pressurized Cylinder
Motion Pattern:
Double Acting
Working Medium:
Air
Trademark:
XHnotion
Transport Package:
Bluk Packing or Blister Packing
Specification:
ROHS, REACH, CE
Origin:
China
HS Code:
84123900
Material:
Aluminum
Usage:
Automation and Control
Structure:
Flexible Cylinder
Power:
Pneumatic
Standard:
Standard
Pressure Direction:
Single-acting Cylinder

Product Description

MAL 32X180S Aluminum Alloy Mini Air Cylinder

FEATURES

Front, rear cover are made of aluminum alloy die - they are made by high precision CNC.

Barrel is made of anodised aluminum.

Piston rod is made of chromed carbon steel.

Use import non-lubrication oil seals in order to reach high speed movement.

Single acting and double acting are chosen in a lot of variety.

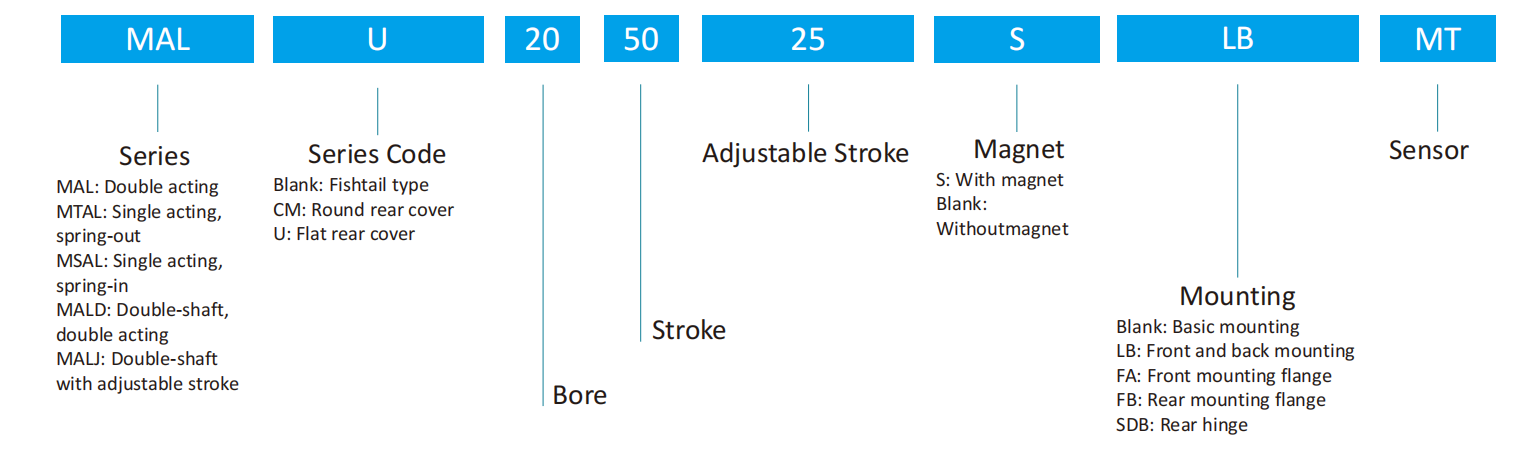

HOW TO ORDER

E7VO0XXPG_CHL2GW29BYQ

SPECIFICATIONS

Bore (mm)

16

20

25

32

40

Motion pattern

Double acting or Single acting

Working medium

Air

Mountings

Basic FA, LB, SDB

Working pressure

1~9.0 Kgf/cm2

Proof pressure

13.5 Kgf/cm2

Operating temperature range

0-70℃

Operating speed range

50~800 mm/s

Cushion

Gasket cushioning

Port size

M5X0.8

G1/8"

G1/4"

STROKE

Bore (mm)	Standard Stroke																Max stroke	Allowable stroke
16	25	50	75	80	100	125	150	160	175	200							300	500
20	25	50	75	80	100	125	150	160	175	200	250	300					500	650
25	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650
32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650
40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	500	650

MAL Air Cylinder 32X180S Air Cylinder Aluminum Alloy Cylinder Mini Air Cylinder Pneumatic Cylinder Air Cylinder

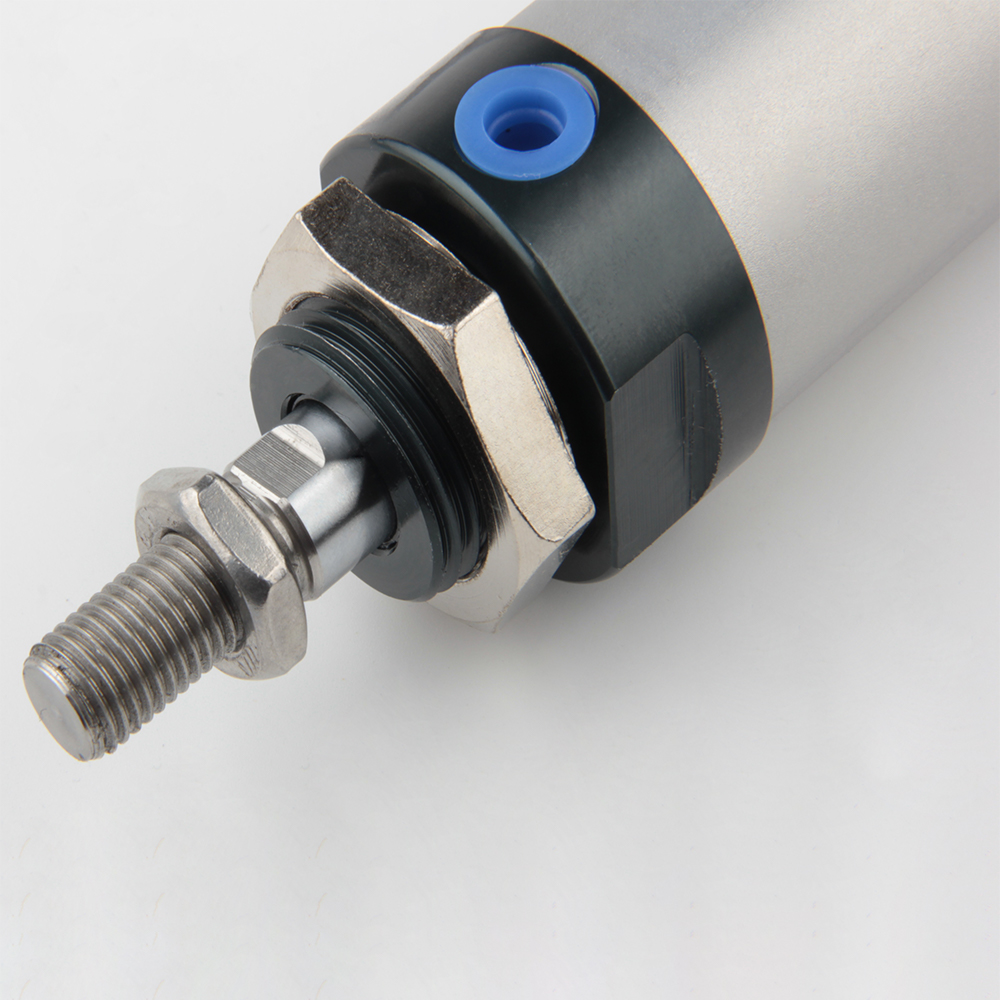

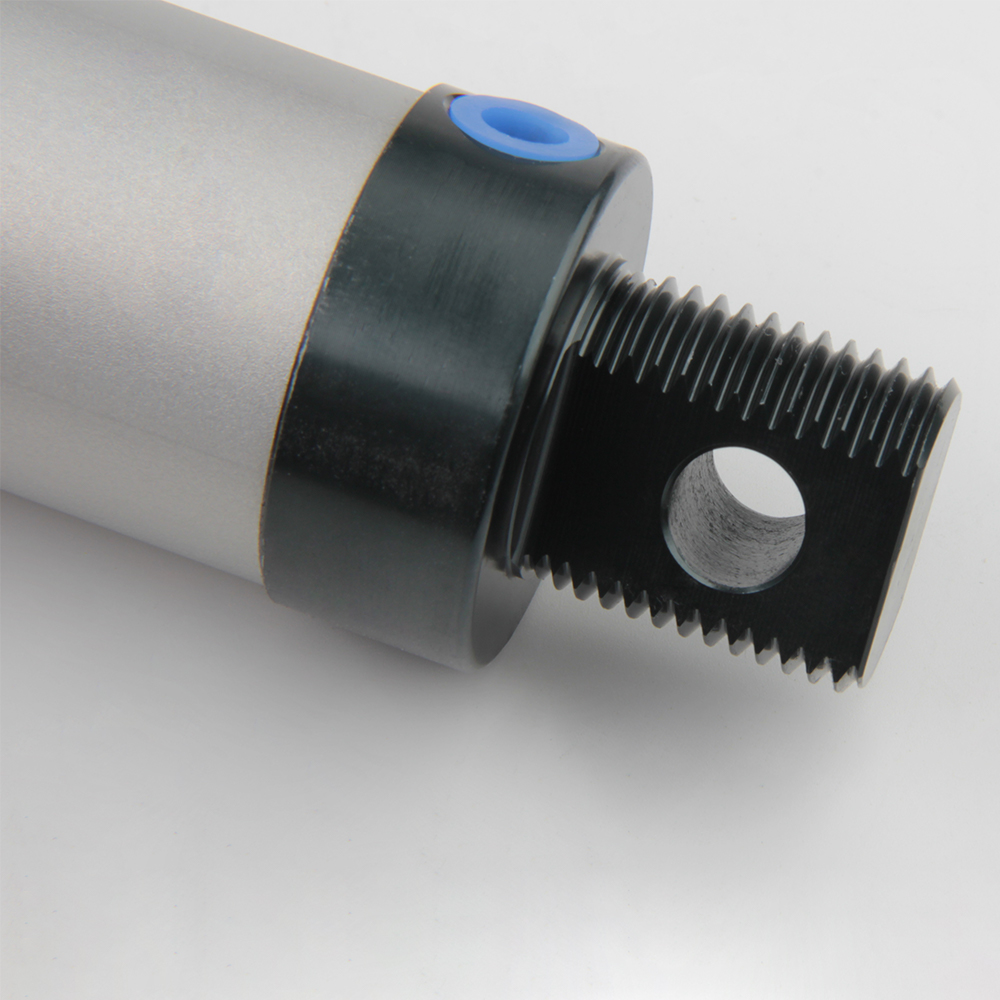

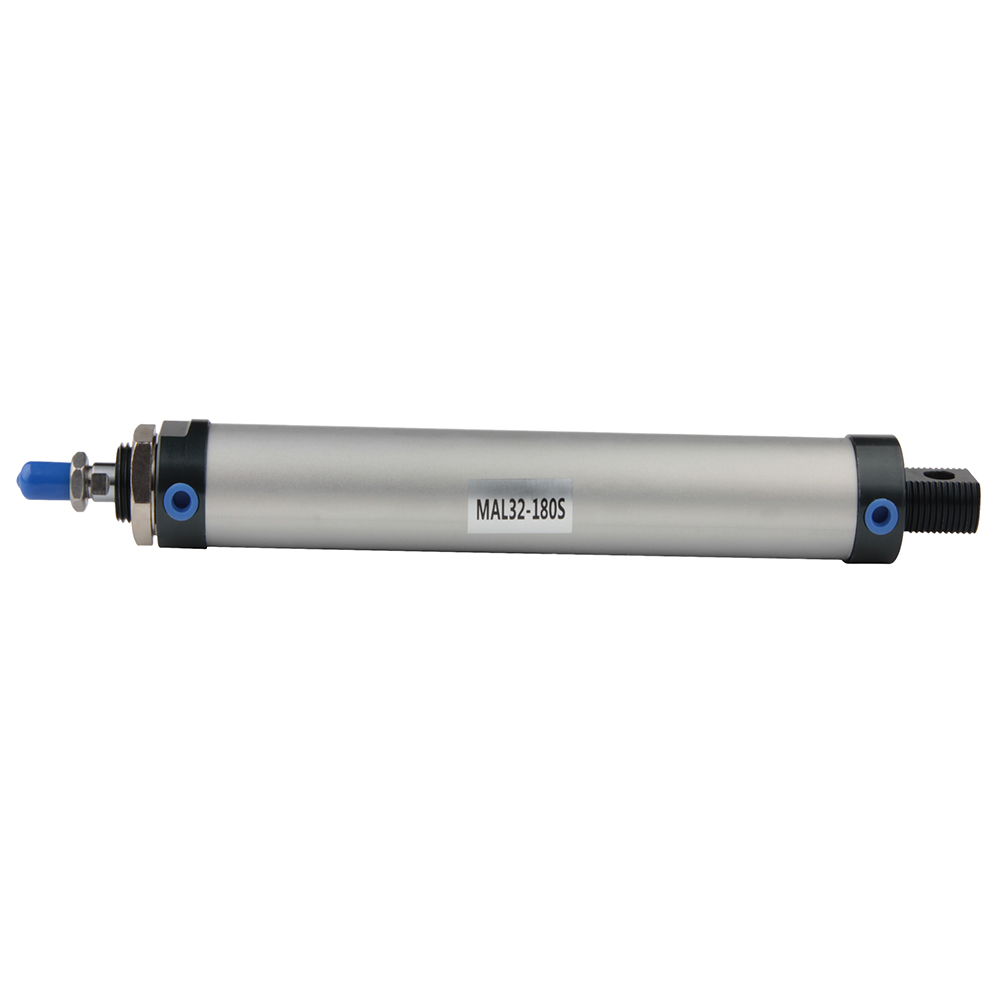

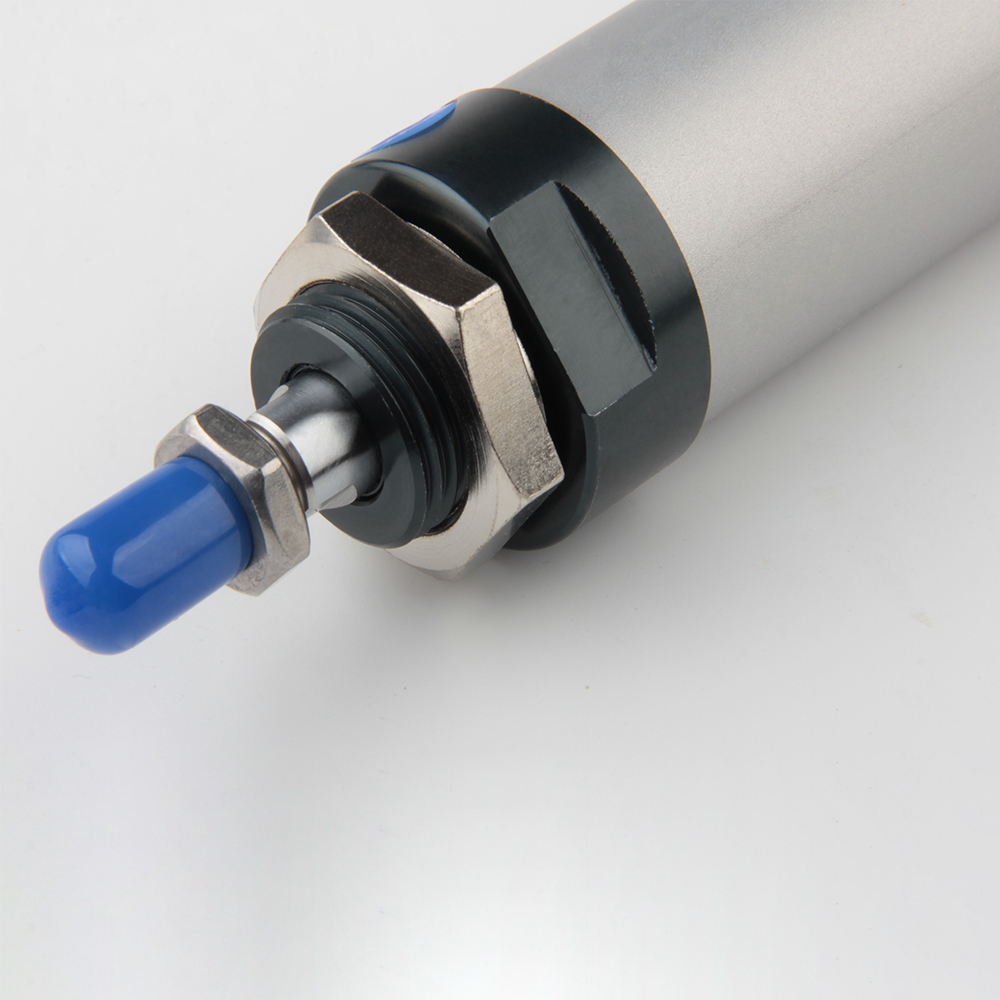

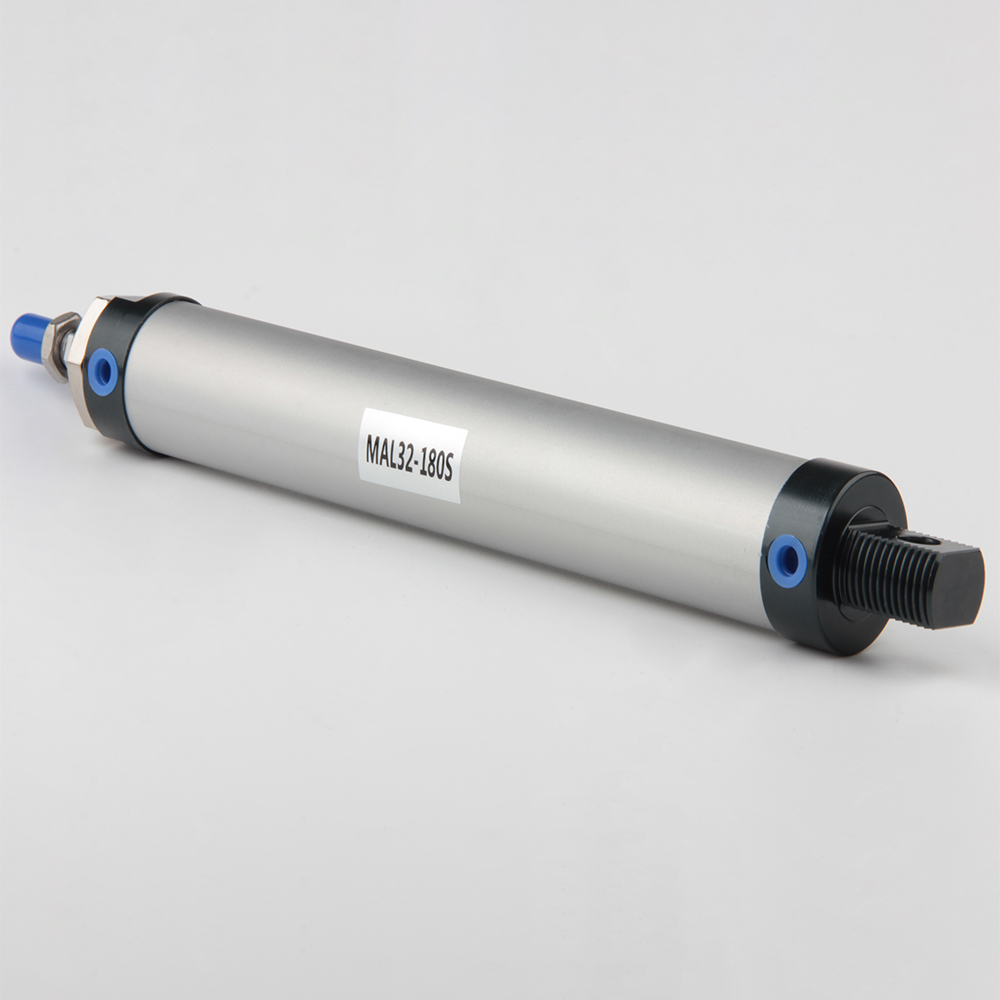

MAL 32X180S Aluminum Alloy Mini Air Cylinder
