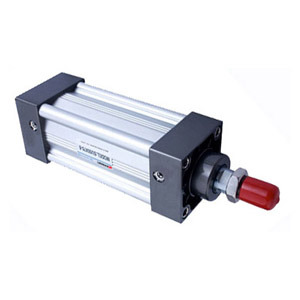

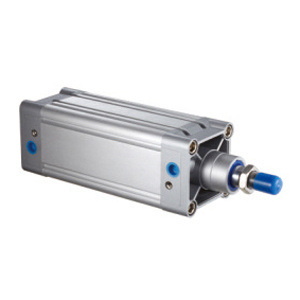

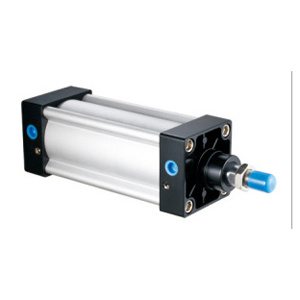

ISO6431 Cylinder - Si Cylinder - Europe Standard

Model NO.: SCCombination Cylinder Type: Pressurized CylinderWorking Medium: AirType: Pneumatic CylinderBrand: ChelicWork Temperature: Normal TemperatureCondition: NewTrademark: XHnotionTransport Package: Export BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumStructure: Piston CylinderPower: PneumaticPressure Direction: Double-acting CylinderDouble-Acting Cylinder Type: Common CylinderSpecial Cylinder Type: Number of Cylinders
Availability:
Quantity:
  • SC

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000 PCS Per Month

  • CARTONS

  • SC

  • Pressurized Cylinder

  • Air

  • Pneumatic Cylinder

  • Chelic

  • Normal Temperature

  • New

  • XHnotion

  • Export Box

  • ROHS, REACH, CE

  • China

  • 84123900

  • Aluminum

  • Piston Cylinder

  • Pneumatic

  • Double-acting Cylinder

  • Common Cylinder

  • Number of Cylinders

Product Description

SI cylinder
Features:
1) Working medium: Double actions
2) Motion pattern: Filtered air
3) Max. Operating pressure: 1.0MPa
4) Min. Operating pressure: 0. MPa
5) Ambient temperature: -5~70C
6) Operating speed: 50-500mm/s
7) Oil: Lubricated and not lubricated
8) Joint pipe thread: 1/8"-1/2"
9) Cushion: Adjustable cushion at both ends

Bore (mm) 32 40 50 63 80 100 125 160 200 250 320
Motion pattern Double acting
Working medium Air
Mountings Basic  FA, FB, CA, CB, LB, TC, TC-M
Working pressure 1~9.0 Kgf/cm 2
Proof pressure 13.5 Kgf/cm 2
Operating temperature range 0-70º C
Operating speed range 50~800 mm/s
Cushion Adjustable cushioning
Adjustable cushioning stroke 20mm 26mm 45mm 52mm 66mm
Port size G 1/8" G 1/4" G 3/8" G 1/2" G3/4" G1"



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
