ISO15552 ISO6431 DNC Pneumatic Air Cylinder Kits

Model NO.: DNCDouble-Acting Cylinder Type: Adjustable Cushioning CylinderCombination Cylinder Type: Pressurized CylinderMotion Pattern: Double ActingWorking Medium: AirTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumUsage: Automation and ControlStructure: Flexible CylinderPower: PneumaticStandard: StandardPressure Direction: Single-acting Cylinder
Availability:
Quantity:
Inquire Add to Basket

  • DNC

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000 pcs per month

  • CARTONS

  • DNC

  • Adjustable Cushioning Cylinder

  • Pressurized Cylinder

  • Double Acting

  • Air

  • XHnotion

  • Bluk Packing or Blister Packing

  • ROHS, REACH, CE

  • China

  • 84123900

  • Aluminum

  • Automation and Control

  • Flexible Cylinder

  • Pneumatic

  • Standard

  • Single-acting Cylinder

Product Description


ISO15552 ISO6431 DNC Pneumatic Air Cylinder Kits

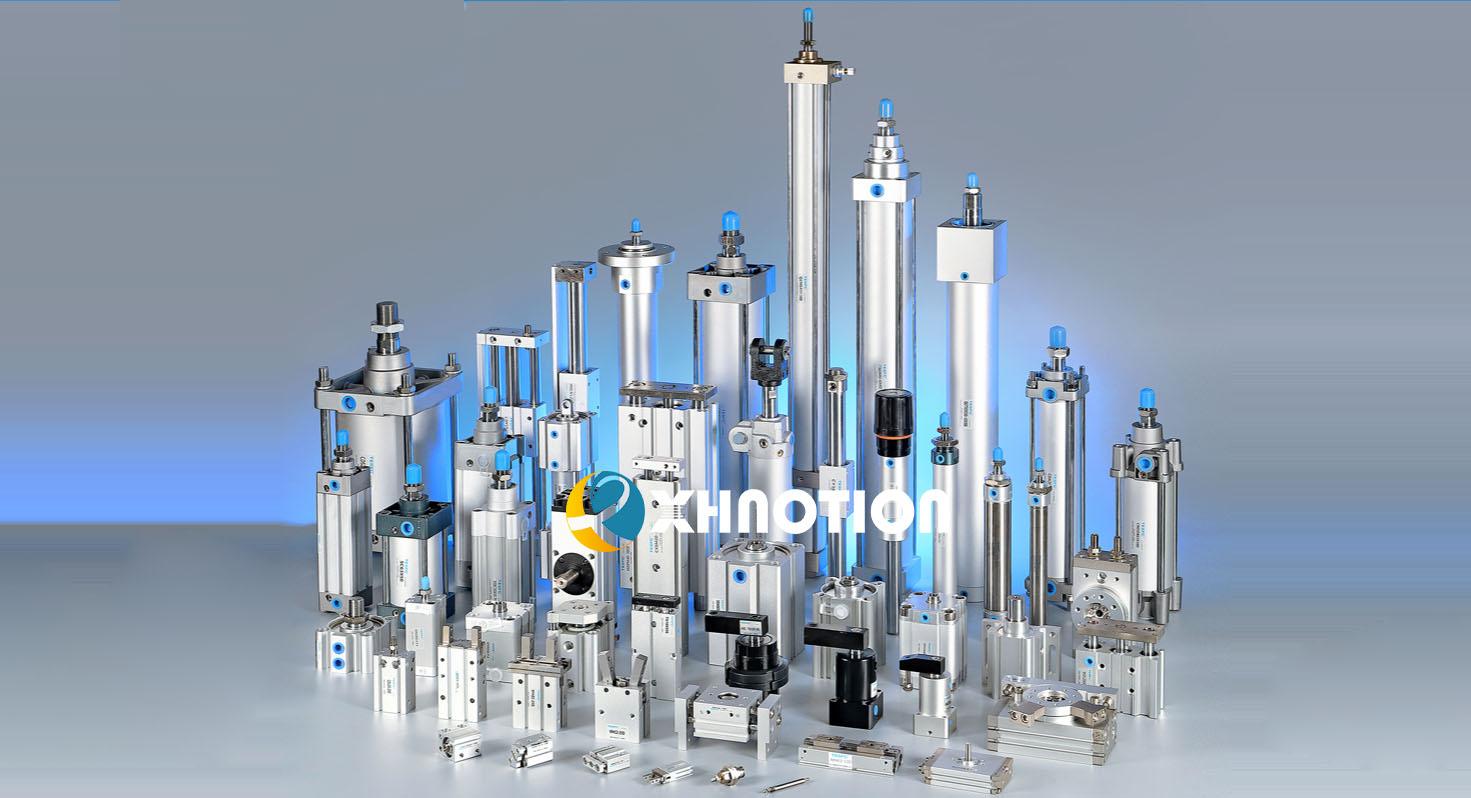

air cylinder


XHNotion can offer all kinds of air cylinder, pneumatic cylinder:

SC cylinder, SU cylinder, DNC cylinder, SI cylinder, DSN cylinder,

SDA cylinder, MA cylinder, MAL cylinder, CQ2 cylinder, aluminum cylinder,

stainless steel cylinder, thin cylinder, compact cylinder, miniature cylinder,

two shaft cylinder, three shaft cylinder, free installation cylinder, double rod cylinder,

twin rod cylinder, Tri-rod cylinder, standard cylinder, ISO15552 cylinder.

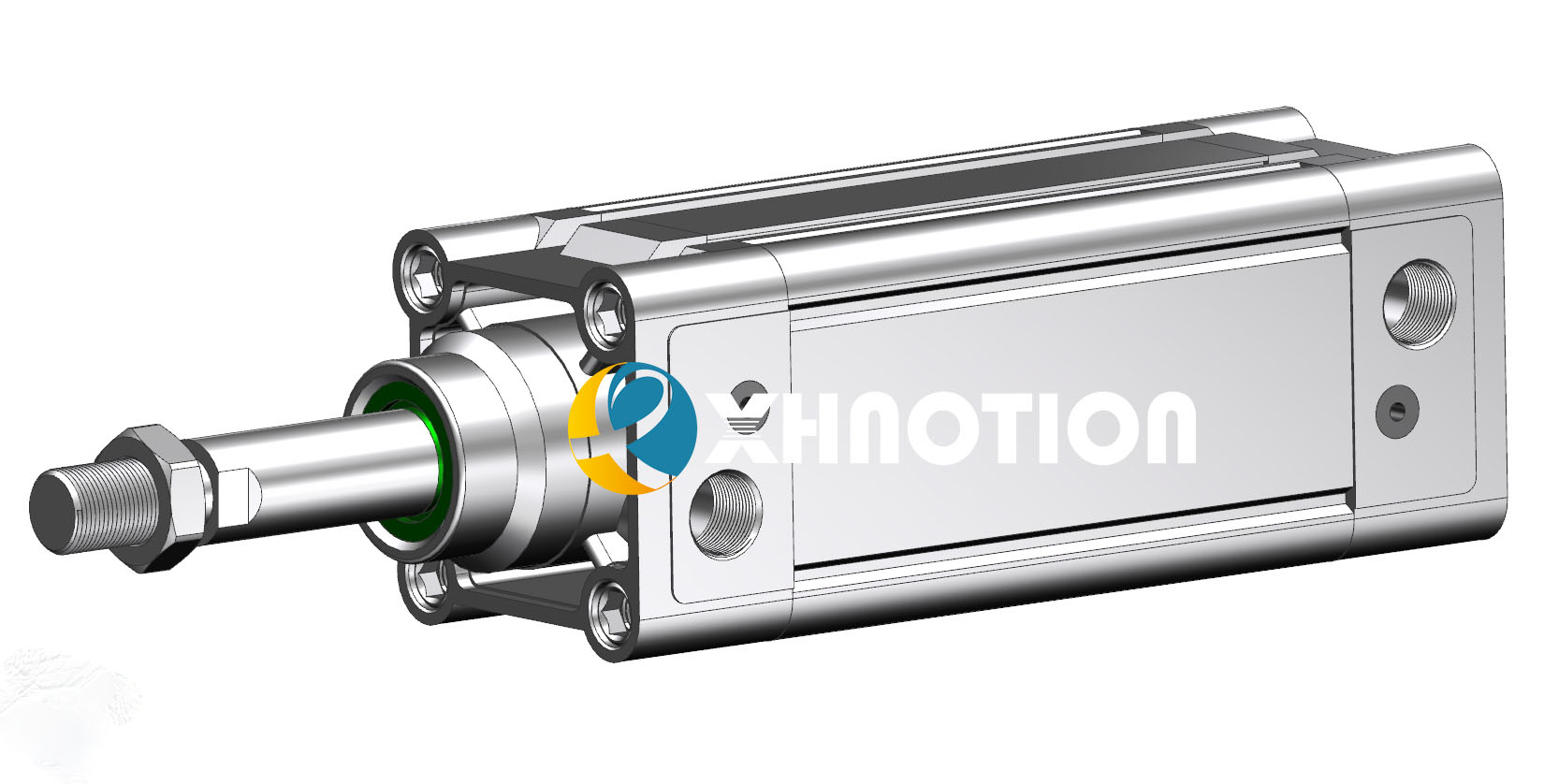

DNC气缸装配1

FEATURES


Front, rear cover and piston are made of aluminum alloy die - they are made by high  precision CNC.

Barrel is made of hard anodised aluminum.

Piston rod is made of chromed carbon steel.

Unique cushion technique makes smooth action, long time service and no need lubrication maintenance.

Admit to add sensor to control the stroke easily.

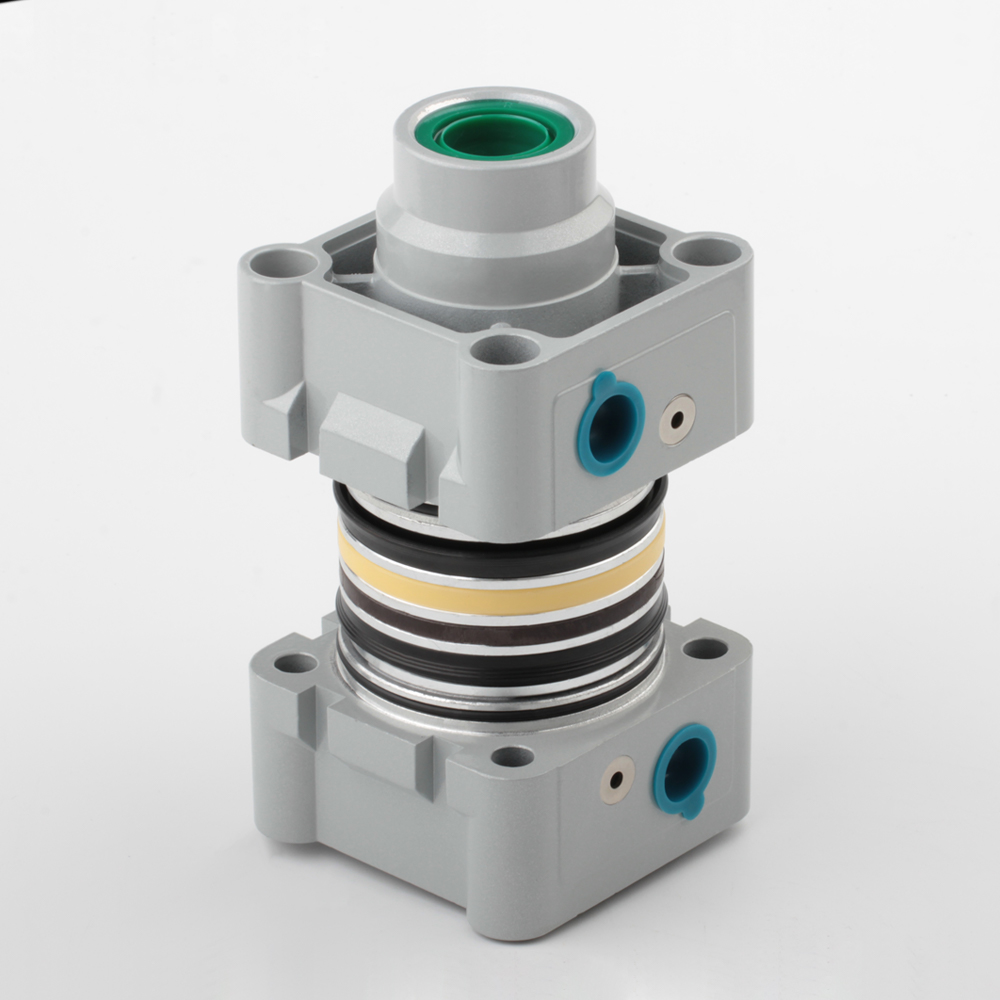

cylinder kits (6)

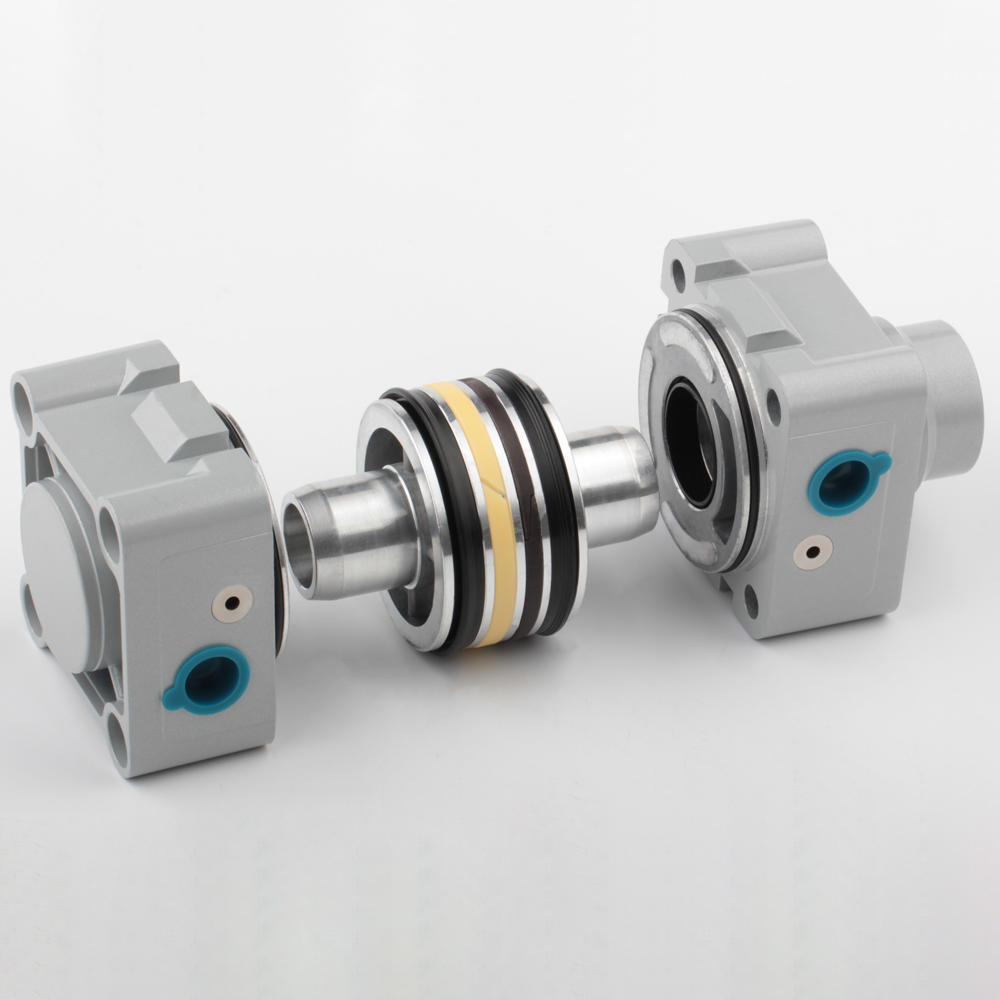

cylinder kits (1)

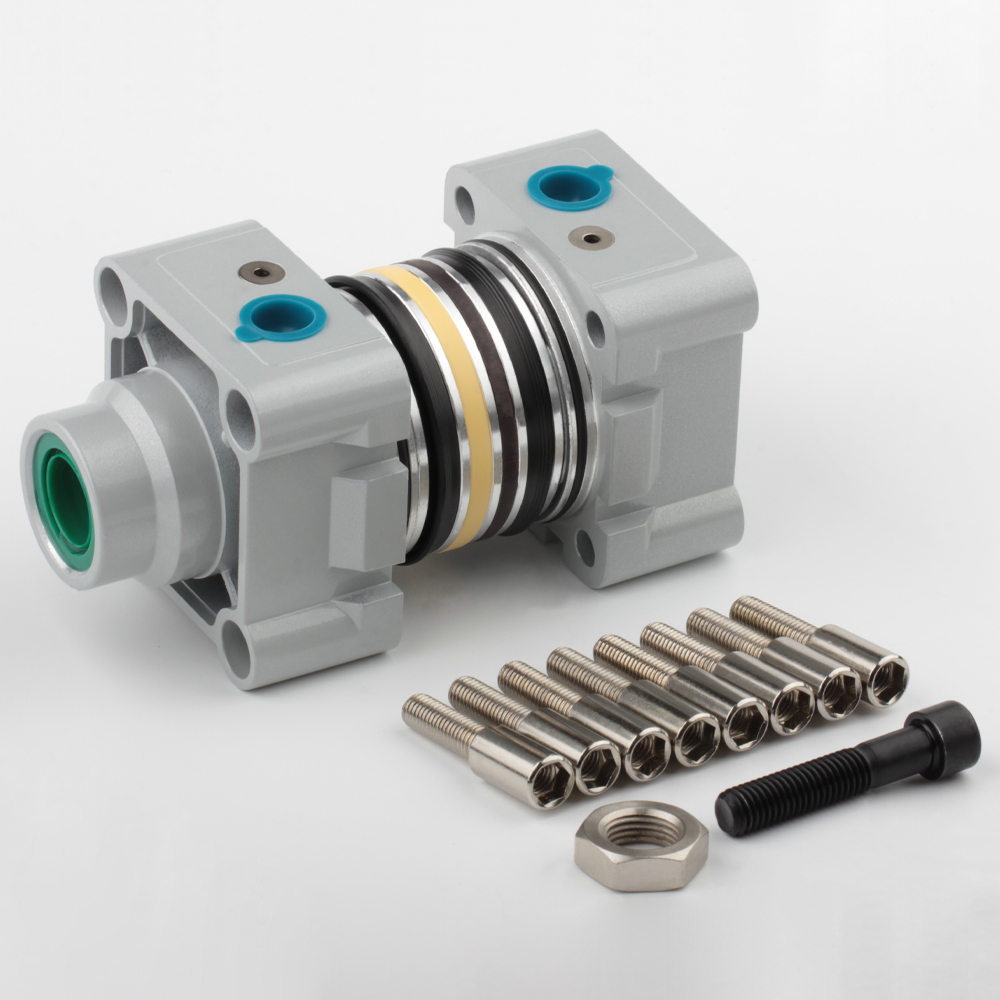

cylinder kits (3)





1. Xhnotion can offer DNC cylinder and cylinder kits, European Standard pneumatic Cylinder Kit Parts ISO15552/6431

2. Bore 32 mm 40 mm 50 mm 63 mm 80 mm 100 mm DNC Cylinder kits available.

3. Conforms to ISO15552 (ISO6431) and VDMA24562 Standards.

4. Each set including 1 pc front cover, 1 pc rear cover, 1 pc piston, 8 pcs pull-rod nut, 1 pc copper sheathing, 1 pc socket head cap screw, 1 pc nut, 1 pc seal kits, 2 pcs buffer valve, 1 pc hard banding, 2 pcs red block, 1 pc red cap.

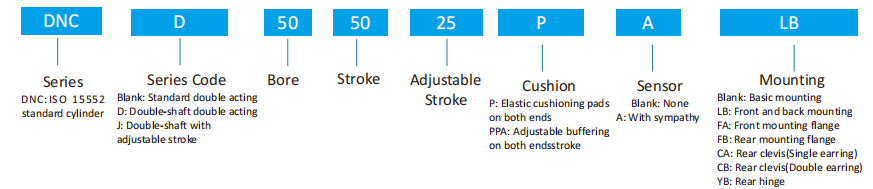

HOW TO ORDER



_JBGZ6UD(3H_KT8G7T7V

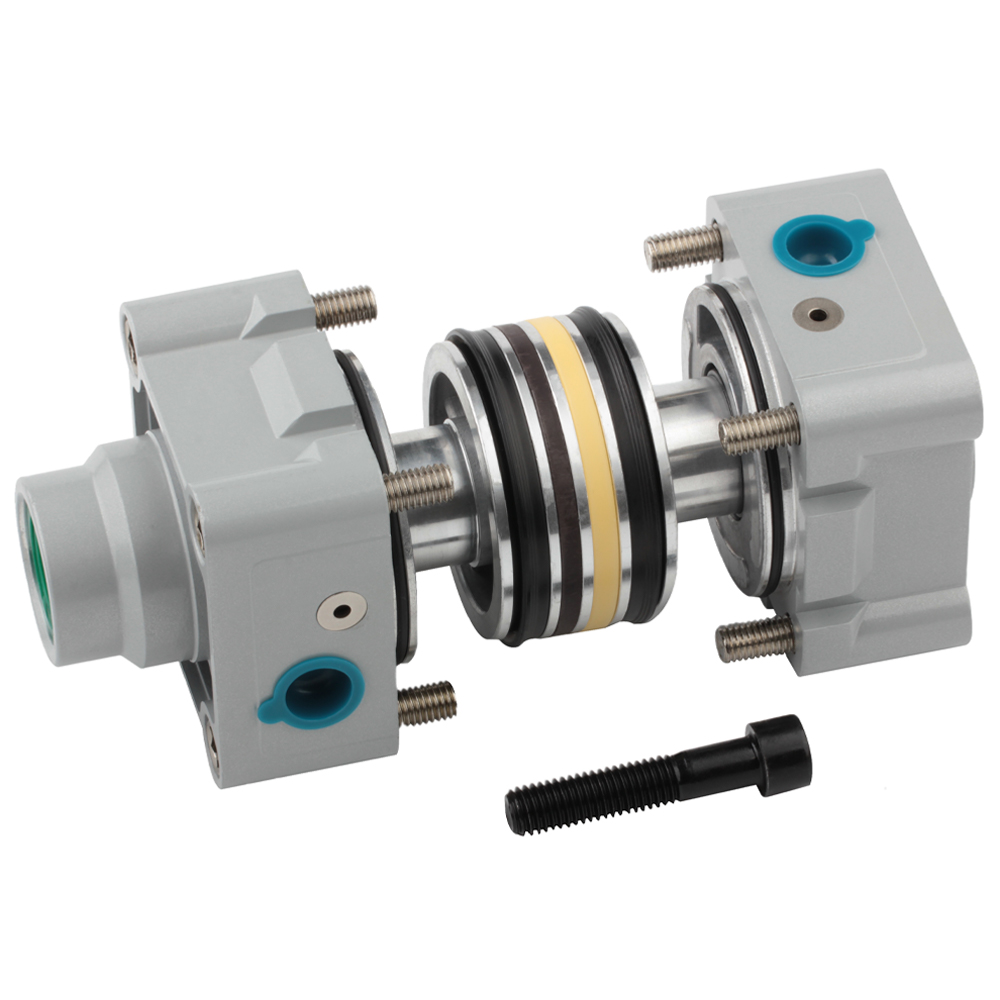

cylinder kits (2)
cylinder kits (5)






SPECIFICATIONS



Bore (mm) 32 40 50 63 80 100
Port size G1/8 G1/4 G1/4 G3/8 G3/8 G1/2
Exhaust vent M3 M3 M5 M5 M5 M5
Piston rod terminal Male thread
Piston rod thread M10x1.25 M12x1.25 M16x1.5 M16x1.5 M20x1.5 M20x1.5
Cushion form Elastic cushioning pads on both ends
Adjustable buffering on both ends
Cushion length (mm) 20 20 22 22 32 32
Propulsion force at 6 bar (N) 483 754 1178 1870 3016 4712
Return force at 6 bar (N) 415 633 990 1682 2721 4418
Static clamping force (N) 500 500 2000 2000 5000 5000
Material Cylinder barrel: anodized aluminum Bearings and end caps: Die-cast aluminum Piston rod: high quality alloy steel
Seals: Polyurethane
Working pressure (bar) 2.5...12
Ambient temperature (℃ ) -20...+80





STROKE



Bore (mm) Standard Stroke Max stroke Allowable stroke
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500




1000 2000
40 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800

1200 2000
50 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1200 2000
63 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
80 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
100 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000
125 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 1500 2000

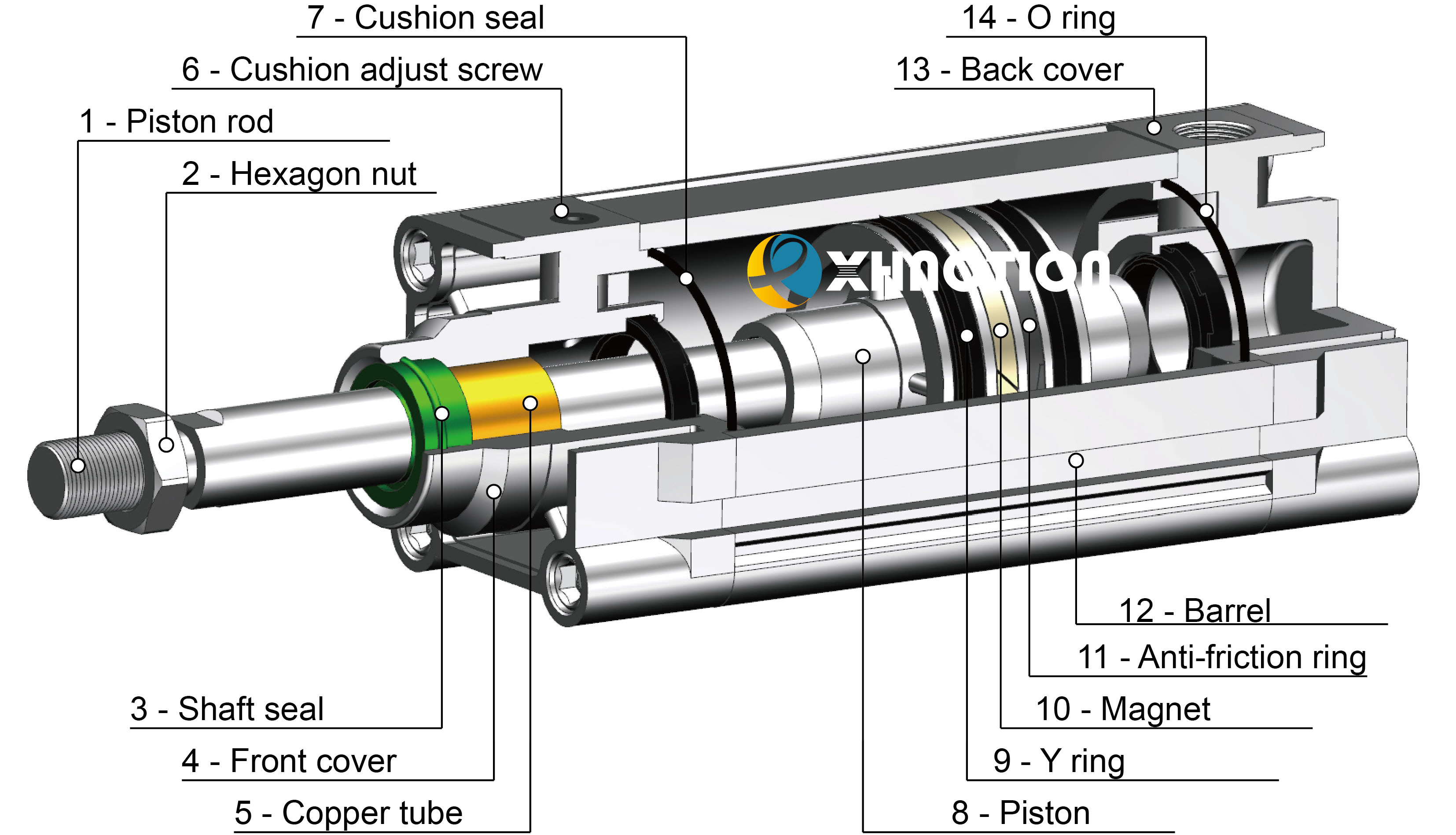

STRUCTURE



DNC气缸剖切1







DRAWING



微信图片_20231218170148




φ(mm) AM B
φ		 B1 BG E EE J2 J3 KK L1 L2
32 22 30 10 16 45 G1/8 6 5.2 M10X1.25 18 94
40 24 35 12 16 54 G1/4 8 6 M12X1.25 21.5 105
50 32 40 16 17 64 G1/4 10.4 8.5 M16X1.5 28 106
63 32 45 16 17 75 G3/8 12.4 10 M16X1.5 28.5 121
80 40 45 20 17 93 G3/8 12.5 8 M20X1.5 34.7 128
100 40 55 20 17 110 G1/2 12 10 M20X1.5 38.2 138
125 54 60 - 22 134 G1/2 13 8 M27X2 46 160





φ(mm) L7 MM
φ		 PL RT TG VA VD WH ZJ ZM 1 2 3
32 3.3 12 15.6 M6 32.5 4 10 26 120 148 10 16 6
40 3.6 16 14 M6 38 4 10.5 30 135 167 13 18 6
50 5.1 20 14 M8 46.5 4 11.5 37 143 183 17 24 8
63 6.6 20 17 M8 56.5 4 15 37 158 199 17 24 8
80 10.5 25 16.4 M10 72 4 15.7 46 174 222 22 30 6
100 8 25 18.8 M10 89 4 19.2 51 189 240 22 30 6
125 14 32 18 M12 110 6 20.5 65 225 291 27 36 8
