High Temperature Insert-Style Miniature Non Return Valve in Car Wash Industry

Availability:
Quantity:
  • OV15 HP

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 50000 PCS Per Month

  • OV32

  • Reversing

  • ANSI

  • Household Usage

  • SGS(RoHS) Reach FDA LFGB Acs

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE, ACS, FDA

  • China

  • 8481804090

  • Acetal

  • Cartridge

  • Tubular

  • Low Pressure

  • Only Allows Water to Flow in One Direction and Pre

  • Seals

Product Description
High Temperature Insert-Style Miniature Non Return Valve in Car Wash Industry


High Temperature Insert-Style Miniature Non Return Valve in Car Wash Industry

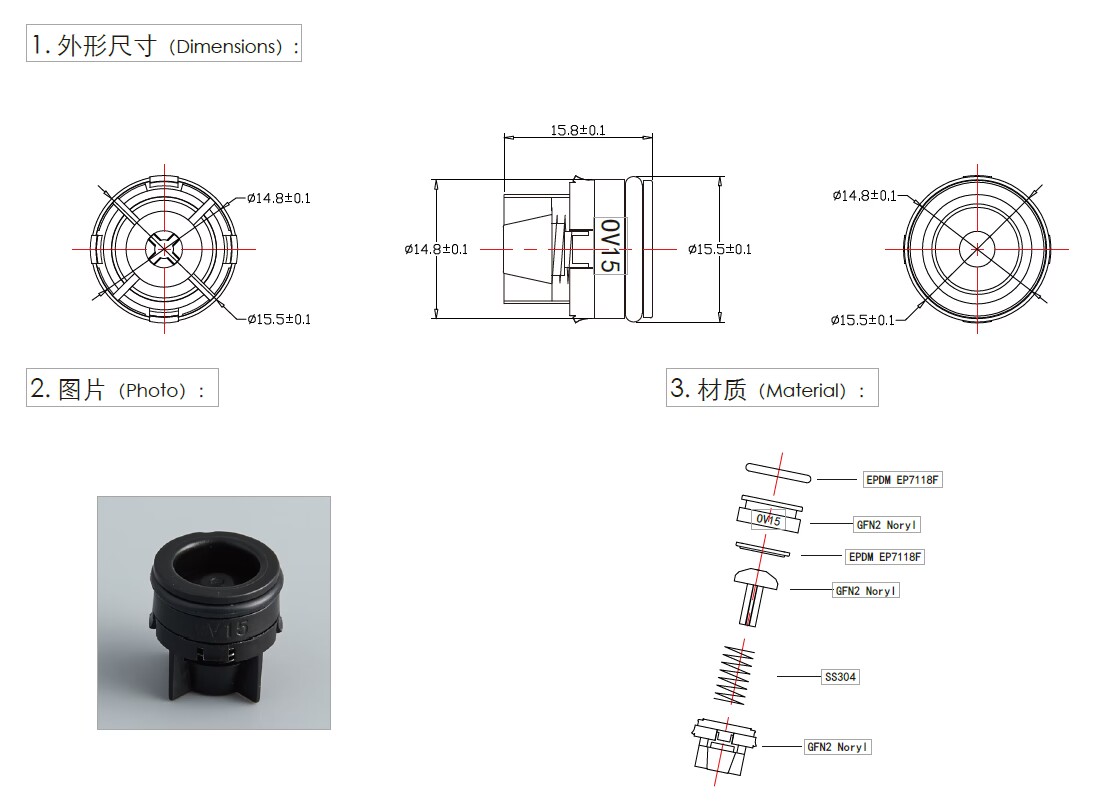

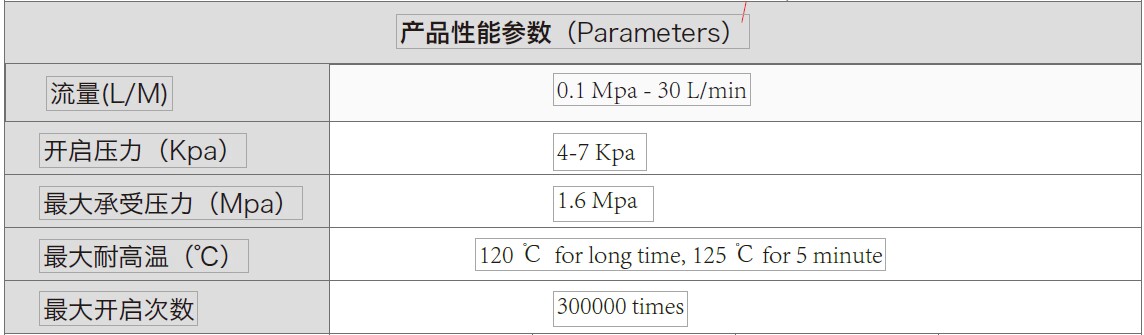

OV inserts high temperature cover a size range from 15 mm to 40 mm and provide superior flow performance (reduced headloss). Glass filled noryl and EPDM seals make the valve reach to 120 C for long time working.



B%EN5N93AU3VIE7FDXWI4Y

DSA18(PKDGT2RU4XWM


Feature and Benefits

1. 100% factory tested drip in operation.
2. Easy to insert into the application devive.
3. Extra low headloss and low cracking pressure.
4. External O-ring in groove.



SSNSA7ME7H3Q0T0VJK3G







Material Construction

External Seal EPDM
Housing POM
Internal Seal EPDM
Core POM
Spring SS304
Cover POM

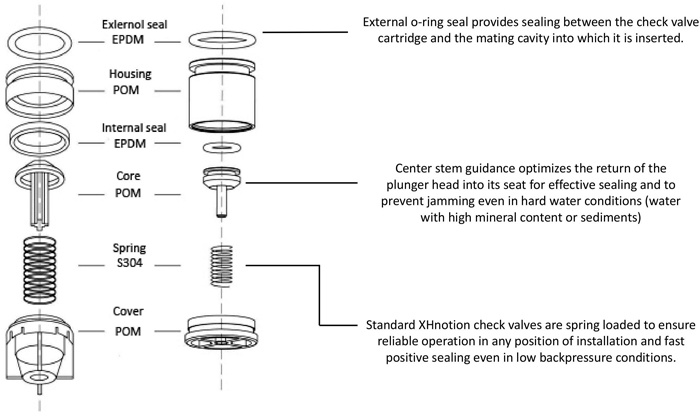

Structure

High Temperature Insert-Style Miniature Non Return Valve in Car Wash Industry








Packing & Shipping

Packing:
Plastic Bag + White Box + Carton
Custom packaging are available, XHnotion brand packaging are available

Shipping:
Method:Air, Sea, Courier
Export port:Ningbo or Shanghai, China
Delivery time:3 days to 30 days depends on actual orders.
Express:TNT, UPS, DHL, FedEx, SF Express.

High Temperature Insert-Style Miniature Non Return Valve in Car Wash Industry










Why Choose US?

1.We offer one stop solution.Over 5000 items for you to save efforts and costs.
2.We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
  make sure each part exactly as the drawing and good function.
3.We will reply you within 24 hours.
4.Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.









FAQ

Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular items, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
