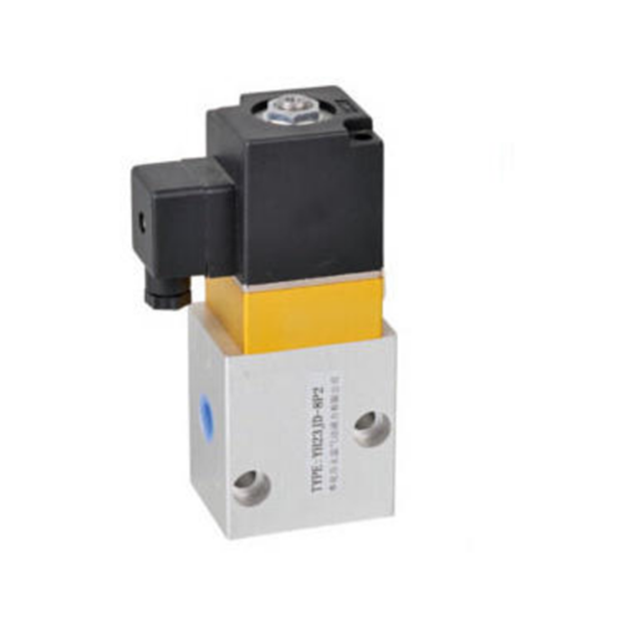

High Pressure Directional Valve 1/2"Bsp Thread Bottle Blowing Machine

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: YH23JD-8Power Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACThread: G1/2", G1/4"Trademark: XHnotionTransport Package: Bulk Packing or Blister PackingOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: BrassPressure: High PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • YH23JD-8

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • YH23JD-8

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • G1/2", G1/4"

  • XHnotion

  • Bulk Packing or Blister Packing

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • Brass

  • High Pressure

  • Pilot Piston Structure

Product Description


SPECIFICATION

ModelYH23JD-8
       YH23JD-8P2
YH23JD-15
          YH23JD-15P2
Port SizeG1/4G1/2
Operating Pressure0.15~2.4Mpa
Change Frequency≤0.04s≤0.08s
Effective Area≥20mm²≥60mm²
Ambient Temperature-10~55ºC
Media Temperature-5~50ºC
Operating Life≥1500000 times





FEATURES

1. High pressure directional valve is designed in strengthened stop type with high operating pressure.
2. It is safe and reliable and has been widely used in high pressure pneumatic system, such as bottle blowing machine.
3. It is especially successfully used in the production equipment of high capacity polyester bottles with special shape.



ADVANTAGE

1. Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2. Aluminum Surface is polished and hard anodized.
3. To import Germany grease to provide firm less-friction support
4. O-ring is imported from Taiwan.
5. 100% leakage testing under low pressure and high pressure.
6. 1 year quality assurance after shipment.
7. After sales technique support





WHY CHHOSE US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
  make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.





FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
