| Quantity: | |
|---|---|
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 M Per Month
PUH-G
100m
XHnotion
Plastic Film Box Reel
UL94-V0
China
3917290000
-20 - 80
0-10 Bar
Polyurethane (Inner) + Retardant Synthetic Materia
Air
Round
Welding

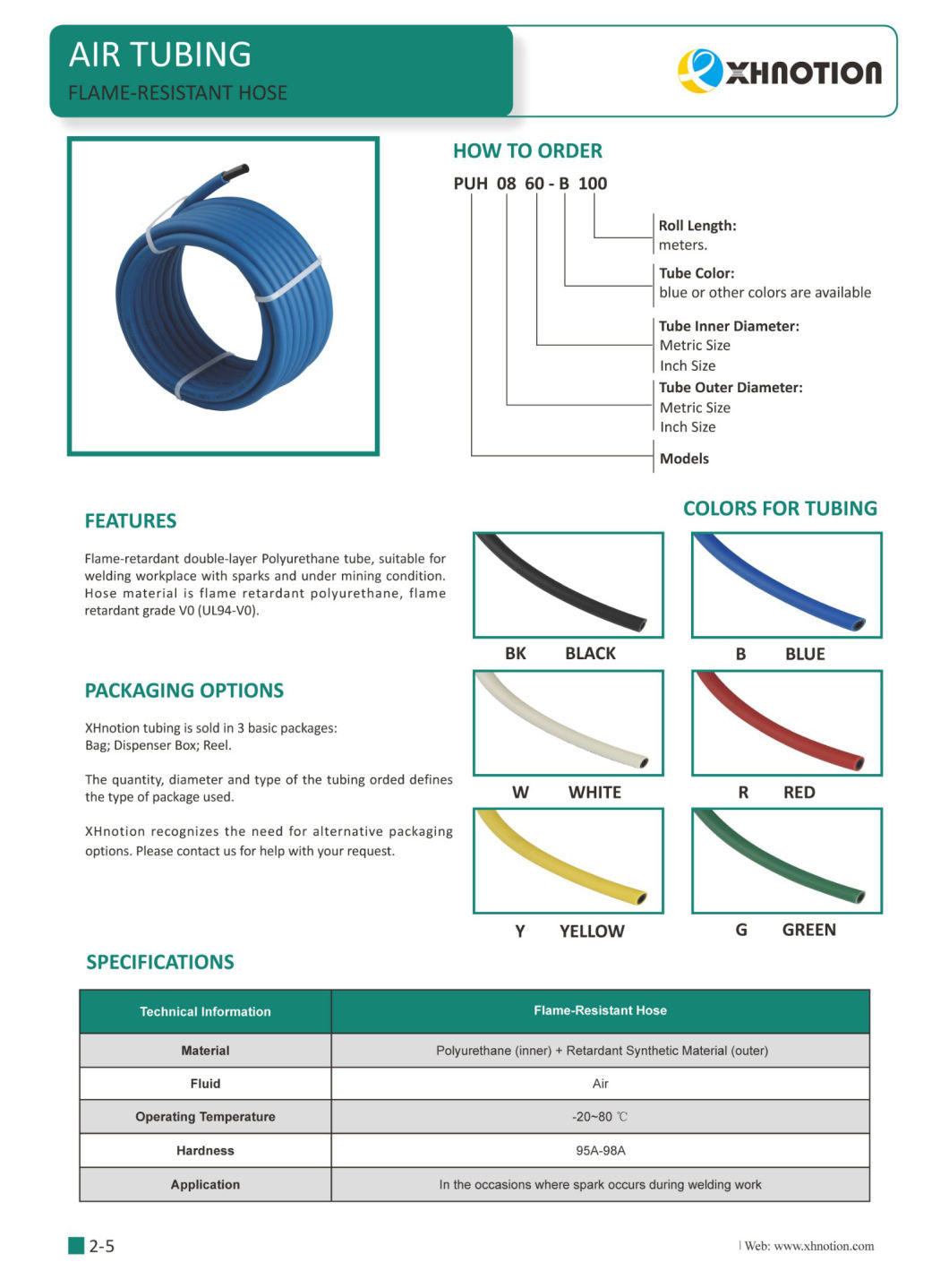

FEATURES

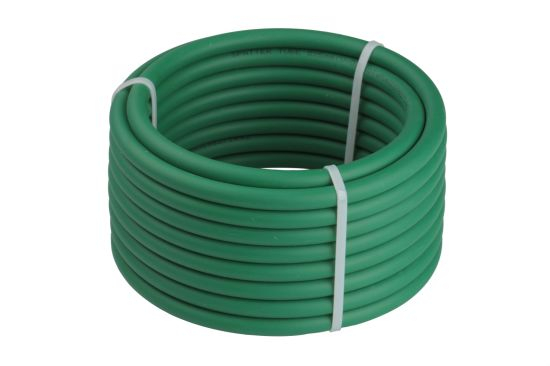

| Product name | Flame-Resistant Hose |
| Fluid | Air |
| Color | Black Blue Yellow Red Green White |
| Material | Polyurethane (inner) + Retardant Synthetic Material (outer) |
| Working pressure | 0-10bar |
| Bursting pressure | 0-20bar |
| Temperature | -20 -80 |
| Hardness | 95A-98A |
| Application | In the occasions where spark occurs during welding work |
| Packing | Plastic Film Box Reel |
| MOQ | 2000 Meters |

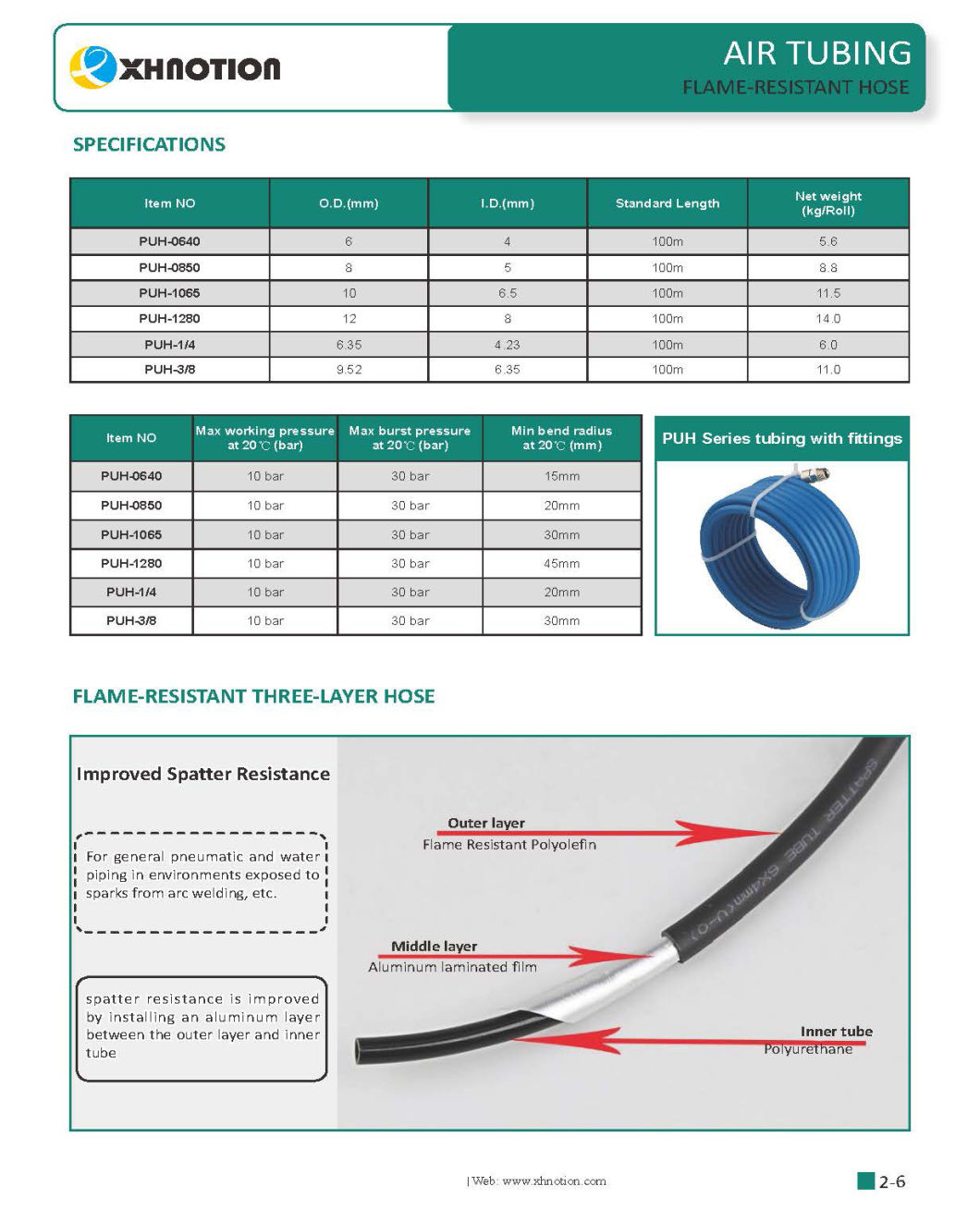

SPECIFICATIONS
| Metric Size | O.D.(mm) | I.D.(mm) | Total Length per Roll (meter) | Max working pressure at 20ºC (bar) | Max burst pressure at 20ºC (bar) | Min bend radius at 20ºC (mm) |
| PUH0640 | 6 | 4 | 100 | 10bar | 30bar | 15mm |
| PUH0850 | 8 | 5 | 100 | 10bar | 30bar | 20mm |
| PUH1065 | 10 | 6.5 | 100 | 10bar | 30bar | 30mm |
| PUH1280 | 12 | 8 | 100 | 10bar | 30bar | 45mm |
| PUH 1/4 | 6.35 | 4.23 | 100 | 10bar | 30bar | 20mm |
| PUH 3/8 | 9.52 | 6.35 | 100 | 10bar | 30bar | 30mm |
TUBE ADVANTAGE
1) Polyurethane (inner) + Retardant Synthetic Material (outer)
2) Enough meters per roll and can mark meter on the tube as you request.
3) Print your logo above 3000 meter each size.
4) Conform to REACH, CE, ROHS certificate
5) Rich stock for every size and regular color.
6) One year quality assurance after shipment.
7) After-sales technique support
WHY CHOOSE US?
1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will answer within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

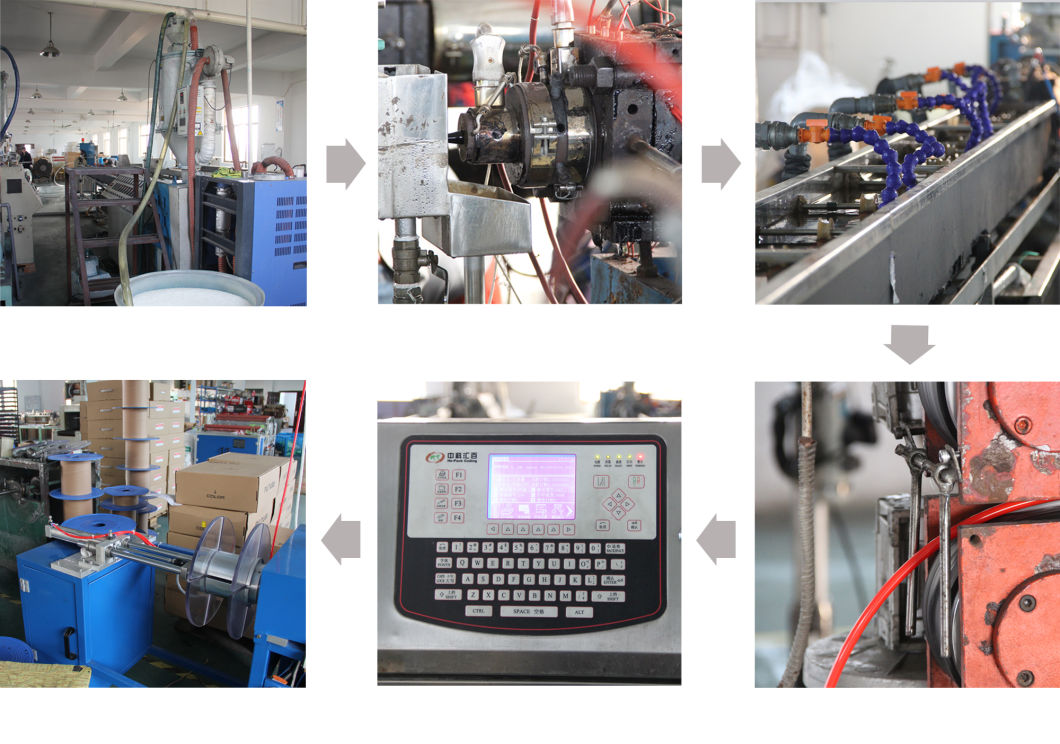

PRODUCTION PROCESS
PERFORMANCE TESTING
PACKING AND DELIVERY
EXHIBITION
2015
PTC EXPO IN SHANGHA
2016
AIR-TECH EXPO IN BIRMINGHAM
2017
AAPEX EXPO IN LAS VEGAS
FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
