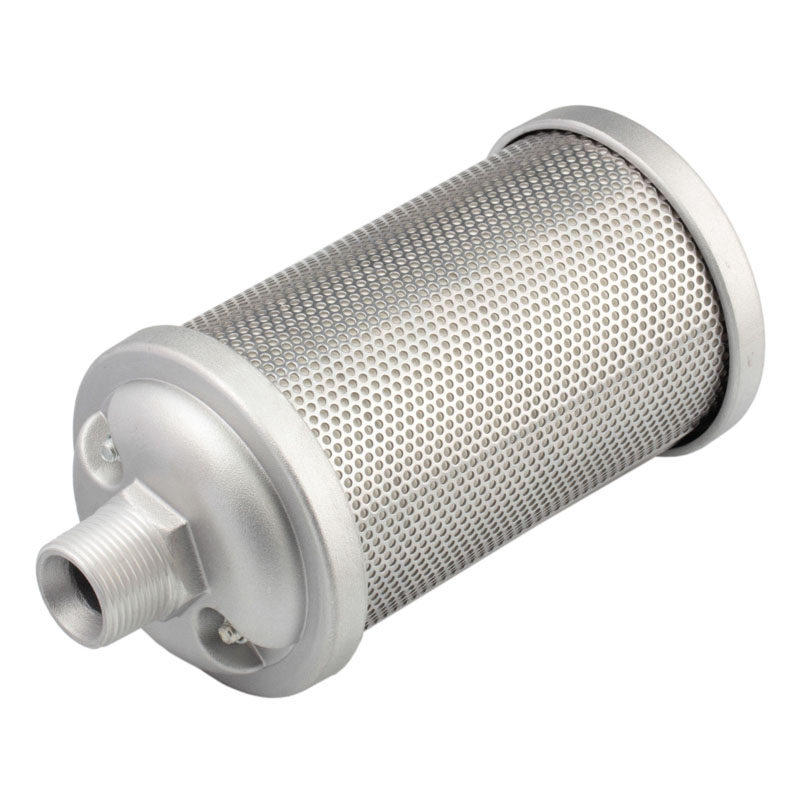

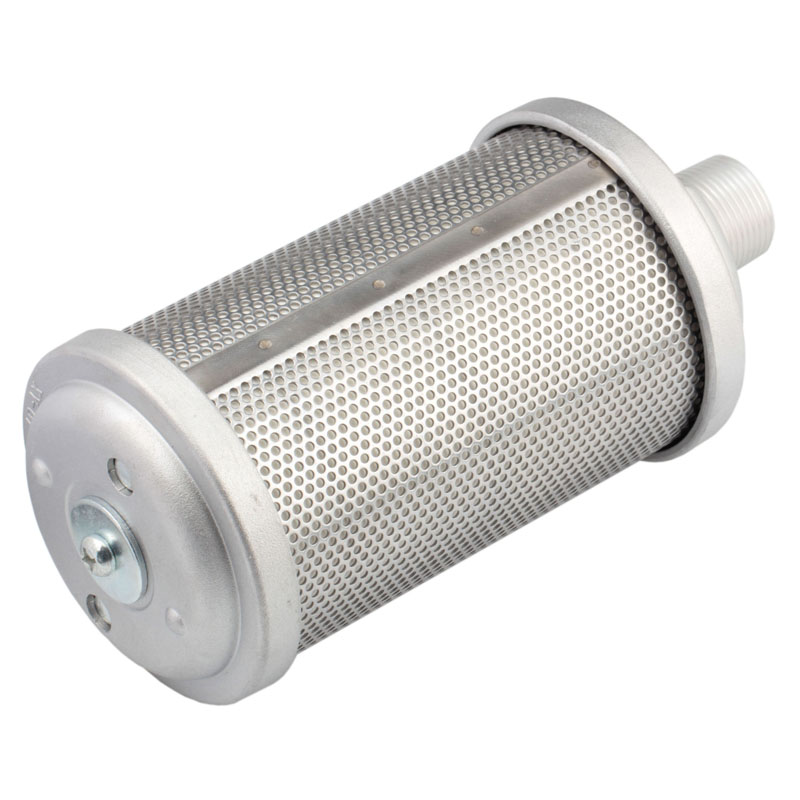

Made in China XHNOTION GXY Air Compressor Air Dryer Vacuum Pump Diaphragm Pump Exhaust Silencer
GXY SERIES MUFFLERS
Based on researching&absorbing products of American Allied Witan company, we produced a new type muffler suitable for domestic market.Main materials are ultra-fine sound-absorbing glass fiber,which have good performance on sound-absorption and high temperature resistance , as well as sound filter media by special treatment imported from American This new type products are suitable for adsorption dryer with 1.0Mpa working pressure.
TECHINICAL PARAMETERS
1.Application:exhaust mufflers for adsorption dryer
2.Material:sound-absorbing ultrafine glass wool with high-temperature resistance
3.Noise reduction:30db above
4.Opening pressure of by-pass safety valve:2.0~2.2 kgf/cm
5.Operating temperature:≤65ºC
6.Max.operating pressure:10 bar

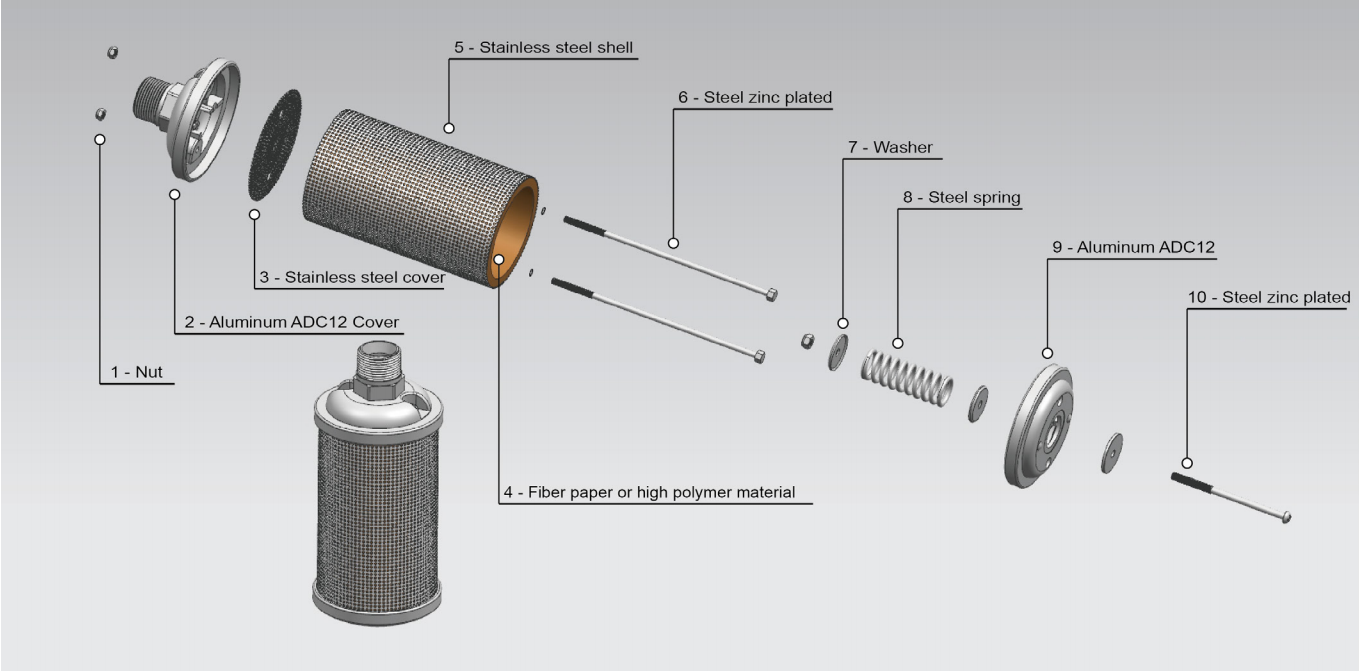

STRUCTURE
DRAWING
| MODEL | T | H | h | D | |||||||||||||
| (G)XY-01 | 1/8 | 83 | 68 | 46.5 | |||||||||||||
| (G)XY-02 | 1/4 | 112 | 92 | 46.5 | |||||||||||||
| (G)XY-03 | 3/8 | 132 | 110 | 66 | |||||||||||||
| (G)XY-05 | 1/2 | 150 | 125 | 80 | |||||||||||||
| (G)XY-07 | 3/4 | 181 | 156 | 87 | |||||||||||||
| (G)XY-10 | 1 | 219 | 183 | 99 | |||||||||||||
| (G)XY-12 | 1-1/4 | 219 | 183 | 99 | |||||||||||||
| (G)XY-15 | 1-1/2 | 340 | 299 | 133 | |||||||||||||
| (G)XY-20 | 2 | 476 | 432 | 133 | |||||||||||||
| (G)XY-30 | 3 | 593 | 472 | 173*173 | |||||||||||||
| (G)XY-40 | 4 | 599 | 472 | 199*199 | |||||||||||||
| (G)XY-60 | 6 | 790 | 611 | 277*277 | |||||||||||||
| MODEL | R | H | h | D | d |
| PGXY-01 | 1/8 | 74.4 | 60 | 46.5 | 5 |
| PGXY-02 | 1/4 | 104 | 84 | 66 | 9 |
| PGXY-03 | 3/8 | 122 | 100 | 66 | 9 |
| PGXY-05 | 1/2 | 142.5 | 117.5 | 80 | 12.4 |
| PGXY-07 | 3/4 | 172.5 | 147.5 | 87 | 14 |
| PGXY-10 | 1 | 207.5 | 171.5 | 87 | 14 |
| PGXY-12 | 1-1/4 | 210.5 | 171.5 | 99 | 30 |
| PGXY-15 | 1-1/2 | 324.5 | 283.5 | 133 | 34 |
| PGXY-20 | 2 | 455.5 | 414.5 | 133 | 44.5 |
SPECIFICATION
| XY Series | GXY Series | |||||||||||||||||||||||
| Filter mateiral | Fiber Paper | High Polymer | ||||||||||||||||||||||
| Max Tempearture | 65 C | 120 C | ||||||||||||||||||||||
| Water contact | Not good | Good | ||||||||||||||||||||||
MUFFLER NOISE TEST REPORT
| Test pressure (Mpa) | Model | Noise reduction value (db) |
| - | XY GXY-01 | - |
| - | XY GXY-02 | - |
| - | XY GXY-03 | - |
| 0.5 | XY-05 | 75 |
| 0.5 | GXY-05 | 84 |
| 0.5 | XY-07 | 75 |
| 0.5 | GXY-07 | 83 |
| 0.7 | XY-10 | 83.4 |
| 0.7 | GXY-10 | 87 |
| 0.7 | XY-15 | 86.5 |
| 0.7 | GXY-15 | 87 |
| 0.7 | XY-20 | 88.5 |
| 0.7 | GXY-20 | 99 |
| - | XY GXY-30 | - |
| - | XY GXY-40 | - |
| - | XY GXY-60 | - |
