| Quantity: | |
|---|---|
SSBV
XHNOTION
L/C, T/T, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
PLASTIC BAG AND CARTON
SSBV
Industrial Usage, Water Industrial Usage
RoHS, Reach, Ce
10, 12, 15, 20, 25, 38, 50mm
PTFE(Teflon)
Max.1000 Psi for Water Oil Gas
Full Size Port Minimal Pressure Loss
Heavy Duty Handle with Blue Vinly Insulation
XHnotion
Plastic Bag
China
8481804090
Gas
Stainless Steel
Thread
Pneumatic
Straight Through Type
-20-180
SPECIFICATIONS
| Ports | Female x Female NPT Threads or G Threads |
| Pressure Loss | Full Size Port: Minimal Pressure Loss |
| 100WOG | Max. 1000Psi for Water, Oil, Gas |
| Fluid Medium | Liquids and Gasaes |
| Body & Ball Type | Regular material: 304 Stainless Steel, SS302, SS316 |
| Seal Type | PTFE (Teflon) |
| Temperature Range | -20~180°C |
| Handle | Heavy duty handle with blue vinly insulation |
STRUCTURE
| 1 | BALL VALVE BODY | SS304 |
| 2 | SEALING WASHER | PTFE |
| 3 | BALL | SS304 |
| 4 | O-RING | NBR |
| 5 | PACKING NUT | SS304 |
| 6 | STEM | SS304 |
| 7 | HANDLE NUT | STEEL |
| 8 | LOCK WASHER | SS304 |
| 9 | BALL PACKING | PTFE |
| 10 | HANDLE | SS304 |
| 11 | BALL VALVE CAP | SS304 |
MODELS
| Model | SSBV-08 | SSBV-10 | SSBV-15 | SSBV-20 | SSBV-25 | SSBV-40 | SSBV-50 |
| DN(mm) | 10 | 10 | 15 | 20 | 25 | 40 | 50 |
| G(mm) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/2" | 2" |
| W(mm) | 56 | 56 | 57 | 65 | 79 | 98 | 110 |
| L(mm) | 90 | 90 | 90 | 110 | 120 | 150 | 170 |
| H(mm) | 50 | 50 | 58 | 62 | 72 | 90 | 98 |
ADVANTAGE
1.Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4. 100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6. One year quality assurance after shipment.
7. After-sales technique support.
WHY CHOOSE US?
1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will answer within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

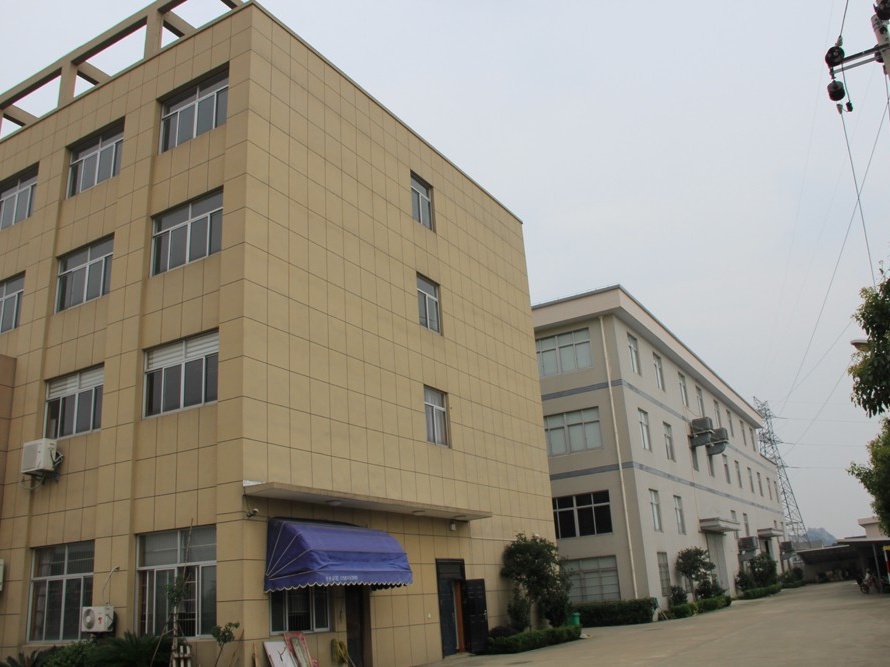

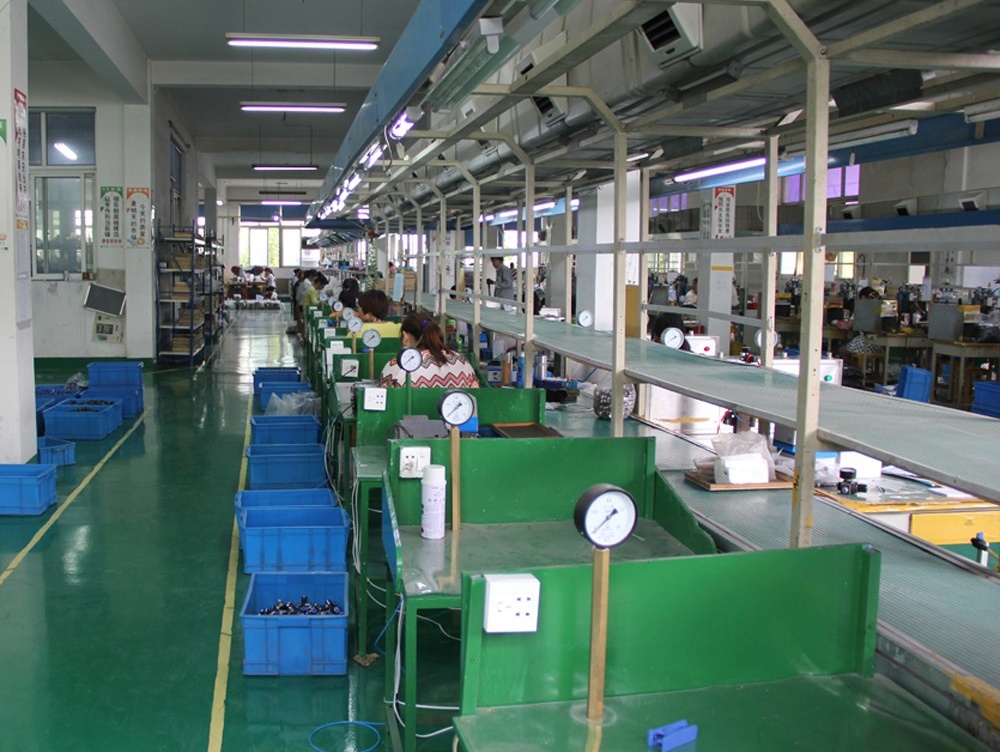

Our Factory Our Workshop

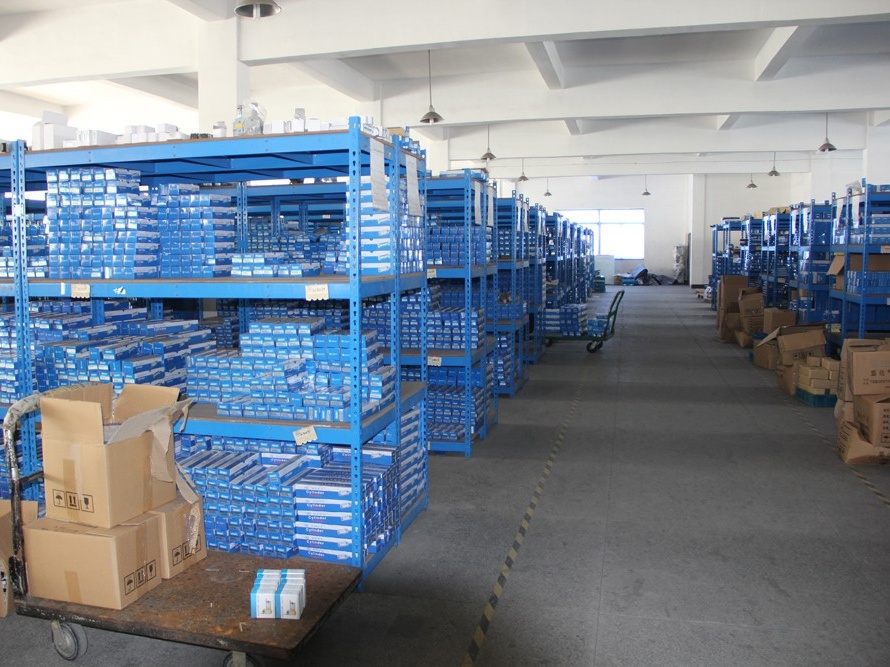

Our Package Our Warehouse
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.
Exhibition
2015
PTC EXPO IN SHANGHA
2016
AIR-TECH EXPO IN BIRMINGHAM
2017
AAPEX EXPO IN LAS VEGAS
FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
