| Quantity: | |
|---|---|
2C-9
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTONS

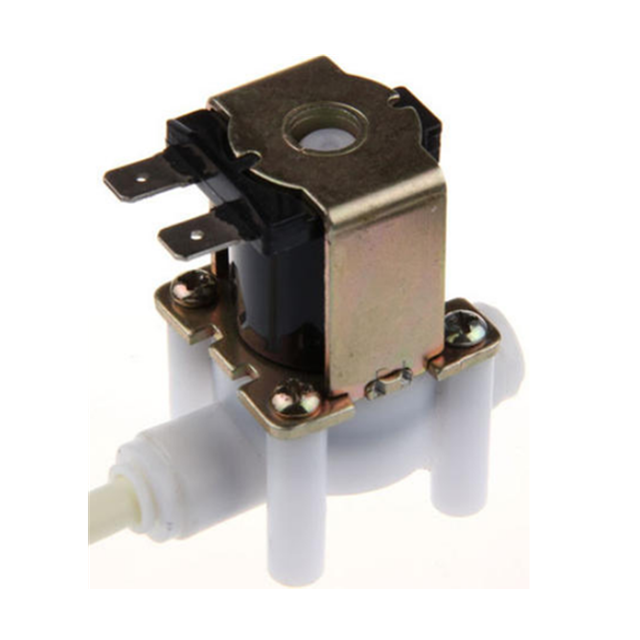

2C-9
Ordinary Pressure
Direct Action Diaphragm Structure
DC Solenoid Valve
Flow Control
DIN
Industrial Usage, Water Industrial Usage, Household Usage
12VDC, 24VDC, 110VAC, 220VAC
Water, Ozone
XHnotion
Paper Box
ROHS, REACH, CE
China
8481804090
Water
Ordinary Temperature
Electric
Thread
Direct Acting
Plastic
FEATURES
1. This series can be used for drinking water, materials get ROHS certificate.
2. Seal material is EPDM or Silicone, which is used for hot water or Ozone.
3. Directing acting, pilot acting, and 3 ways are available.
4. Connection way: thread 1/8, 1/4; tubes 1/4"; Silicone tubes I.D. 1/4";
5. Orifice: 3-10mm , Max pressure: 10 Bar.
6. Conforming to CE certificate.
SPECIFICATIONS
| Model | 2C-1 | 2C-2 | 2C-3 | 2C-4 | 2C-5 | 2C-6 | 2C-7 | 2C-8 | 2C-9 |
| Type | Normally Closed | ||||||||
| Workign pressure (Bar) | 0-8 | 0-0.06 | 0-8 | 0-7 | 0.2-8 | 0.2-8 | |||
| Medium temp. (ºC) | 0-100ºC | ||||||||
| Environment temp.?ºC) | -10-40ºC | ||||||||
| Orifice (mm) | 2.5 | 2.5 | 8 | 9 | 3 | 3 | 2.5 | 6 | 6 |
| CV value | 0.21 | 0.21 | - | - | 0.23 | 0.23 | 0.23 | - | - |
| Body material | PP | Nylon | PP | PP | Nylon | Nylon | POM | POM | POM |
| Seals material | EPDM | EPDM | Silicone | Silicone | EPDM | EPDM | Silicone | Silicone | Silicone |
| Connection size | G1/8" | G1/4" | 12mm | 12mm | G1/8" | G1/4" | 1/4"inch pipe | 1/4"inch pipe | G1/4" |
| Voltage | 6VDC, 12VDC, 24VDC, 220VAC, 110VAC | ||||||||
ADVANTAGE
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) One year quality assurance after shipment.
7) After-sales technique support .
WHY CHOOSE US?
1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will answer within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
Our Factory Our Workshop
Our Package Our Warehouse
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.
