DSN ISO6432 Series Stainless Steel Mini Cylinder Double Acting Pneumatic Piston Air Cylinder

Model NO.: DNCDouble-Acting Cylinder Type: Adjustable Cushioning CylinderCombination Cylinder Type: Pressurized CylinderMotion Pattern: Double ActingWorking Medium: AirTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumUsage: Automation and ControlStructure: Flexible CylinderPower: PneumaticStandard: StandardPressure Direction: Single-acting Cylinder
Availability:
Quantity:
  • DNC

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 1000 pcs per month

  • CARTONS

  • DNC

  • Adjustable Cushioning Cylinder

  • Pressurized Cylinder

  • Double Acting

  • Air

  • XHnotion

  • Bluk Packing or Blister Packing

  • ROHS, REACH, CE

  • China

  • 84123900

  • Aluminum

  • Automation and Control

  • Flexible Cylinder

  • Pneumatic

  • Standard

  • Single-acting Cylinder

Product Description

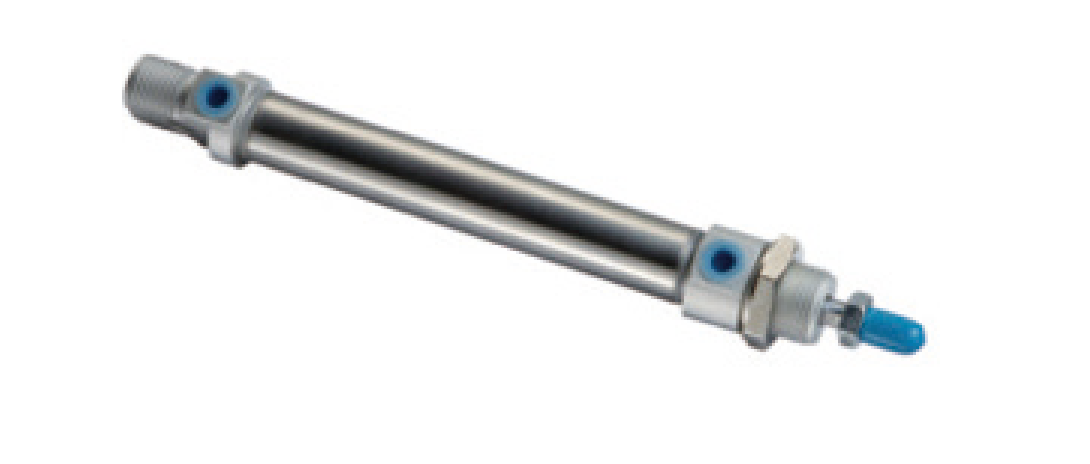

DSN ISO6432 Series Stainless Steel Mini Cylinder Double Acting Pneumatic Piston Air Cylinder





微信图片_20231219095439

FEATURES


Front, rear cover and piston are made of aluminum alloy die - they are made by high precision CNC.

Barrel is made of Stainless steel.

Piston rod is made of chromed carbon steel.

Use import non-lubrication oil seals in order to reach high speed movement.

Single acting and double acting are chosen in a lot of variety.

All DSN series are with magnet ring around piston.

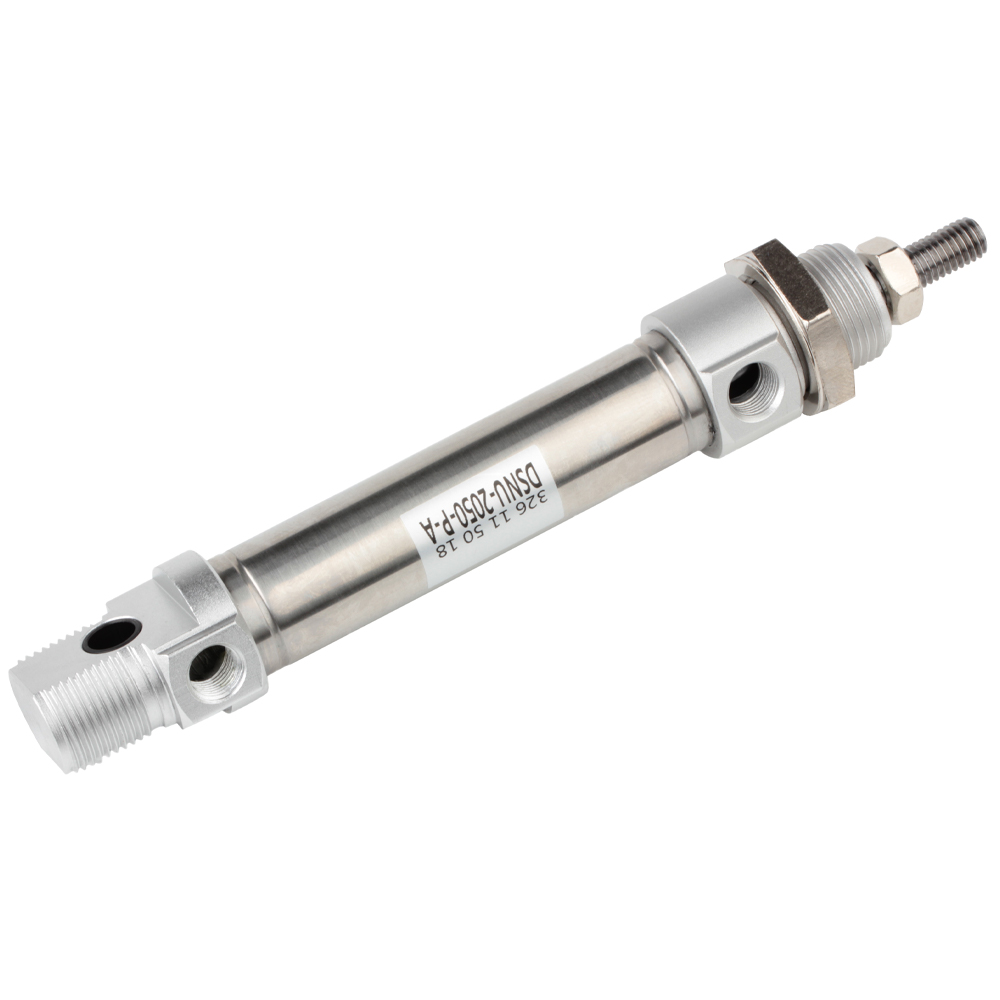

DSNU 20X50 air cylinder (2)

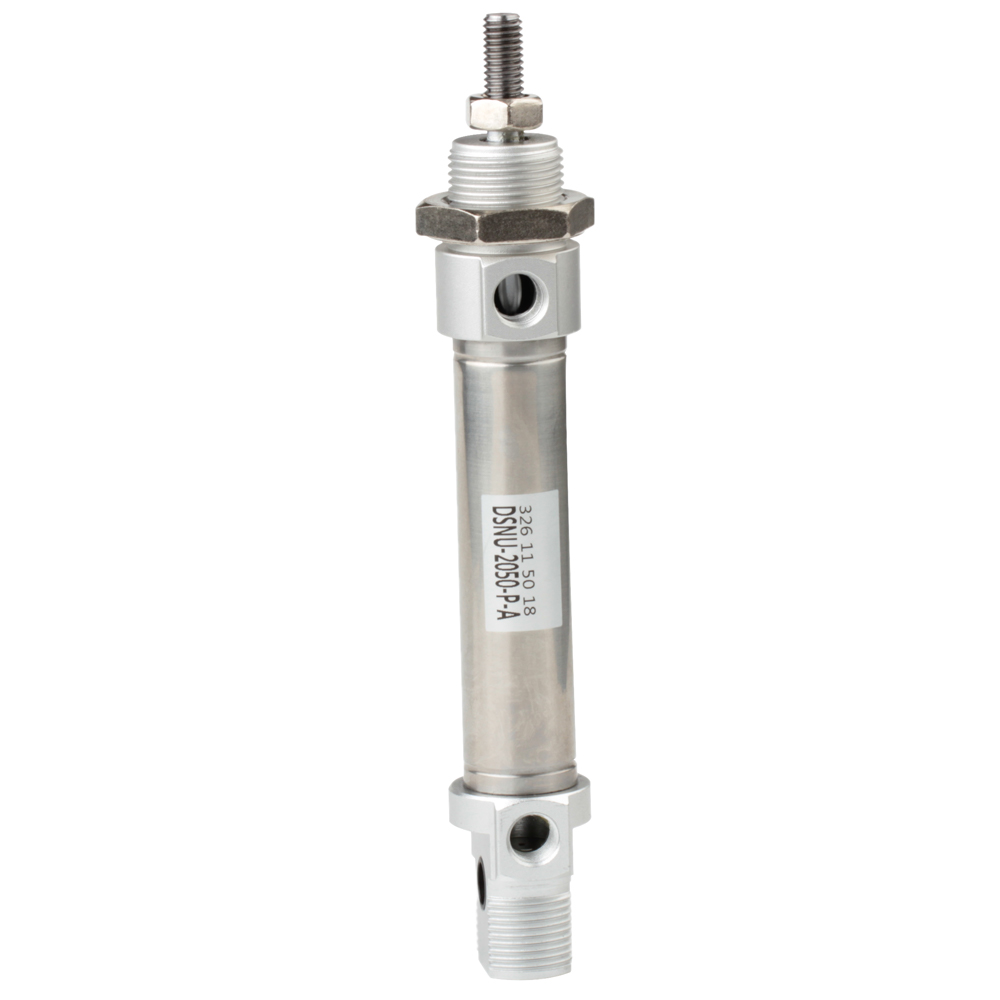

DSNU 20X50 air cylinder (1)

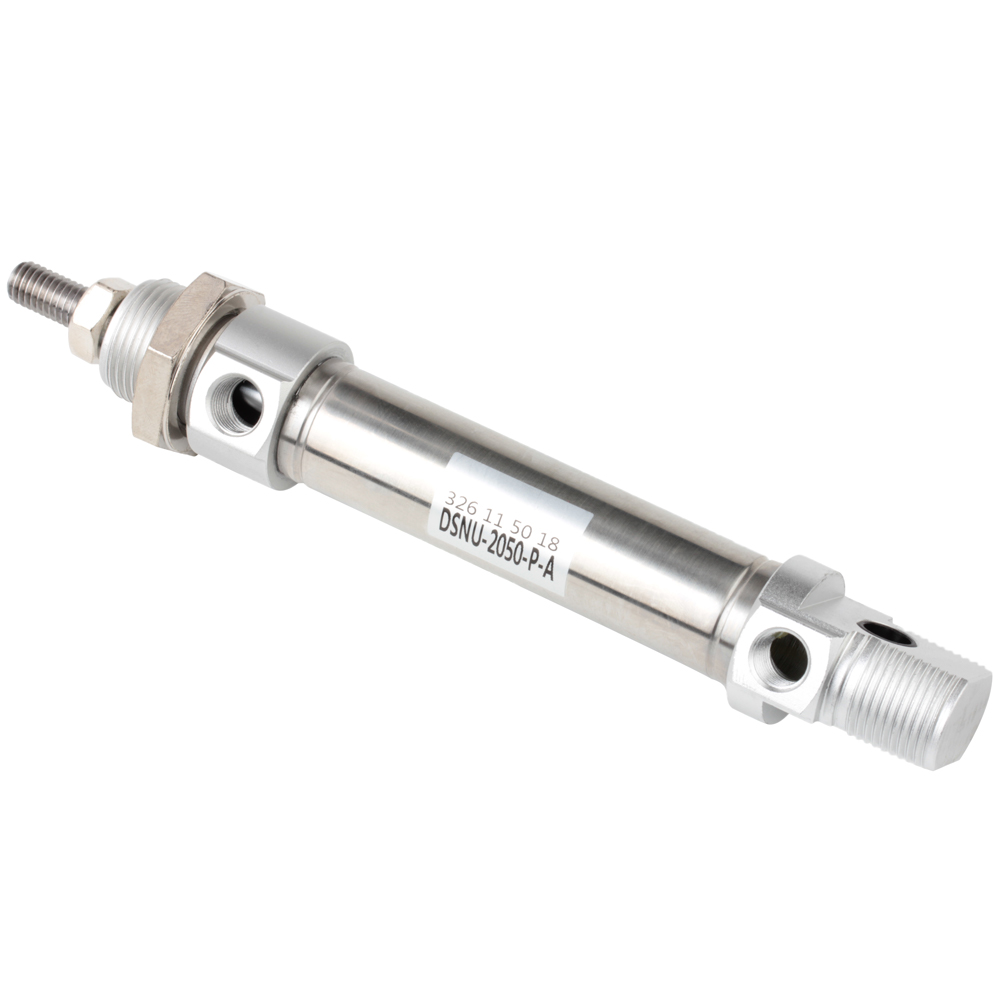

DSNU 20X50 air cylinder (3)






RODUCT FEATURE



1. According to ISO 6432 international standard.

2. Bore size ranges from φ12mm to φ40mm.

3. Functional diversification and space saving due to three types of end covers.

4. The rubber bumper assembled on the end covers can reduce the impact when cylinder changes direction.

5. The material of the cylinder tube is high precision stainless steel with high strength, good wear resistance and corrosion

resistance.

6. End covers and stainless steel tube are connected with riveted roll package structure, which can make a reliable connection.

7. Different specifications and mounting accessories are optional.

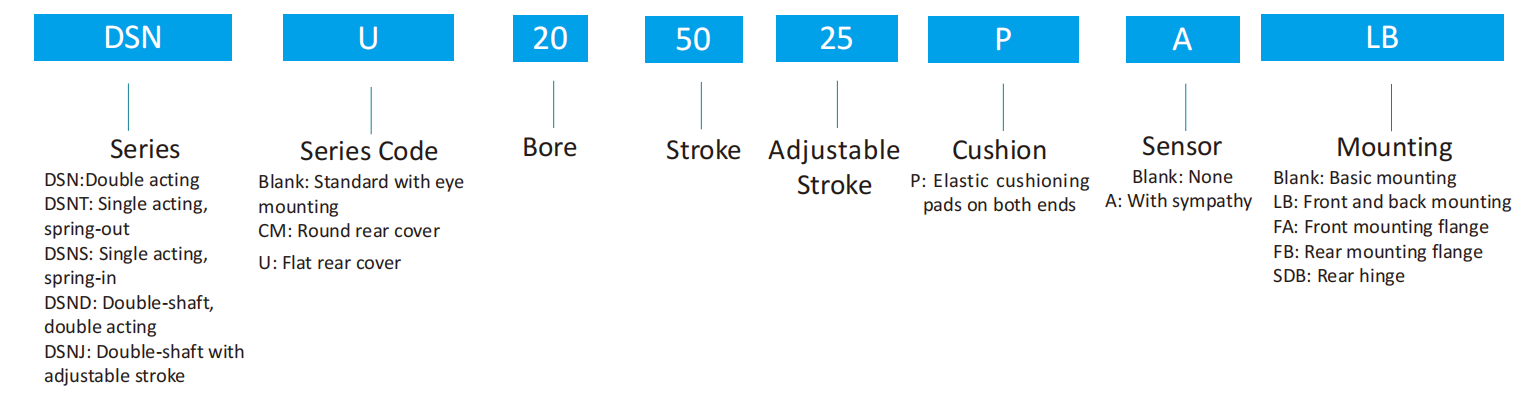

HOW TO ORDER



微信图片_20231219100532

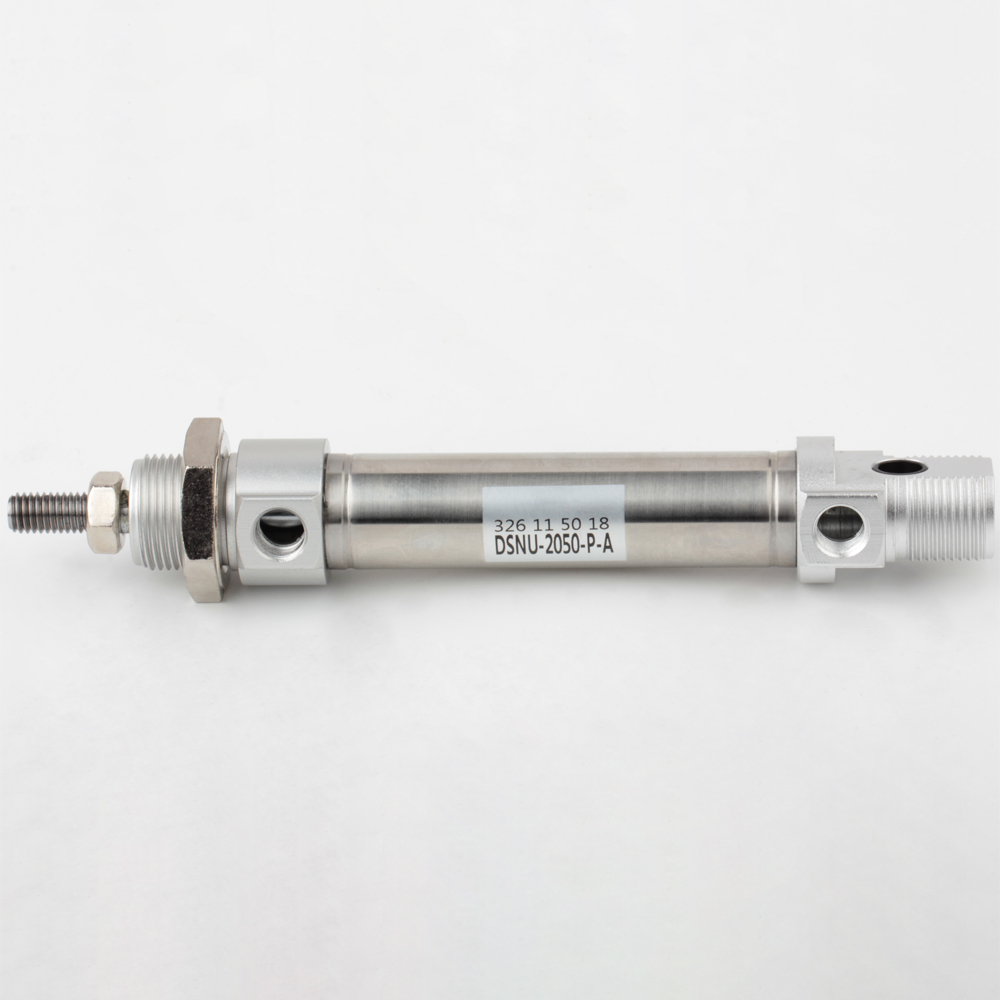

DSNU 20X50 air cylinder (12)

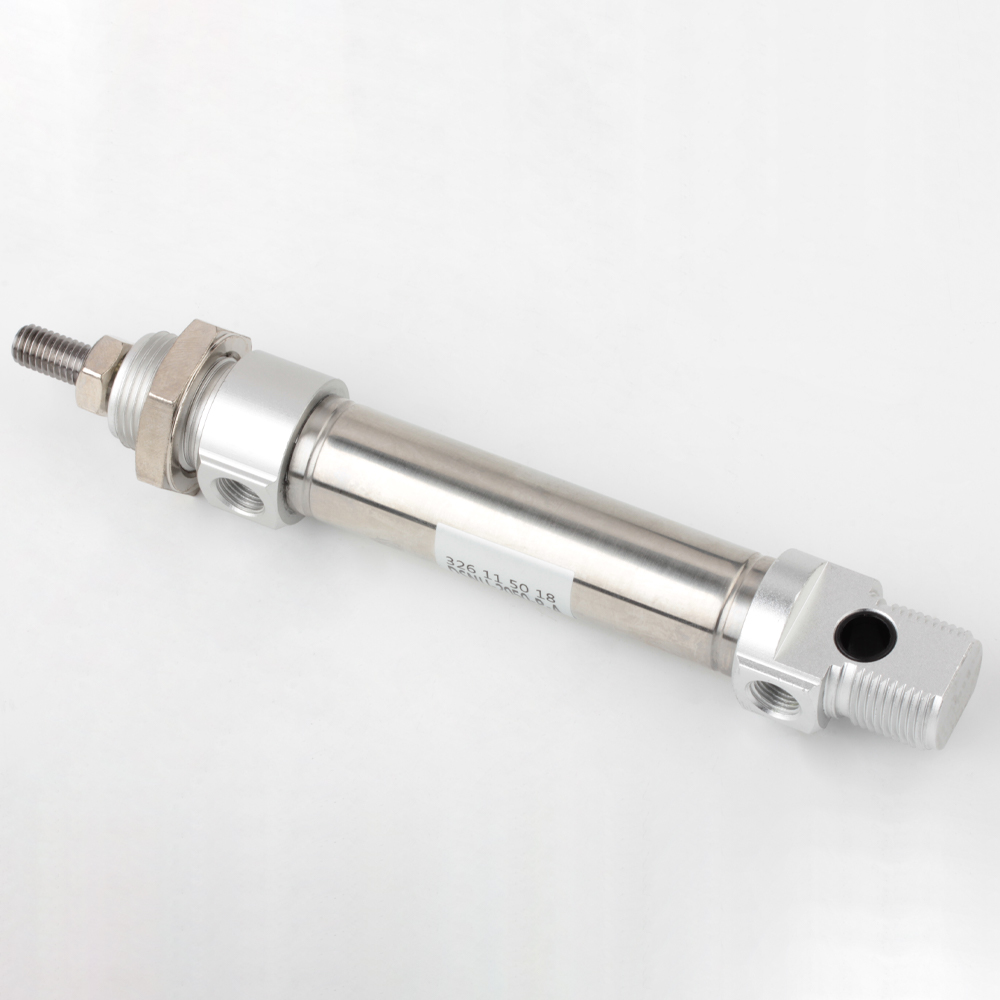

DSNU 20X50 air cylinder (9)

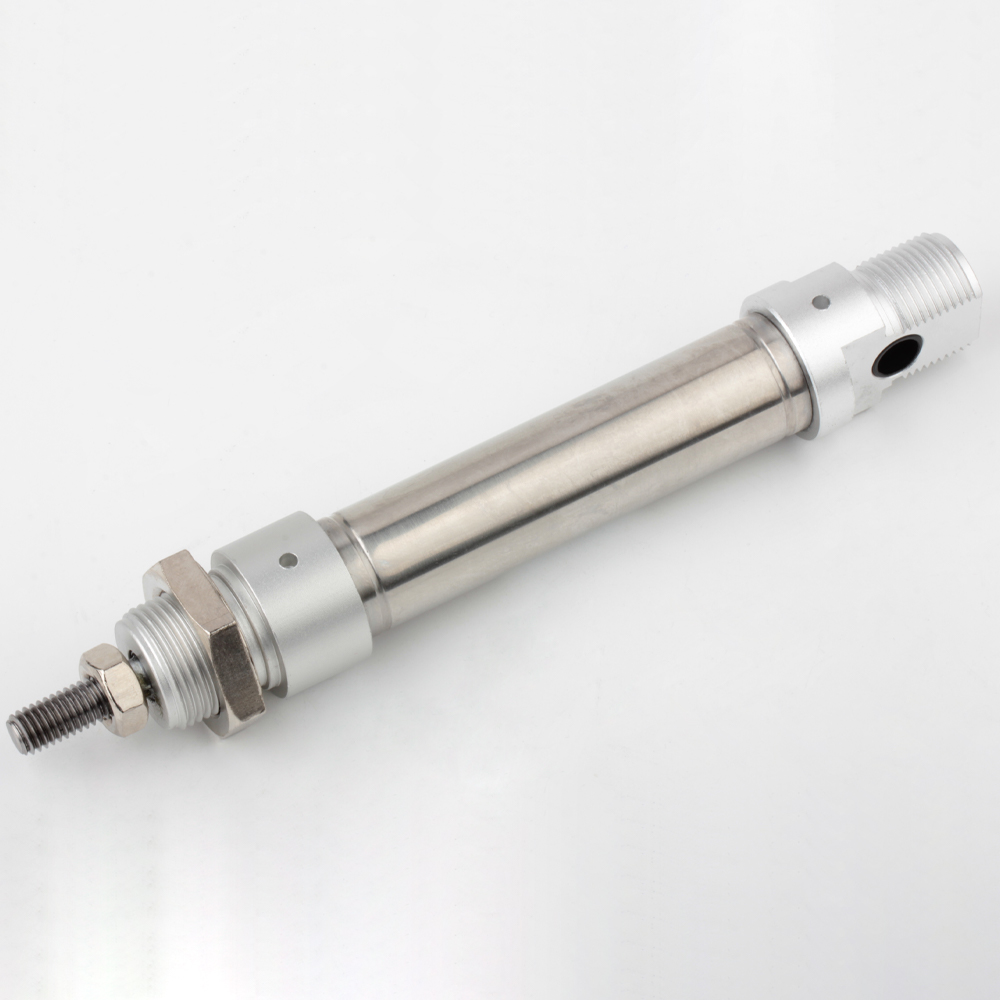

DSNU 20X50 air cylinder (10)






SPECIFICATIONS (Double acting)




Bore (mm) 8 10 12 16 20 25
Port size M5 M5 M5 M5 G1/8 G1/8
Piston rod terminal Male thread




Piston rod thread M4 M4 M6 M6 M8 M10x1.25
Cushion form Elastic cushioning pads on both ends





Adjustable buffering on both ends




Cushion length (mm)
14 17 17

Propulsion force at 6 bar (N) 30 47 68 121 189 295
Return force at 6 bar (N) 23 40 51 104 158 247
Material Cover end: aluminum alloy Shell: high quality carbon steel
Piston rod: high quality alloy steel
Seals: polyurethane, NBR
Woring pressure (bar) 1.5...10 1...10
Ambient temperature (℃ ) -20...+80





STROKE




Bore (mm) Standard Stroke (mm)
8.1 10,20,25,40,50,80,100
12.16 10,20,30,40,50,75,100,125,160,200
20 10,20,30,40,50,75,100,125,160,200,250,300,320
25 10,20,30,40,50,75,100,125,160,200,250,300,320,400,500




SPECIFICATION (Single acting)




Bore (mm) 8 10 12 16 20 25
Port size M5 M5 M5 M5 G1/8 G1/8
Piston rod terminal Male thread
Piston rod thread M4 M4 M6 M6 M8 M10*1.25
Cushion form Elastic cushioning pads on both ends
Propulsion force at 6 bar (N) 24 41 61 107 169 207
Max spring return force 10mm(N) 4.9 4.9 6.3 13.2 18.3 22.9
25mm(N) 4.1 4.1 5.4 11.9 16.5 21.2
50mm(N) 2.8 4.8 3.9 9.8 13.6 18.5
Material Cover end: aluminum alloy Shell: carbon steel Spring: spring steel
Piston rod: high quality alloy steel
Seals: polyurethane, NBR
Woring pressure (bar) 1.5...10 1.2...10
Ambient temperature (℃ ) -20...+80






STROKE



Bore (mm) Standard Stroke
8,10,12,16,20,25 10,25,50

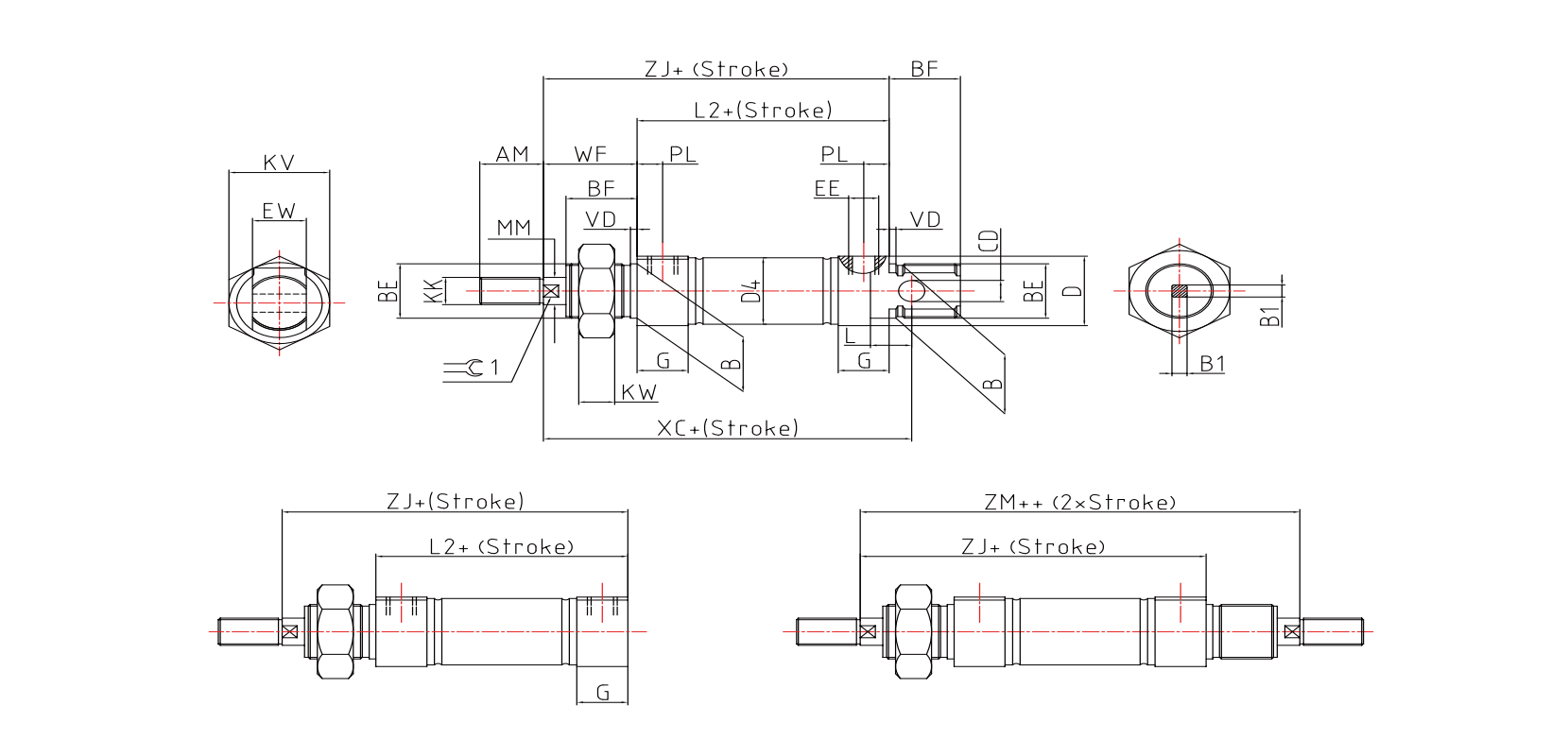

DRAWING



微信图片_20231219103254






φ(mm) AM Bφ h9 B1 BE BF CD φ H10 D φ D4 φ EE EW G KK KV
8 12 12 - M12X1.25 12 4 15 9.3 M5 8 10 M4 19
10 - 11.3
12 16 16 5.5 M16X1.5 17 6 20 13.3 12 M6 24
16 17.3
20 20 22 7 M22X1.5 20 8 27 21.3 G1/8 16 16 M8 32
25 22 9 22 26.5 M10X1.25





φ(mm) KW L L2 MM φ PL VD WF XC ±1 ZM ZJ 1
6 6 6 46 4 6 2 16 64 78.4 62 -
10
12 8 9 50 6 22 75 94 72 5
16 56 82 100 78
20 11 12 68 8 8.2 24 95 116 92 7
25 69.5 10 28 104 125.5 97.5 9
