| Quantity: | |
|---|---|

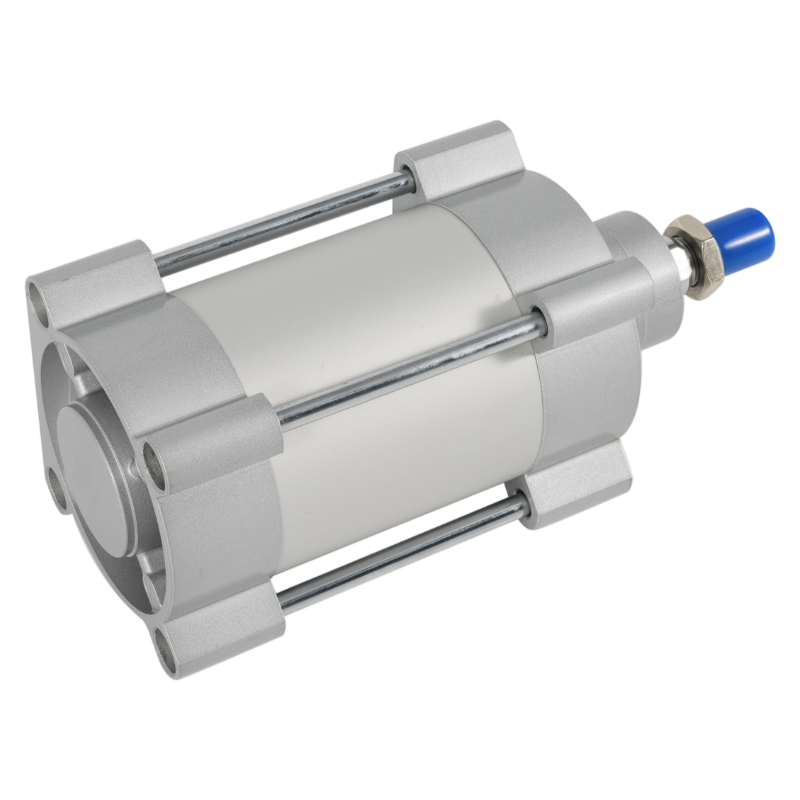

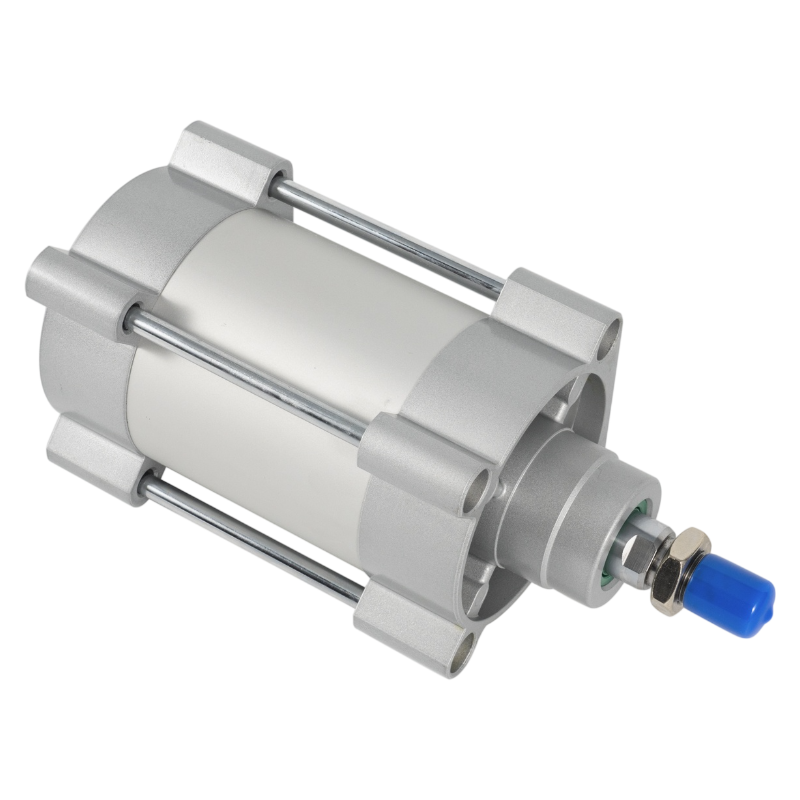

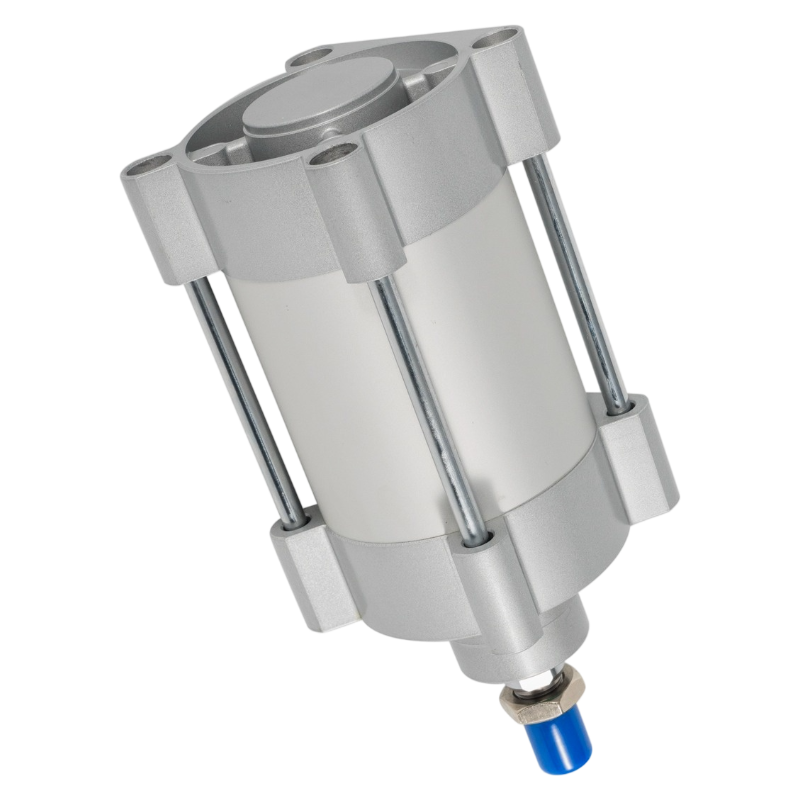

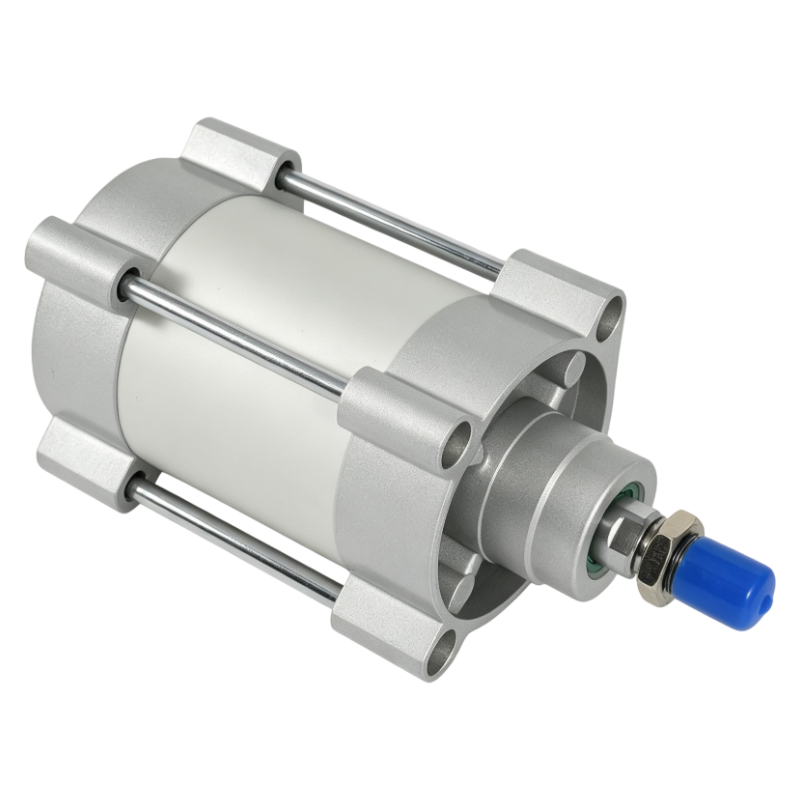

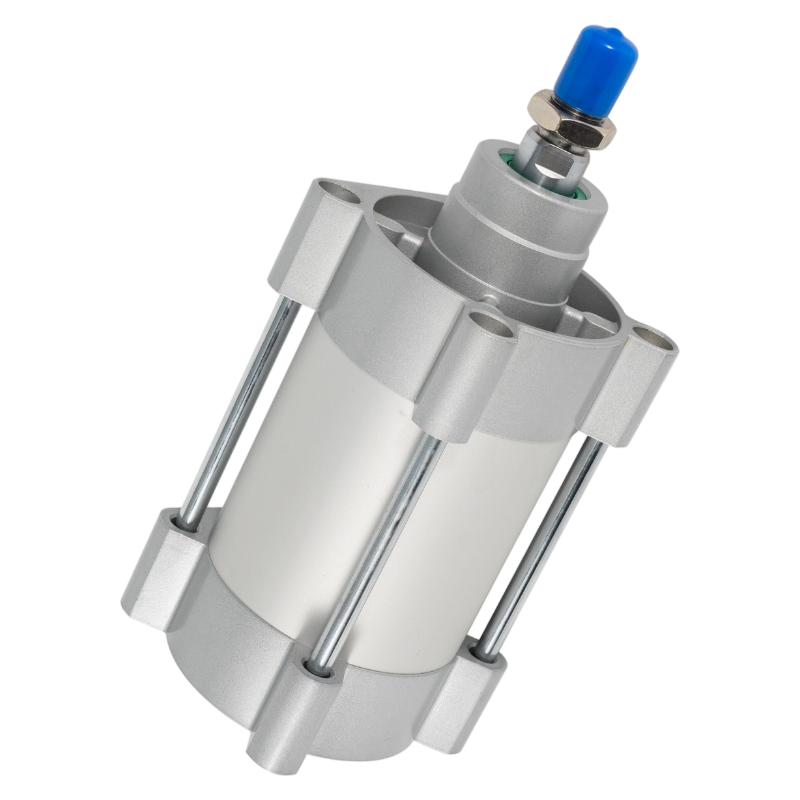

DSBG
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
Double-acting
0.005~1.2 MPa (0.05~12 bar)
1.5 MPa (15 bar)
Filtered compressed air
Anodized aluminum alloy
Stainless steel (hard chrome plated)
Feature
1.Fully compliant with ISO 15552 standard, interchangeable mounting dimensions with standard tie rod cylinders
2.Heavy duty sturdy tie rod construction for long service life under harsh working conditions
3.Double‑acting operation, magnetic piston for non contact position sensing with proximity switches
4.Three cushioning modes optional: elastic P cushion, self adjusting PPS pneumatic cushion, adjustable PPV pneumatic cushion
5.Modular structure, rich variants: anti rotation, through rod, high corrosion resistance, ATEX explosion proof versions available
6.Wide range of mounting accessories (foot, flange, trunnion, clevis), supports multi orientation installation
7.Wide bore & stroke range, stable output force, low friction smooth movement
8.Aluminum alloy profile barrel, lightweight and high rigidity

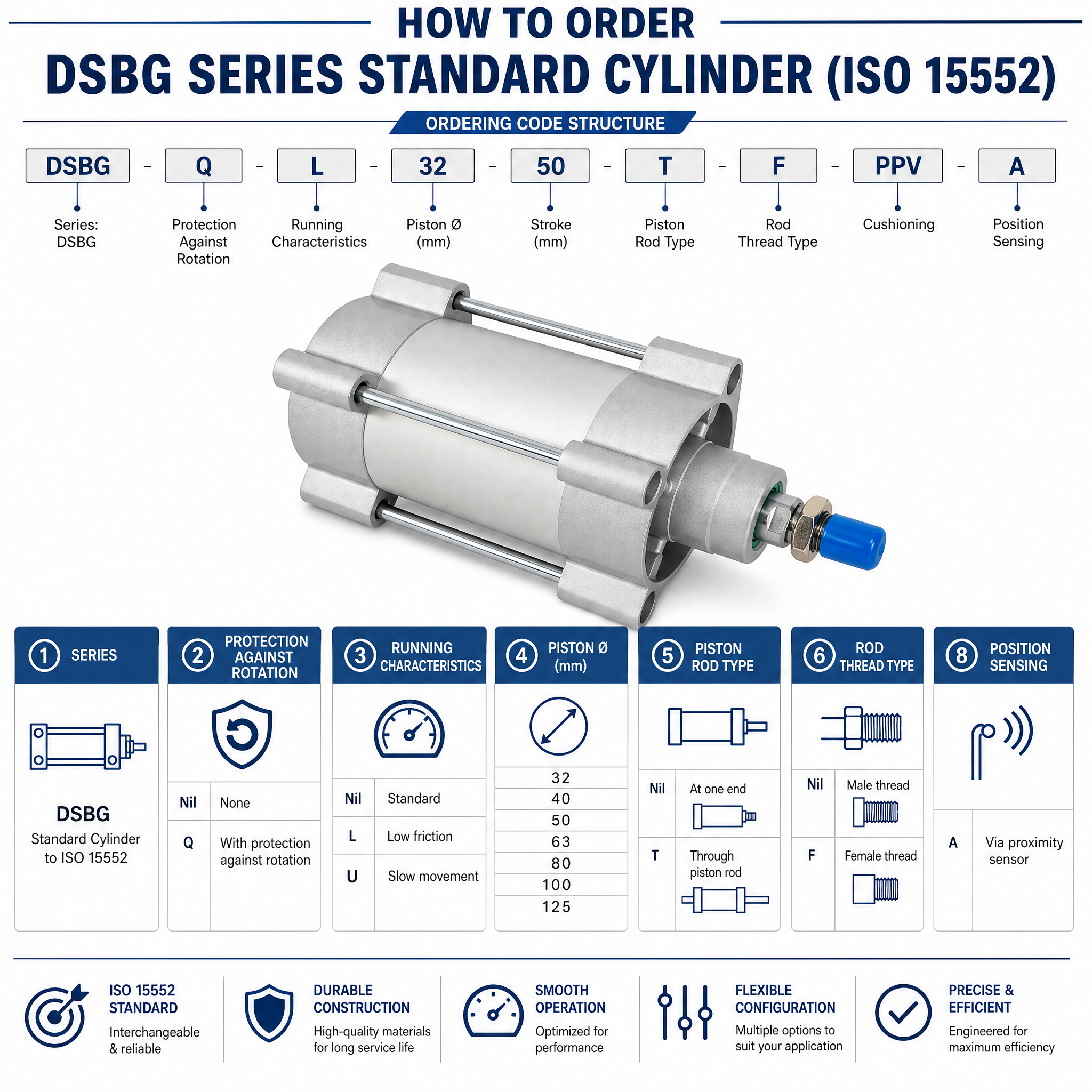

How to order
Specifications
Parameter | 32-125 mm Bore | 160-320 mm Bore |
Action Type | Double-acting | |
Operating Pressure Range | 0.005~1.2 MPa (0.05~12 bar) | |
Proof Pressure | 1.5 MPa (15 bar) | |
Recommended Fluid | Filtered compressed air | |
Operating Temperature Range | Standard: -20~80°C | |
High temp (T4): 0~150°C | ||
Maximum Stroke Length | 2800 mm | 2700 mm |
Maximum Operating Speed | 0.8 m/s | 0.6 m/s |
Piston Rod Diameter | 16~50 mm | 60~80 mm |
Cylinder Tube Material | Anodized aluminum alloy | |
Piston Rod Material | Stainless steel (hard chrome plated) | |
Port Size | G1/8~G1/2 | G1/2~G3/4 |
