| Quantity: | |
|---|---|

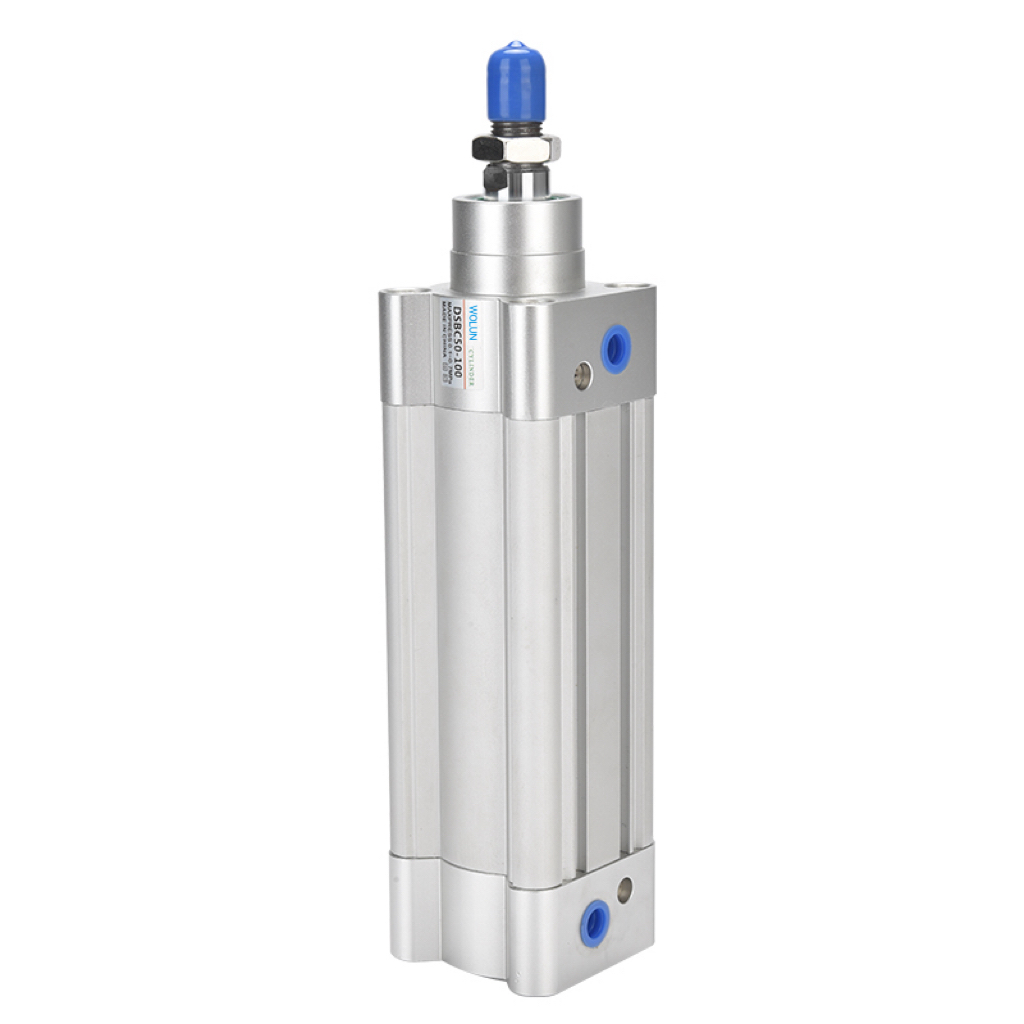

DSBC
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
32-63,80-125,160-200
Double-acting
ISO 15552
0.06~1.0 MPa (0.6~10 bar)
1.5 MPa (15 bar)
Filtered compressed air
-20~80°C (non-freezing)
-20~120°C

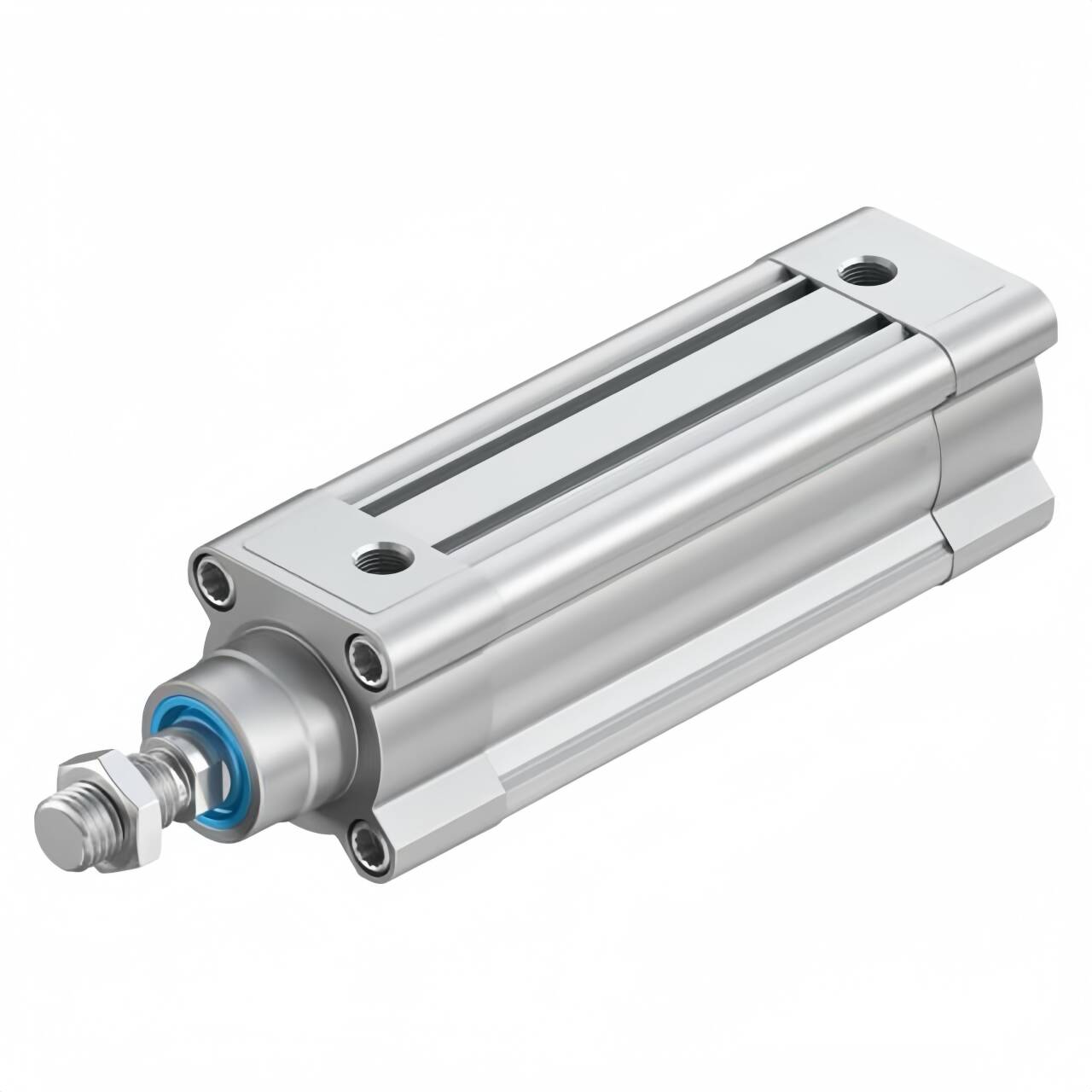

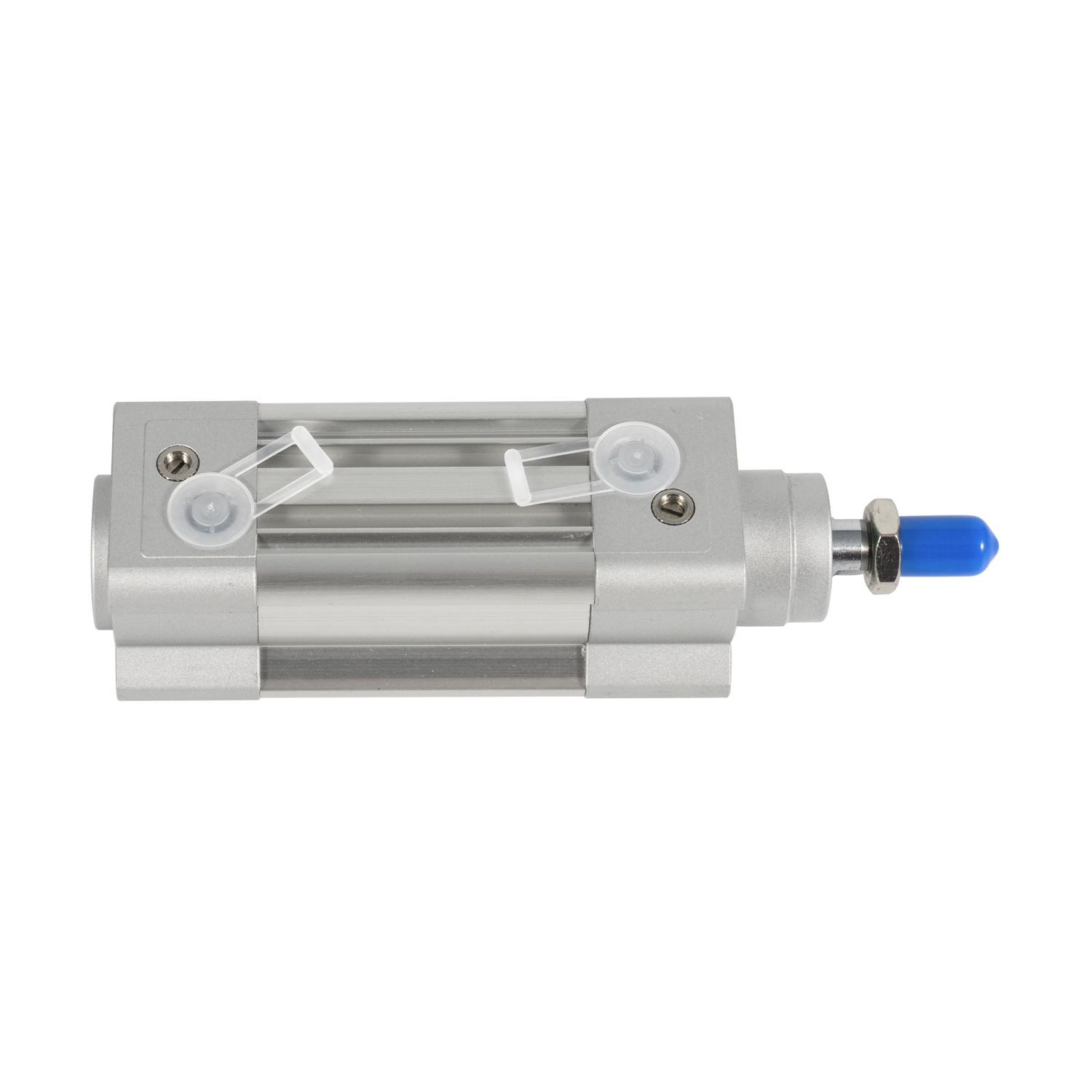

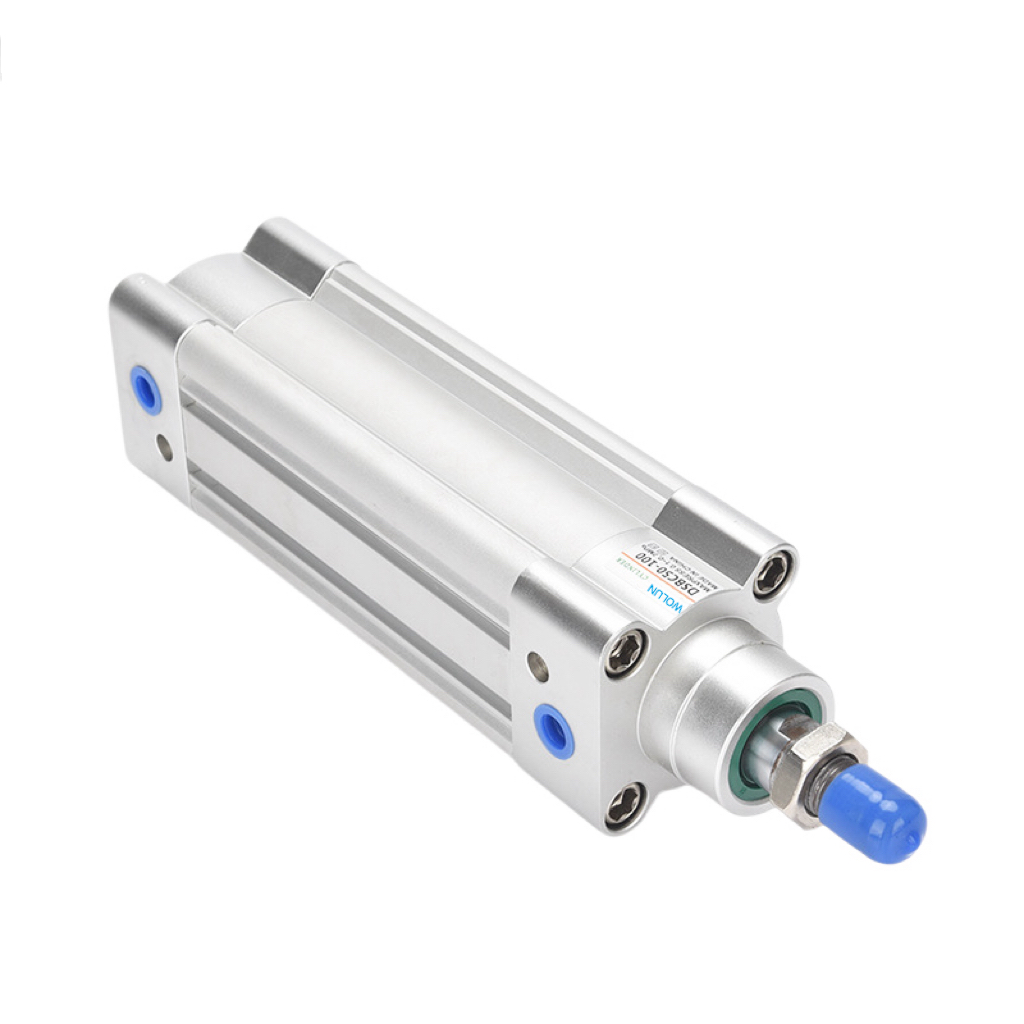

Feature
1. Fully comply with ISO15552, interchangeable with Festo DSBC, ISO6431 & VDMA24562 compatible
2. Dual adjustable air cushions reduce impact and running noise
3. 7 standard mounting styles, bore 32–125mm, customizable stroke
4. DSBC-N3 built-in magnet, fits all magnetic reed switches
5. Hard chrome piston rod + hard anodized aluminum barrel, heavy load resistant
6. NBR standard seal, optional FKM seal for special harsh environments

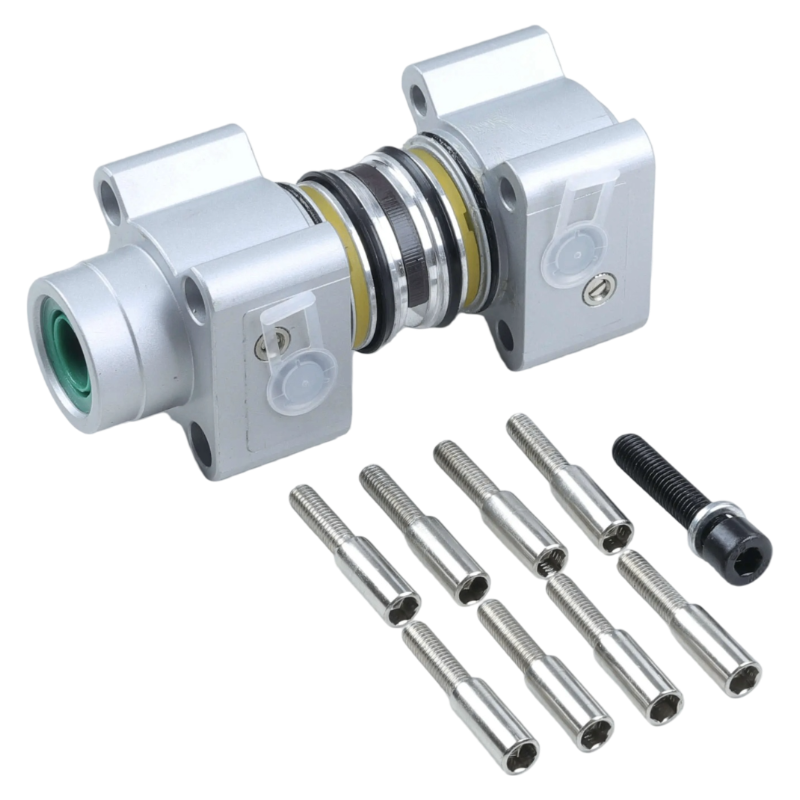

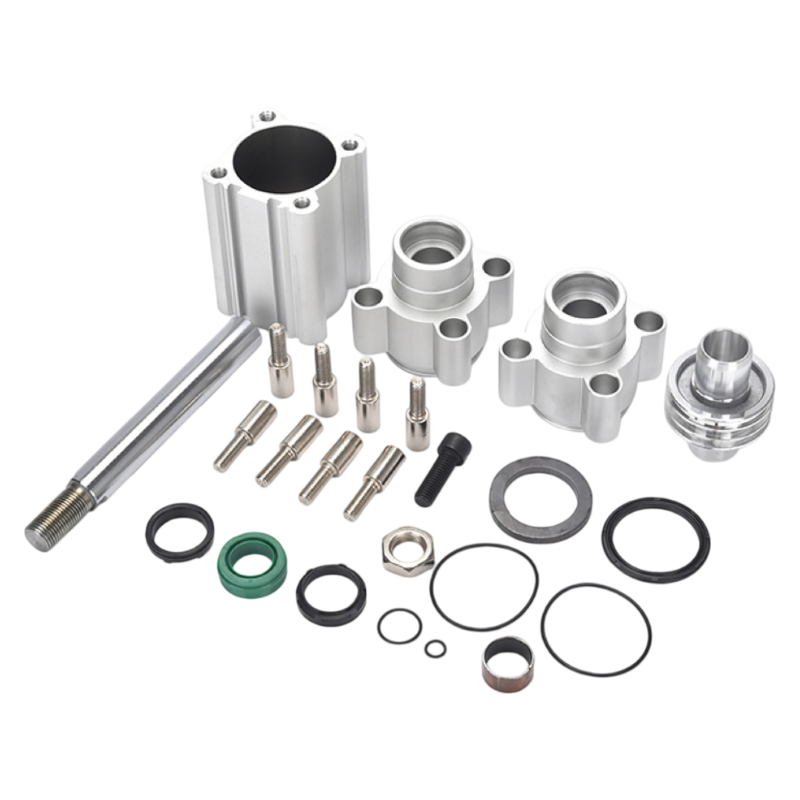

7. Detachable split structure, spare parts & repair seal kits available
8. CE certified, stable operation 0.1–1.0MPa, wide temperature range

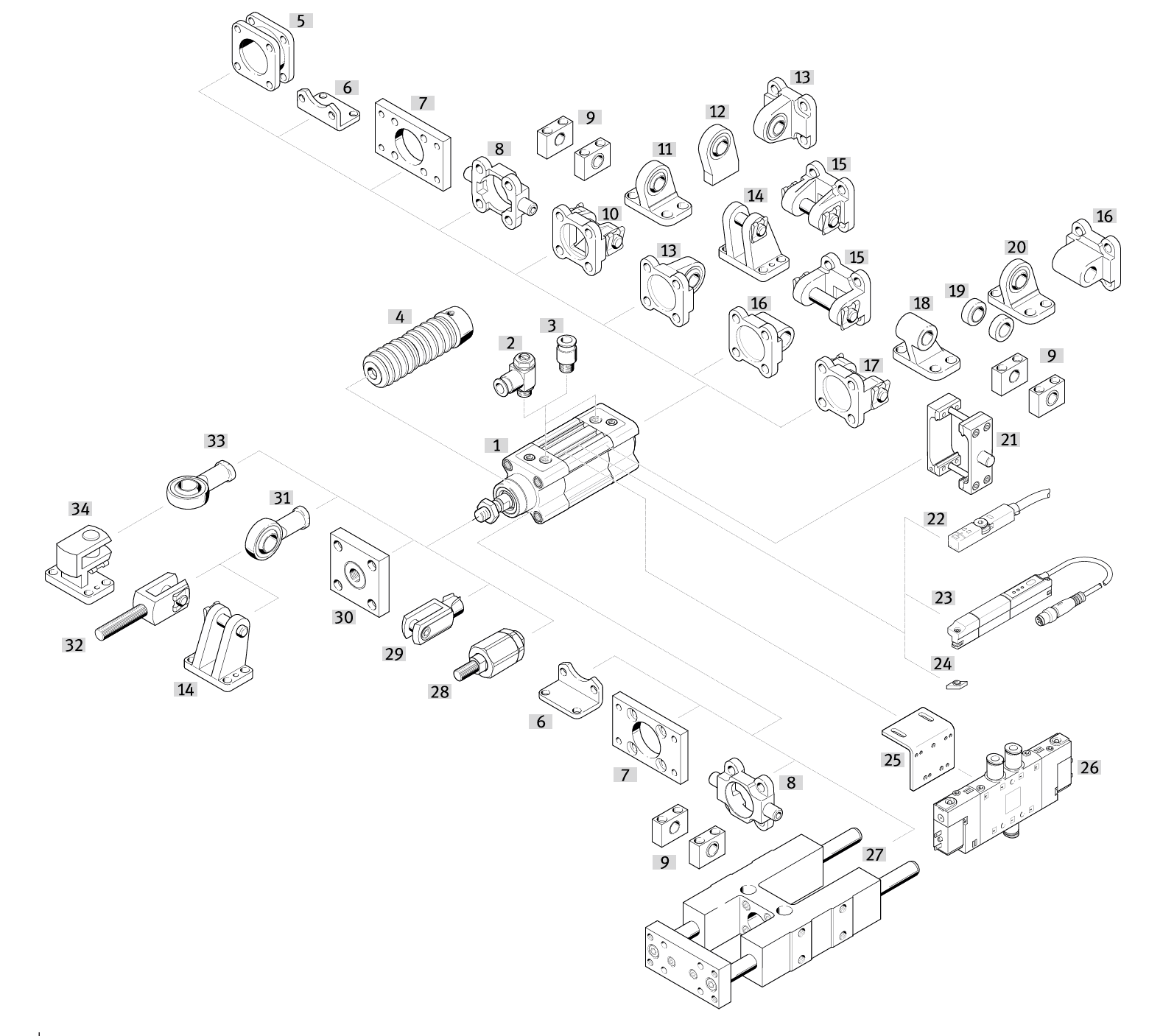

Structure
No. | Part Name | No. | Part Name | No. | Part Name |
1 | DSBC Main Cylinder Body (Tie Rod Cylinder) | 2 | Air Fitting / Quick Connector | 3 | Buffer Adjustment Screw Assembly |
4 | Dust Proof Protective Bellows Cover | 5 | Front Flange Mounting Plate FA | 6 | Foot Mount Bracket LB |
7 | Rear Flange Mounting Plate FB | 8 | Center Trunnion Bracket TC | 9 | Trunnion Position Spacer Block |
10 | Double Clevis Mount Bracket CD | 11 | Single Clevis Mount Bracket C | 12 | Rod Side Clevis Mount Bracket |
13 | Female Clevis Bracket | 14 | Y Clevis Rod End Bracket | 15 | Double Ear Clevis Bracket |
16 | Basic Side Mount Boss Bracket | 17 | Rod Flange Mount Plate | 18 | Single Trunnion Support Bracket |
19 | Trunnion Pin Spacer Sleeve | 20 | Single Ear Trunnion Bracket | 21 | Double Vertical Foot Bracket |
22 | Two-Wire Magnetic Auto Switch | 23 | Three-Wire Magnetic Auto Switch | 24 | Switch Fixing Clamp Screw |
25 | Solenoid Valve Mount Bracket | 26 | Pneumatic Solenoid Valve | 27 | Guided Double Rod Cylinder Accessory Unit |
28 | Male Thread Piston Rod Extension Adapter | 29 | Rod End Fixing Nut Sleeve | 30 | Front Rod Flange Fixing Plate |
31 | Rod End Y Joint / Rod Eye | 32 | Cross Joint Rod End Connector | 33 | Spherical Rod End Bearing (Joint Bearing) |
34 | Rod End Fixing Block Bracket | — | — | — | — |
How to order
Order Code Segment | Description | Options |
DSBC | Series Identifier | DSBC (ISO15552 Standard Air Cylinder) |
-XX | Bore Size (mm) | 32, 40, 50, 63, 80, 100, 125, 160, 200 |
-XXX | Stroke Length (mm) | 25, 50, 75, 100, ..., 2000 (varies by bore size) |
-P | Cushioning Type | P (Adjustable pneumatic cushioning - standard) |
-M | Mounting Type | M1 (Standard), M2 (Front flange), M3 (Rear flange), |
M4 (Trunnion), M5 (Foot mounting), M6 (Clevis) | ||
-S | Special Versions | S0 (Standard), S6 (High temperature, -20~120°C), |
S10 (Ex-proof), S12 (Corrosion resistant) | ||
-T | Thread Type | T1 (Metric), T2 (NPT), T3 (G thread) |
-Sensor | Position Sensing | None, S1 (1 sensor), S2 (2 sensors) |
Example Order Code: DSBC-63-200-P-M2-S0-T3-S2 | ||

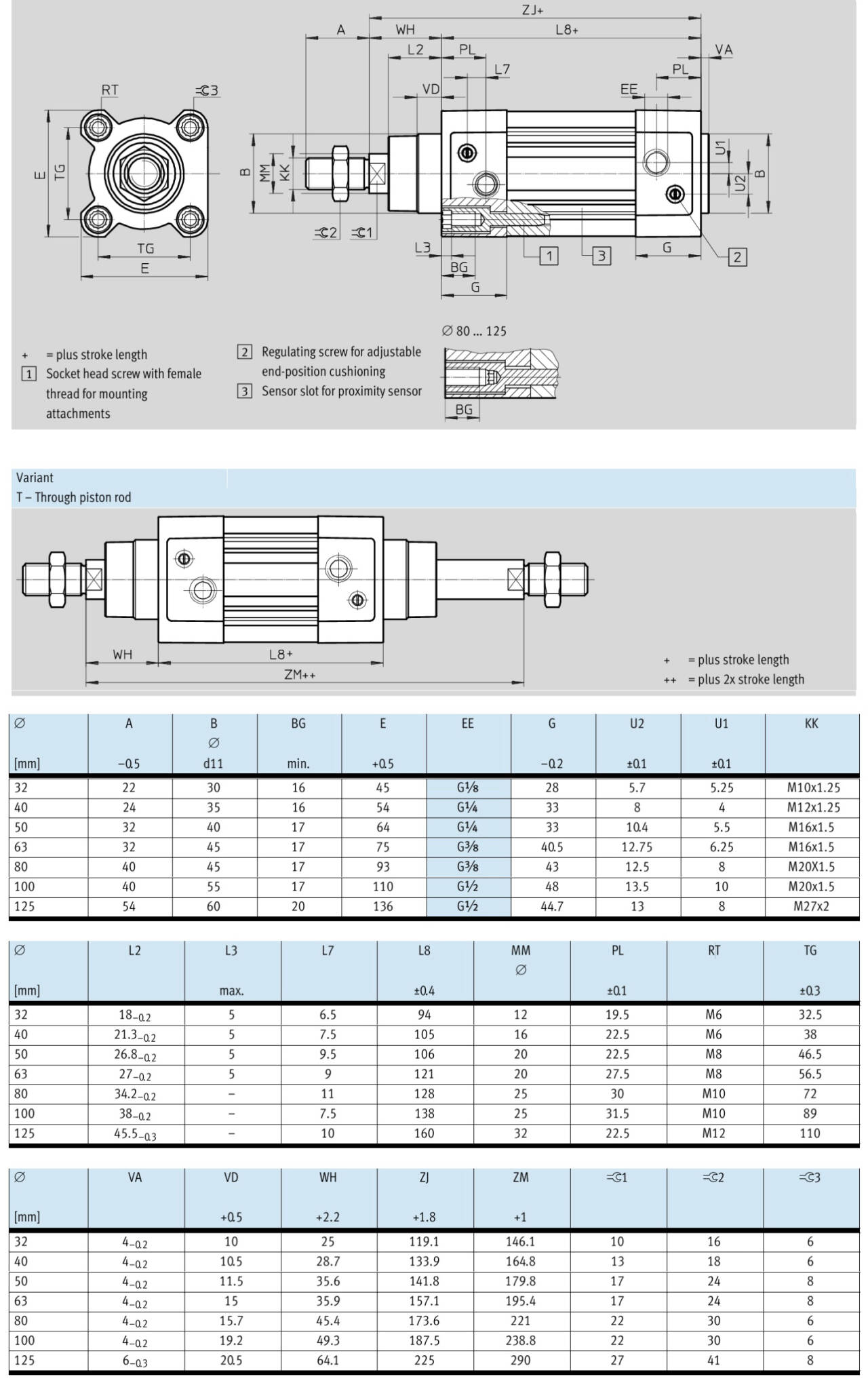

Dimensions
Specification
Parameter | 32-63 mm Bore | 80-125 mm Bore | 160-200 mm Bore |
Action Type | Double-acting | ||
Standard Compliance | ISO 15552 | ||
Operating Pressure Range | 0.06~1.0 MPa (0.6~10 bar) | ||
Proof Pressure | 1.5 MPa (15 bar) | ||
Fluid | Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | ||
Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | -20~80°C (non-freezing) | ||
Temperature Range (S6 Version) | -20~120°C | ||
Pneumatic Connection | G1/8, G1/4 | G1/4, G3/8 | G3/8, G1/2 |
Maximum Speed | 1 m/s | 0.8 m/s | 0.5 m/s |
Theoretical Force @6 bar (Advancing) | 483~1870 N | 3016~7697 N | 12,064~31,416 N |
Theoretical Force @6 bar (Retracting) | 415~1750 N | 2827~7257 N | 11,310~29,850 N |
Max Stroke Length | 1000 mm | 1500 mm | 2000 mm |
