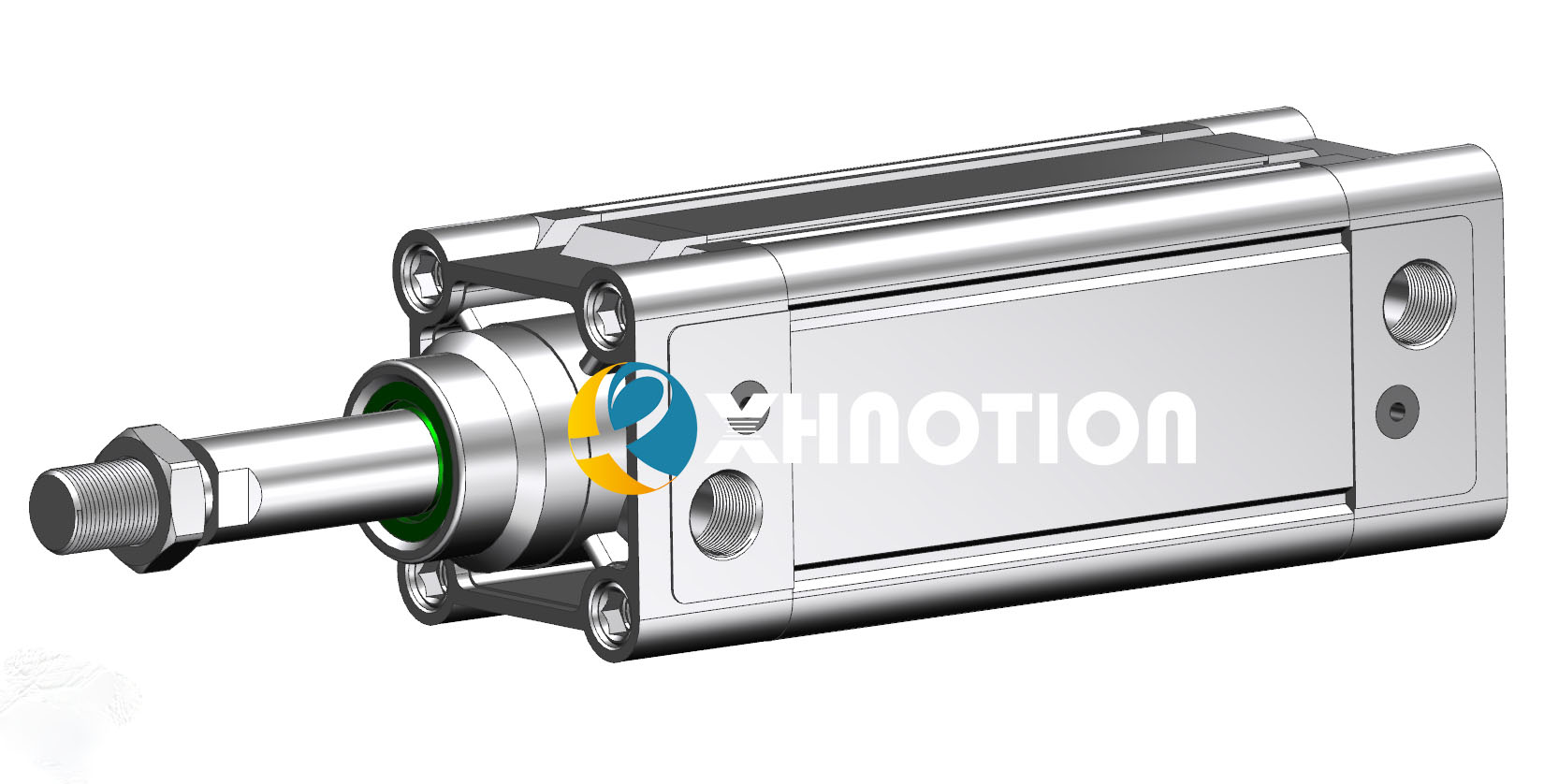

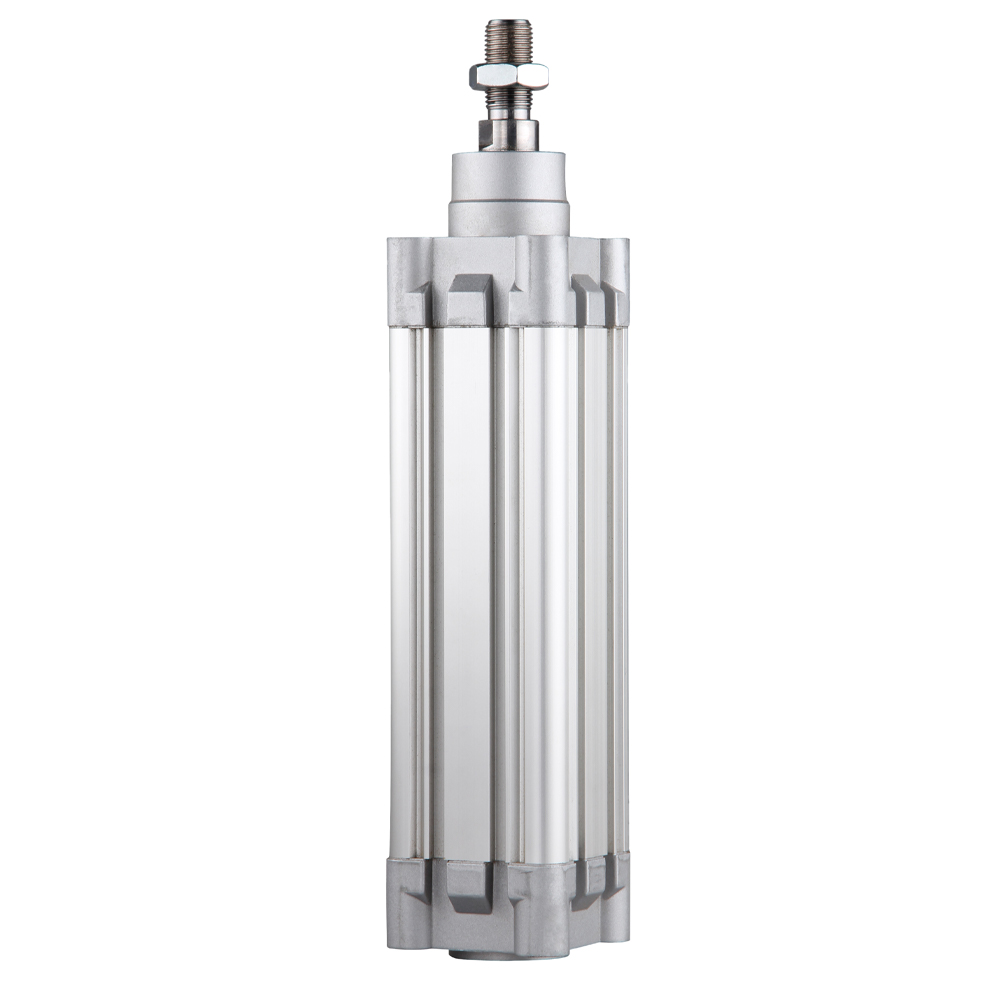

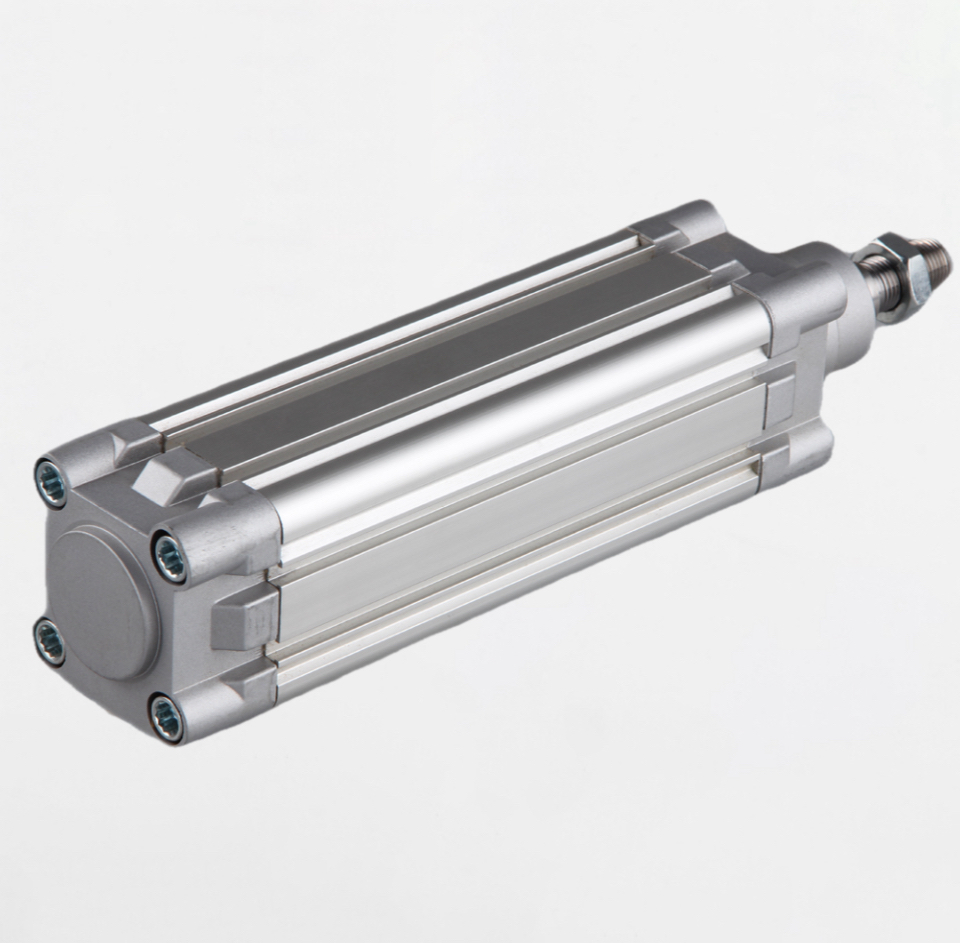

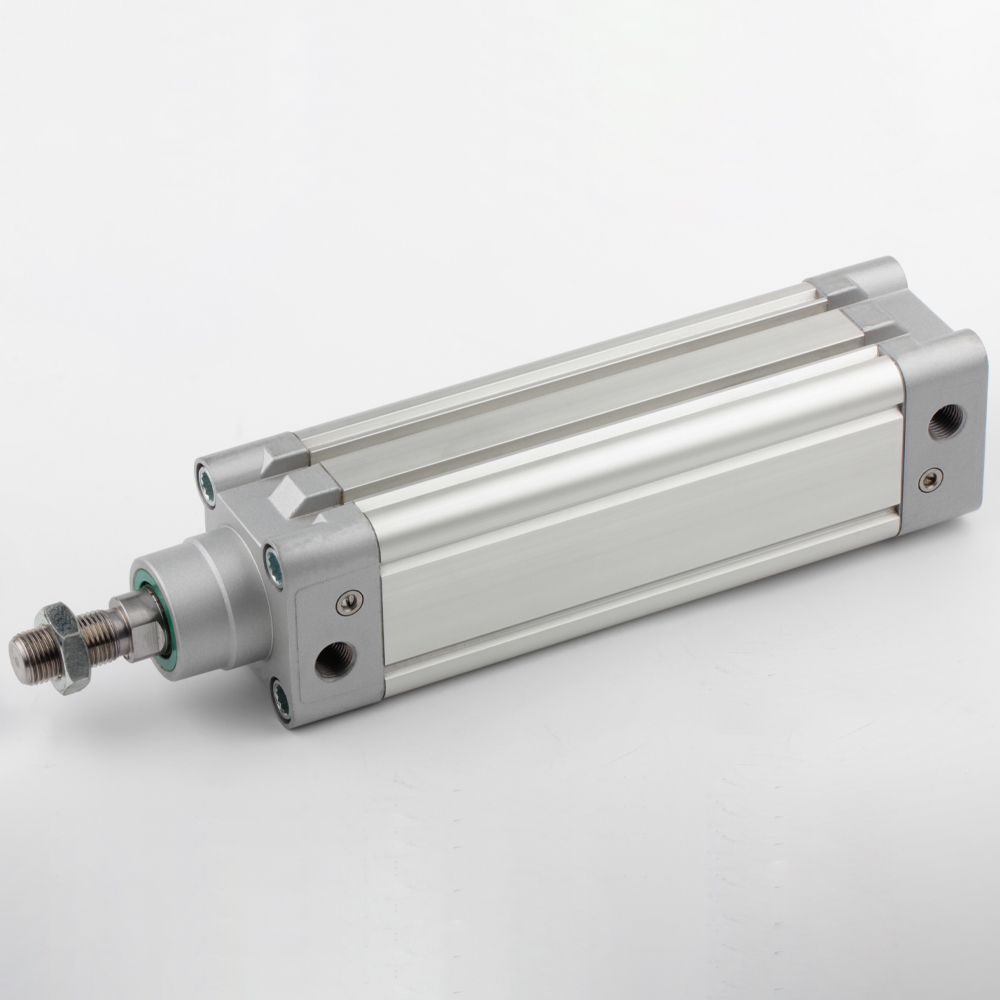

DNC ISO15552 Standard air cylinder

Model NO.: DNCDouble-Acting Cylinder Type: Adjustable Cushioning CylinderCombination Cylinder Type: Pressurized CylinderMotion Pattern: Double ActingWorking Medium: AirTrademark: XHnotionTransport Package: Bluk Packing or Blister PackingSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 84123900Material: AluminumUsage: Automation and ControlStructure: Flexible CylinderPower: PneumaticStandard: StandardPressure Direction: Single-acting Cylinder

Availability:

Quantity:



Inquire Add to Basket

Model:
DNC
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
1000 pcs per month
Transport Package:
CARTONS
Model NO.:
DNC
Double-Acting Cylinder Type:
Adjustable Cushioning Cylinder
Combination Cylinder Type:
Pressurized Cylinder
Motion Pattern:
Double Acting
Working Medium:
Air
Trademark:
XHnotion
Transport Package:
Bluk Packing or Blister Packing
Specification:
ROHS, REACH, CE
Origin:
China
HS Code:
84123900
Material:
Aluminum
Usage:
Automation and Control
Structure:
Flexible Cylinder
Power:
Pneumatic
Standard:
Standard
Pressure Direction:
Single-acting Cylinder

Product Description

DNC ISO15552 STANDARD AIR CYLINDER

FEATURES

Front, rear cover and piston are made of aluminum alloy die - they are made by high precision CNC.

Barrel is made of hard anodised aluminum.

Piston rod is made of chromed carbon steel.

Unique cushion technique makes smooth action, long time service and no need lubrication maintenance.

Admit to add sensor to control the stroke easily.

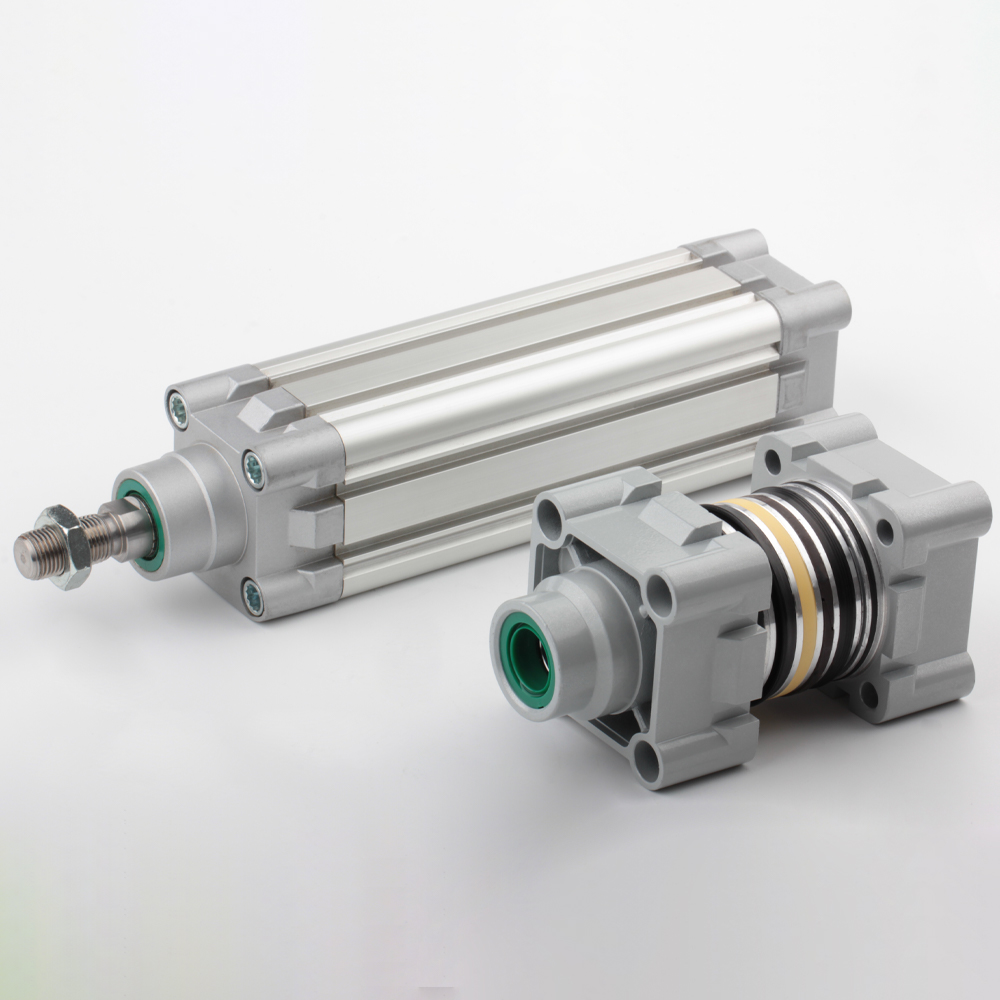

cylinder kits (8)

HOW TO ORDER

_JBGZ6UD(3H_KT8G7T7V

SPECIFICATIONS

Bore (mm)	32	40	50	63	80	100
Port size	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2
Exhaust vent	M3	M3	M5	M5	M5	M5
Piston rod terminal	Male thread
Piston rod thread	M10x1.25	M12x1.25	M16x1.5	M16x1.5	M20x1.5	M20x1.5
Cushion form	Elastic cushioning pads on both ends
	Adjustable buffering on both ends
Cushion length (mm)	20	20	22	22	32	32
Propulsion force at 6 bar (N)	483	754	1178	1870	3016	4712
Return force at 6 bar (N)	415	633	990	1682	2721	4418
Static clamping force (N)	500	500	2000	2000	5000	5000
Material	Cylinder barrel: anodized aluminum Bearings and end caps: Die-cast aluminum Piston rod: high quality alloy steel Seals: Polyurethane
Working pressure (bar)	2.5...12
Ambient temperature (℃ )	-20...+80

STROKE

Bore (mm)	Standard Stroke																				Max stroke		Allowable stroke
32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500							1000	2000
40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800				1200	2000
50	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900		1000	1200	2000
63	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900		1000	1500	2000
80	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900		1000	1500	2000
100	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900		1000	1500	2000
125	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900		1000	1500	2000

STRUCTURE

DNC气缸剖切1

DRAWING

微信图片_20231218170148

φ(mm)	AM	B φ	B1	BG	E	EE	J2	J3	KK	L1	L2
32	22	30	10	16	45	G1/8	6	5.2	M10X1.25	18	94
40	24	35	12	16	54	G1/4	8	6	M12X1.25	21.5	105
50	32	40	16	17	64	G1/4	10.4	8.5	M16X1.5	28	106
63	32	45	16	17	75	G3/8	12.4	10	M16X1.5	28.5	121
80	40	45	20	17	93	G3/8	12.5	8	M20X1.5	34.7	128
100	40	55	20	17	110	G1/2	12	10	M20X1.5	38.2	138
125	54	60	-	22	134	G1/2	13	8	M27X2	46	160

φ(mm)	L7	MM φ	PL	RT	TG	VA	VD	WH	ZJ	ZM	1	2	3
32	3.3	12	15.6	M6	32.5	4	10	26	120	148	10	16	6
40	3.6	16	14	M6	38	4	10.5	30	135	167	13	18	6
50	5.1	20	14	M8	46.5	4	11.5	37	143	183	17	24	8
63	6.6	20	17	M8	56.5	4	15	37	158	199	17	24	8
80	10.5	25	16.4	M10	72	4	15.7	46	174	222	22	30	6
100	8	25	18.8	M10	89	4	19.2	51	189	240	22	30	6
125	14	32	18	M12	110	6	20.5	65	225	291	27	36	8

DNC Air Cylinder Compressed Air Cylinder Pneumatic Cylinder Flange Cylinder Miniature Cylinder Mini Air Cylinder ISO15552 STANDARD Cylinder

DNC ISO15552 Standard air cylinder

DNC ISO15552 STANDARD AIR CYLINDER

DNC ISO15552 STANDARD AIR CYLINDER
