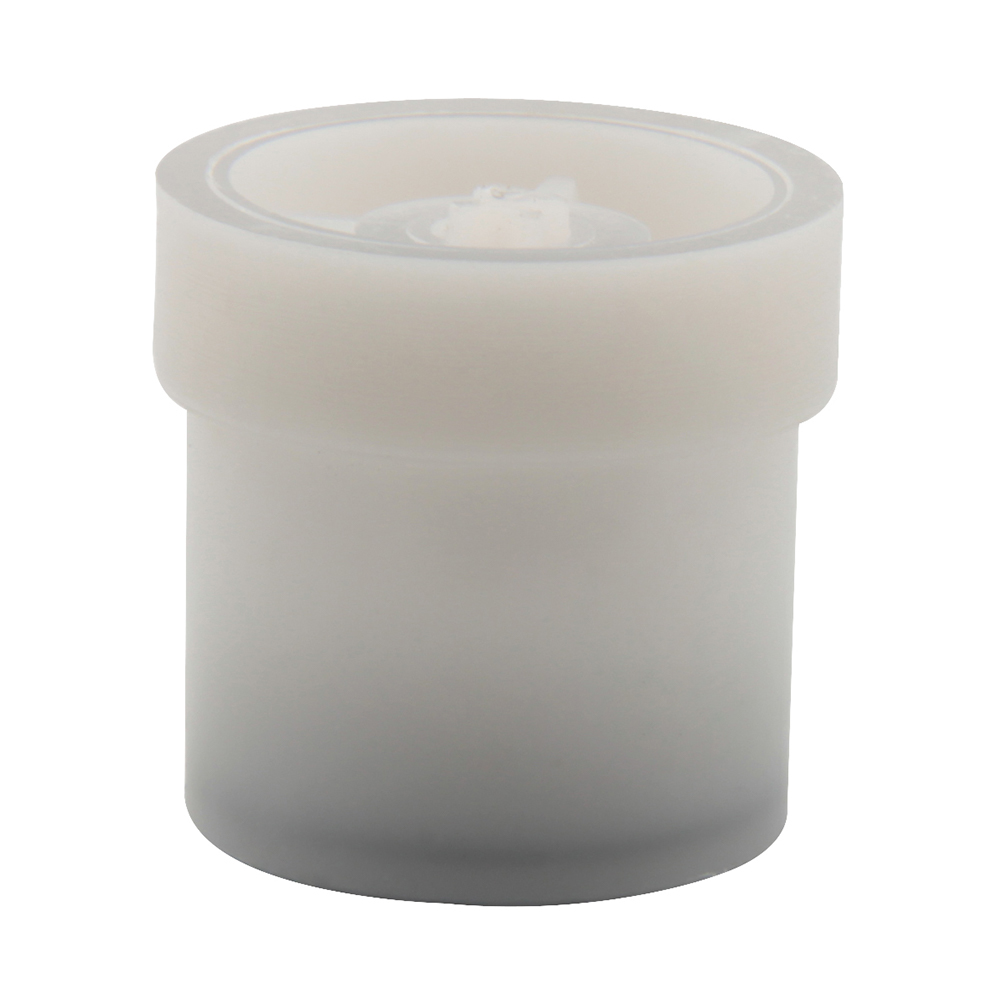

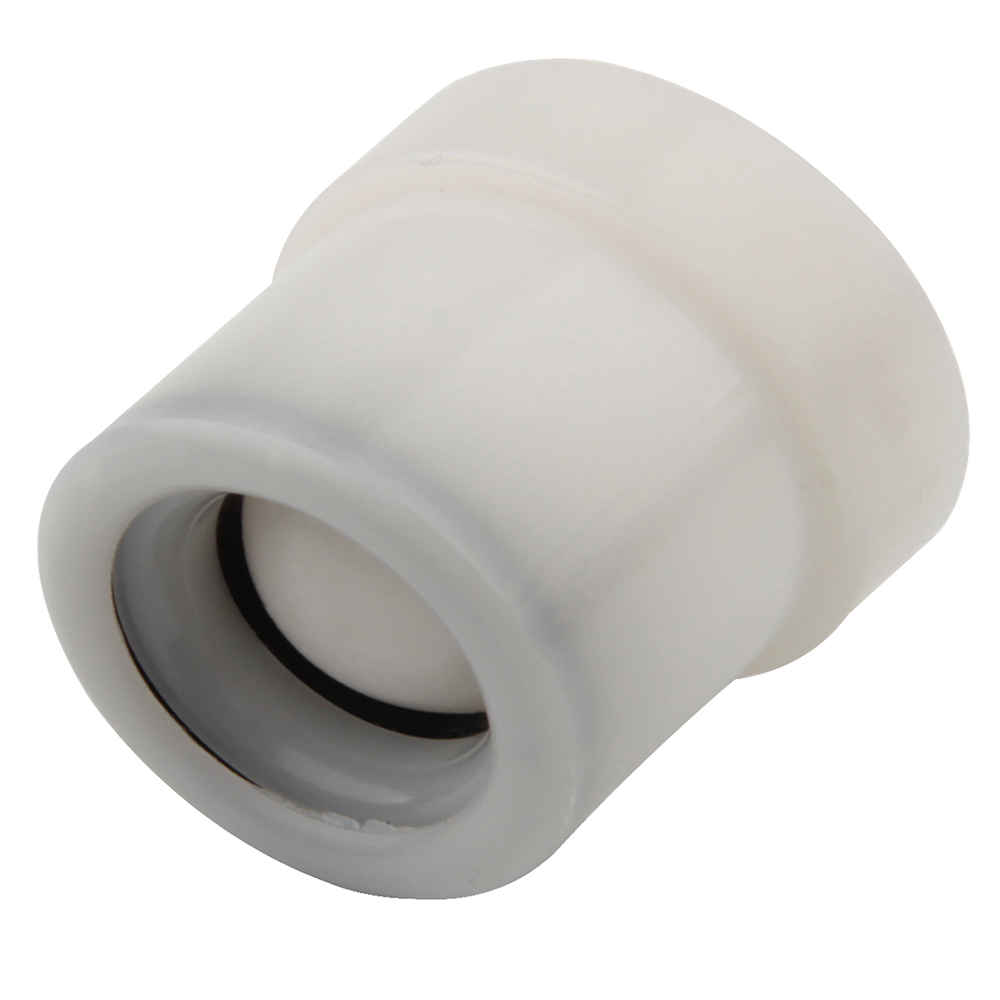

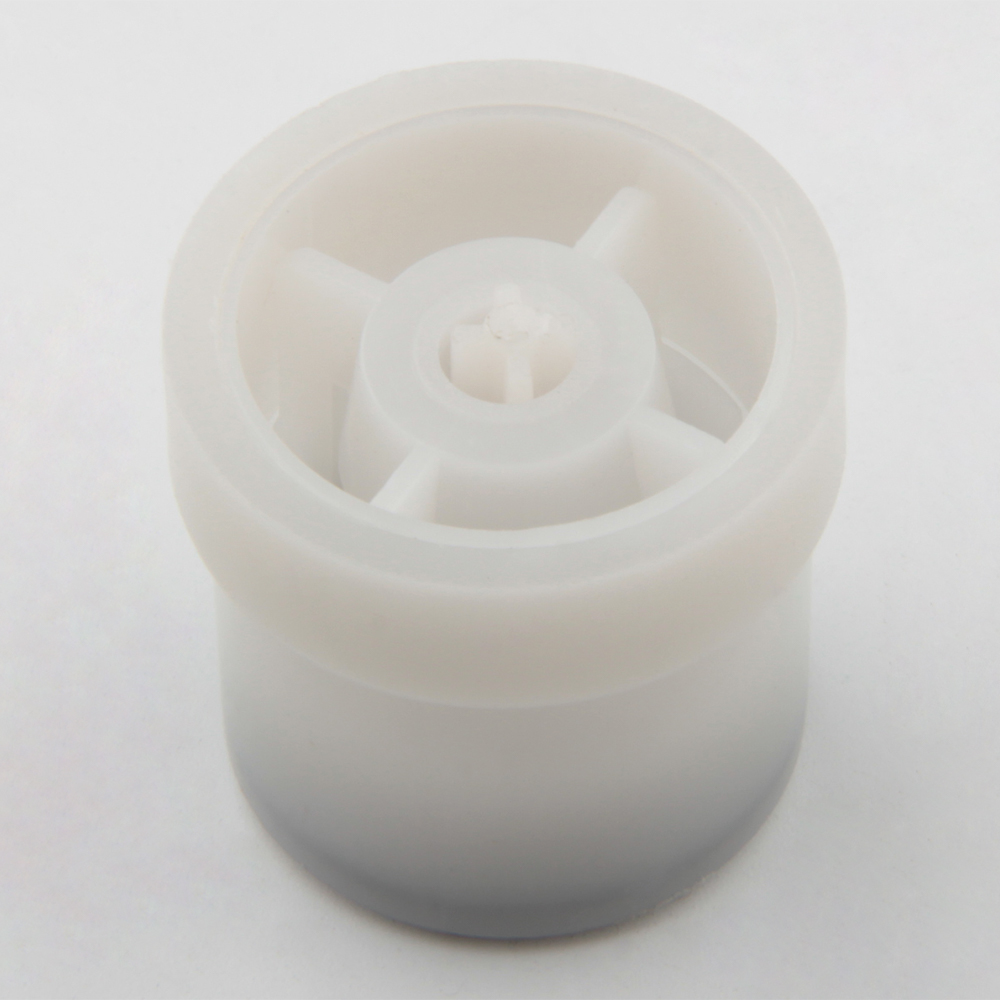

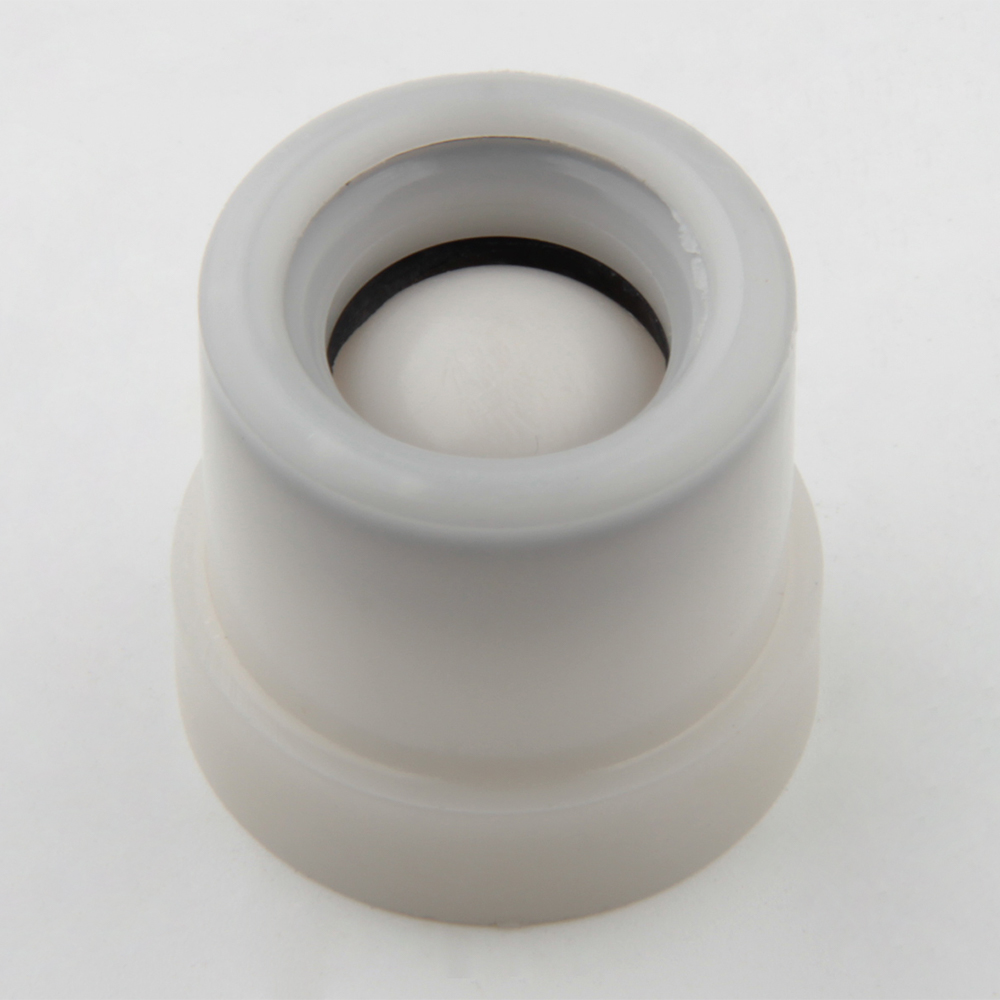

DN20 Water Meter Plastic Back Flow Preventer Check Valve

Standard: ANSI Application: Household Usage Size: 10mm Seal Material: EPDM Trademark: XHnotion Transport Package: Plastic Bag Specification: ROHS, REACH, CE, ACS, FDA Origin: China HS Code: 8481804090 Media: Water Temperature: Low Temperature Material: Plastic Connection Form: Cartridge Structure: Tubular Pressure: Low Pressure

Availability:

Quantity:



Inquire Add to Basket

Model:
DN20
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal
Port:
Ningbo, China
Production Capacity:
100 PCS Oer Month
Transport Package:
CARTONS

Product Description

DN20 Water Meter Plastic Back Flow Preventer Check Valve

DN20 CHECK VALVE

Cartridge check valves (also called non-return valves) are designed for simple installation and offer outstanding performance inside mating housing.

They are valves which only allows water to flow in one direction and prevents backflow.

XHnotion cartridge check valves are not only for water, also for air now.

Applications include faucets, showers, valves and heating systems for residential or commercial installations, as well as pumps.

All the models are 100% tested during production for drip tight operation.

Maximum temperature and pressure rating is for most models 200F(90C)/230psi.

DN cylindrical cartridges cover a size range from 8 mm to 25 mm and offer the easiest assembly:

they can be inserted into the application device both in the direction of flow and against the direction of flow.

They need to be held into place (retention) in both directions.

FEATURES AND BENEFITS

100% factory tested drip in operation.
Easy to insert into the application devive.
Spring loaded plunger: operates in any position.
Extra low headloss, extra low cracking pressure.

SPECIFICATION

Material	Acetal housing, core, cover; EPDM O-Ring; SS304 Spring
Medium	water, air
Size	8mm to 50mm
Cracking Pressure	0.25Psi
Max Pressure	230 Psi
Max temperature	100 C (212F)
Production Capacity	1,000,000 pcs each month
Packing Details	Poly bag, outer carton and pallet.
Payment Term	T/T, PAYPAL, WESTERN UNION
Delivery Time	3-20 days after confirming the order
Minium Order Quantity	2000 pcs
Certificate	ROHS, ACS, FDA, REACH

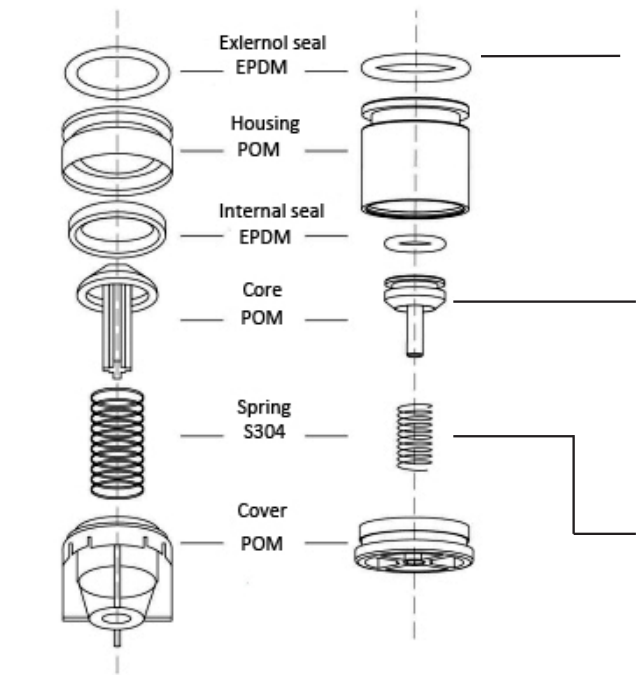

STRUCTURE

External o-ring seal provides sealing between the check valve cartridge and the mating cavity into which it is inserted.

Center stem guidance optimizes the return of the plunger head into its seat for effective sealing and to prevent jamming

even in hard water conditions (water with high mineral content or sediments)

Standard XHnotion check valves are spring loaded to ensure reliable operation in any position of installation and fast

positive sealing even in low backpressure conditions.

CERTIFICATION

Option Available
Part	Housing	Closing system
DN	White	White

Materials
Name	DN8, DN10, DN12, DN13,DN14, DN15,DN16, DN17, DN18, DN19, DN20, DN22, DN25.
Housing	Acetal
Guide	Acetal
Core	Acetal
Spring	Stainless steel AISI 304

check valve DN20 valve backflow preventer valve water meter check valve Cartridge Check Valve
