Home » Products » Air Preparation / Modular F.R.L » D Series F.R.L » D Type Two Combination Pneumatic Air Frl

D Type Two Combination Pneumatic Air Frl

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • DC401-03
  • M5, M1/8, M1/4
  • XHnotion
  • Box
  • CE
  • China
  • 8421999000
  • Non-Customized
  • ISO, CE
  • Xhnotion
  • Normal Temperature
  • Zinc Alloy
  • M5,1/8, 1/4, 3/8, 1/2,3/4,1
Product Description
FEATURES

1. Various combinations available

2. Port sizes: M5 to 1"

3. Modular design allows for space saving and easy installation

4. Compatible with pressure switches, soft start valve and safety pressure relief valve.


SPECIFICATIONS

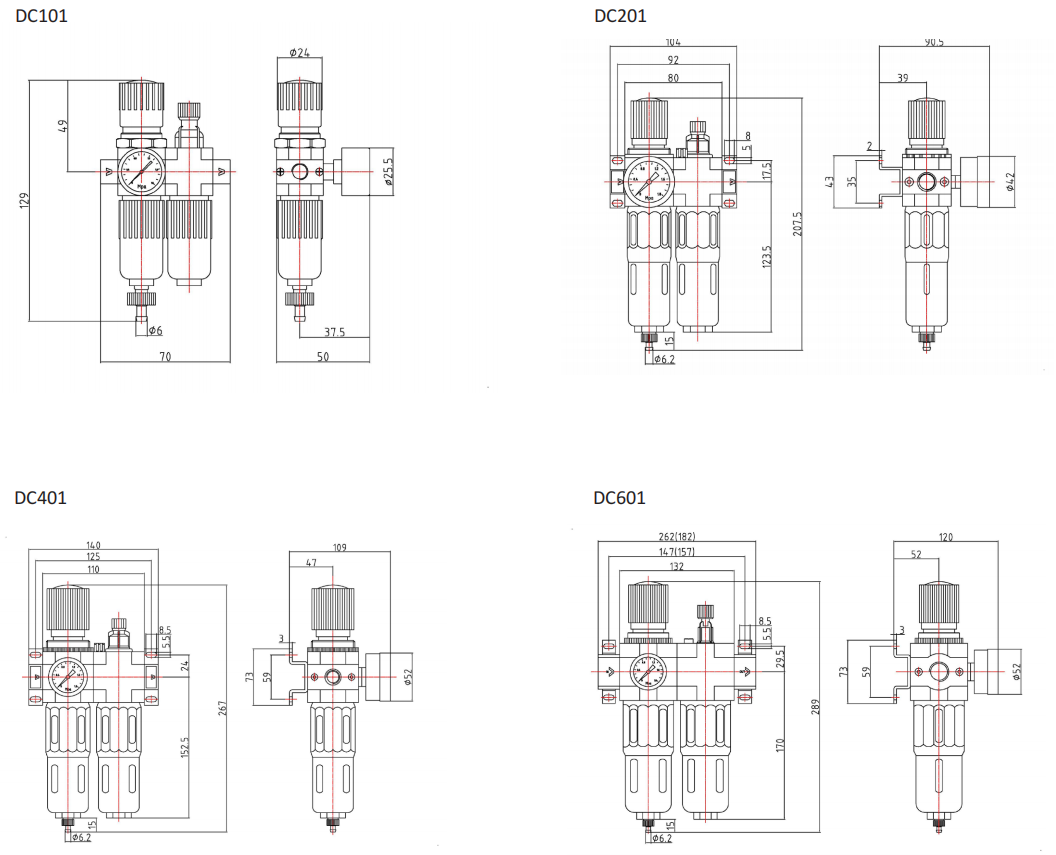

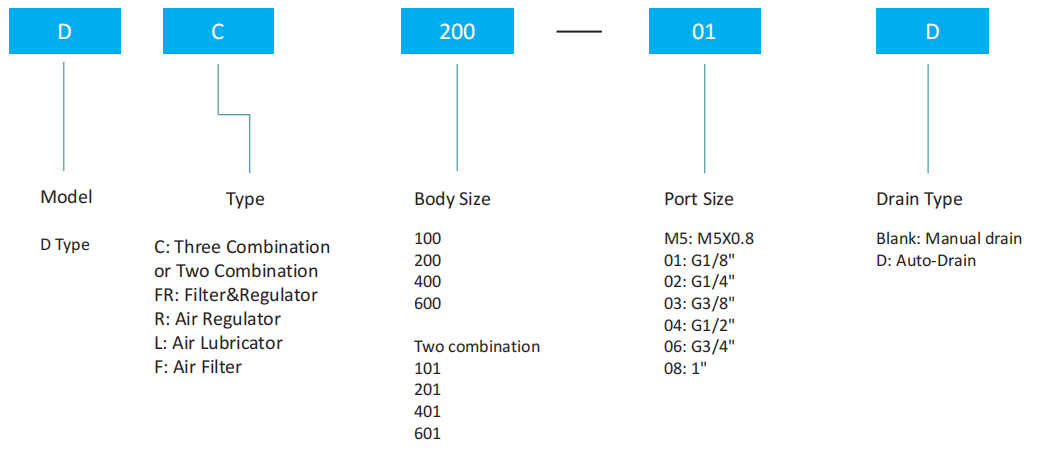

Type DC100-M5,01 DC200-01,02,03 DC400-03,04,06 DC600-06,08
Port Size M5,1/8 1/8,1/4,3/8 3/8,1/2,3/4 3/4,1
Gauge thread G M5 M1/8 M1/4
Fluid Compressed Air
Operating pressure range MPa 0.15-0.85 0.15-1.2
Max.Flow rate L/min 500 1700 3500 11500
Ambient temperture ºC -10-60
Filter precision 5um or 40um
Structure Overflow type
Guard cup - Yes Yes Yes


AIR PREPARATION UNIT ADVANTAGE

1) We source good raw material to protect environment. Threads are machined by CNC to promise smooth and accurate, no blurs.

2) O-ring is imported from Taiwan.

3) 5-40 um filter is available. Rich stock for regular models.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder




==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our air preparation unit include below series.

DC series FRL unit
AC series FRL unit
HAC series FRL unit
HNAC series FRL unit
AC/BC series FRL unit
39 series FRL unit
High pressure FRL unit
Precision regulator

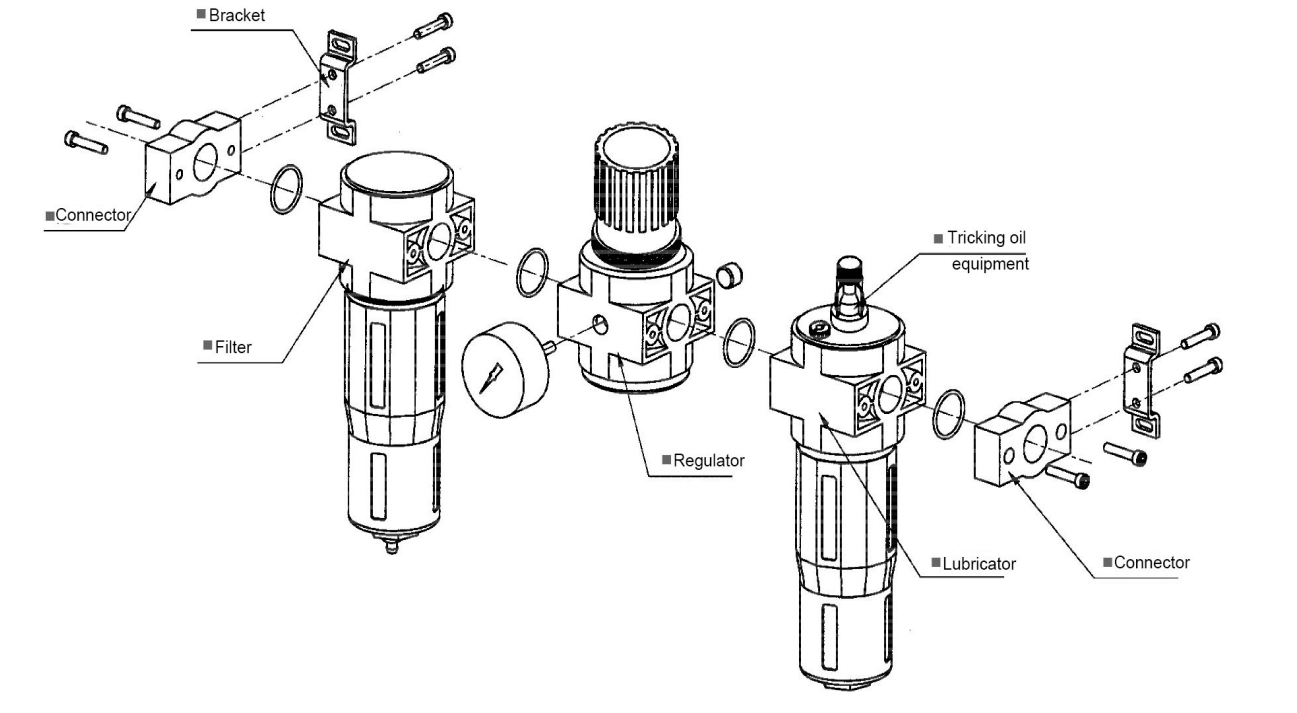

FRL unit Is consist of air filter, air lubricator, air regulator, gauge, auto drain, two-unit modular combinations, three unit modular combinations, filter regulator.


Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, 2 way solenoid valve, directional pneumatic valve

modular hose, water push in fitting

Ball valve, brass connector

=========================================================
FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
