Cooler Vortex Tube

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: VT-CCustomized: Non-CustomizedCompressed Air Pressure: 4-9barInlet Switch Size: 1/4"BSPTMuffler Port: 3/8"BSPTMagnetic Base Size: Dn80Standard: ISO9001:2008Trademark: XHnotion PneumaticTransport Package: Plastic Box + CartonOrigin: ChinaHS Code: 8467890000Type: Vortex TubeUsage: Dry Machine and Spot CoolingBrand: XhnotionDegree of Automation: AutomaticScrewdriver Startup Mode: Hand pressCondition: New

Availability:

Quantity:



Inquire Add to Basket

Model:
XR-W
Brand:
XHNOTION
Code:
8418999990
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
10000 PCS Per Month
Transport Package:
PLASTIC BAG AND CARTON
Model NO.:
XR-W
Customized:
Non-Customized
Compressed Air Pressure:
4-9bar
Inlet Switch Size:
1/4"BSPT
Muffler Port:
3/8"BSPT
Magnetic Base Size:
Dn80
Standard:
ISO9001:2008
Trademark:
XHnotion Pneumatic
Transport Package:
Plastic Box + Carton
Origin:
China
HS Code:
8418999990
Type:
Vortex Tube
Usage:
Dry Machine and Spot Cooling
Brand:
Xhnotion
Degree of Automation:
Automatic
Screwdriver Startup Mode:
Hand press
Condition:
New

Product Description

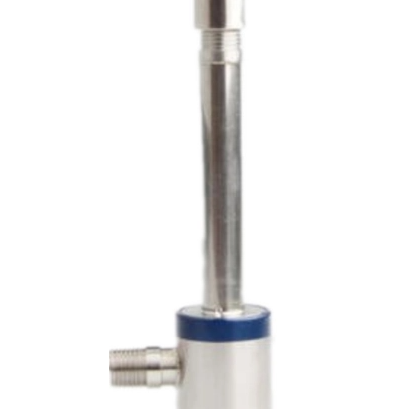

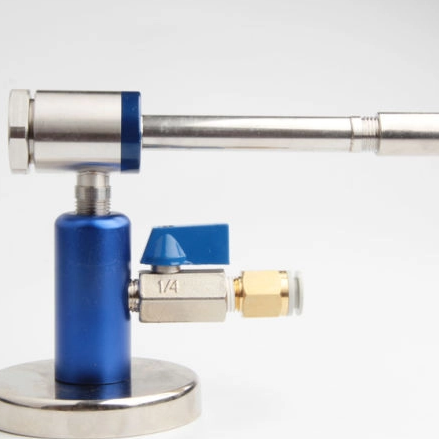

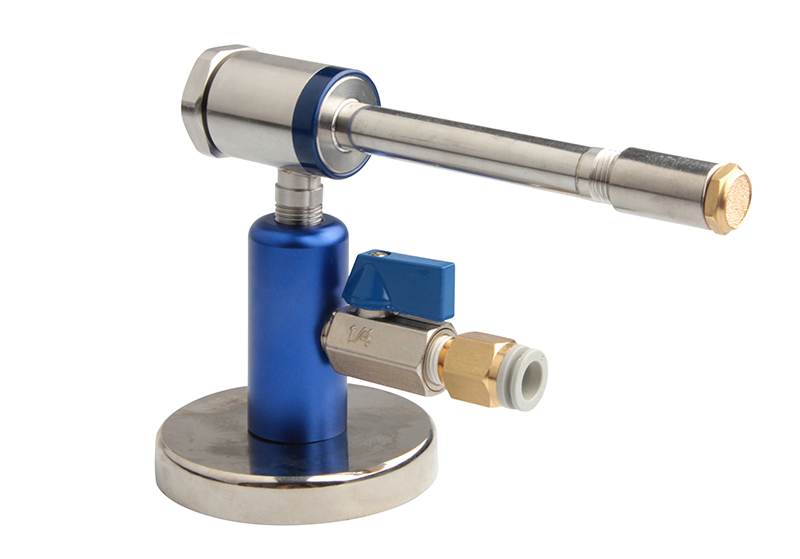

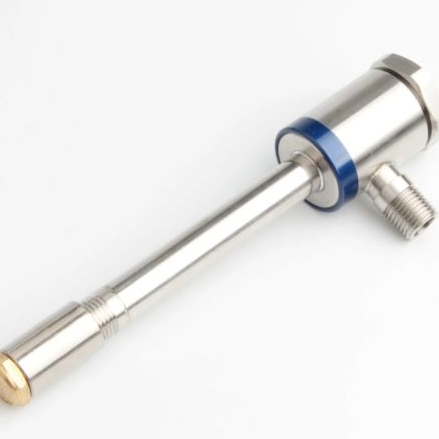

Xhnotion Temperature Controller Medium Cooler Vortex Tube with Cold Air

Xhnotion Temperature Controller Medium Cooler Vortex Tube with Cold Air

Specification

Product Name		Vortex Tube - Medium
Supply		Compressed Air
Air Pressure		4-9Bar

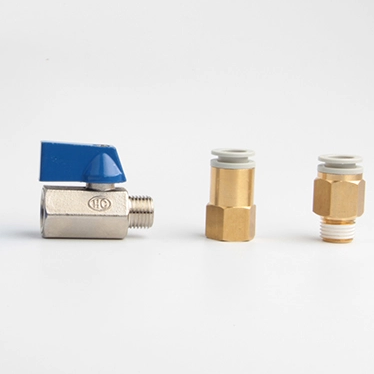

Kits		Magnetic Base, Ball Valve, Push-in Fitting, Coolant Tube
Magnetic Base Size		DN80
Inlet Port		1/4"BSPT
Hot Air Outlet Port		1/4"BSPT

Model

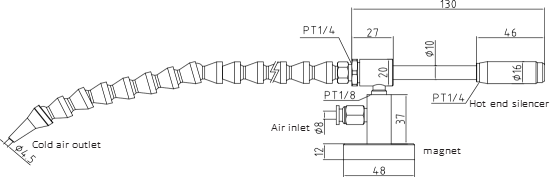

SMALL VORTEX TUBE

SMALL VORTEX TUBE

WITH COLD END OUTLET CONNECTOR D8

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W02K	100	6.9	2	56	135	34	45	68
XR-W04K	100	6.9	4	113	175	70	91	70
XR-W08K	100	6.9	8	227	550	140	182	72
XR-W09K	100	6.9	9	252	630	160	208	75

WITH MAGNETIC BASE AND UNIVERSAL TUBE

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W02BT	100	6.9	2	56	135	34	45	68
XR-W04BT	100	6.9	4	113	175	70	91	70
XR-W08BT	100	6.9	8	227	550	140	182	72
XR-W09BT	100	6.9	9	252	630	160	208	75

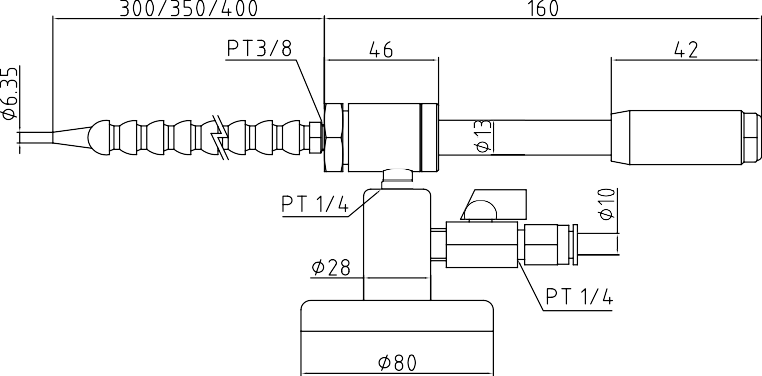

MEDIUM VORTEX TUBE

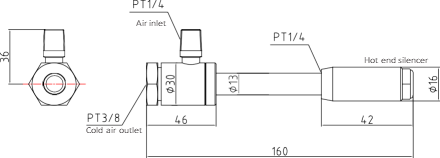

WITH COLD END OUTLET CONNECTION

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W10K	100	6.9	10	283	650	164	213	75
XR-W15K	100	6.9	15	420	1000	252	323	80
XR-W25K	100	6.9	25	680	1700	428	528	82
XR-W30K	100	6.9	30	820	2000	504	821	84
XR-W40K	100	6.9	40	1100	2800	706	1180	88

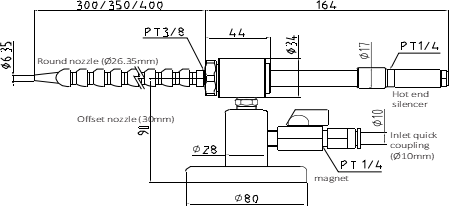

WITH MAGNETIC SEAT AND UNIVERSAL TUBE

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W10BT	100	6.9	10	283	650	164	213	75
XR-W15BT	100	6.9	15	420	1000	252	323	80
XR-W25BT	100	6.9	25	680	1700	428	528	82
XR-W30BT	100	6.9	30	820	2000	504	821	84
XR-W40BT	100	6.9	40	1100	2800	706	1180	88

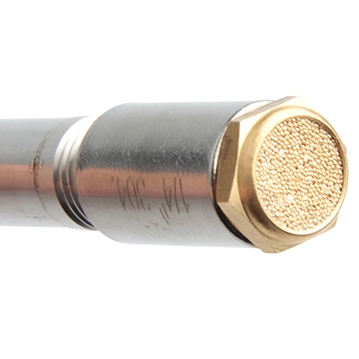

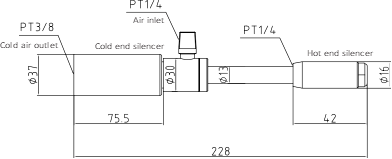

WITH COLD END SILENCER

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W10VK	100	6.9	10	283	650	164	213	65
XR-W15VK	100	6.9	15	420	1000	252	323	70
XR-W25VK	100	6.9	25	680	1700	428	528	73
XR-W30VK	100	6.9	30	820	2000	504	821	74
XR-W40VK	100	6.9	40	1100	2800	706	1180	78

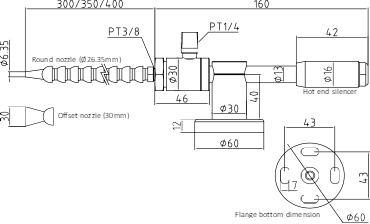

FLANGE SEAT MOUNTING

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W10FT	100	6.9	10	283	650	164	213	75
XR-W15FT	100	6.9	15	420	1000	252	323	80
XR-W25FT	100	6.9	25	680	1700	428	528	82
XR-W30FT	100	6.9	30	820	2000	504	821	84
XR-W40FT	100	6.9	40	1100	2800	706	1180	88

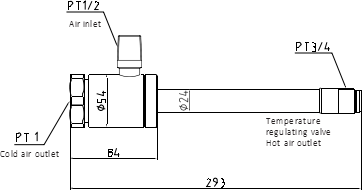

LARGE VORTEX TUBE

WITH COLD END OUTLET CONNECTION

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W50	100	6.9	50	1416	3400	857	1285	90
XR-W75	100	6.9	75	2124	5100	1285	1927	94
XR-W100	100	6.9	100	2832	6800	1700	2550	95
XR-W150	100	6.9	150	4248	10200	2570	3855	96

ALUMINUM ALLOY VORTEX TUBE

ALL ALUMINUM ALLOY VORTEX TUBE

Order number	Inlet pressure		Air consumption		Refrigerating capacity			noise
Order number	Psi	Bar	SCFM	SLPM	Btu/H	Kcal/H	Watts	dBA
XR-W10BTAL	100	6.9	10	260	650	164	180	75
XR-W15BTAL	100	6.9	15	420	1000	252	323	80
XR-W25BTAL	100	6.9	25	680	1700	428	528	82
XR-W30BTAL	100	6.9	30	820	2000	504	821	84
XR-W40BTAL	100	6.9	40	1100	2800	706	1180	88

Installation

1. Vortex tube is connected to the air tube.
2. Cold Air Inlet is turned to the items cooled.
3. Compressed air supply is connected to the inlet with a pressure of 4-9 Bar.
4. Use ball valve to control on and off of air supply.
5. Firstly, unscrew 1/8"BSPT seal screw on the end of gun, and then use a slot screwdriver to rotate the position with clockwise to increase cooling capacity, and vice versa.
Note: Don't screw too tight ! Otherwise, it cannot achieve cooling effect.

Applications

1. Widely used in milling, drilling, turning and other metalworking operations
2. Machining of plastics, composites, wood and other materials
3. Surface grinding, drill and tool sharpening
4. CNC routers, blades and band saws
5. Spot cooling of parts, molds and assemblies
6. Industrial sewing and textiles

7. Setting hot melts and adhesives

Troubleshooting & Maintenance

If Cold Air Gun dose not perform properly, check for these common problems:

1. Inlet Pressure.
Low inlet pressure supply will cause poor performance.
(standard pressure of the cooling gun is 6.9 Bar)
Usually compressed air does not use only one tool or device, so the pressure and flow rate of the terminal will be reduced.
2. The inner diameter of the compressed air pipe is not large enough, resulting in low pressure supply.
3. The internal diameters of various fittings of compressed air are smaller than the internal diameter of the pipes, so the pressure will lost in many places and the flow rate will be reduced.
4. Pipes or fittings are leaky
5. Inlet Temperature.
A Cold Gun provides a temperature drop from supply air temperature. In some cases, the supply air is warmer than ambient air due to compressed air lines running across ceilings, near furnaces, direct sun, etc. In this case, the cold air may be warmer than anticipated and adequate refrigeration may not be available for the application.
6. Back Pressure.
The performance of a Cold Gun deteriorates with back pressure on the cold end exhaust. Use only the flexible segmented hose included with the Cold Gun System.
7. No Cold Flow.
If the filter is not drained regularly, water may overflow into the Cold Gun and cause internal freezing. This can reduce or even stop cold air flow. Drain the filter often, or crack open for a small continuous air bleed. If internal freezing occurs, any one of the following will correct the problem:

Solutions

1.Please increase the supply of compressed air.
2.For the compressed air input hose, please use 10-12 mm. If you use a suitable fittings, it will increase the flow of compressed air.
3.Please check whether the pipe system is leaking.
4.Blow air (use an air gun) into the cold muffler with the Cold Gun off.
5. Turn the Cold Gun off for a few minutes.
6. Put a dryer on the compressed air supply.
Note: The high temperature of the hot air end is normal, but please take care to prevent accidents.
When the hot air has not been discharged, part of the heat has been transferred to the vortex tube, so the temperature is not high after being discharged from the gun body, and it does not harm to the human body.
