Compact Plastic Union Straight Pneumatic Fitting

Quantity:
  • Ningbo, China
  • 100000 PCS Per Day
  • L/C, T/T, Western Union, Paypal, Money Gram
  • PU-C
  • 3mm-16mm
  • Hexagon
  • Male
  • M5, M6, 1/8, 1/4, 3/8, 1/2
  • Nickel-Plated
  • Ce, RoHS, TUV
  • Plastic Bag
  • China
  • 39174000
  • Quick Connector
  • Air Line
  • Xhnotion
  • Normal Temperature
  • Plastic
  • DIN, GB
Product Description

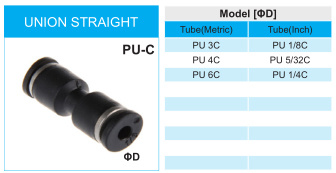

Compact Plastic Union Straight Pneumatic Fitting


Compact Plastic Union Straight Pneumatic Fitting


Compact Plastic Union Straight Pneumatic Fitting



Compact Plastic Union Straight Pneumatic Fitting



Compact Plastic Union Straight Pneumatic Fitting



FEATURES

1. This mini quick fitting series is 40% smaller than the standard type tube fitting.
2. The ultra-small quick-fitting joint is used in pneumatic piping.
3. The ultra-small release ring facilitates connecting and disconnecting the tubes.
4. Working Pressure: 0-150 Psi.
5. Working Temperature: 32-140
ºF / 0-60 ºC.

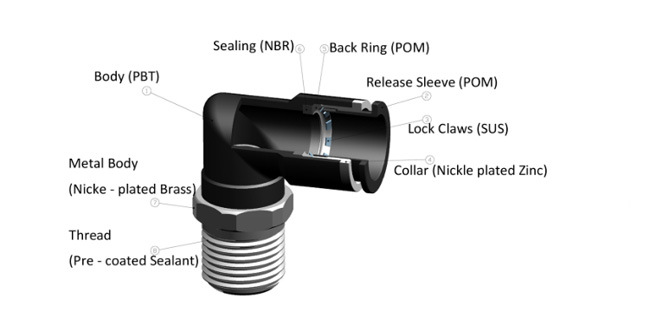

MATERIAL CONSTRUCTION
Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR



SPECIFICATIONS
Operating Pressure 0 - 150 PSI 0 - 990 KPA
Operating Temperature 0 - 60°C 32 - 140°F
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight
Capacity Over 1000000pcs/month
Marketing Area All over the world



FITTINGS ADVANTAGE

1. Raw Material conforms to ROHS standards.
2. Imported Teflon adhesive for pre-coated sealant.
3. Multiple color and shape for button and body Blue and oval button with black body as regular,
black or gray round button is available, too.

4. 5% tested by water at 10 bar, 100% tested by air and appearance test.
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.




WHY CHHOSE US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.

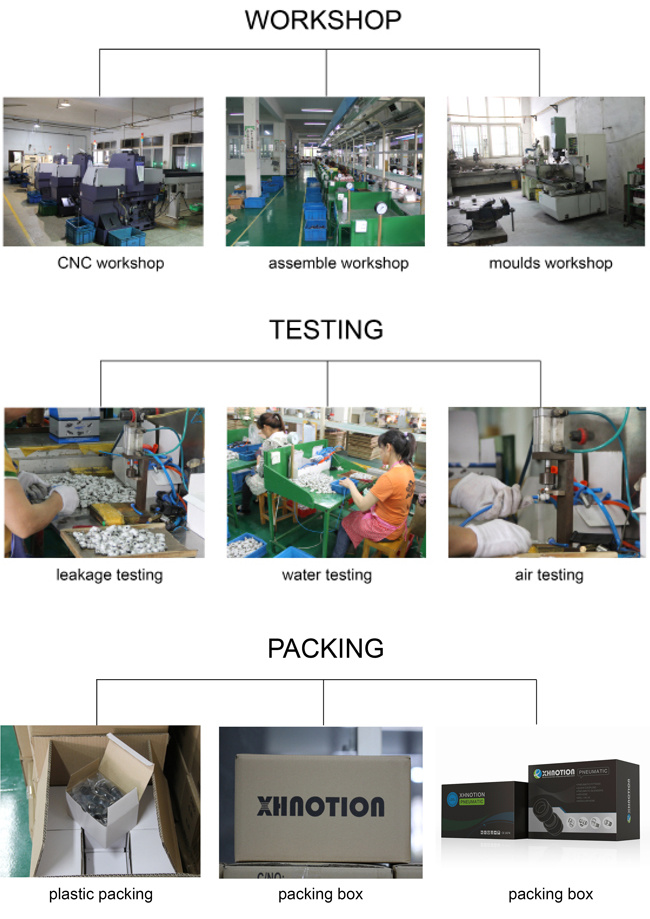

2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.




FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
