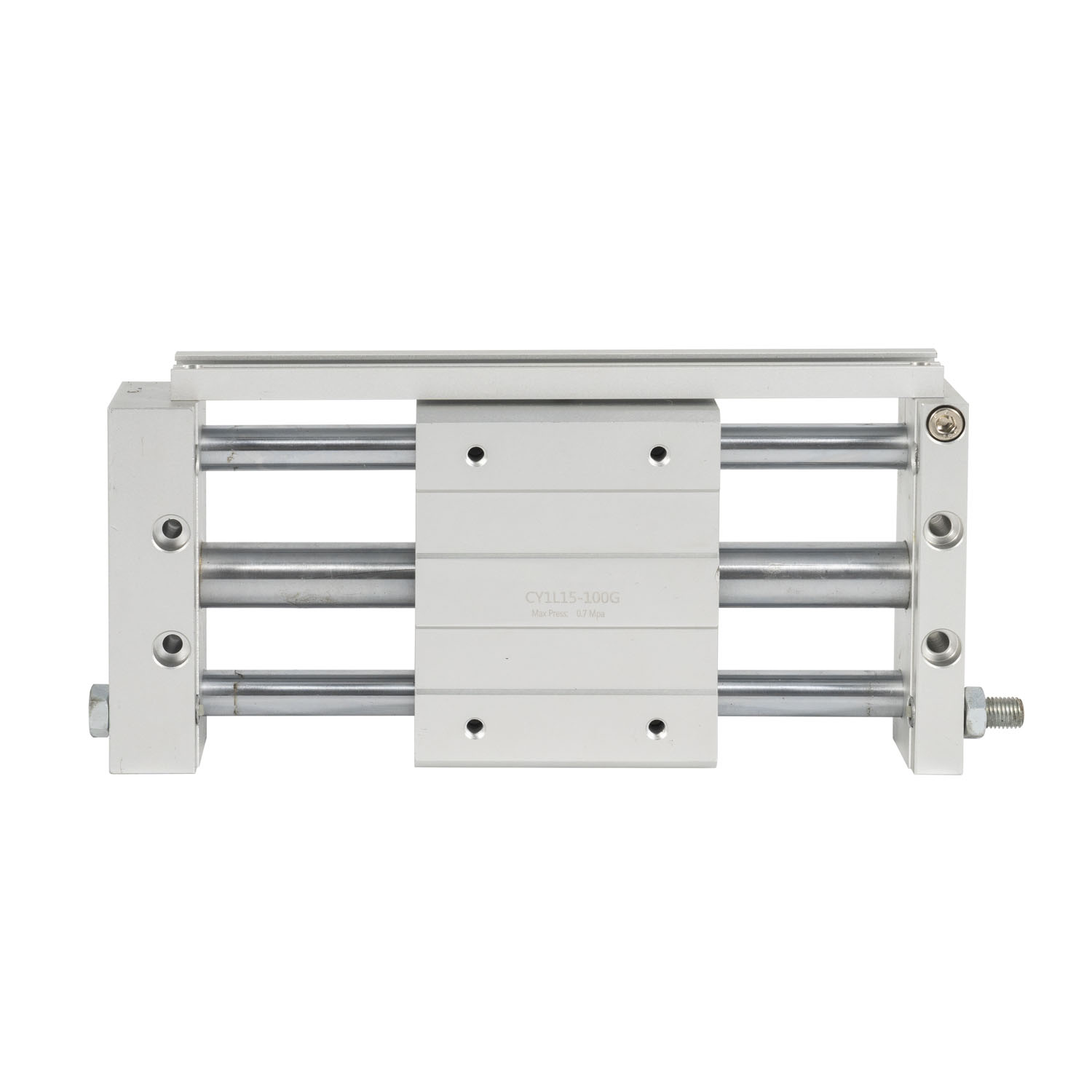

CY115
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
Clean air (40μm Filteration)
1.05MPa
0.7MPa
0.18MPa
-10 to 60℃ (No freezing)
50 to 400mm/s
Rubber bumper/Shock absorber
Non-lube

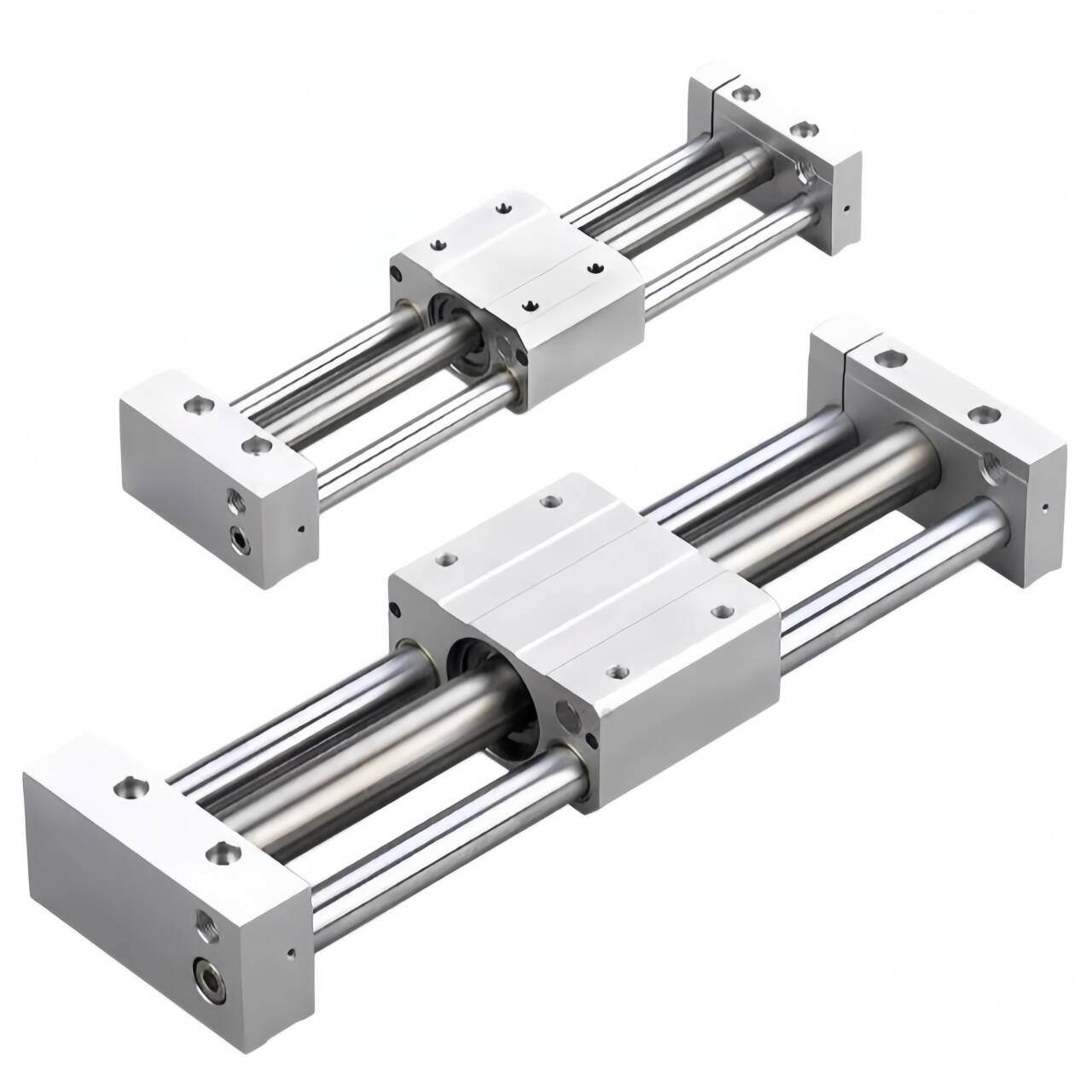

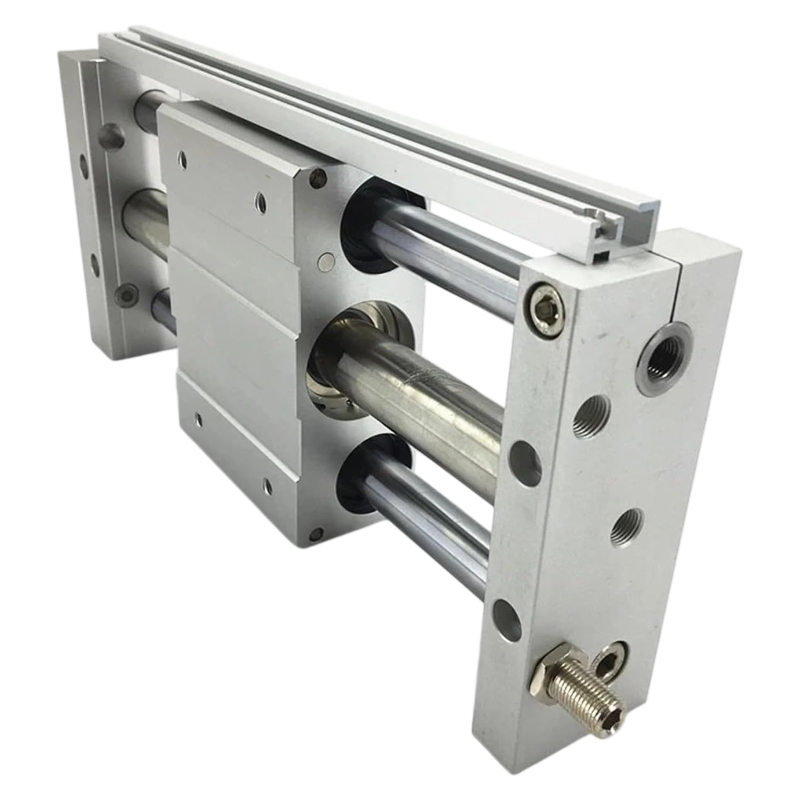

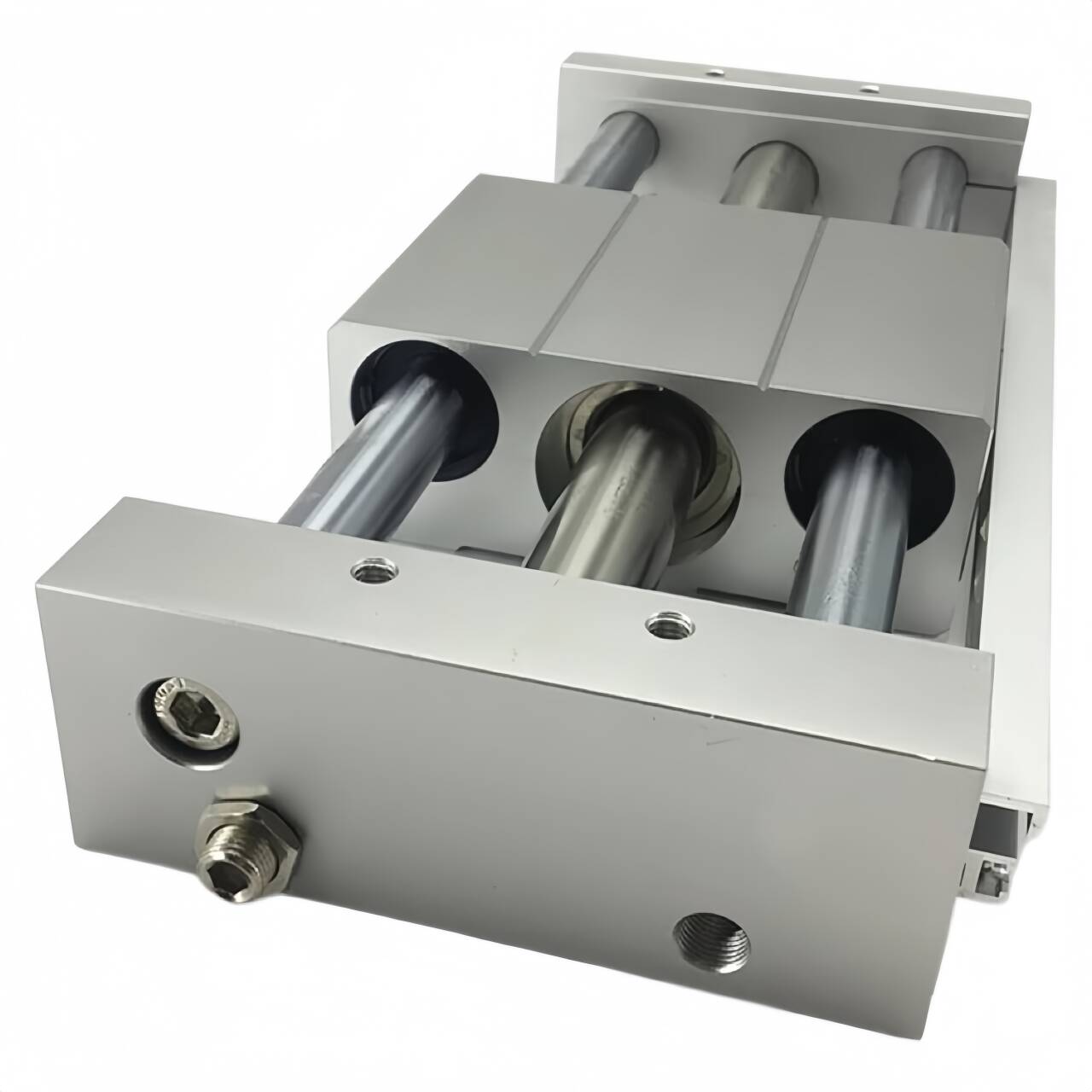

Feature

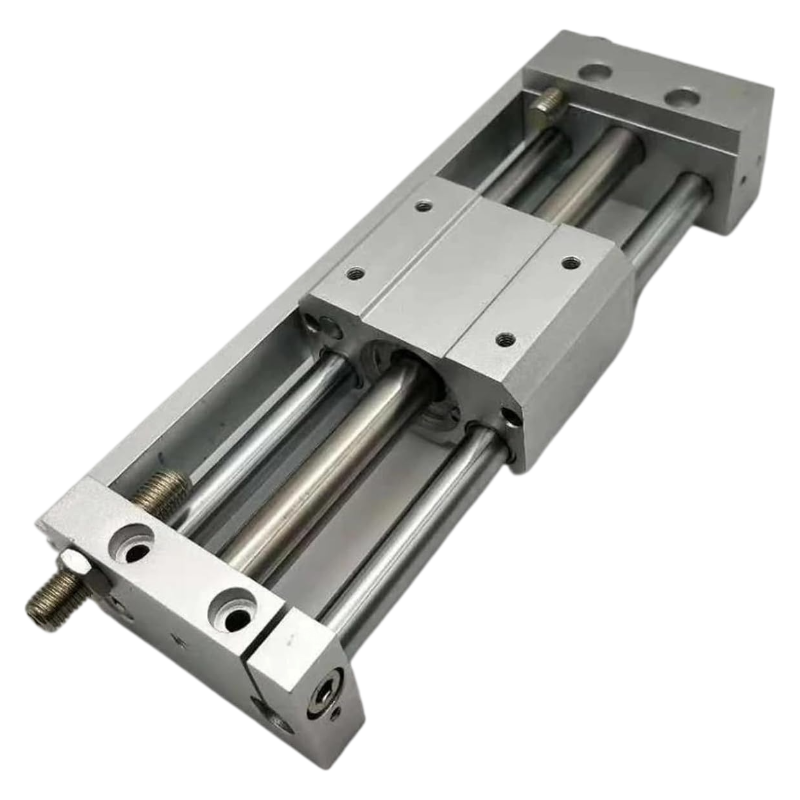

1. Magnetic internal-external magnet coupling design, overall length is only half of standard tie rod cylinder with same stroke, greatly save equipment installation space

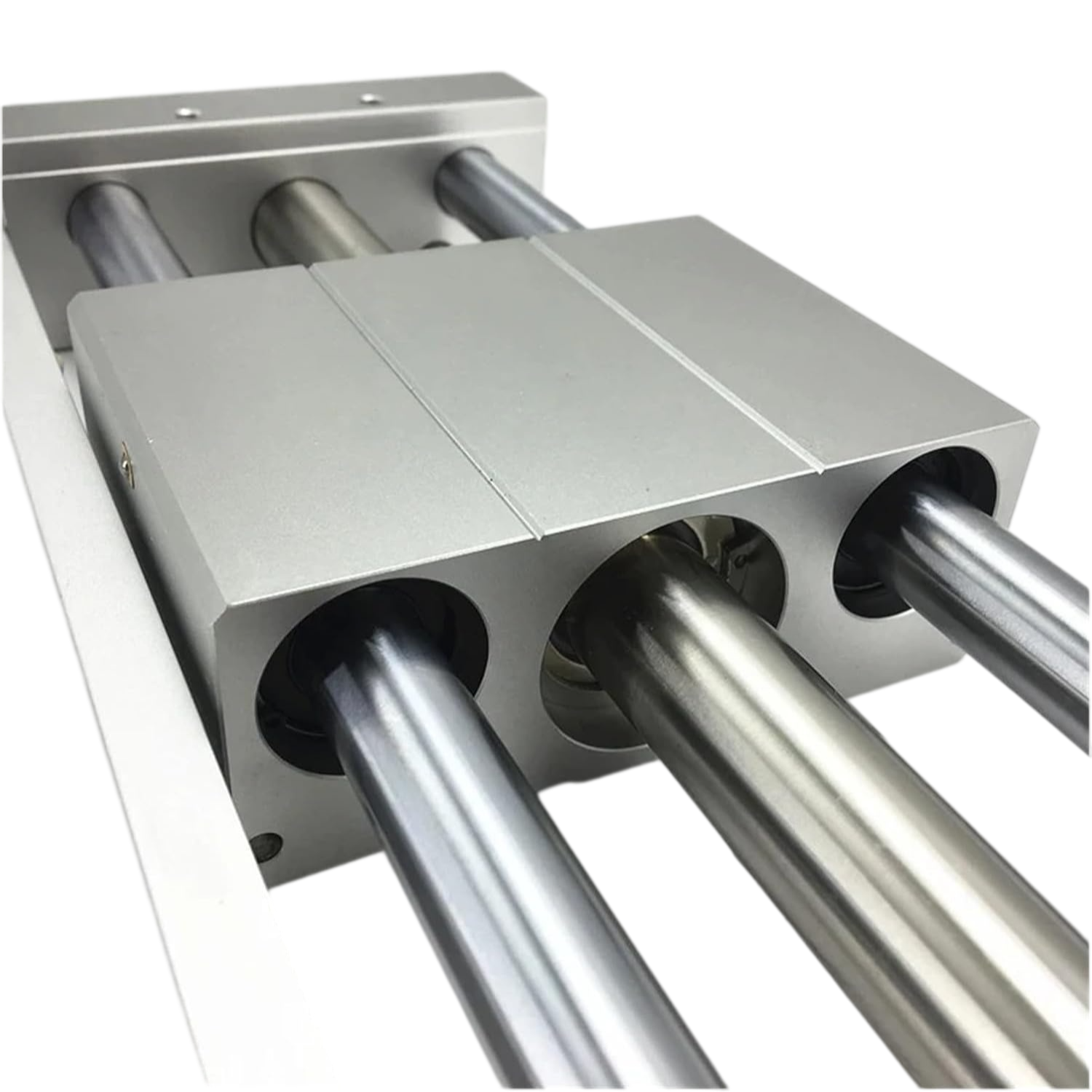

2. Built-in double slide bearing guide shaft, strong anti-side load capacity, stable reciprocating movement without deflection
3. Optimized slider structure, weight reduced by 15%, whole cylinder length shortened up to 15mm, more compact than old generation models
4. Lube-retainers installed inside & outside cylinder tube, lasting lubrication, support long-term non-lube operation, extend seal service life
5. Equipped with stroke adjustment bolt near the buffer, fine-tune stop position, improve repeat positioning accuracy

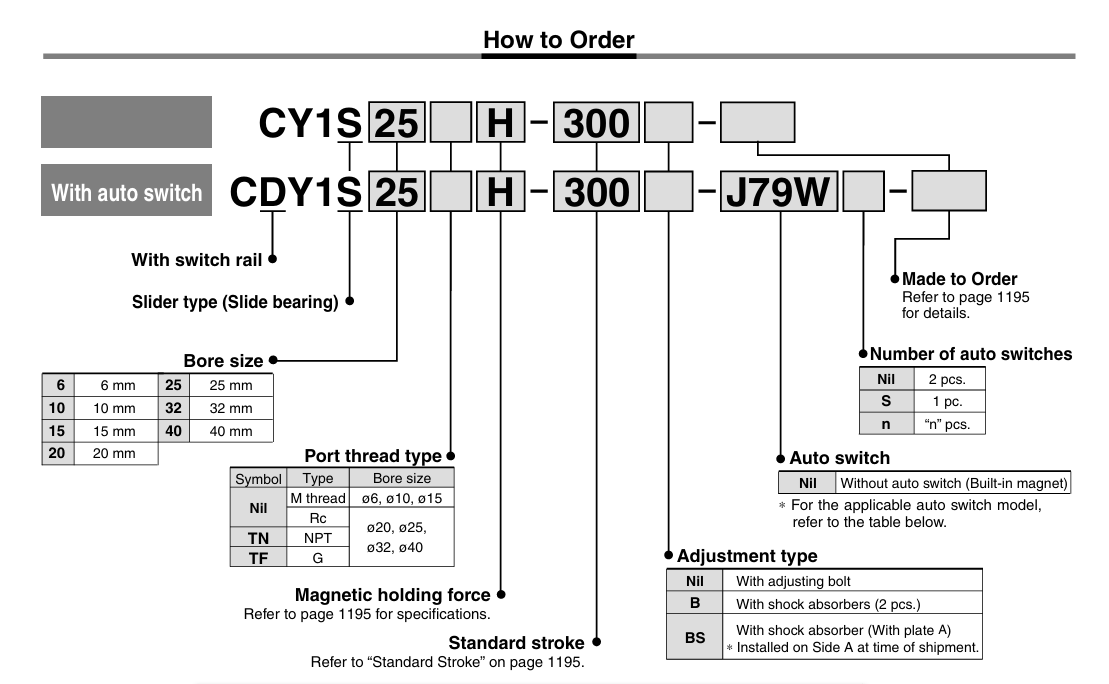

How to order

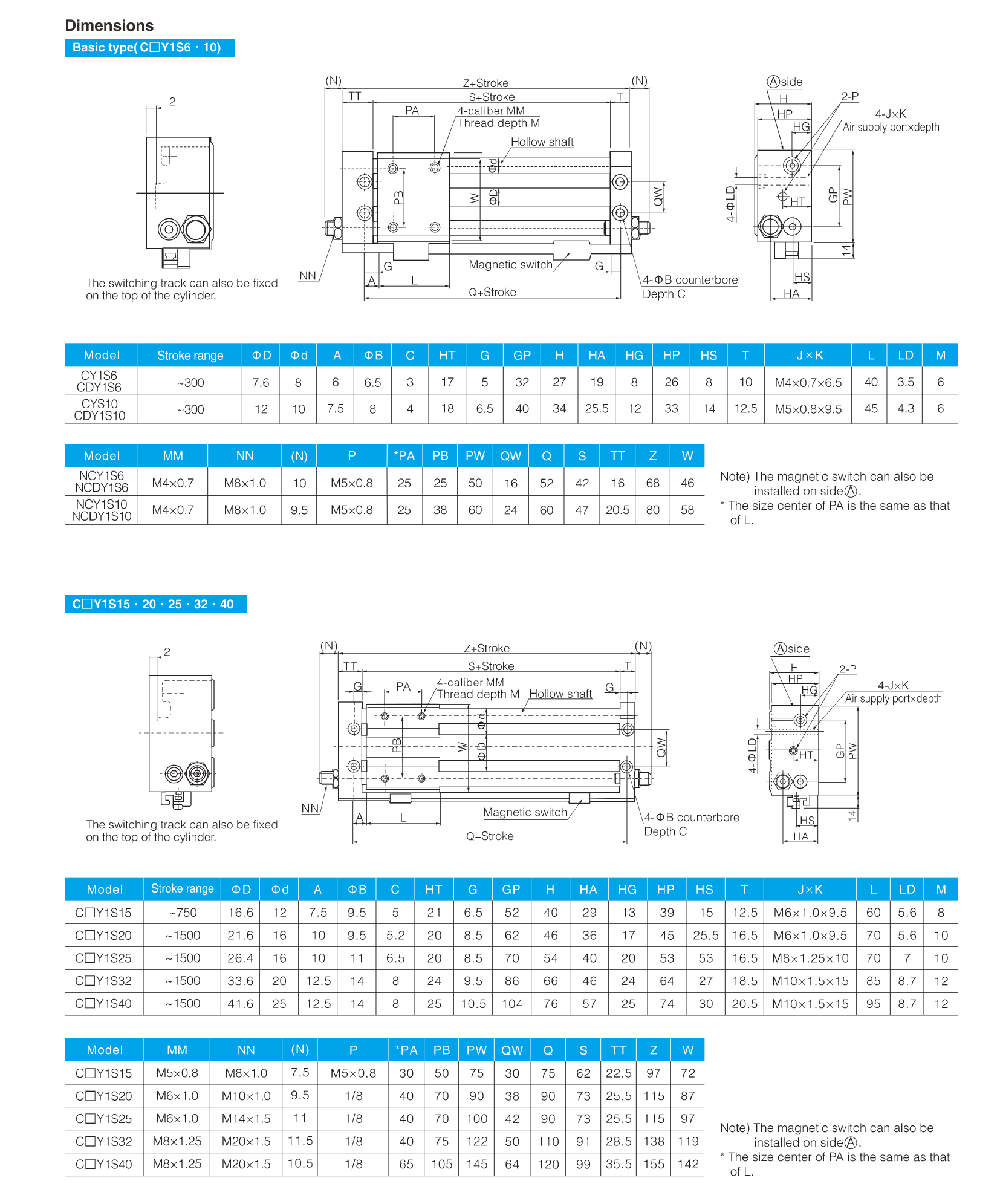

Drawings
Structure
Parameter Item | 6mm Bore | 10mm Bore | 15mm Bore | 20mm Bore | 25mm Bore | 32mm Bore | 40mm Bore |
Working medium | Clean air (40μm Filteration) | ||||||
Proof pressure | 1.05MPa | ||||||
Max. working pressure | 0.7MPa | ||||||
Mini. working pressure | 0.18MPa | ||||||
Working temperature | -10 to 60℃ (No freezing) | ||||||
Piston speed | 50 to 400mm/s | ||||||
Cushion | Rubber bumper/Shock absorber | ||||||
Lubrication | Non-lube | ||||||
Stroke length tolerance (mm) | 0 to 250 st: +1.0/0 | ||||||
251 to 1000 st: +1.4/0 | |||||||
1001 st or longer: +1.8/0 | |||||||
Magnetic holding force (N) | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 |
