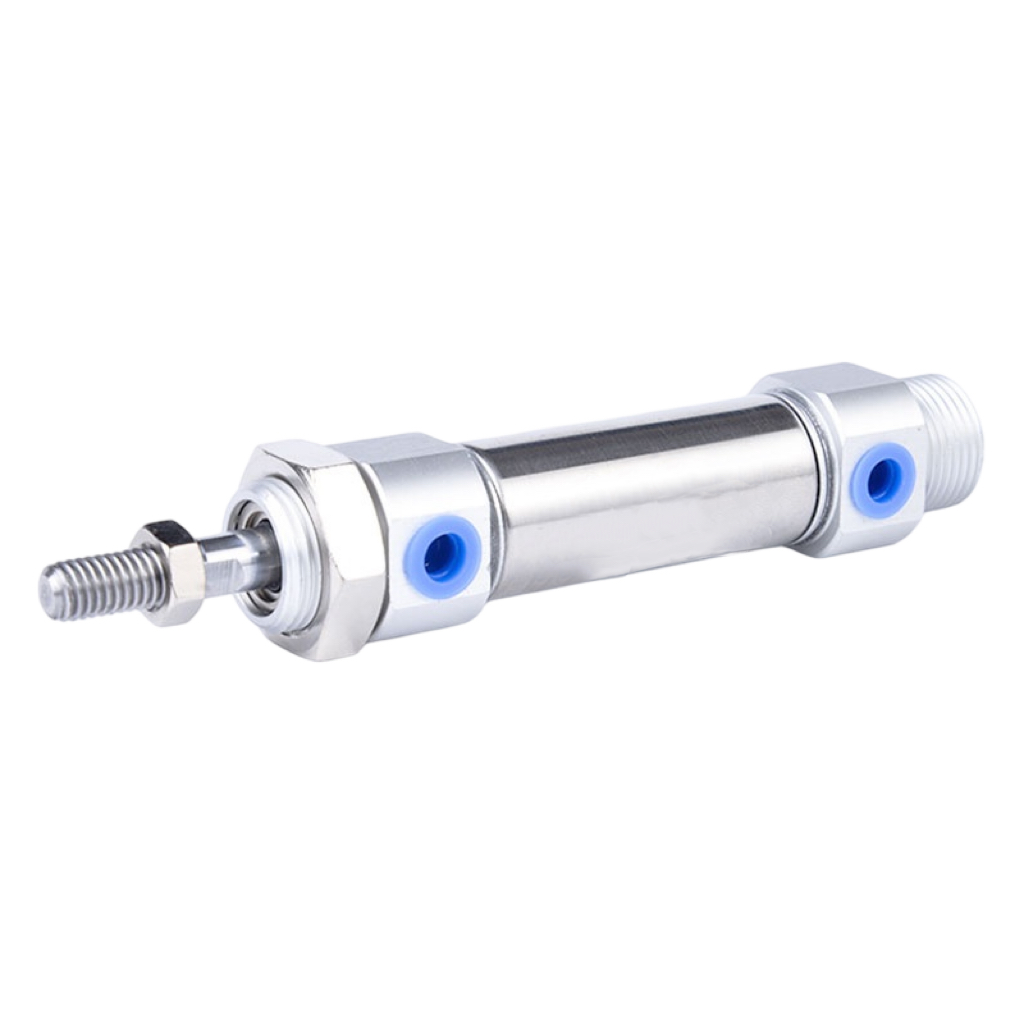

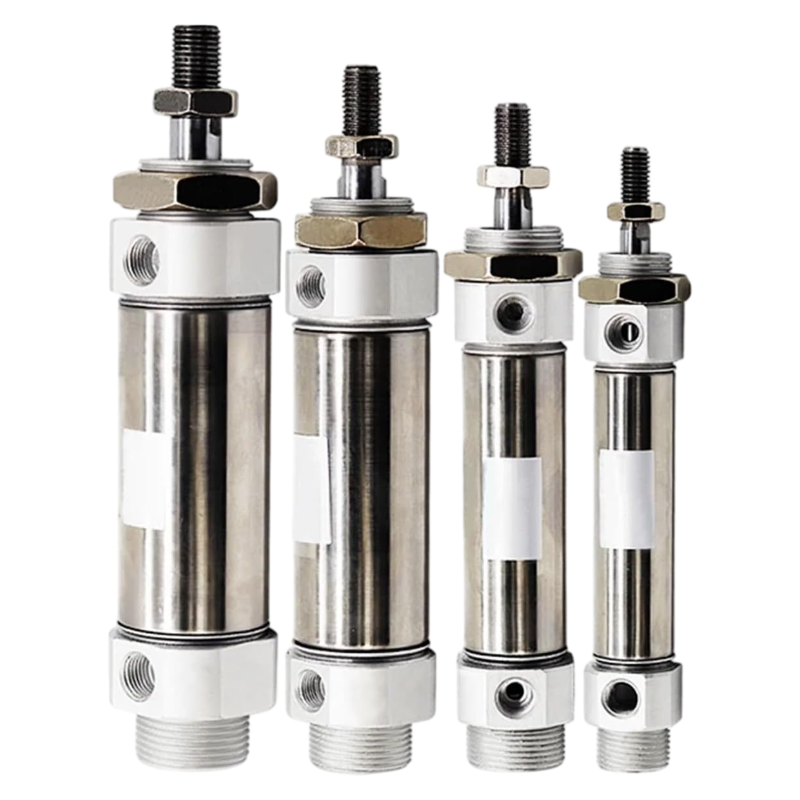

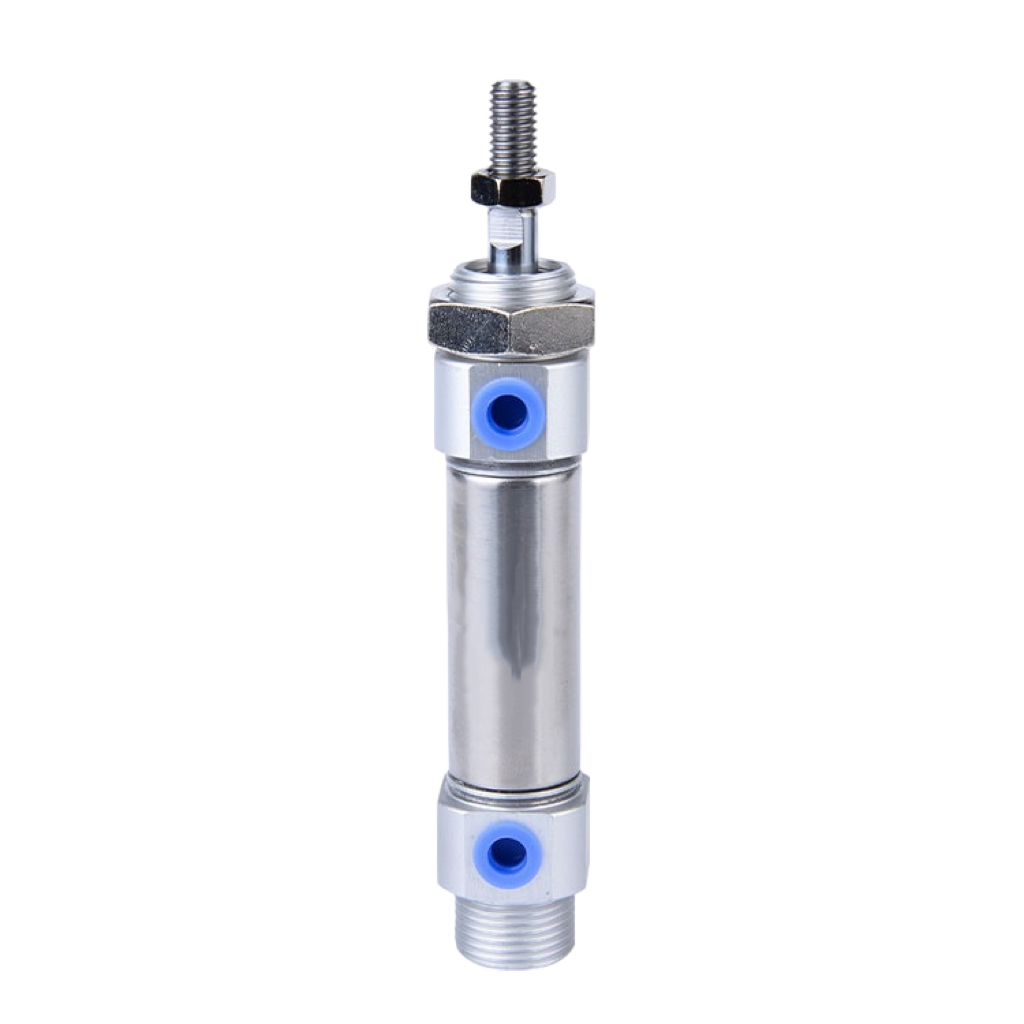

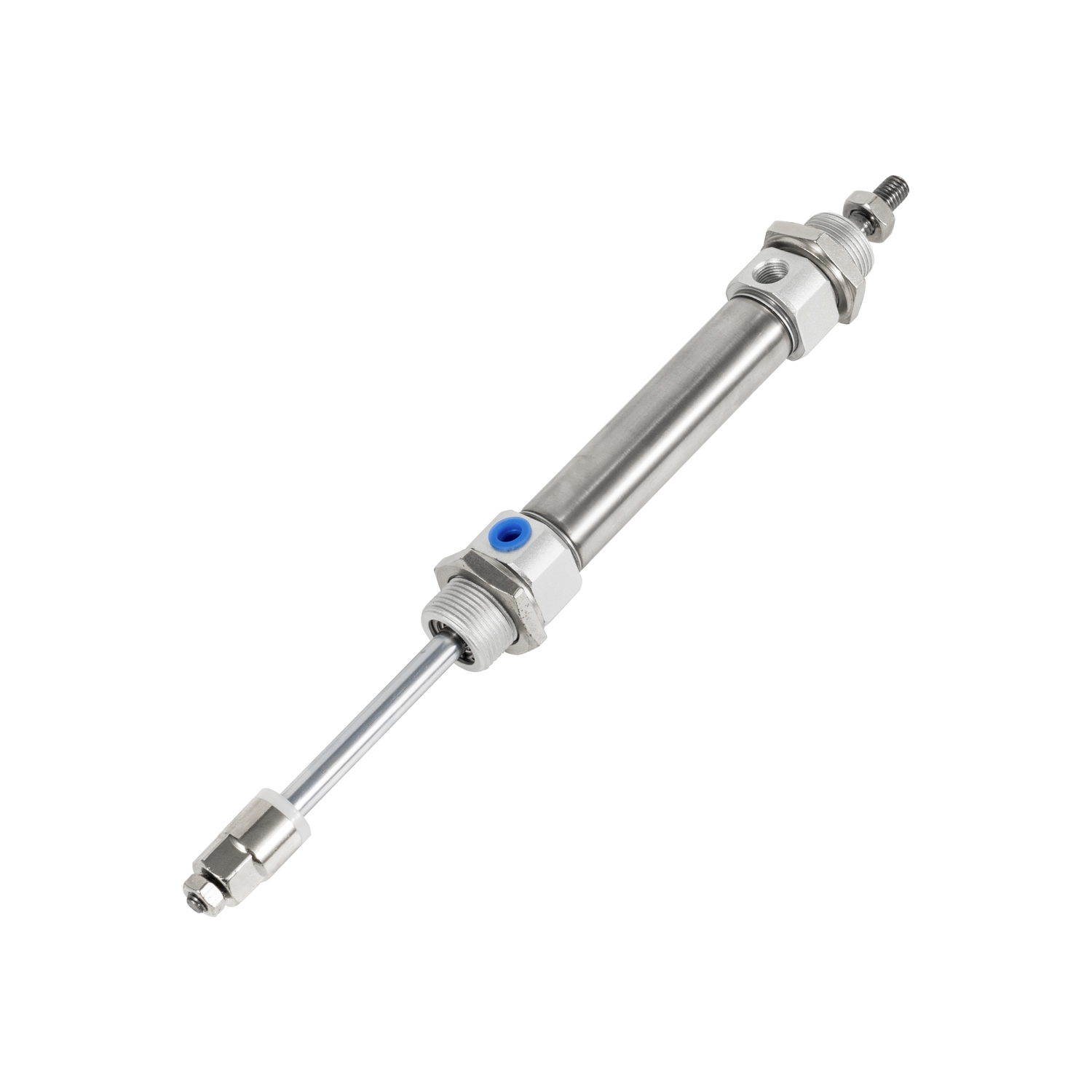

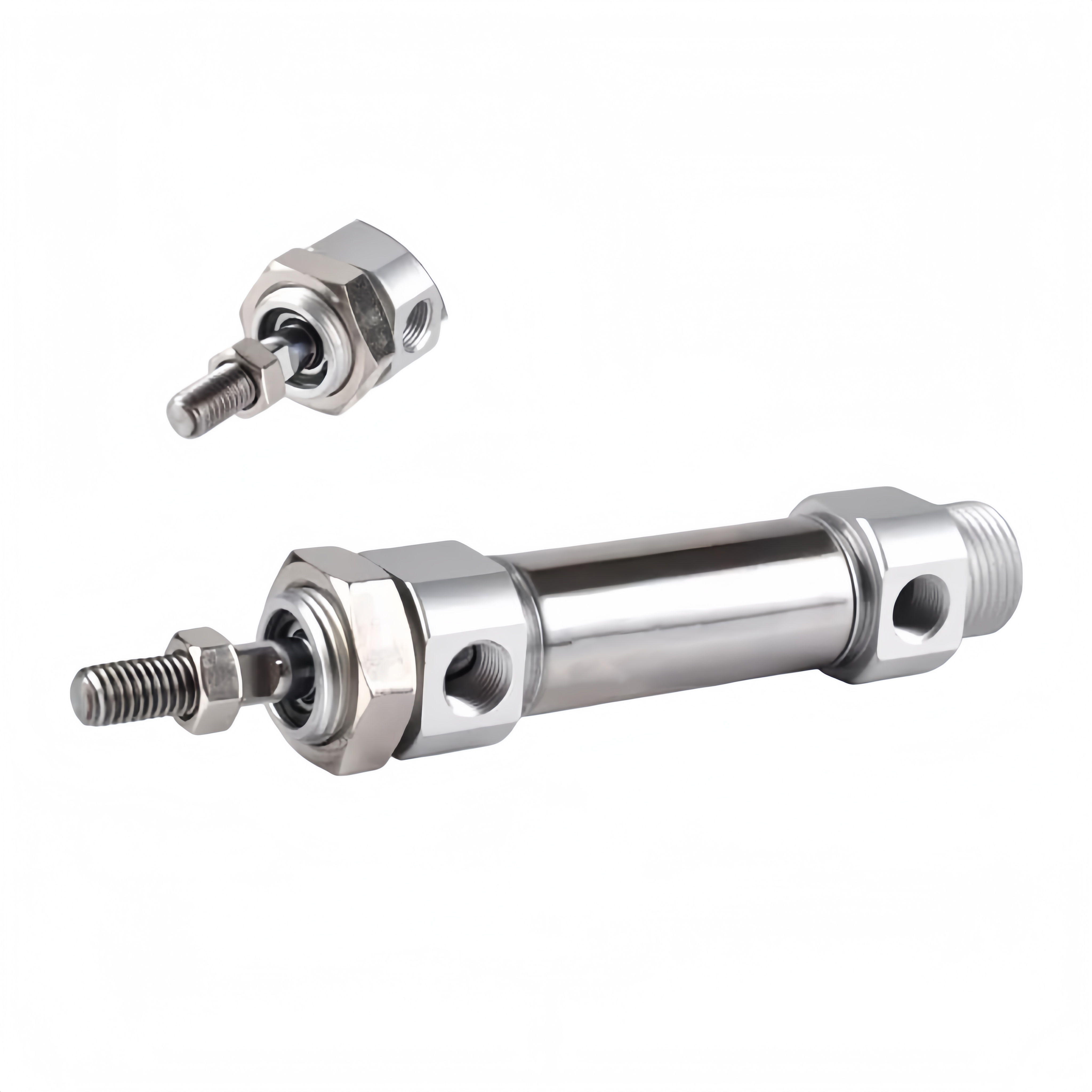

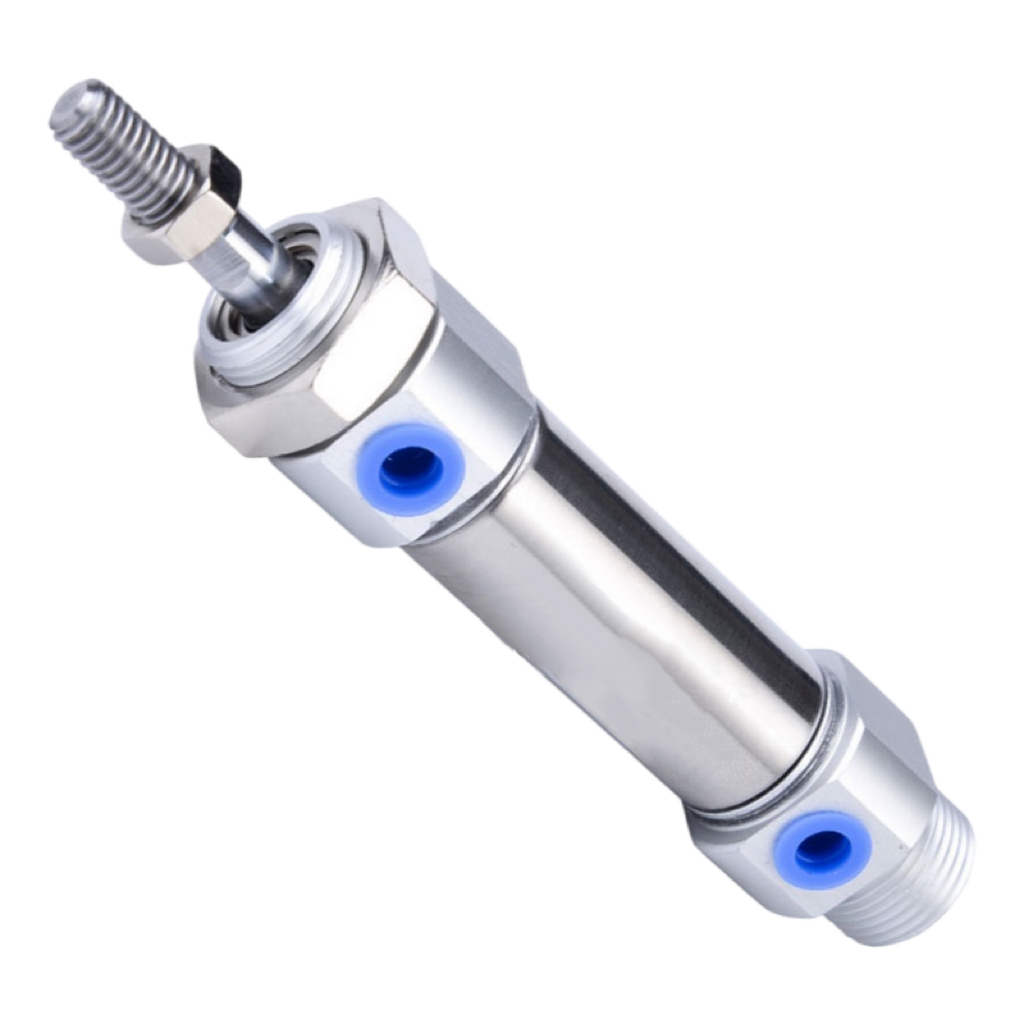

CM2B
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
20,25,32,40
Clean air
Double acting
0.05 to 1.0Mpa
-10 to 70℃
Rubber cushion(standard),Air cushion (optional)
10mm/s to 1000mm/s
Feature
1. Barrel: SUS304 seamless stainless steel tube, anti-rust, resistant to water mist, weak acid & salt spray
2. Full stainless steel option: SUS304 piston rod, screw, nut for food & washing machinery
3. Smooth outer surface easy for high-pressure water washing, meet food & medical hygiene standard
4. Suitable for humid, splash washing, chemical, seafood processing, car wash & new energy workshop
5. Higher tube hardness, no oxidation under long-term water wash, service life extended over 60%

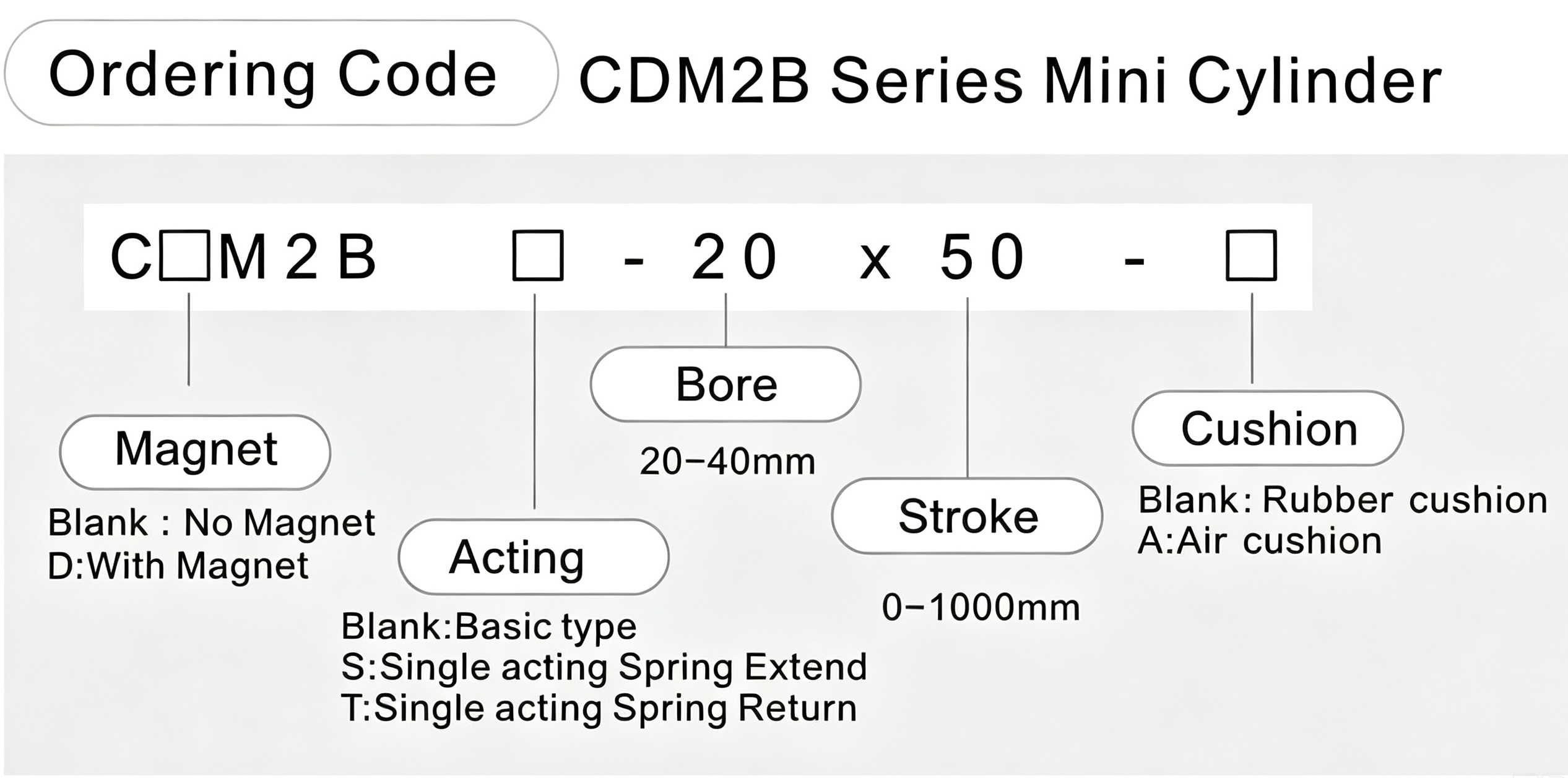

How to order

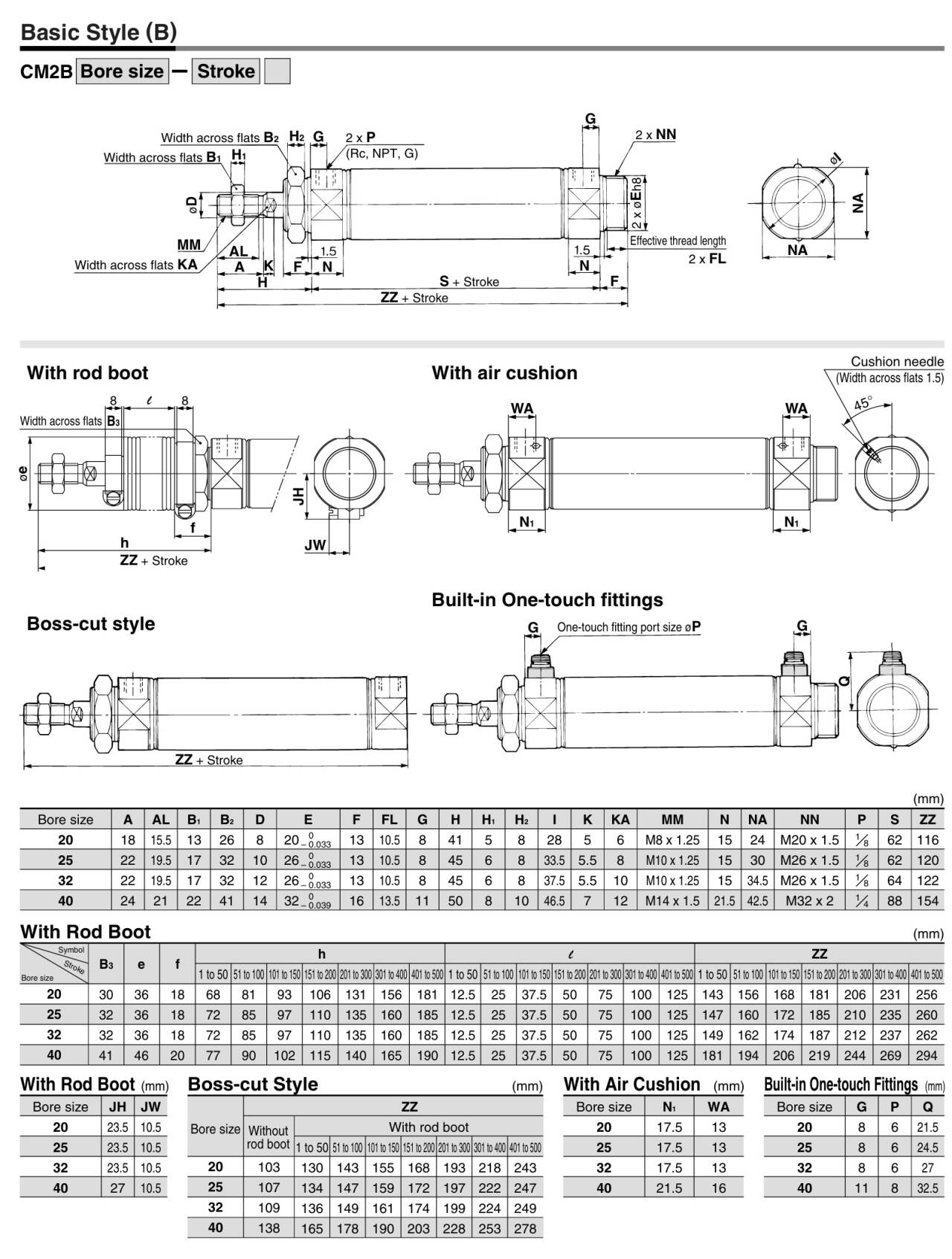

Drawings
Structure
Item | 20 | 25 | 32 | 40 |
Bore(mm) | 20 | 25 | 32 | 40 |
Working medium | Clean air | |||
Acting type | Double acting | |||
Guaranteed pressure | 0.05 to 1.0Mpa | |||
Working temperature | -10 to 70℃ | |||
Cushion type | Rubber cushion(standard),Air cushion (optional) | |||
Speed range | Min:10mm/s | Max:1000mm/s | ||
Testing, Workshop and Packaging
