| Quantity: | |
|---|---|

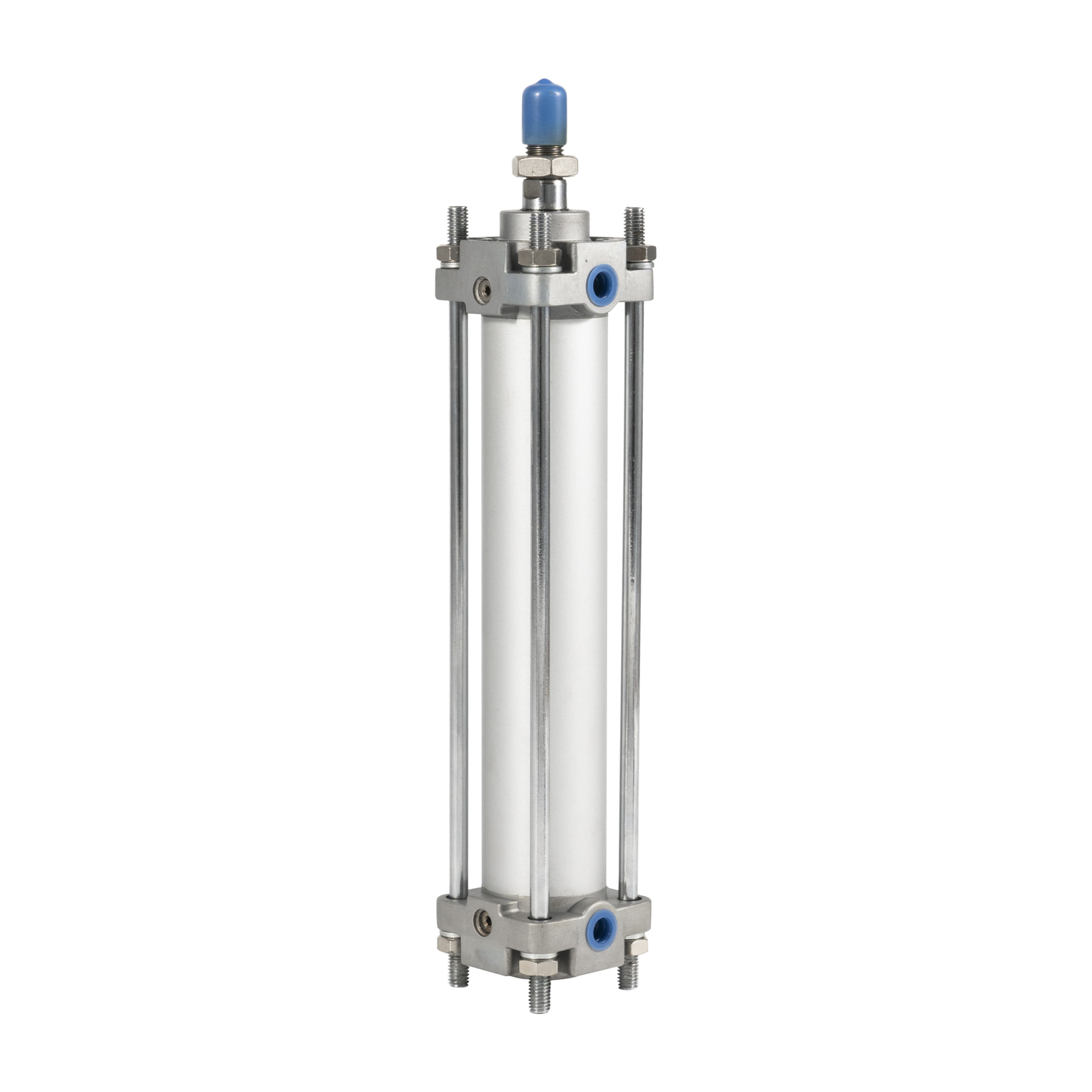

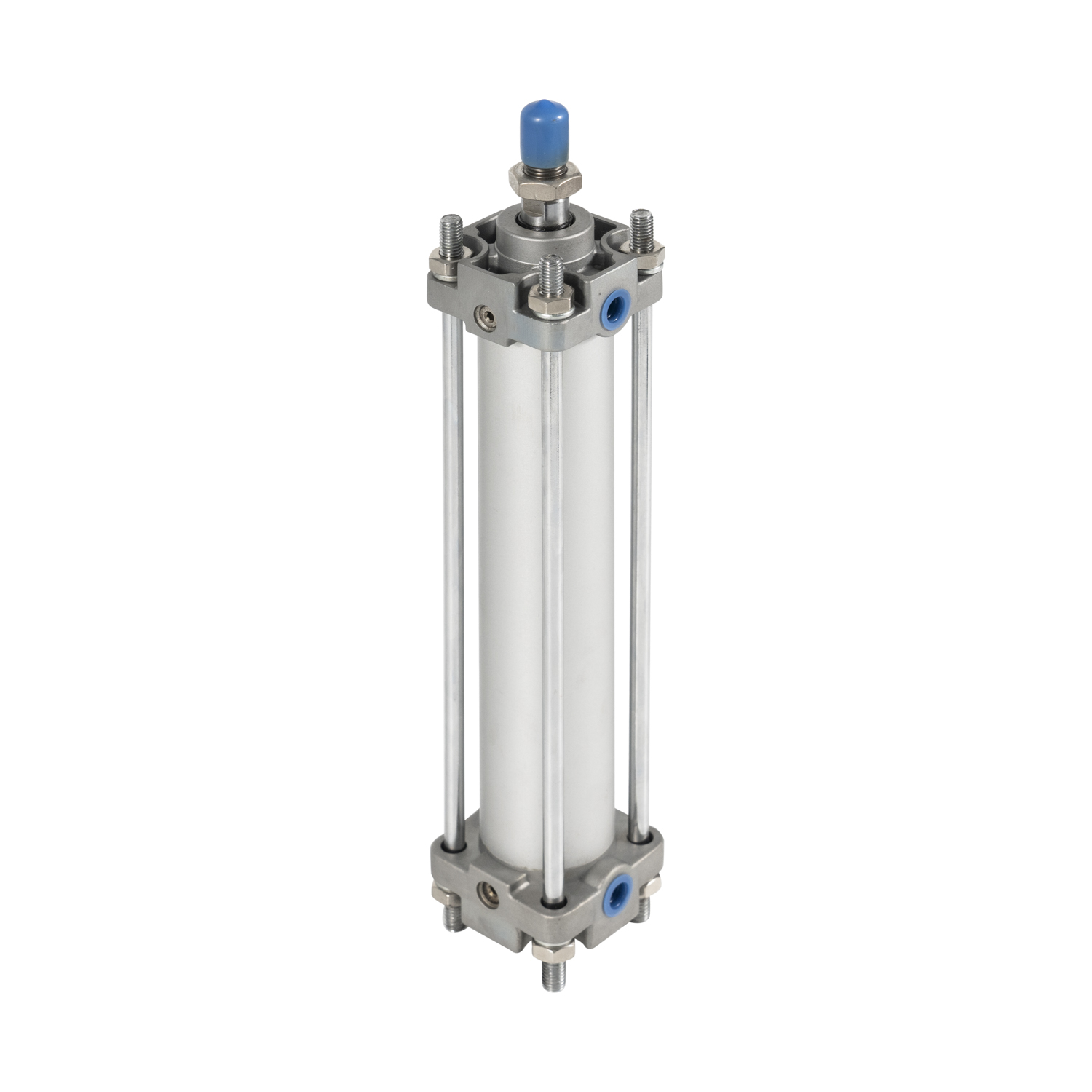

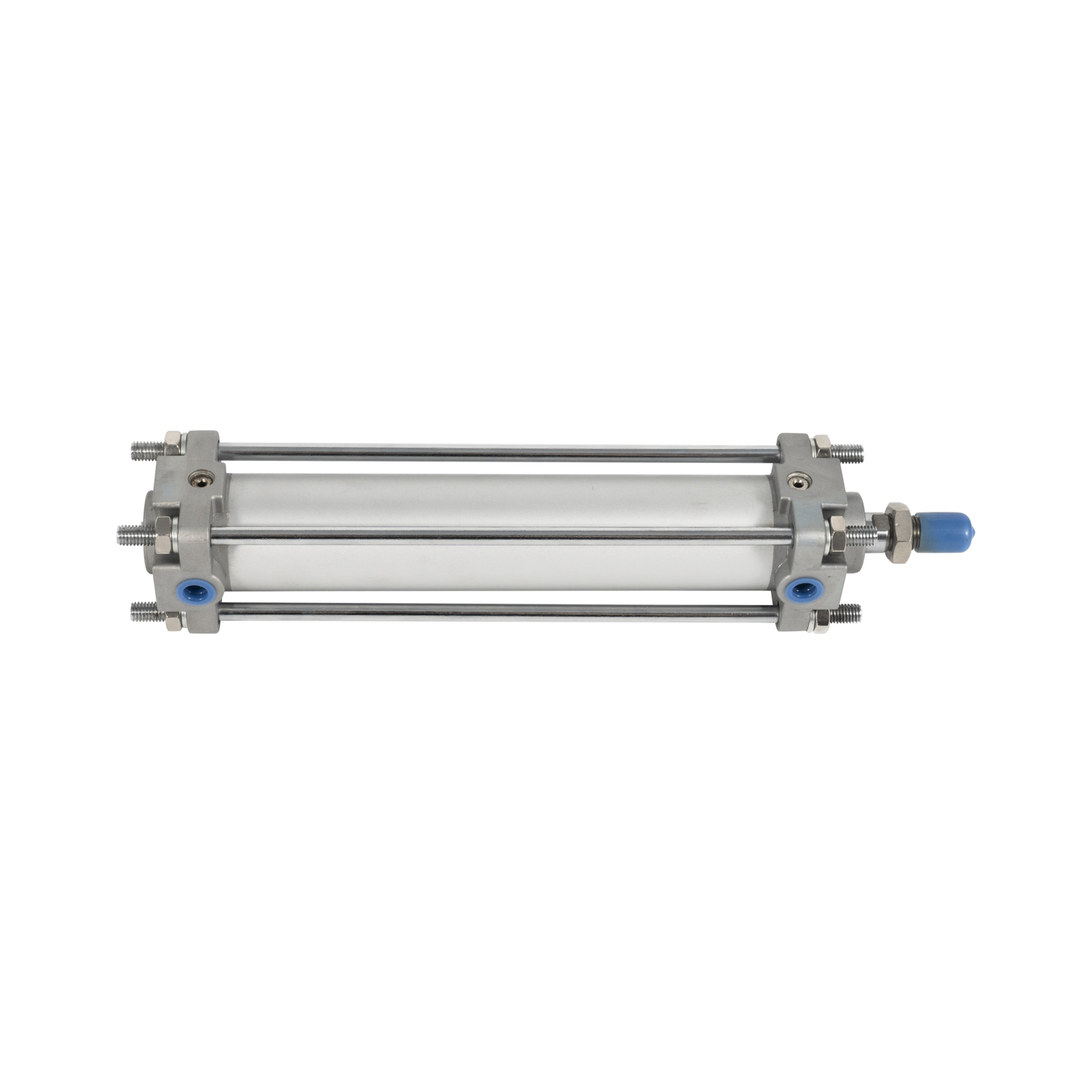

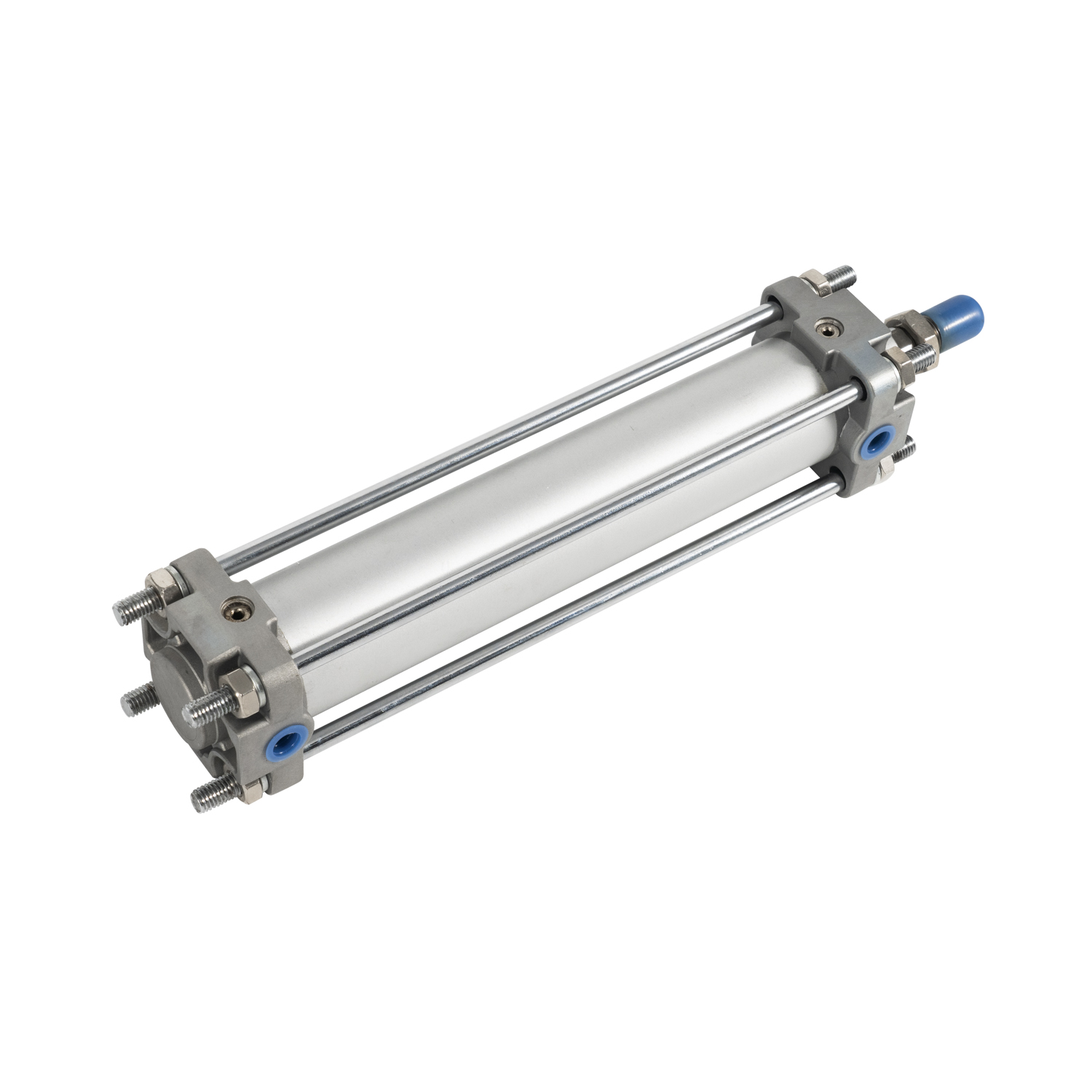

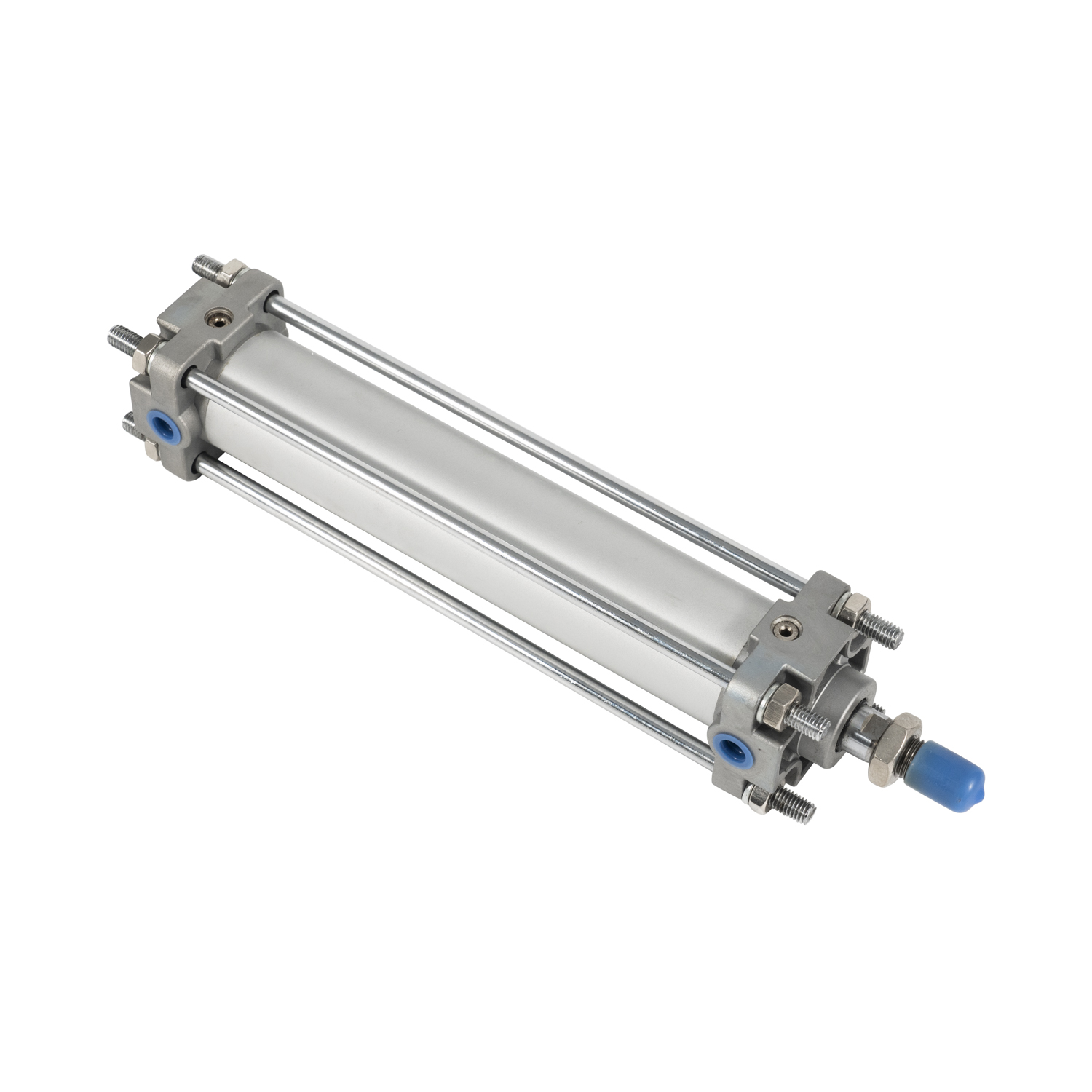

CA2BN
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
Air
Double acting
1.5 MPa
1.0 MPa
0.05 MPa
50 to 500 mm/s
Air cushion or rubber bumper
Not required (non-lube)
Feature
1.Conforms to ISO 6431 (superseded ISO 15552) mounting dimension standard, good interchangeability with global brands’ installation accessories
2.Double‑acting single‑rod structure, stable output force for heavy‑duty linear motion
3.Adjustable air cushion at both ends, effectively reduce end‑of‑stroke impact and running noise
4.High‑strength tie‑rod construction, lightweight square end‑cover design, 15% weight reduction compared with old‑generation model
5.Hard‑anodized aluminum alloy barrel, hard chrome‑plated piston rod for wear‑resistance
6.Reserved auto‑switch mounting slot, compatible with multiple magnetic switches for position feedback
7.Wide range of bore & stroke options, multiple mounting styles available: basic, foot, flange, trunnion, clevis
8.Working pressure: 0.15‑1.0MPa, suitable for filtered compressed air medium
9.RoHS compliant, reliable continuous operation for automation production line

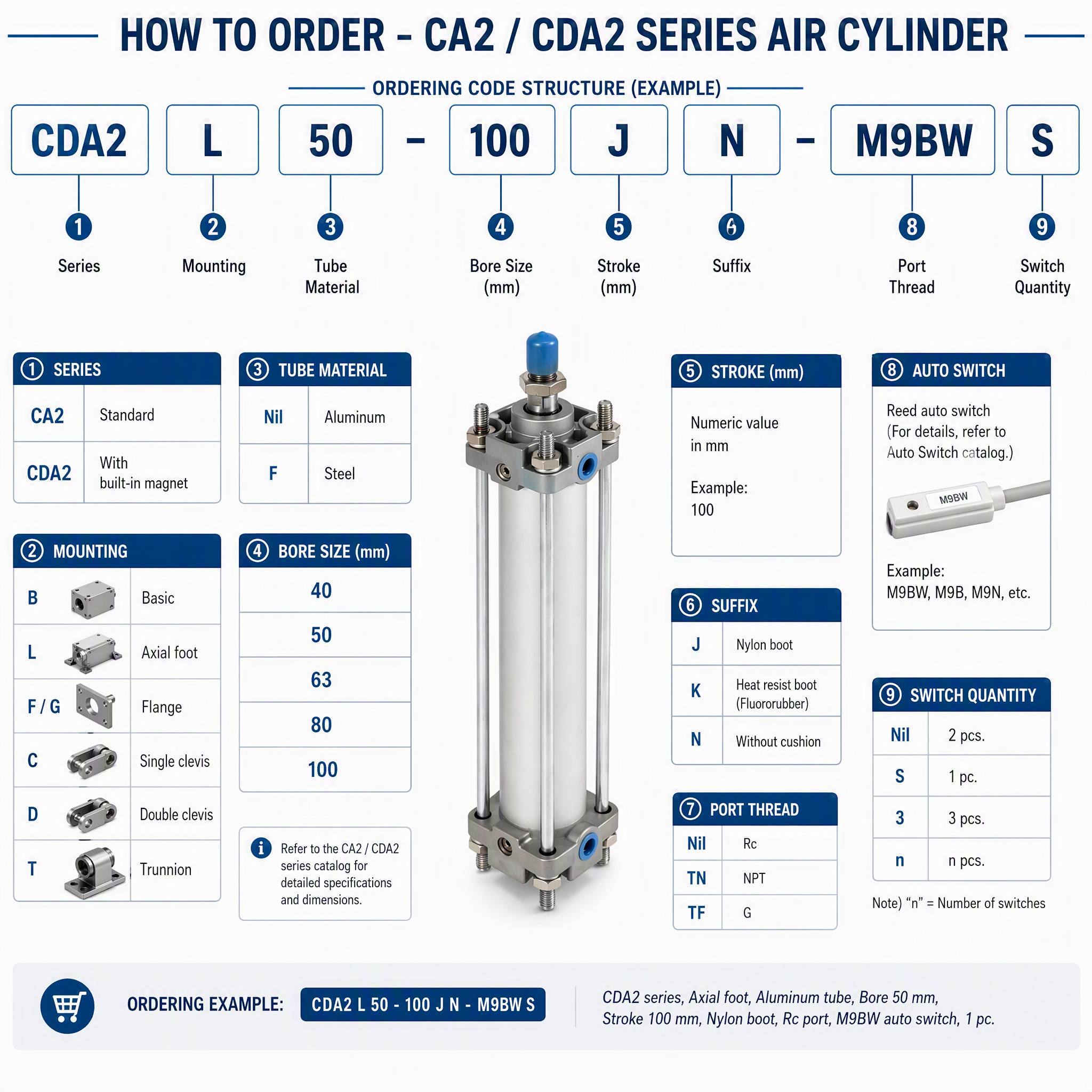

How to order

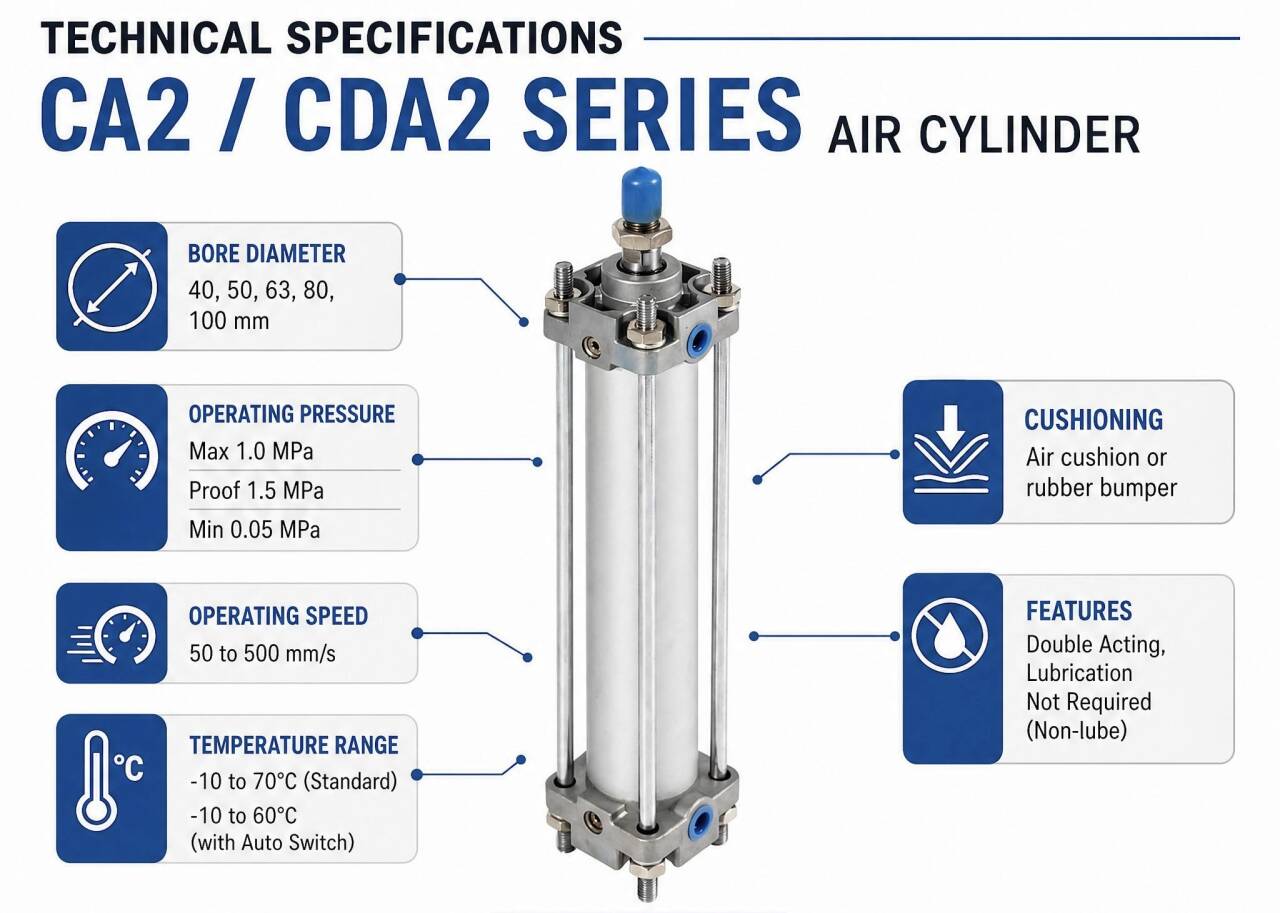

Specifications
Tube Internal Diameter (mm) | 40 | 50 | 63 | 80 | 100 | ||
Applicable fluids | Air | ||||||
Operating method | Double acting | ||||||
Proof pressure | 1.5 MPa | ||||||
Maximum operating pressure | 1.0 MPa | ||||||
Ambient temperature and working fluid temperature | Without auto switch: -10°C to 70°C° | ||||||
With auto switch: -10°C to 60°C | |||||||
Minimum operating pressure | 0.05 MPa | ||||||
Operating piston speed | 50 to 500 mm/s | ||||||
Cushioning | Air cushion or rubber bumper | ||||||
Lubrication | Not required (non-lube) | ||||||
Mounting style | Basic type, foot type, rod-end flange type, head-end flange type | ||||||
single clevis type, double clevis type, center trunnion type | |||||||
