| Quantity: | |
|---|---|
C55
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
C55 Series (Conforms to ISO 21287)
Filtered Compressed Air
Double Acting, Single Rod
20, 25, 32, 40, 50, 63, 80, 100
1.5 MPa
-10°C to 70°C (No freezing)
Not required (Non-lube)
+1.0 mm / 0 mm
Anodized Aluminum Alloy
Stainless Steel
Feature
1.Ultra-thin profile: Ideal for narrow and compact installation spaces
2.ISO standardized: Compatible with most pneumatic accessories
3.Double-acting operation: For reliable and responsive linear motion
4.Lightweight aluminum body: Reduces overall machine load
5.Versatile mounting options: Front, rear, and foot mounting available
6.Customizable stroke length: Based on application needs
7.Low friction seals: Ensure durability and smooth motion
8.Widely applicable: Electronics, packaging, testing equipment, etc.

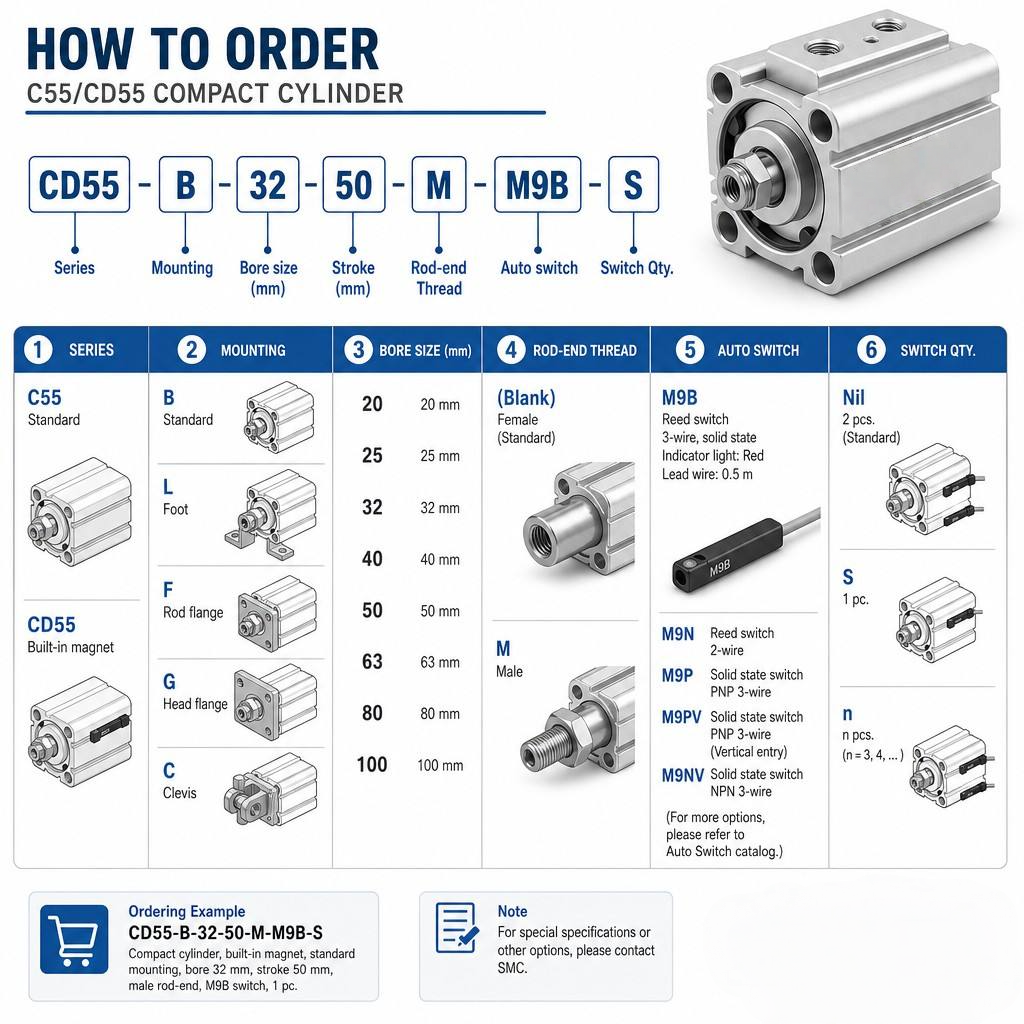

How to order
Dimension
Bore Size (mm) | Acting Type | Working Medium | Pressure Range (MPa) | Max Pressure (MPa) | Working Temperature (°C) | Cushion Type | Stroke Range (mm) | Port Size |
20 | Double Acting | Filtered Air | 0.1–1.0 | 1.5 | –20 to +70 | Rubber Cushion | 5 – 100 | M5×0.8 |
25 | M5×0.8 | |||||||
32 | 1/8" | |||||||
40 | 1/8" | |||||||
50 | 1/4" | |||||||
63 | 1/4" | |||||||
80 | 3/8" | |||||||
100 | 3/8" |
Specification
Item | Specification |
Product Series | C55 Series (Conforms to ISO 21287) |
Fluid | Filtered Compressed Air |
Action | Double Acting, Single Rod |
Bore Size (mm) | 20, 25, 32, 40, 50, 63, 80, 100 |
Proof Pressure | 1.5 MPa |
Max. Operating Pressure | 1.0 MPa |
Min. Operating Pressure | 0.05 MPa (Ø20-63), 0.03 MPa (Ø80-100) |
Max. Operating Pressure | -10°C to 70°C (No freezing) |
Lubrication | Not required (Non-lube) |
Cushion Type | Rubber bumper (Standard) / Air cushion (Optional) |
Stroke Tolerance | +1.0 mm / 0 mm |
Port Size | M5x0.8 (Ø20-25), G1/8 (Ø32-100) |
Body Material | Anodized Aluminum Alloy |
Piston Rod Material | Stainless Steel |
