Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0

Availability:
Quantity:
  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 M Per Month

  • PUH-B

  • 100m

  • XHnotion

  • Plastic Film Box Reel

  • UL94-V0

  • China

  • 3917290000

  • -20 - 80

  • 0-10 Bar

  • Polyurethane (Inner) + Retardant Synthetic Materia

  • Air

  • Round

  • Welding

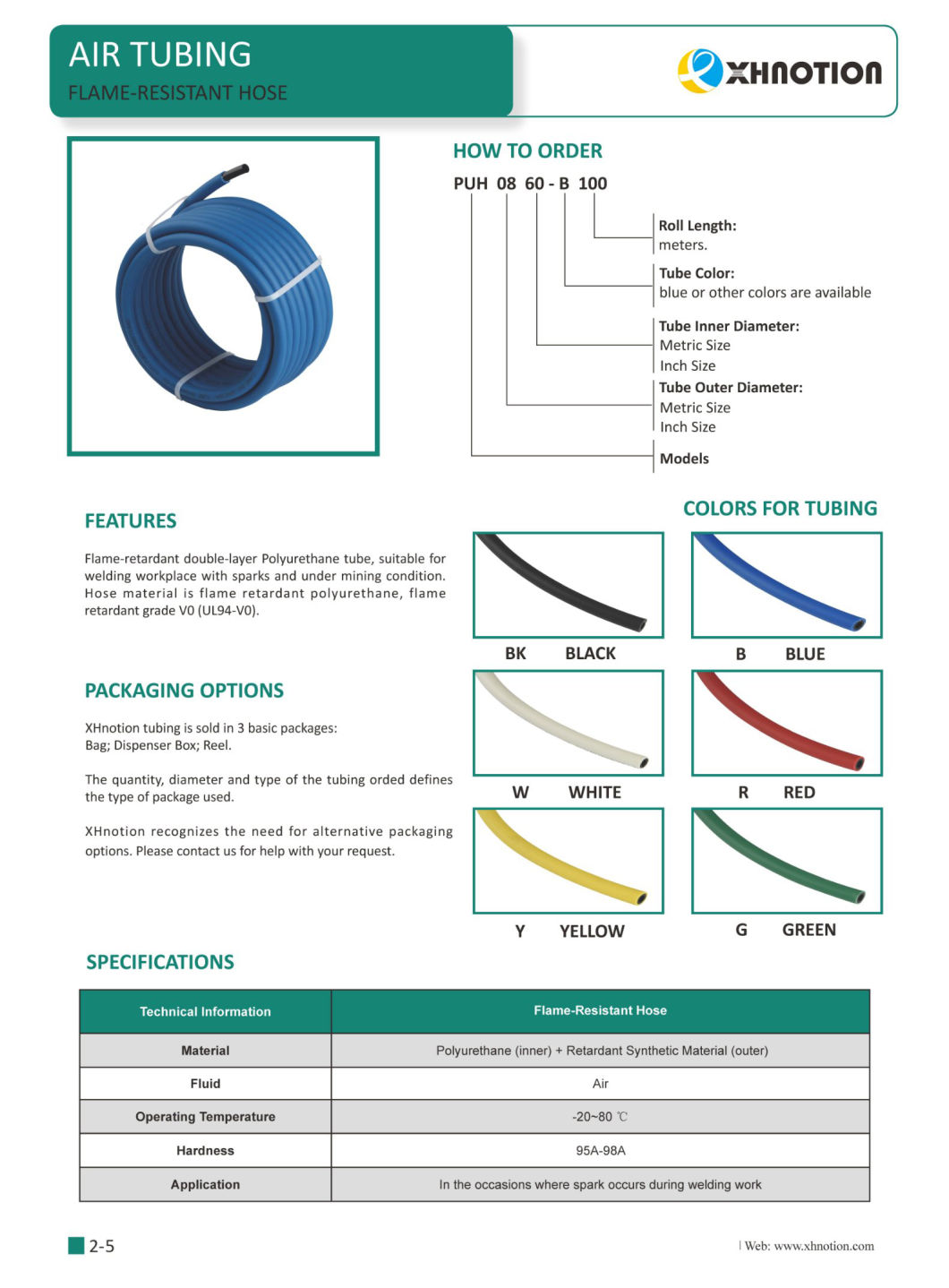

Product Description

FEATURES

Product name Flame-Resistant Hose
Fluid Air
Color Black Blue Yellow Red Green White
Material Polyurethane (inner) + Retardant Synthetic Material (outer)
Working pressure 0-10bar
Bursting pressure 0-20bar
Temperature -20 -80
Hardness 95A-98A
Application In the occasions where spark occurs during welding work
Packing Plastic Film Box Reel
MOQ 2000 Meters

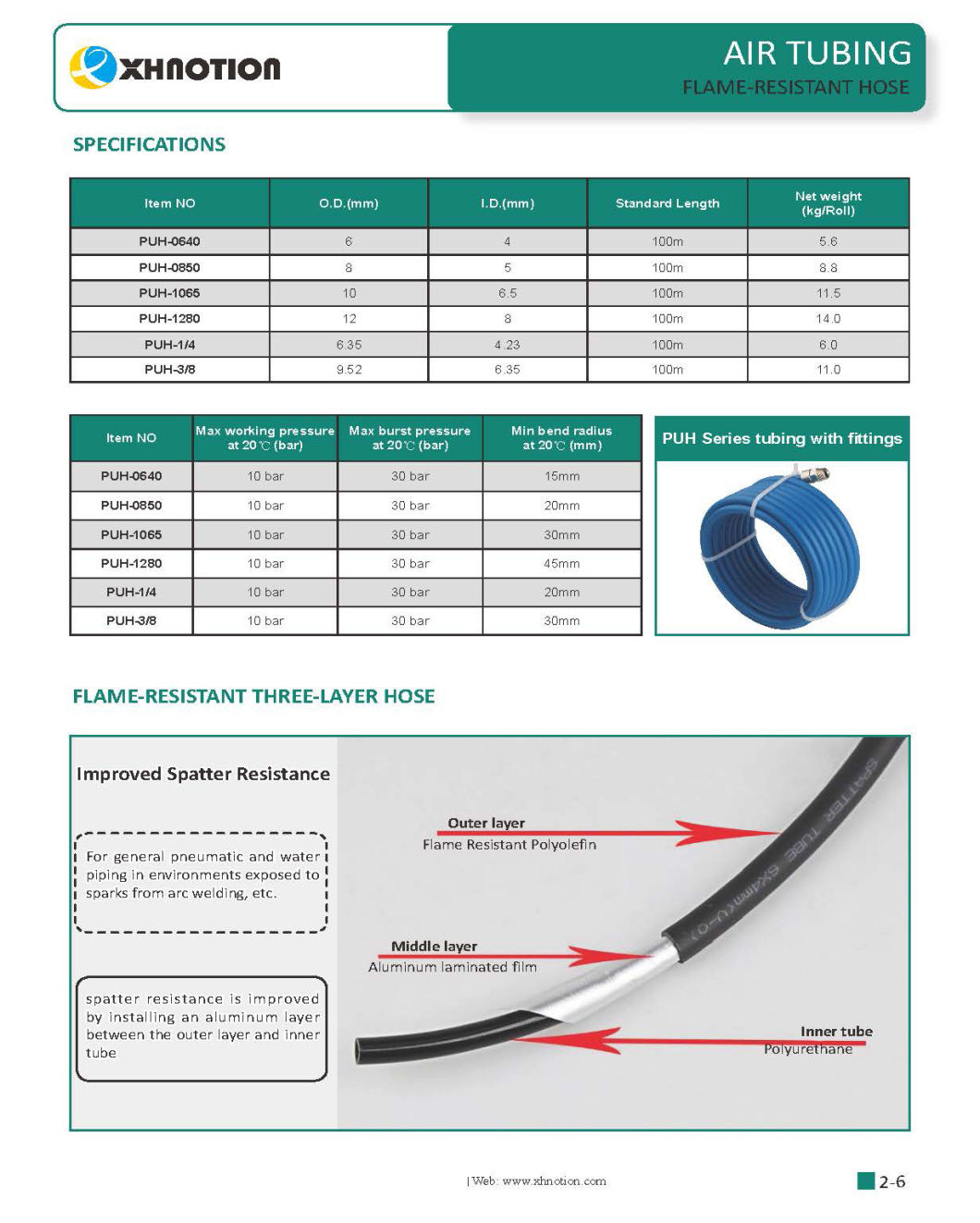

SPECIFICATIONS

Metric Size O.D.(mm) I.D.(mm) Total Length per Roll (meter) Max working pressure
at 20ºC (bar)
Max burst pressure
at 20ºC (bar)
Min bend radius
at 20ºC (mm)
PUH0640 6 4 100 10bar 30bar 15mm
PUH0850 8 5 100 10bar 30bar 20mm
PUH1065 10 6.5 100 10bar 30bar 30mm
PUH1280 12 8 100 10bar 30bar 45mm
PUH 1/4 6.35 4.23 100 10bar 30bar 20mm
PUH 3/8 9.52 6.35 100 10bar 30bar 30mm




Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0



Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0


TUBE ADVANTAGE

1) Polyurethane (inner) + Retardant Synthetic Material (outer)

2) Enough meters per roll and can mark meter on the tube as you request.

3) Print your logo above 3000 meter each size.

4) Conform to REACH, CE, ROHS certificate

5) Rich stock for every size and regular color.

6) One year quality assurance after shipment.

7) After-sales technique support



WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will answer within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

Our Factory                                                    Our Workshop

Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0         Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0

Our Package                                                  Our Warehouse


Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0         Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0

 XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below item
pneumatic fittings, plastic, brass, stainless steel push in fittings pneumatic quick coupling, air tool kits, air blow gun pneumatic muffler,
silencer, filter air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
 Solenoid control valve for water, air, diesel, oil, air cylinder, air preparation, pneumatic directional valve modular hose, water push in fitting.


Exhibition
                                                                                         2015
                                                                       PTC EXPO IN SHANGHA

Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0

                                                                                       2016
                                                             AIR-TECH EXPO IN BIRMINGHAM
Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0


                                                                                   2017
                                                               AAPEX EXPO IN LAS VEGAS

Blue Flame Resistant Hose Anti-Spark Tubing Grade UL94-V0


FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
